Fuel Tank ASSY: Components

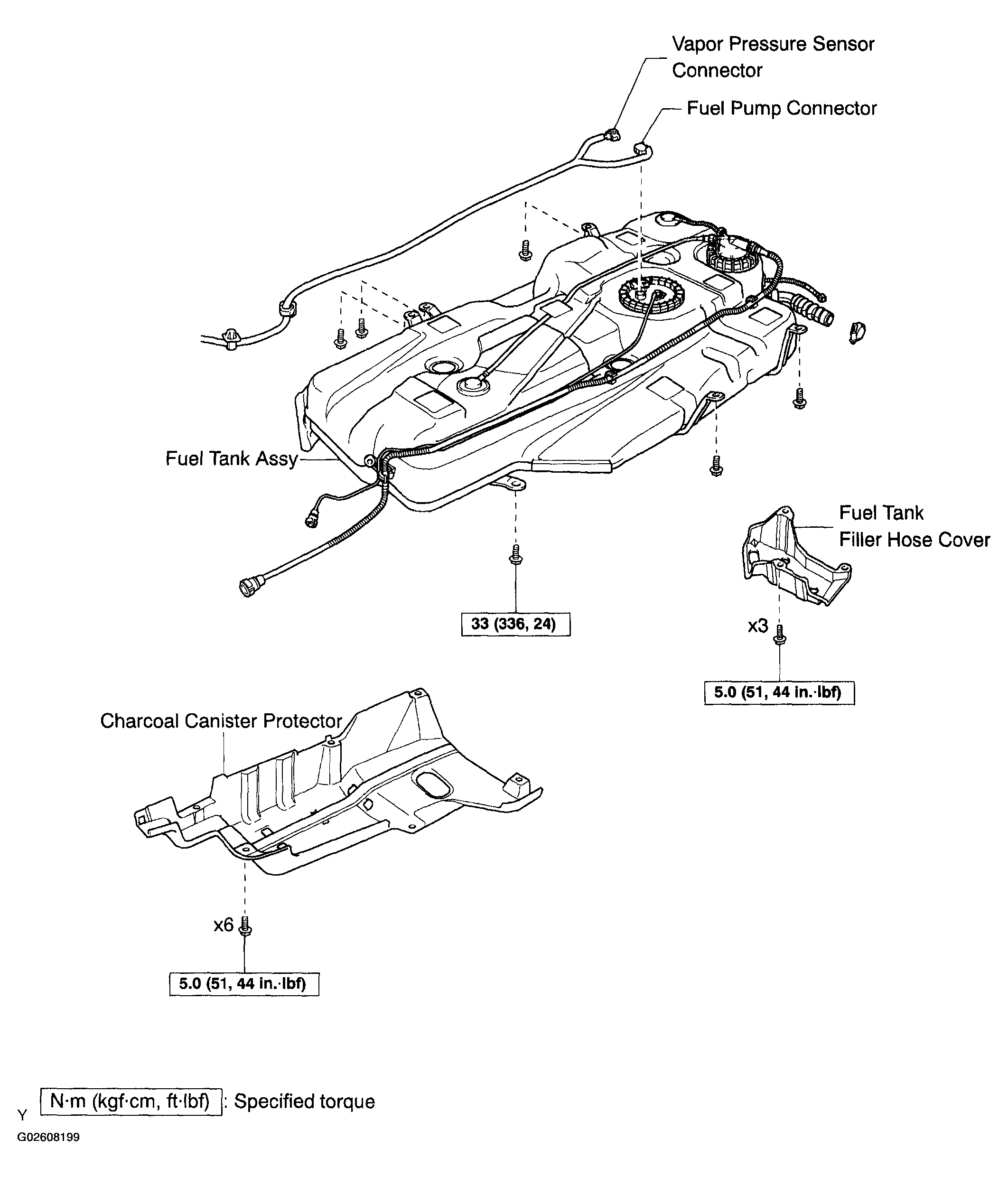

Fig 1: Identifying Fuel Tank Assy Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

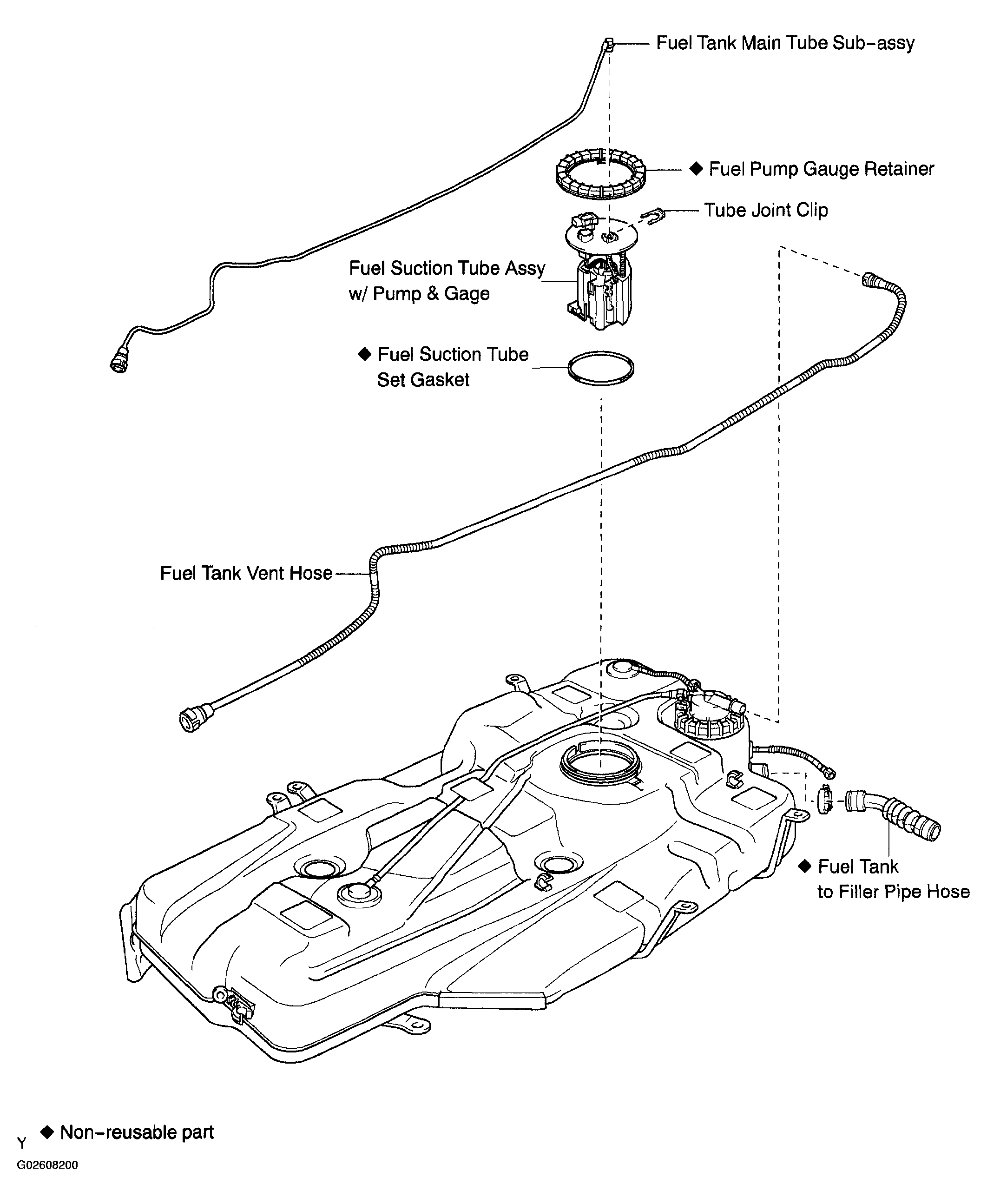

Fig 2: Identifying Fuel Tank Assy Replacement Components With Torque Specifications (2 Of 2)
