Engine Mechanical: Preparation: SST

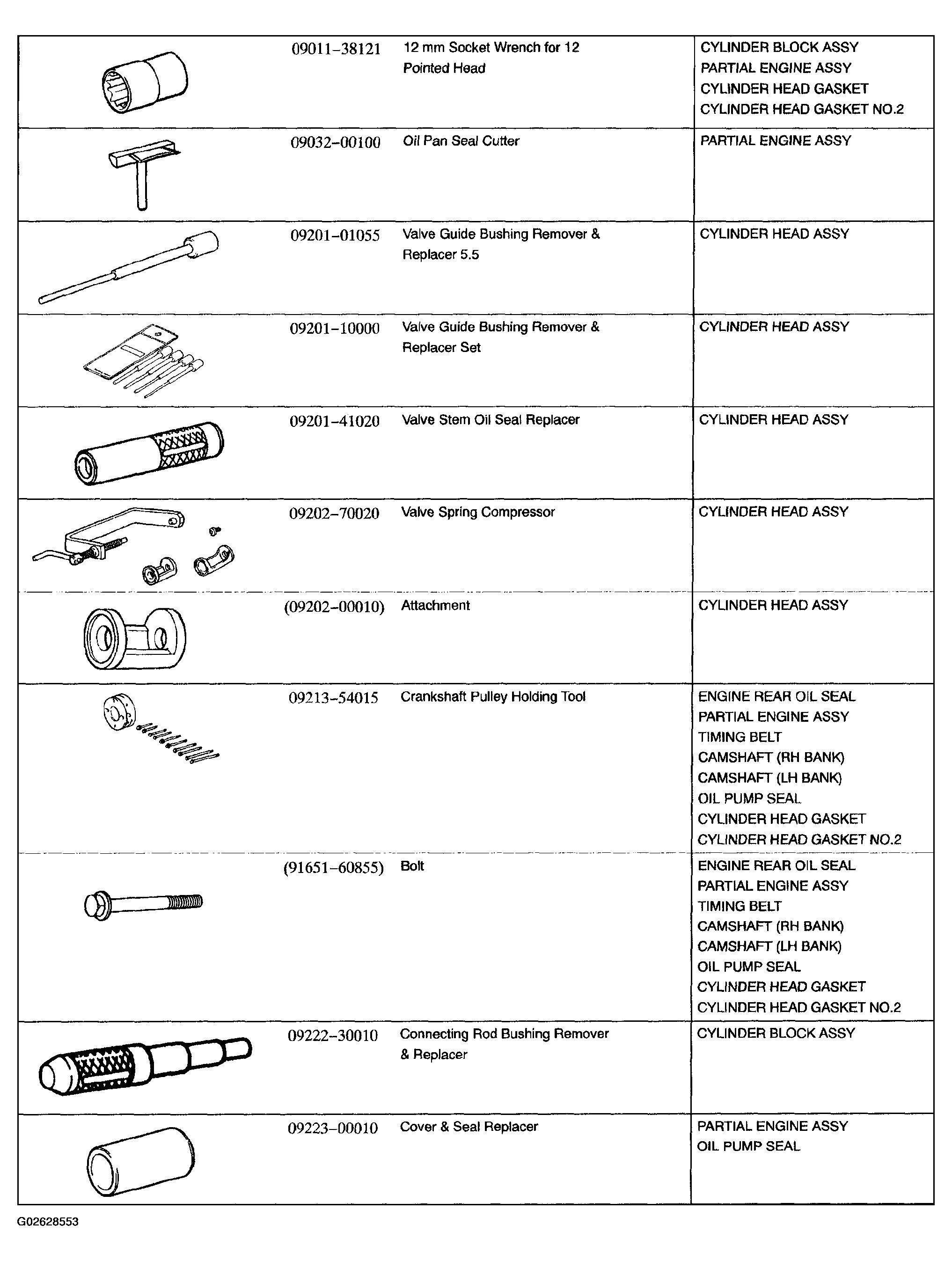

Fig 1: Engine Mechanical - SST Tool Table (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

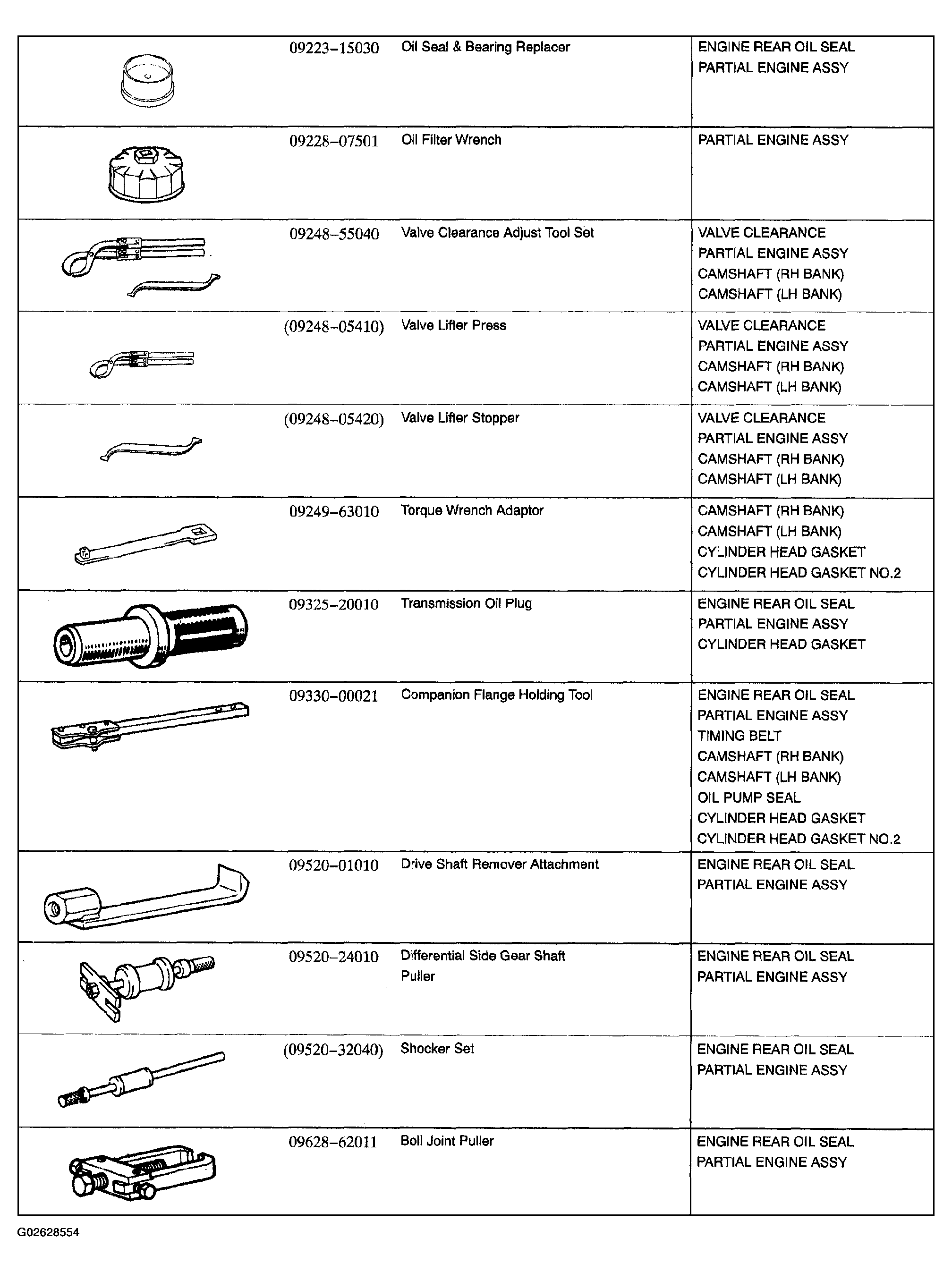

Fig 2: Engine Mechanical - SST Tool Table (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

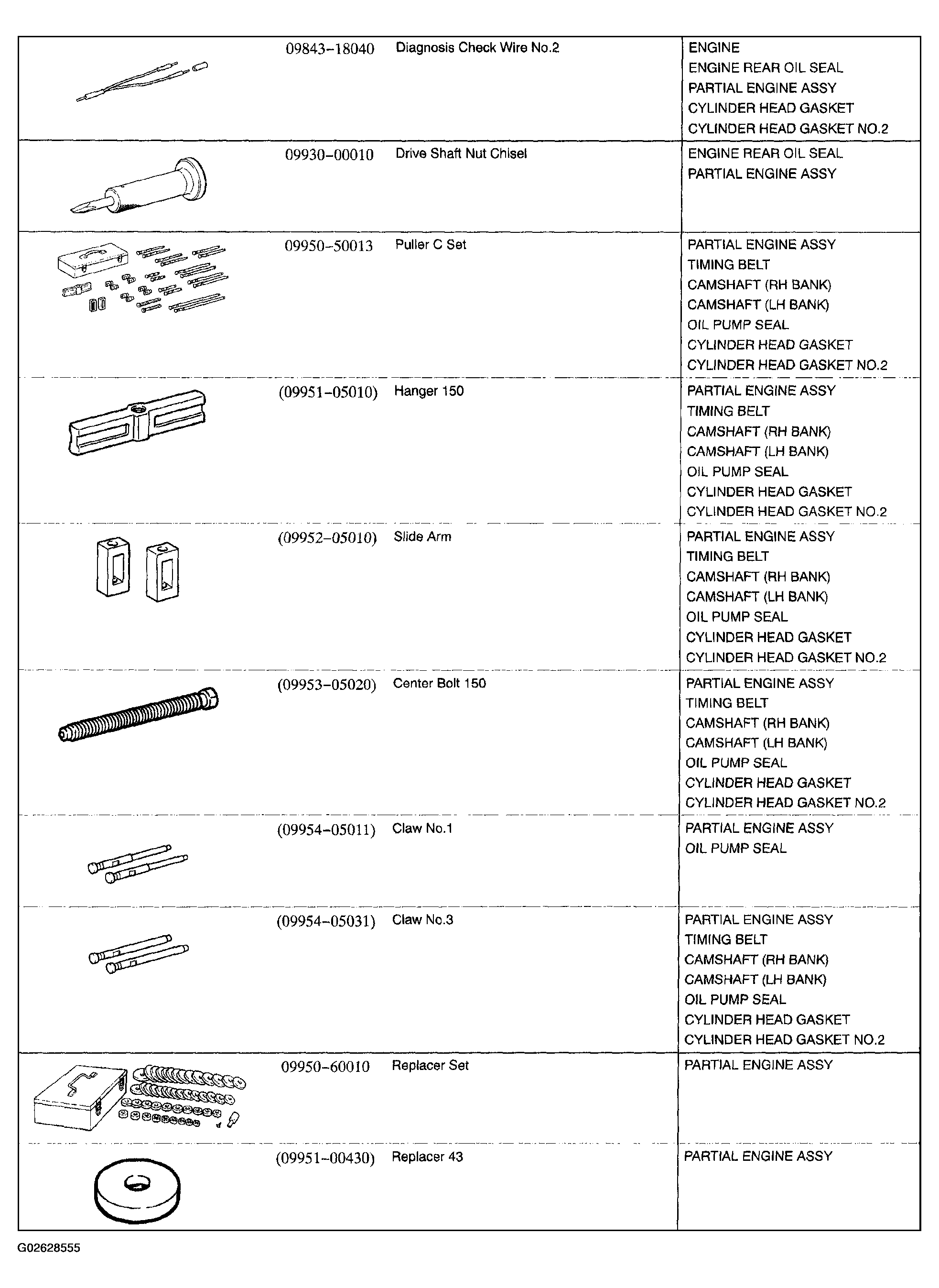

Fig 3: Engine Mechanical - SST Tool Table (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

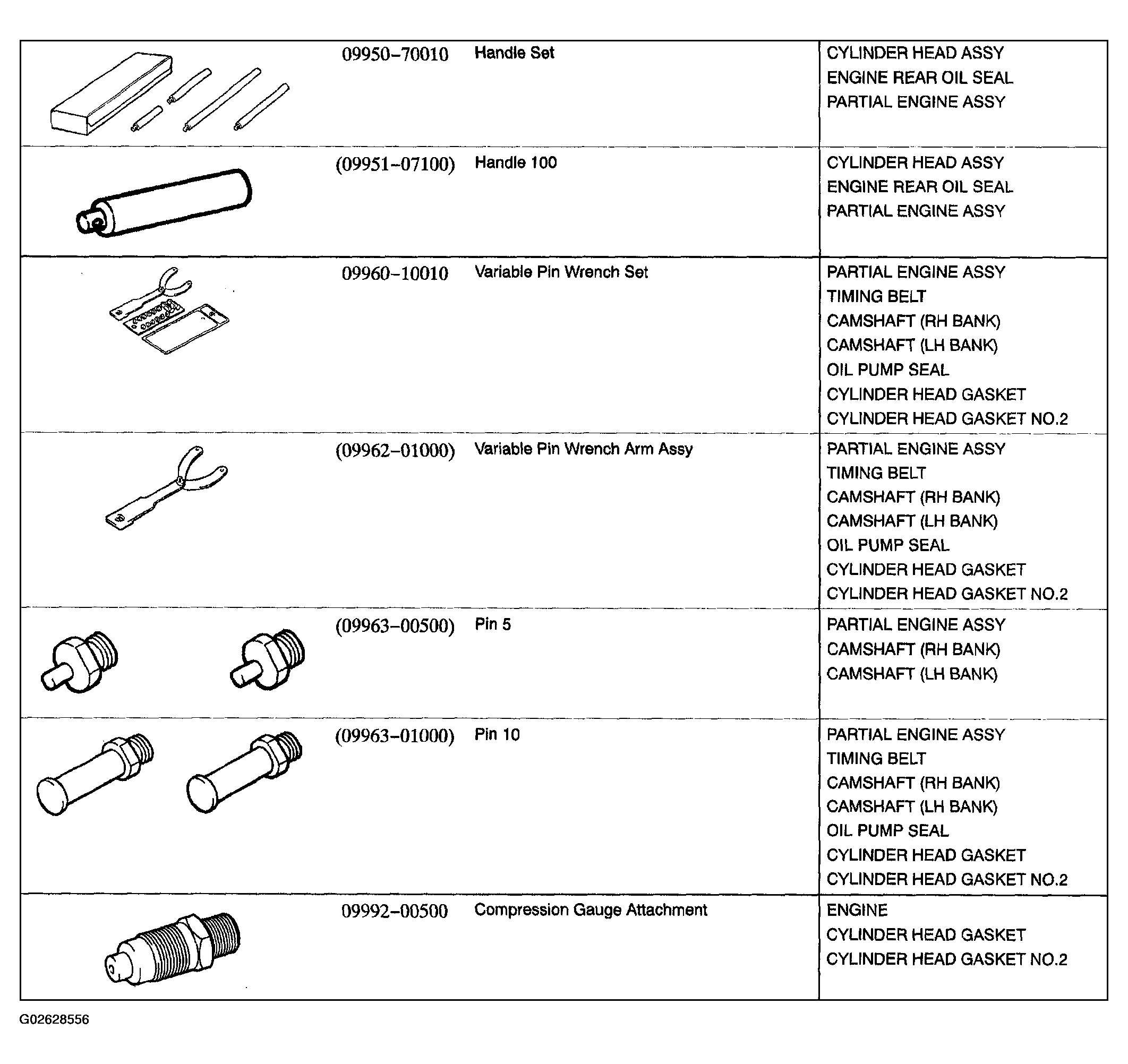

Fig 4: Engine Mechanical - SST Tool Table (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
