Power Window Control System (Diagnostics)
›
Manual Up/Down Function Does Not Operate On Driver Side
›
Wiring Diagram
Manual Up/Down Function Does Not Operate On Driver Side: Wiring Diagram

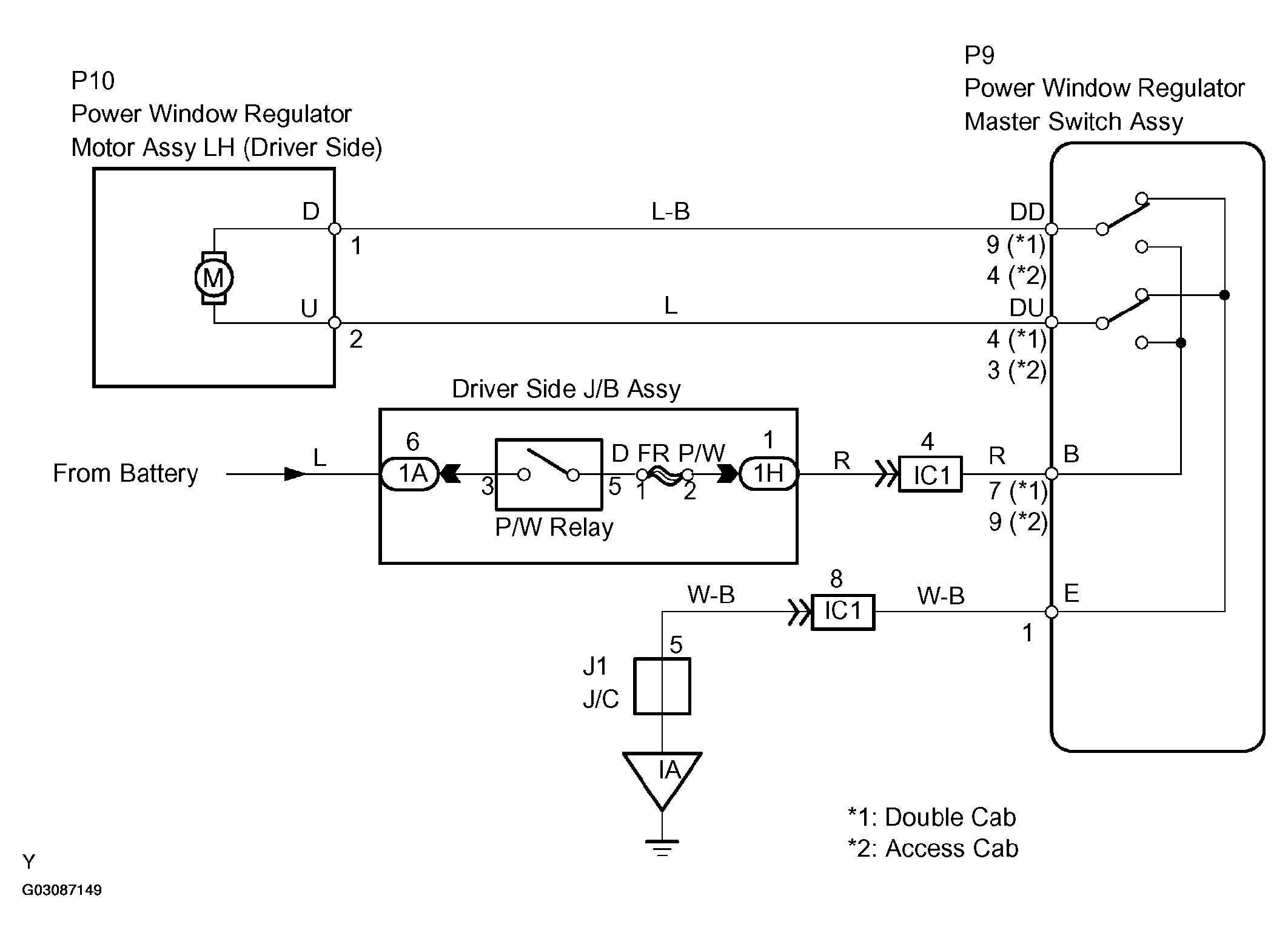

Fig 1: Manual UP/DOWN Function Does Not Operate On Driver Side - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
