System Diagram

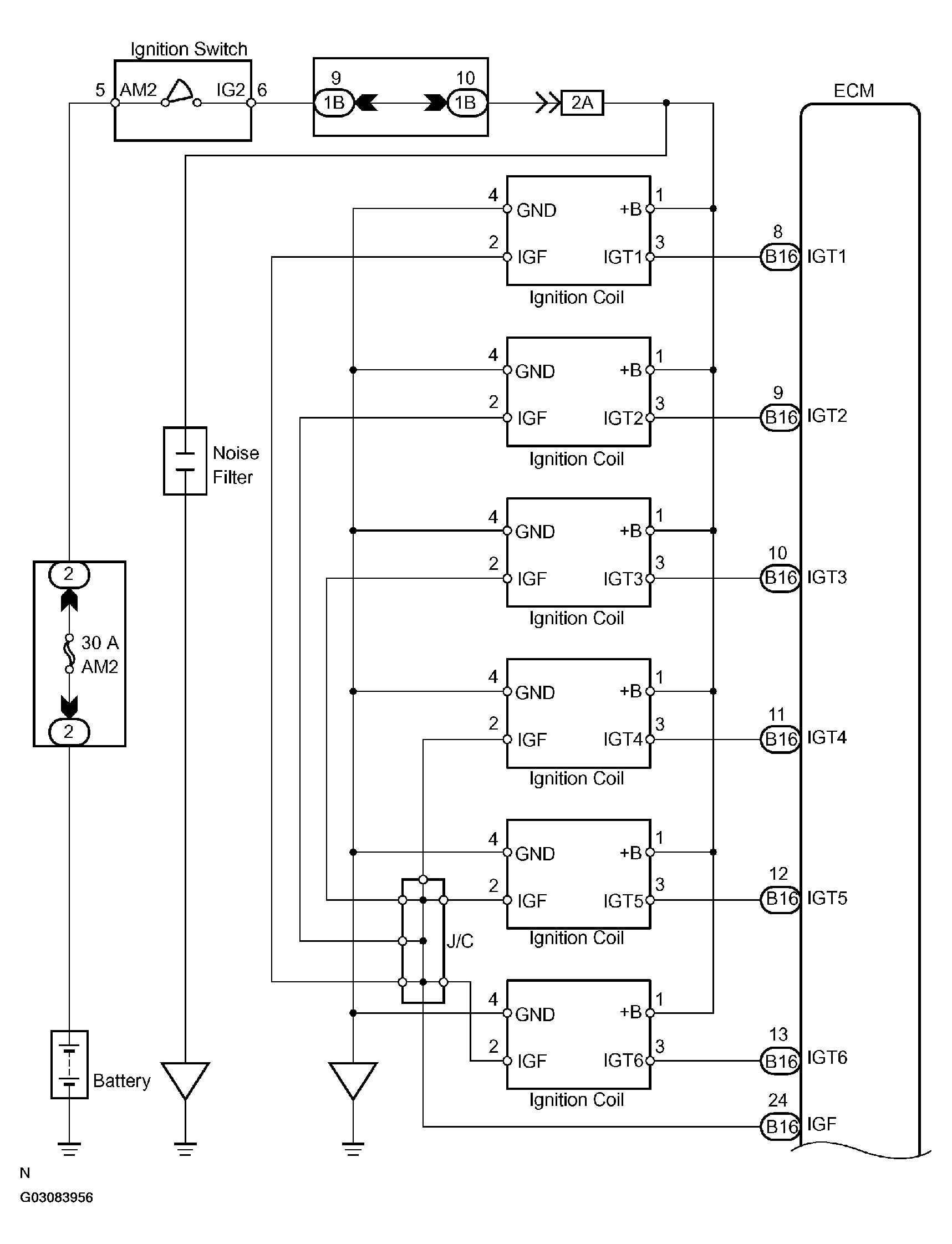

Fig 1: Ignition System (1GR-FE) System Diagram (1 Of 2)
G03083956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

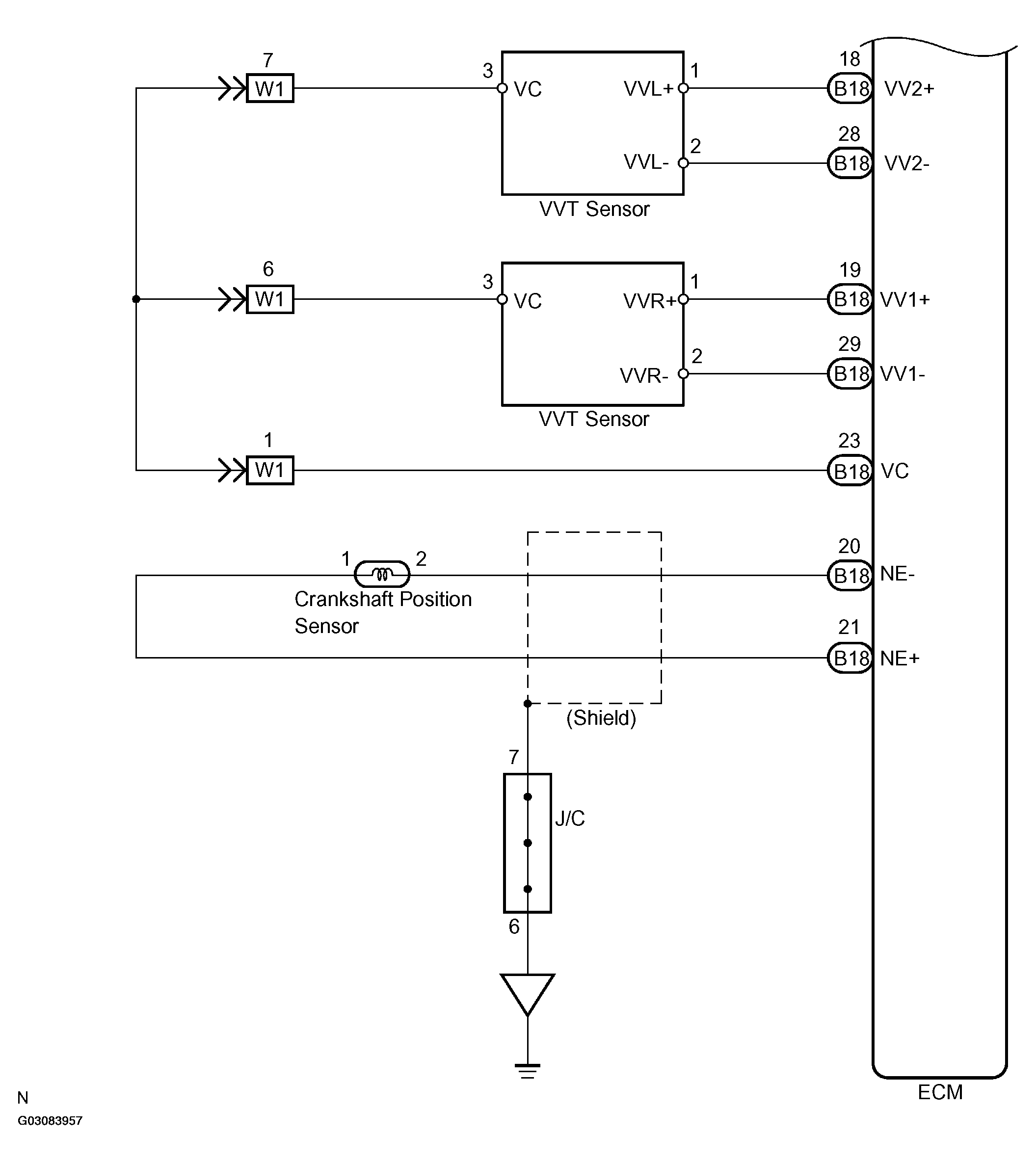

Fig 2: Ignition System (1GR-FE) System Diagram (2 Of 2)
G03083957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
