Engine Mechanical: SST — 2005 Toyota Tacoma PreRunner, 2D Pickup Service Manual ~ FixVault

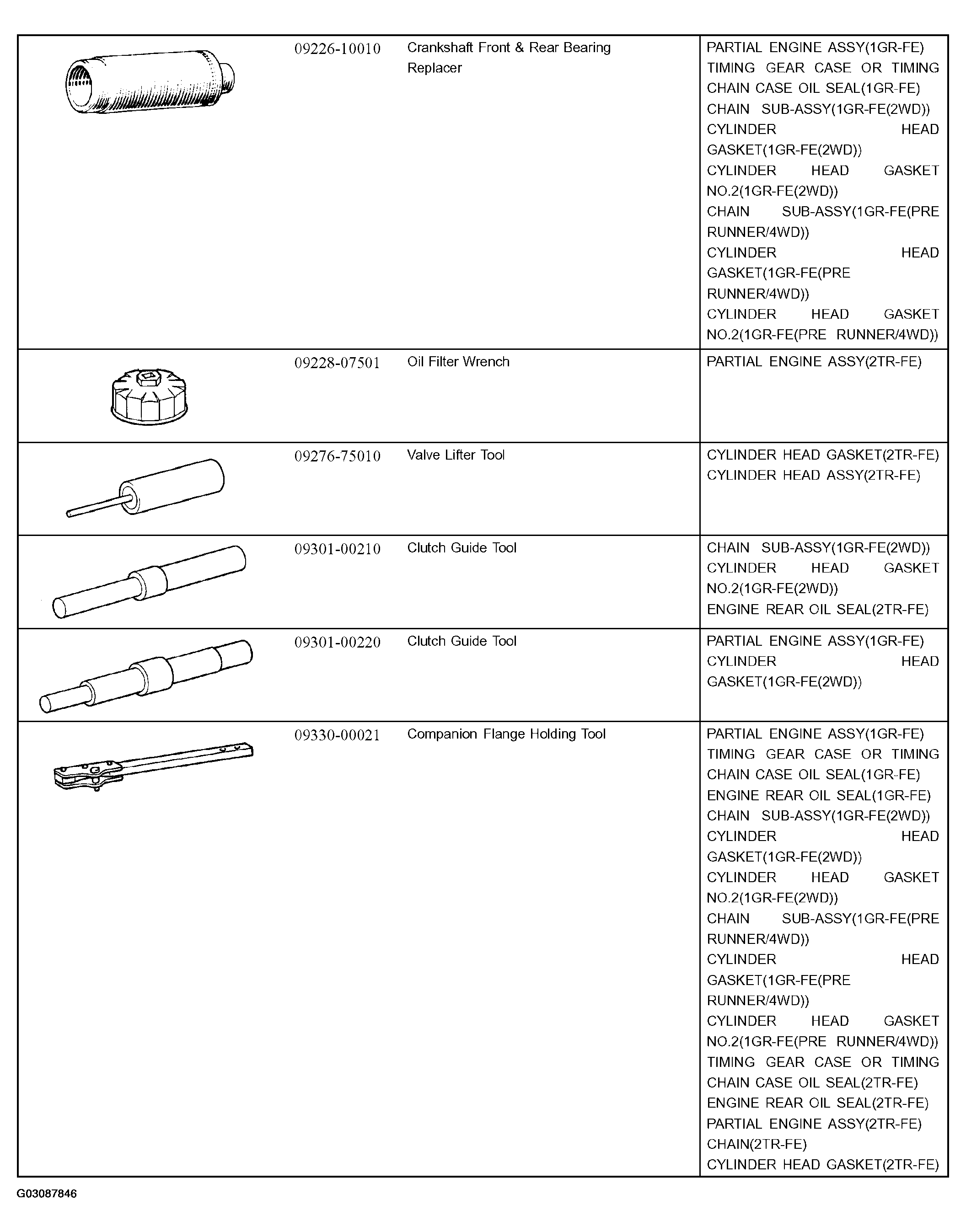

Fig 1: SST Specification Chart (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

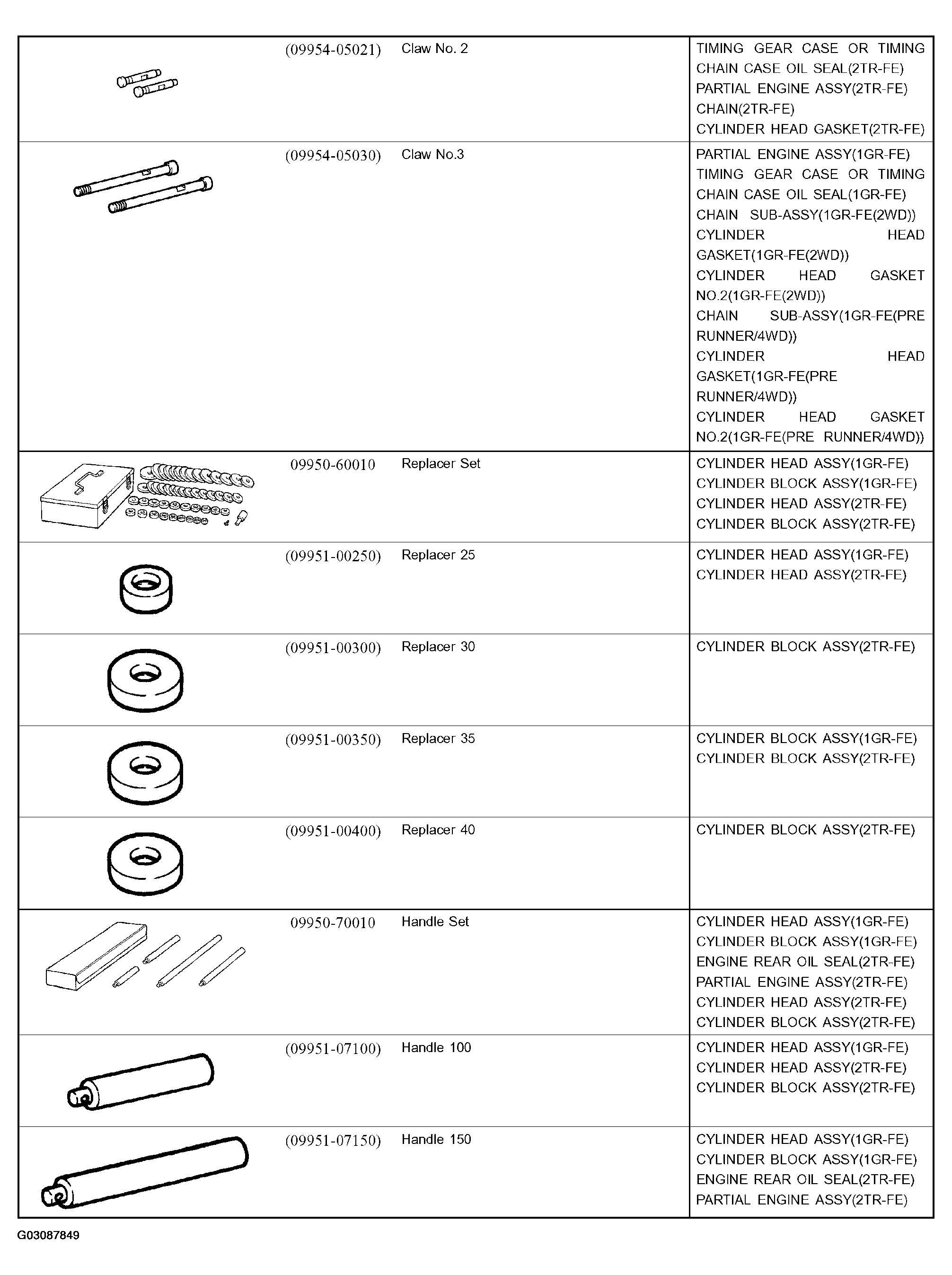

Fig 2: SST Specification Chart (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

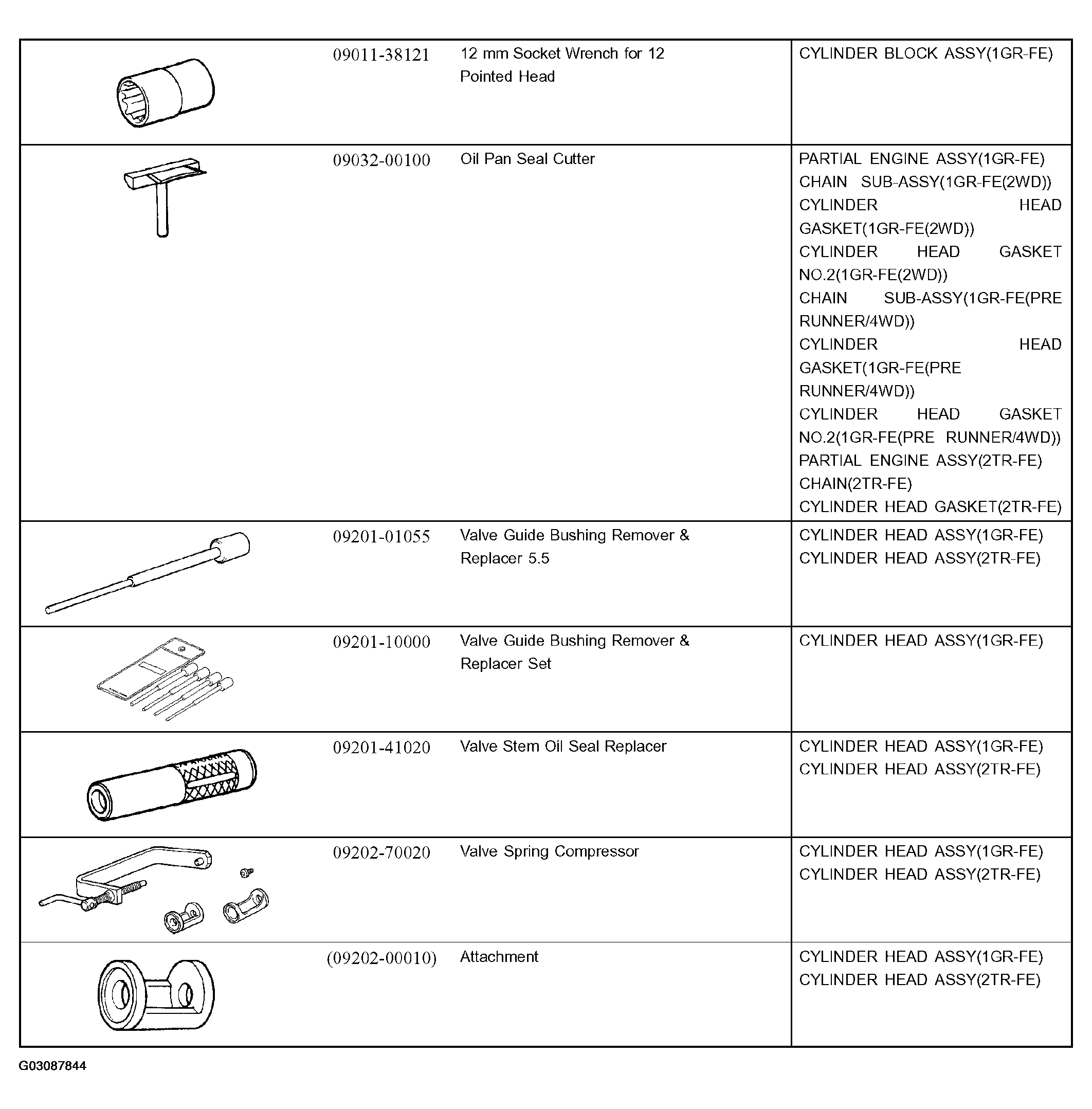

Fig 3: SST Specification Chart (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

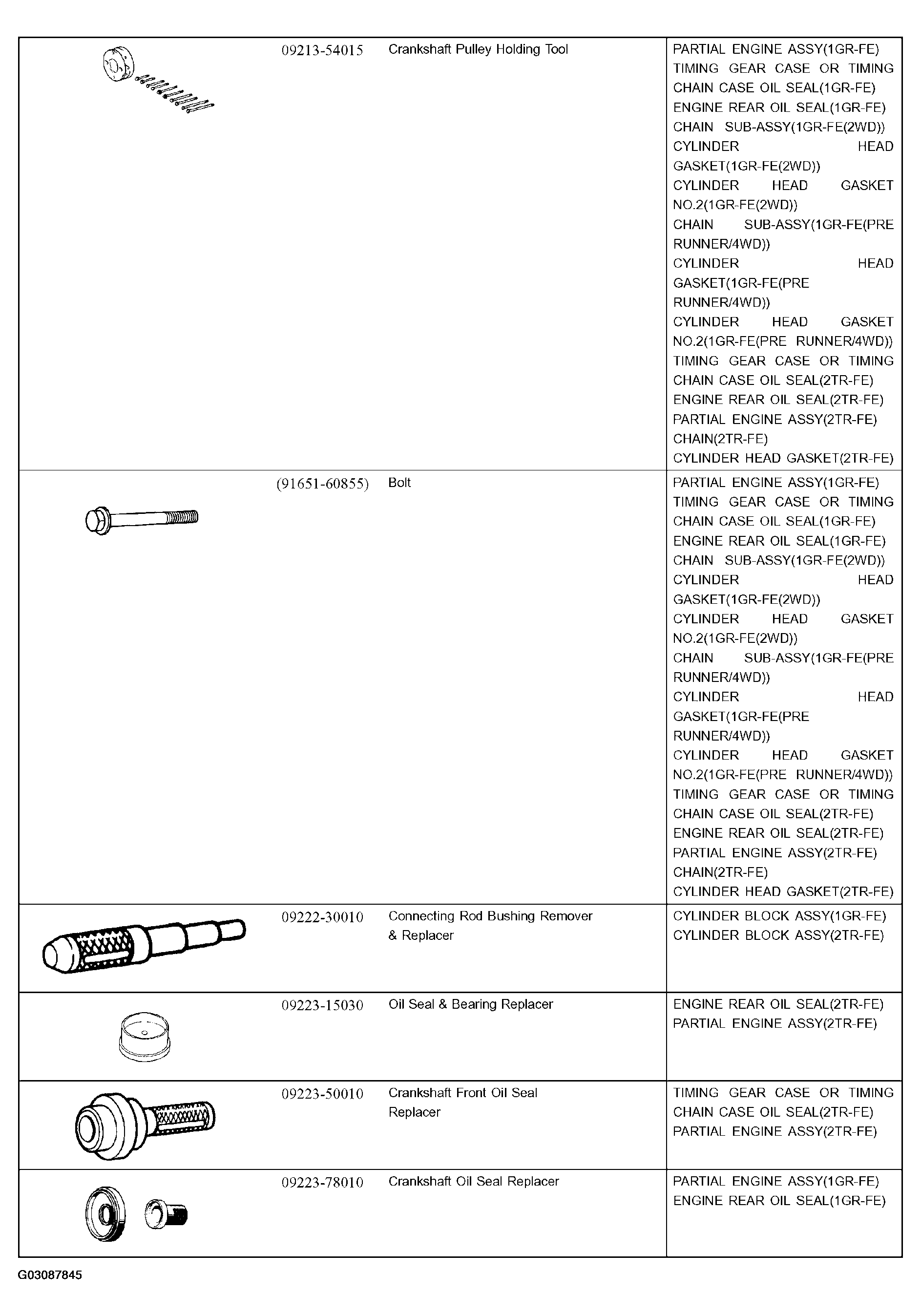

Fig 4: SST Specification Chart (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

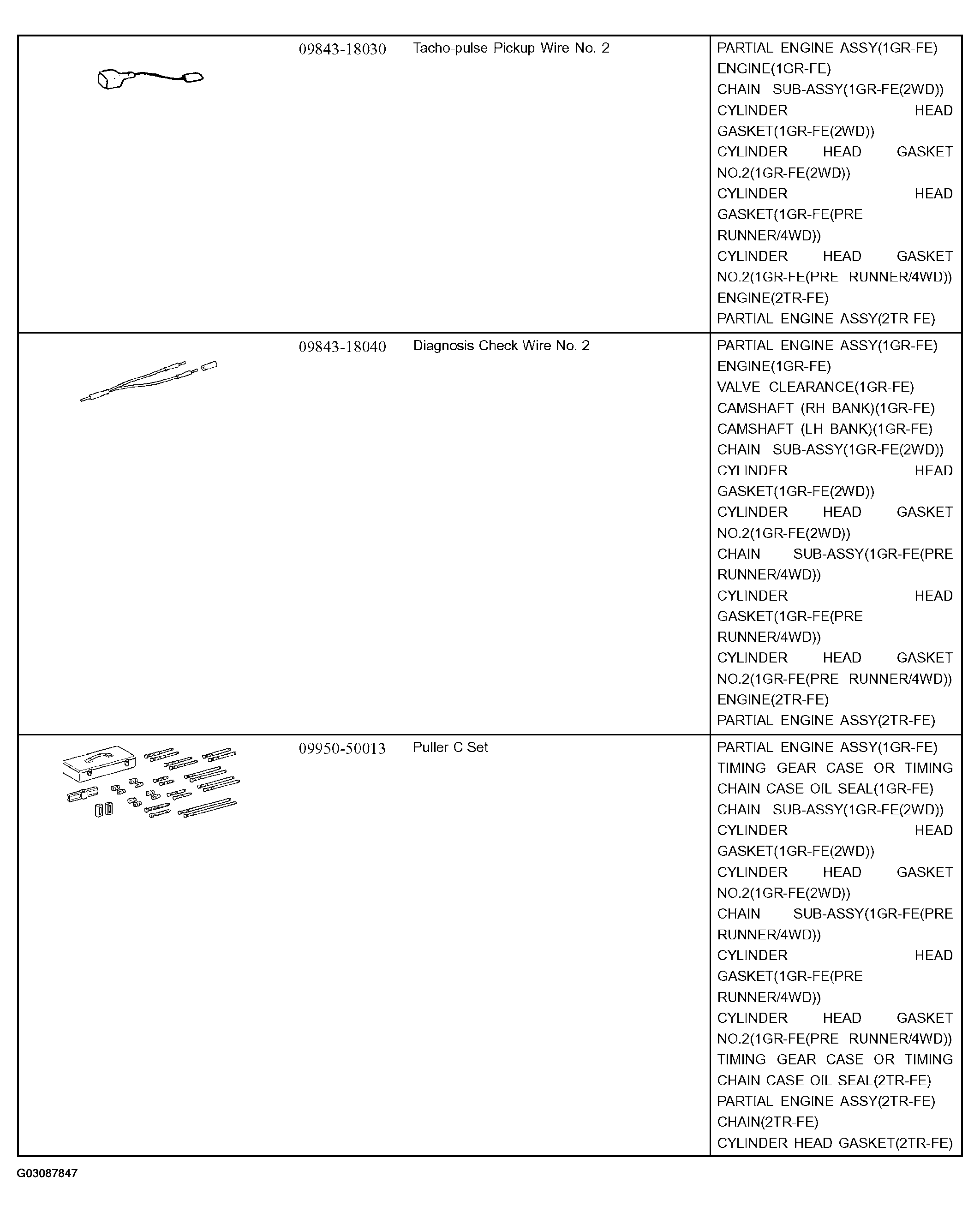

Fig 5: SST Specification Chart (5 Of 7)

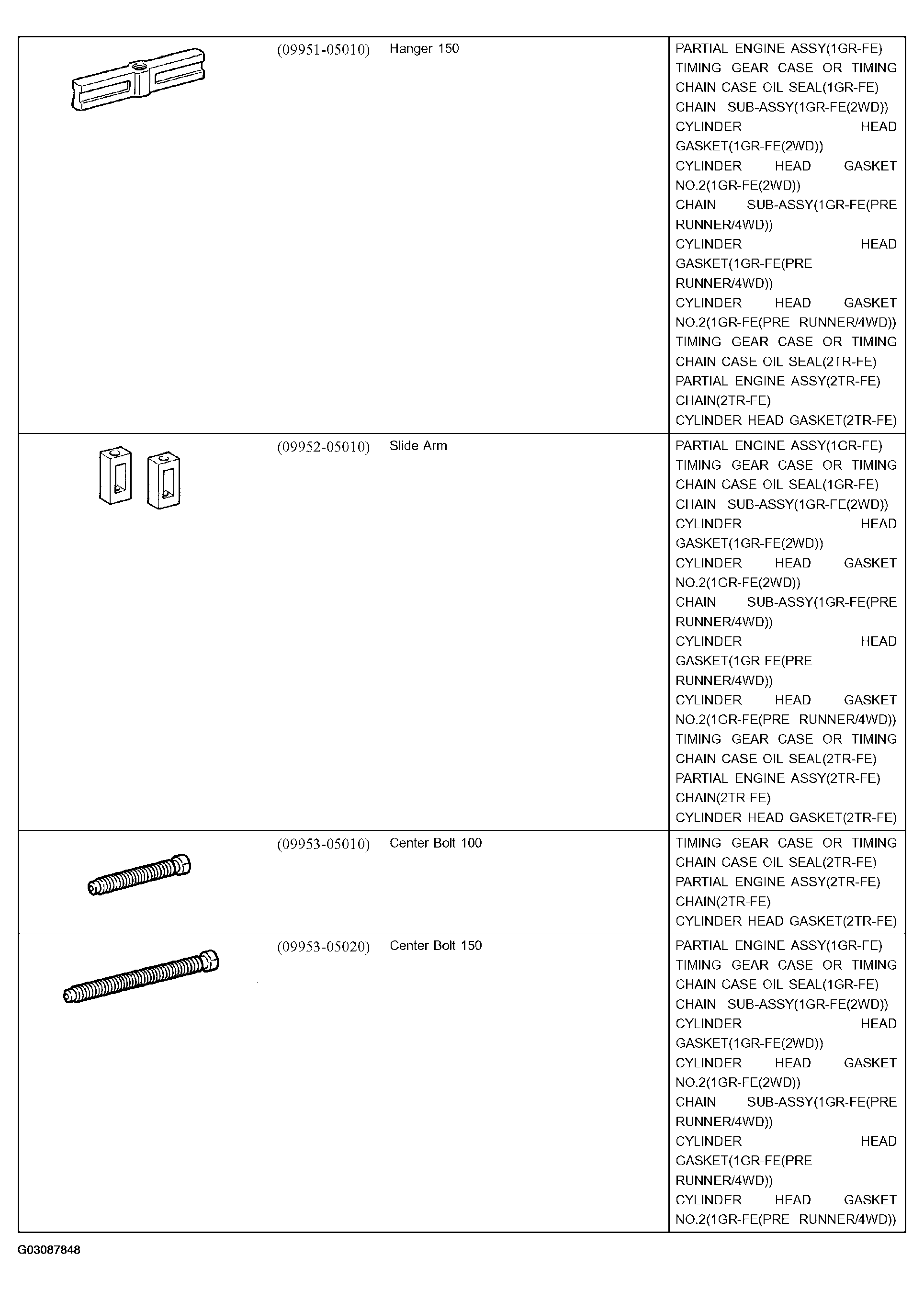

Fig 6: SST Specification Chart (6 Of 7)

Fig 7: SST Specification Chart (7 Of 7)
