Fuel Injector ASSY (1GR-FE): Components

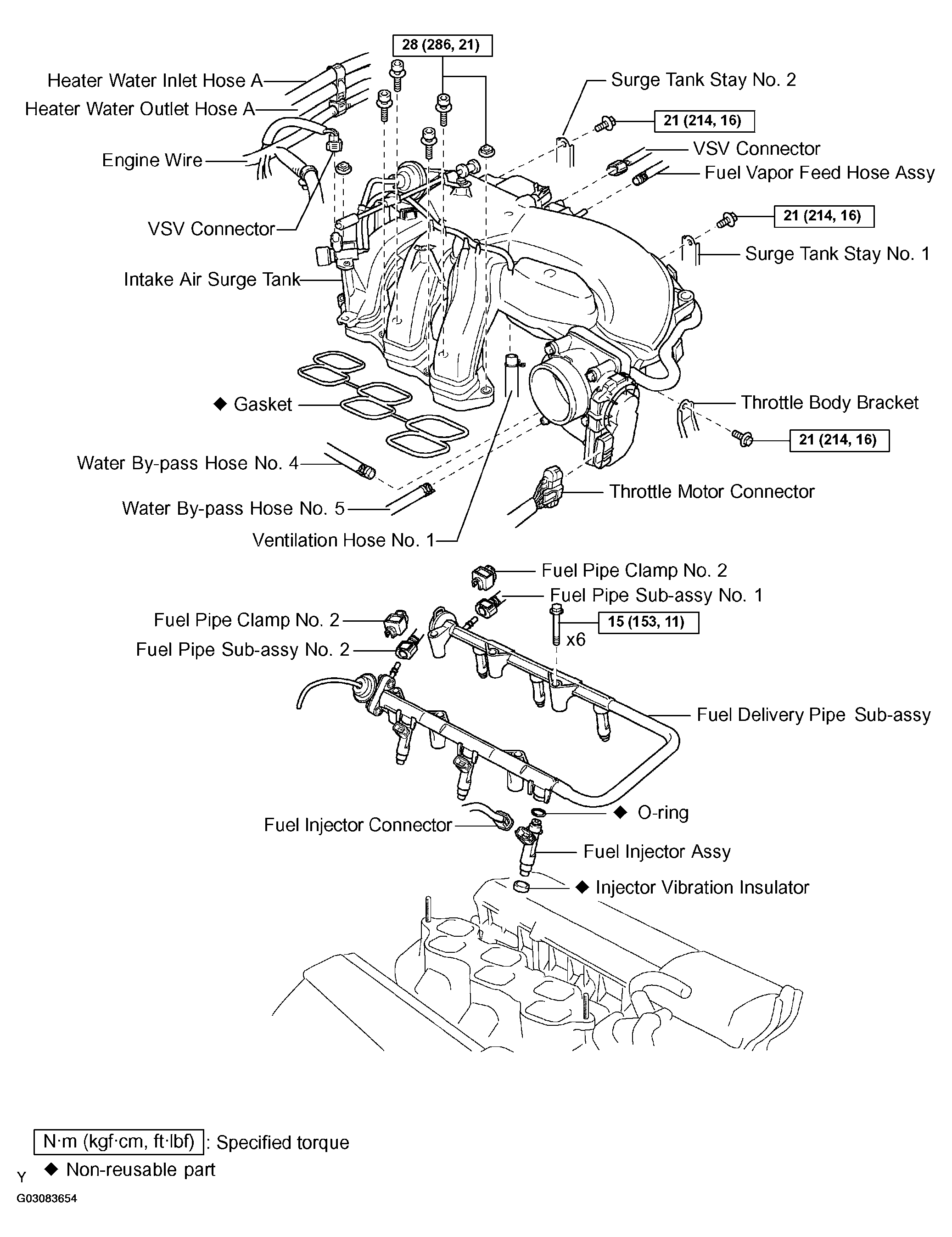

Fig 1: Fuel Injector Assy (1GR-FE) Replacement Components & Torque Specification (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Fuel Injector Assy (1GR-FE) Replacement Components & Torque Specification (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
