Fuel System (1GR-FE)
›
System Diagram
System Diagram

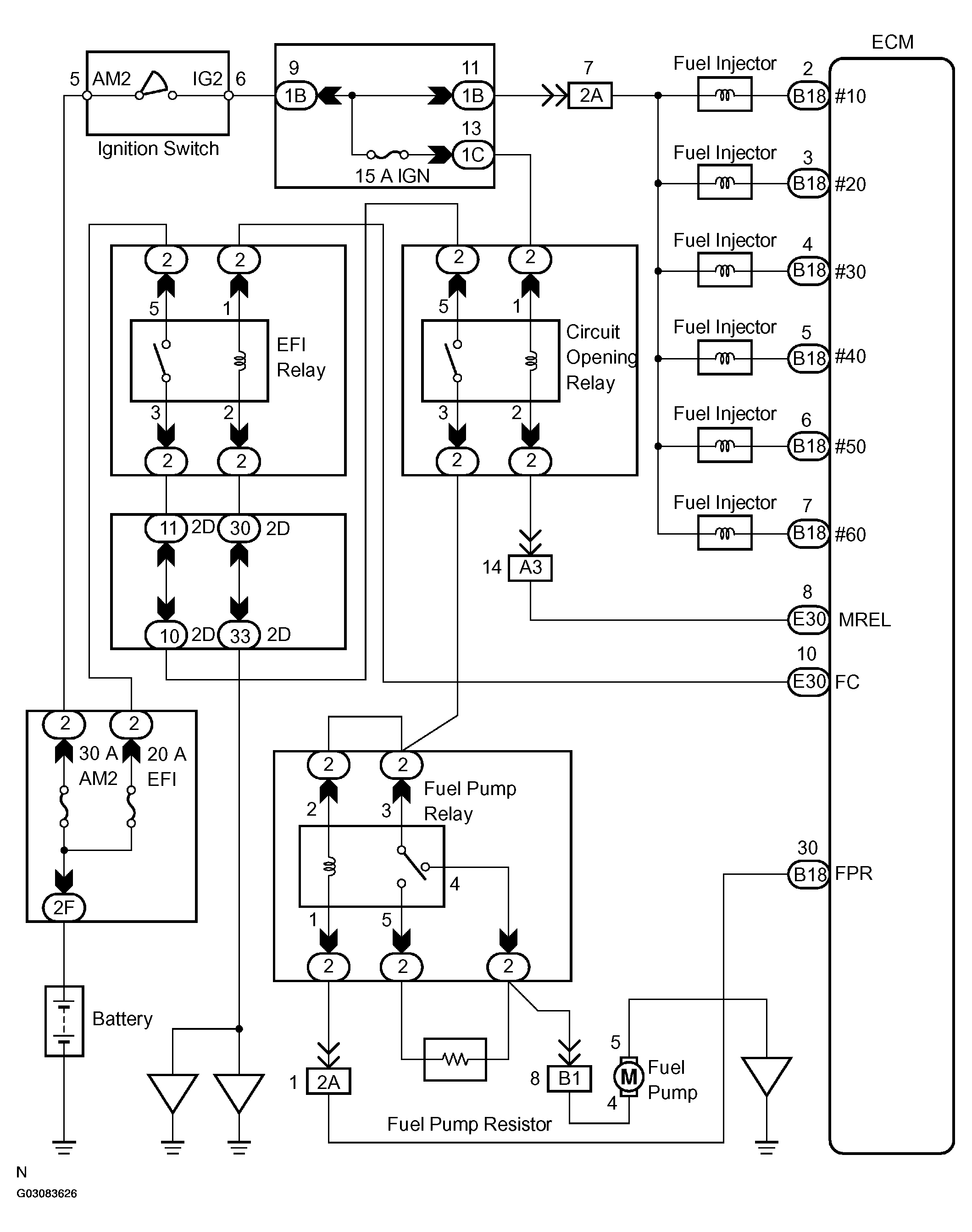

Fig 1: Fuel System (1GR-FE) System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
