Knock Control Sensor, Intake Manifold (2TR-FE): Components

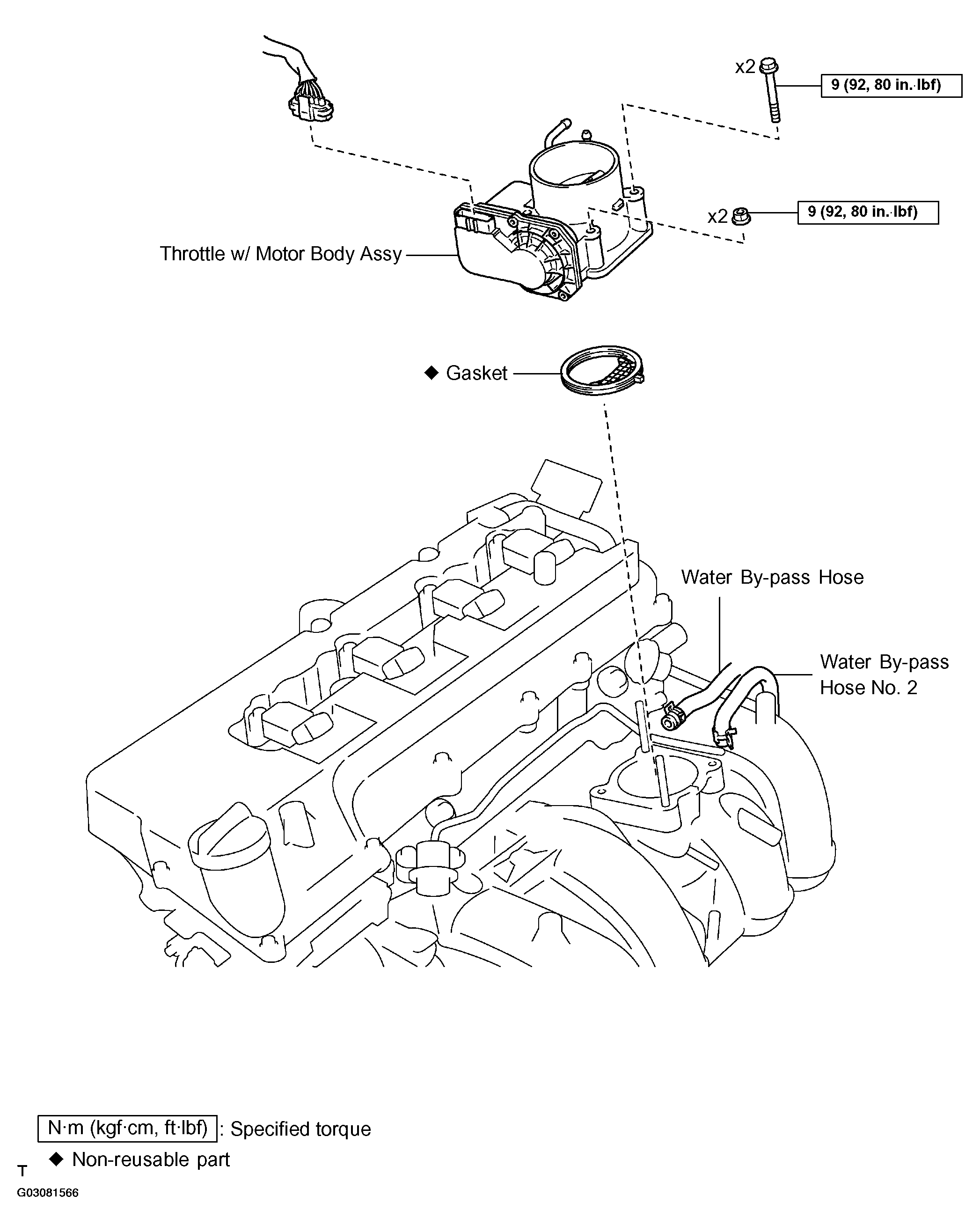

Fig 1: Knock Control Sensor (2TR-FE) Replacement Components & Torque Specification (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Knock Control Sensor (2TR-FE) Replacement Components & Torque Specification (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Knock Control Sensor (2TR-FE) Replacement Components & Torque Specification (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
