System Diagram

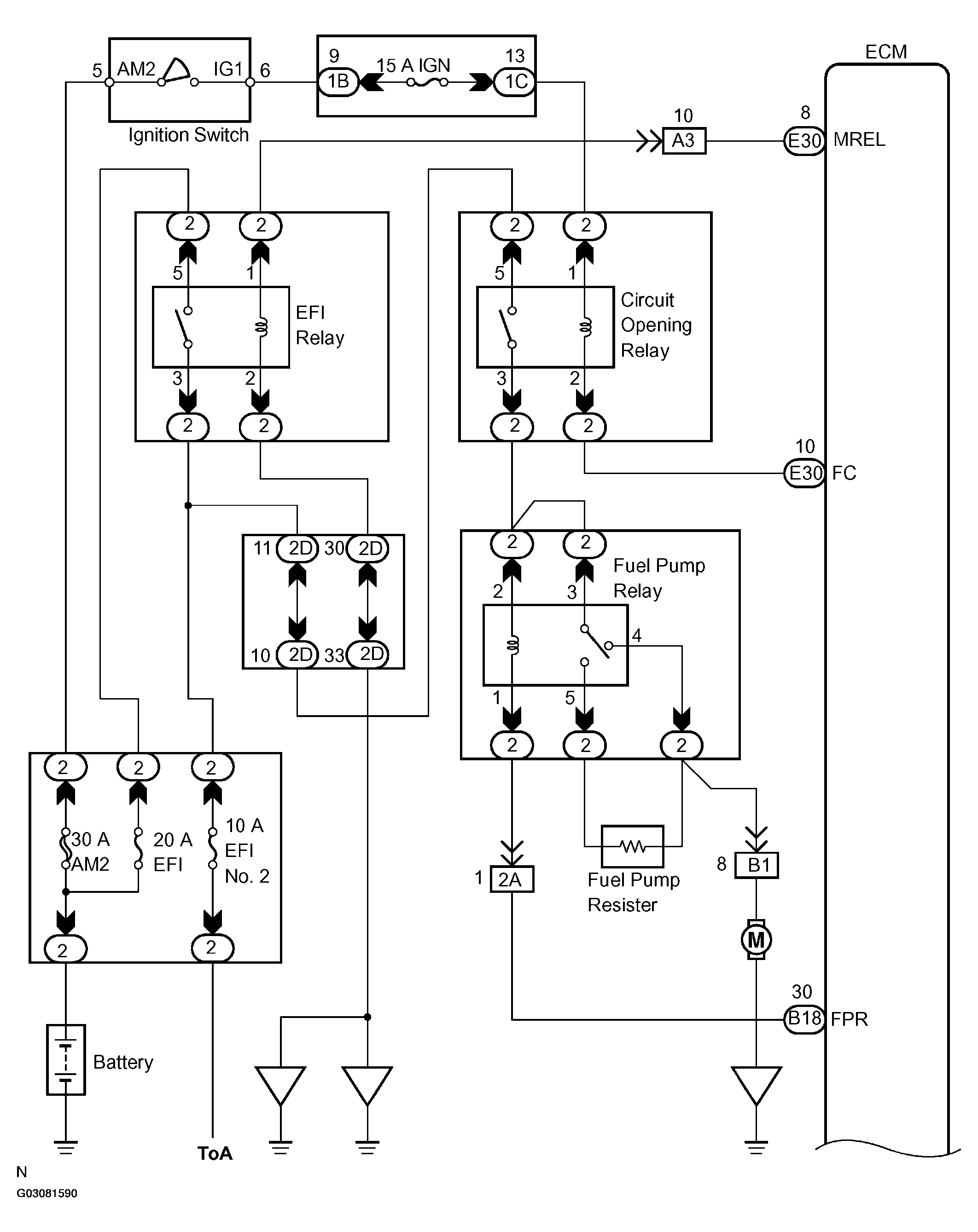

Fig 1: SFI System (1GR-FE) System Diagram (1 Of 4)
G03081590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

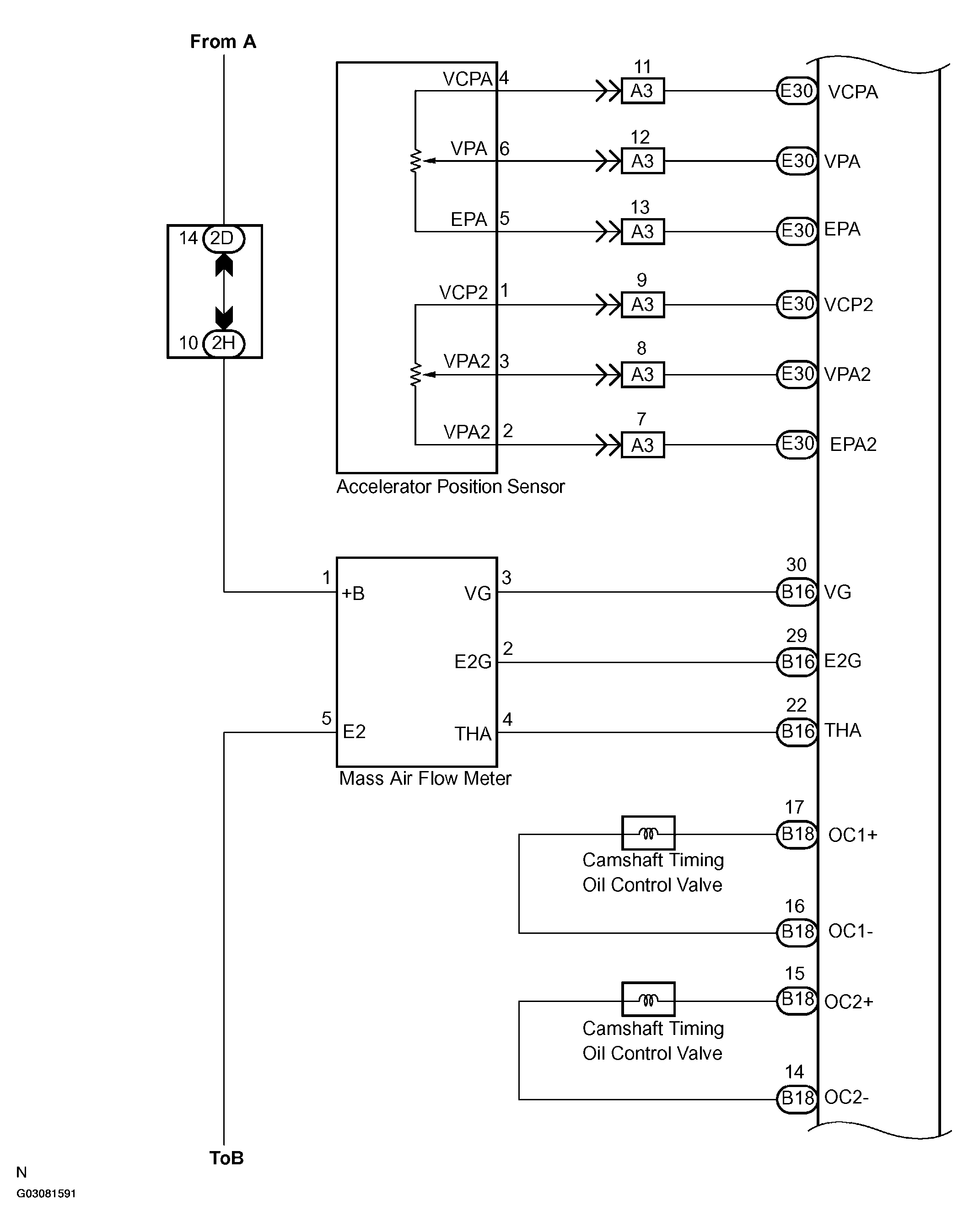

Fig 2: SFI System (1GR-FE) System Diagram (2 Of 4)
G03081591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

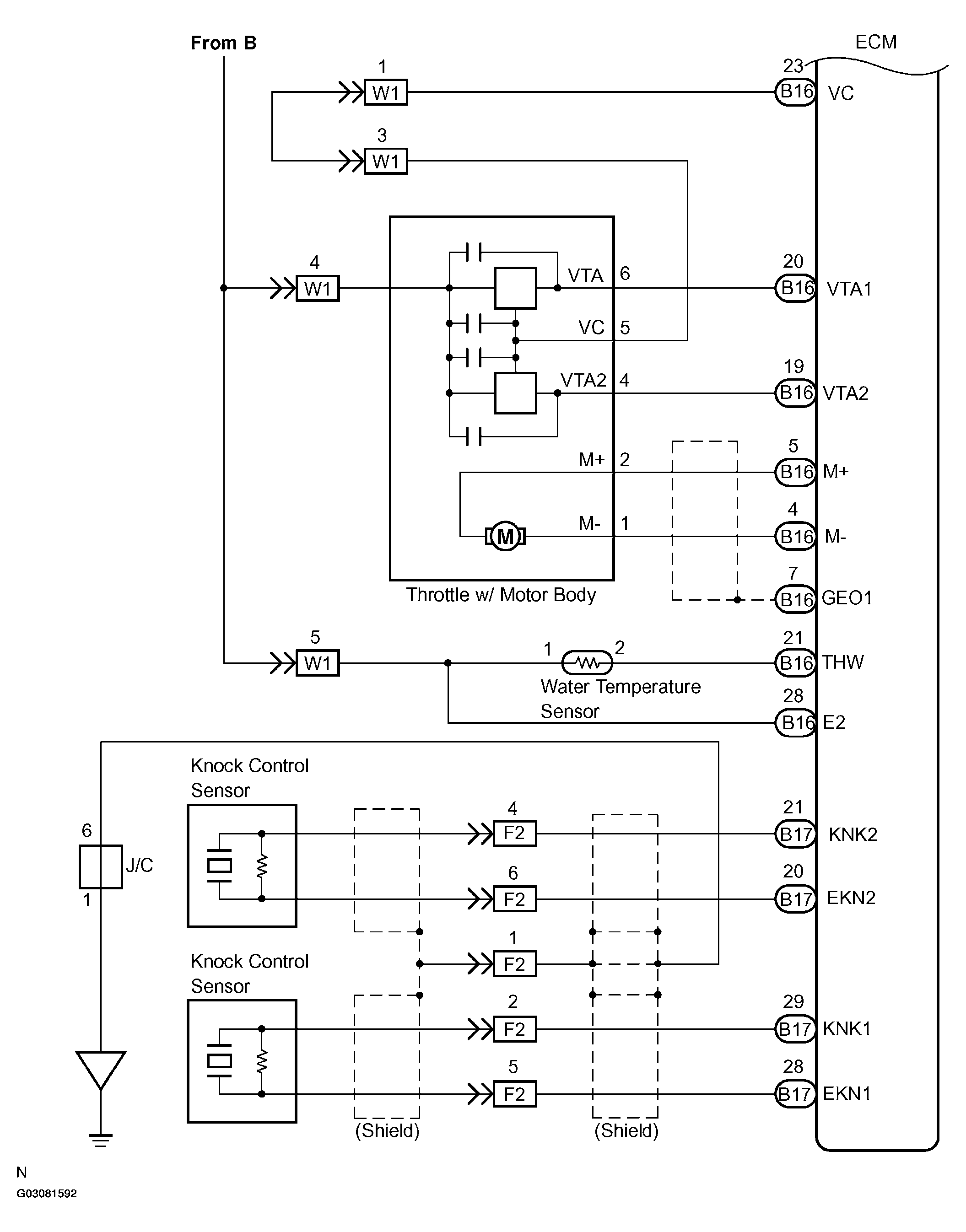

Fig 3: SFI System (1GR-FE) System Diagram (3 Of 4)
G03081592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

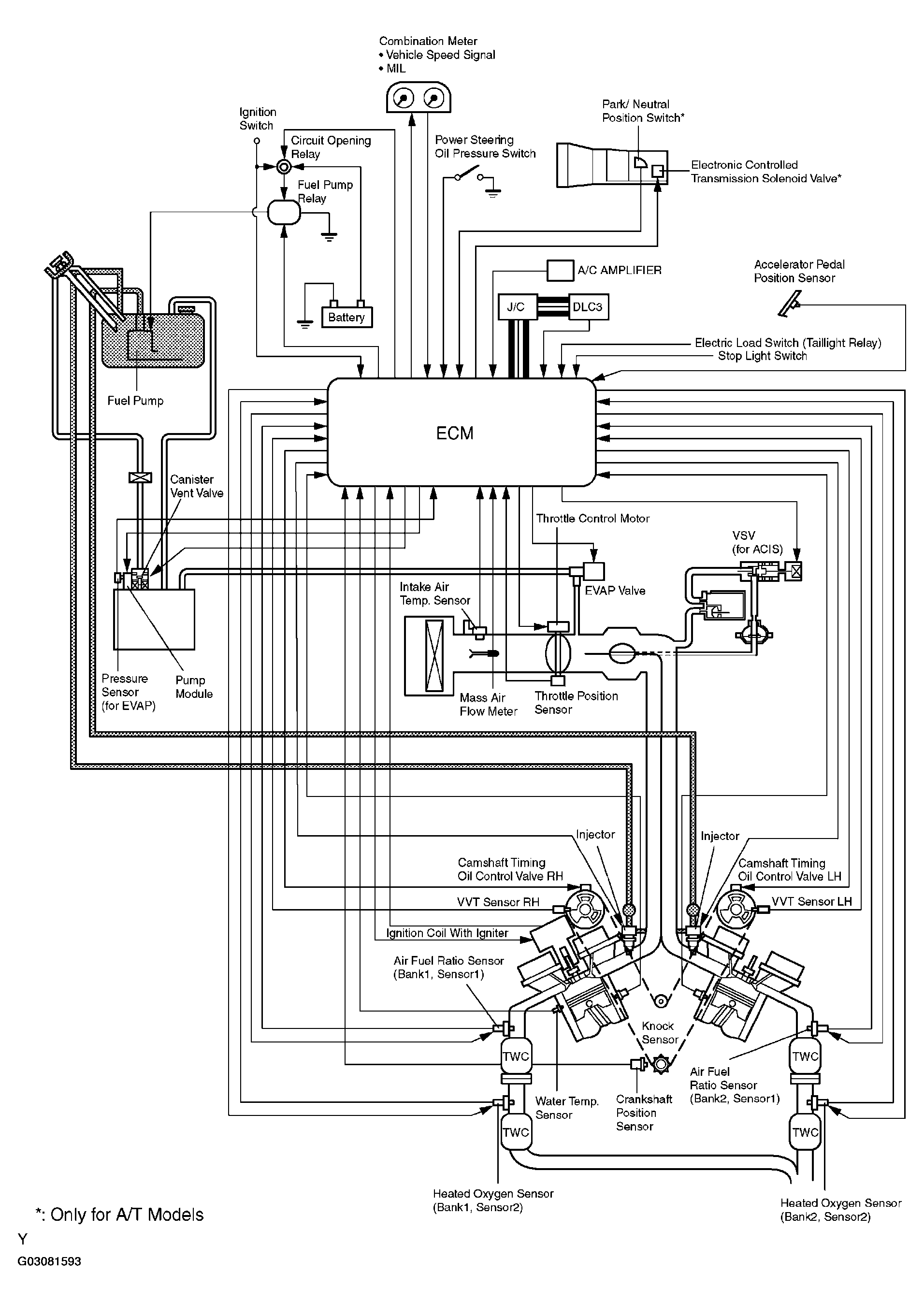

Fig 4: SFI System (1GR-FE) System Diagram (4 Of 4)
G03081593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
