Throttle W-Motor Body Assy (1GR-FE): Components

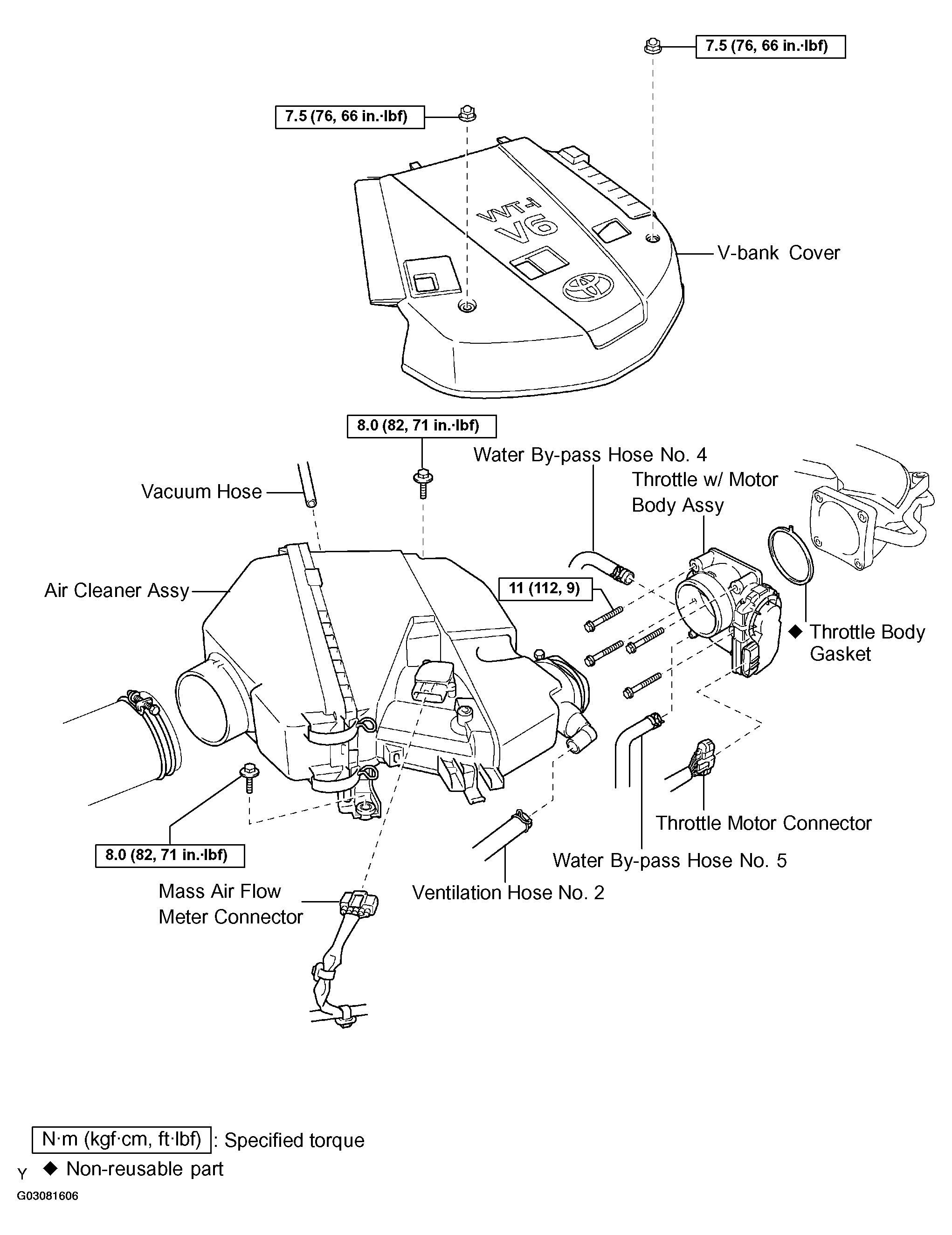

Fig 1: Throttle W/Motor Body Assy (1GR-FE) Replacement Components & Torque Specification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
