Throttle W-Motor Body Assy (2TR-FE): Components

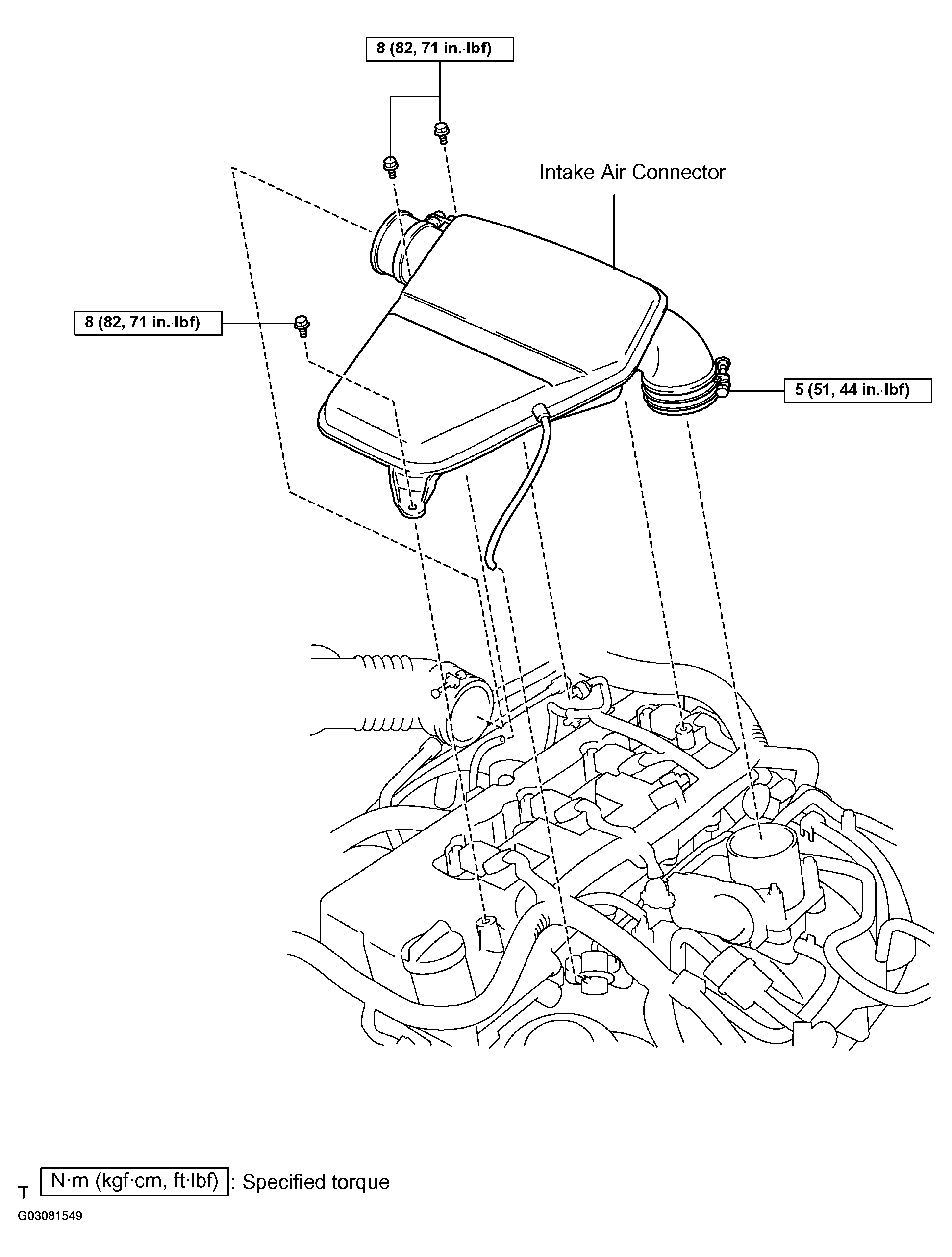

Fig 1: Throttle W/Motor Body Assy (2TR-FE) Replacement Components & Torque Specification (1 Of 2)
G03081549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

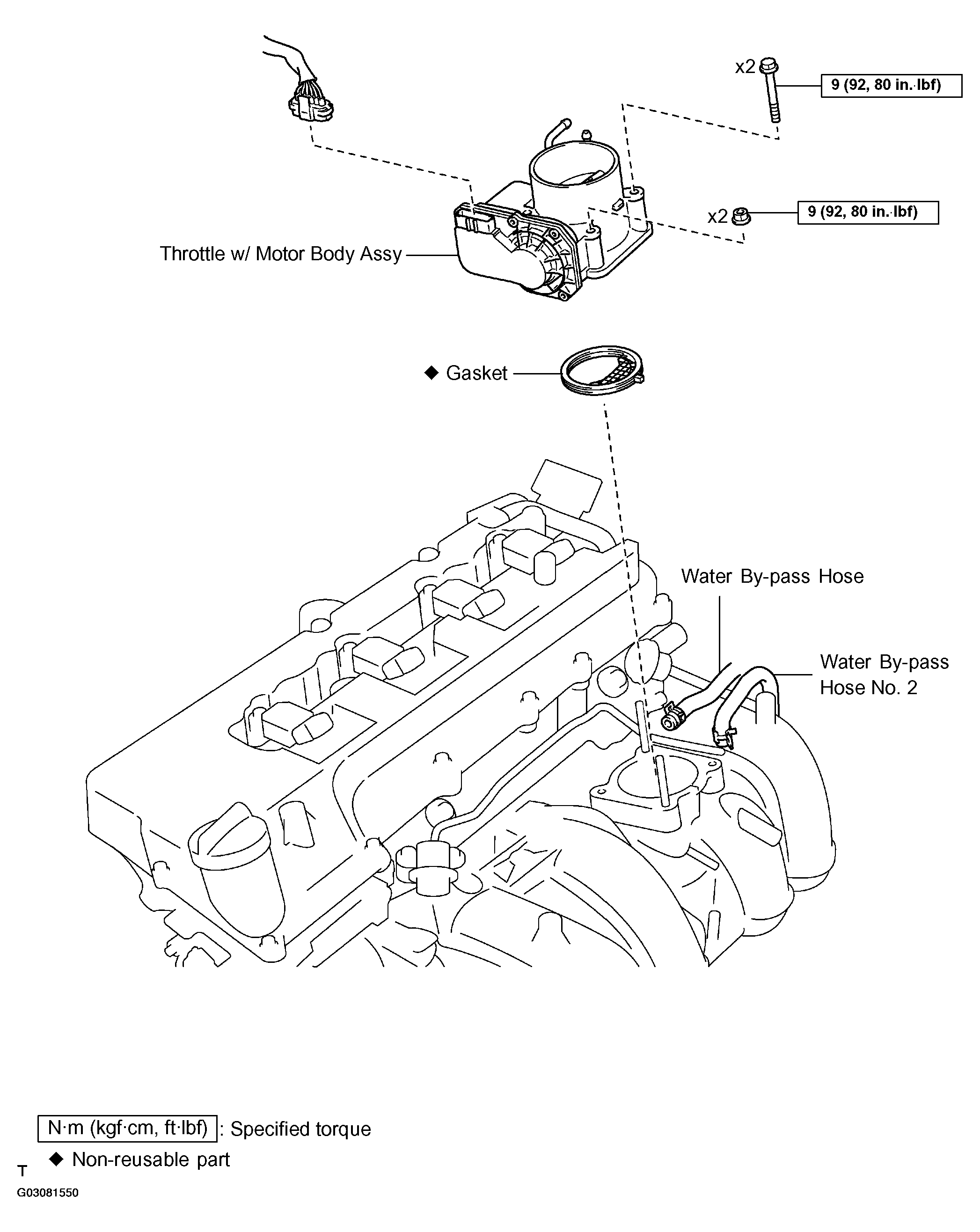

Fig 2: Throttle W/Motor Body Assy (2TR-FE) Replacement Components & Torque Specification (2 Of 2)
G03081550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
