Knock Sensor: Installation
- INSTALL KNOCK SENSOR

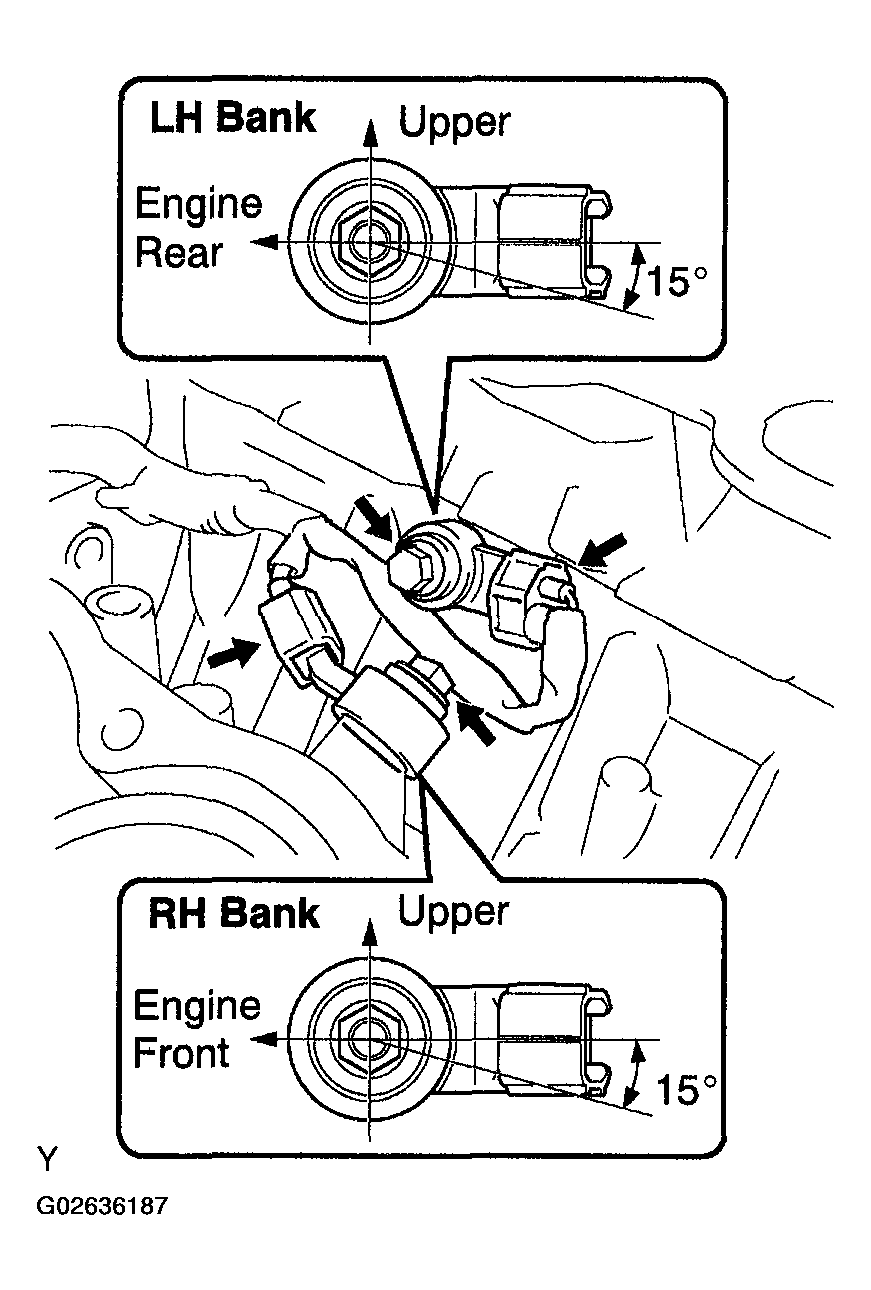

- Install the 2 knock sensors with the 2 bolts so that the center of the sensor comes within the range of 15° from the bolt center as shown in the illustration.
Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)
- Connect the 2 knock sensor connectors.
- Install the 2 knock sensors with the 2 bolts so that the center of the sensor comes within the range of 15° from the bolt center as shown in the illustration.
- INSTALL WATER OUTLET PIPE NO.1
- Install the water outlet pipe with the 3 bolts.
Torque: 9.0 N.m (92 kgf.cm, 80 in.lbf)
- Install the 4 wire harness clamps.
- Install the water outlet pipe with the 3 bolts.
- CONNECT HEATER WATER INLET HOSE
- INSTALL CYLINDER HEAD (See INSTALLATION )
