Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

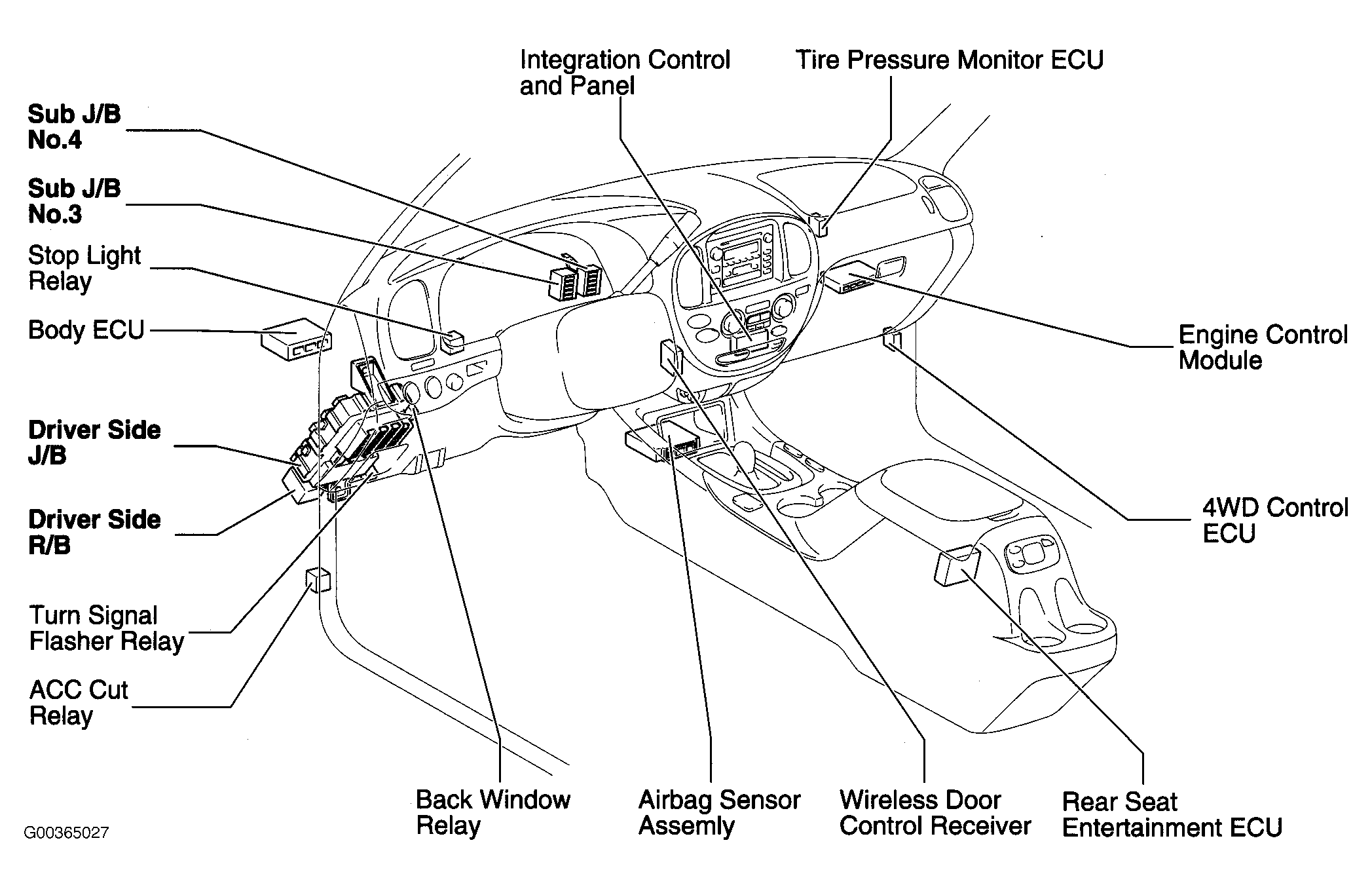

| Driver Side J/B (Double Cab) | Under left end of dash. See Figure. |
| Driver Side R/B (Double Cab) | Under left end of dash. See Figure. |

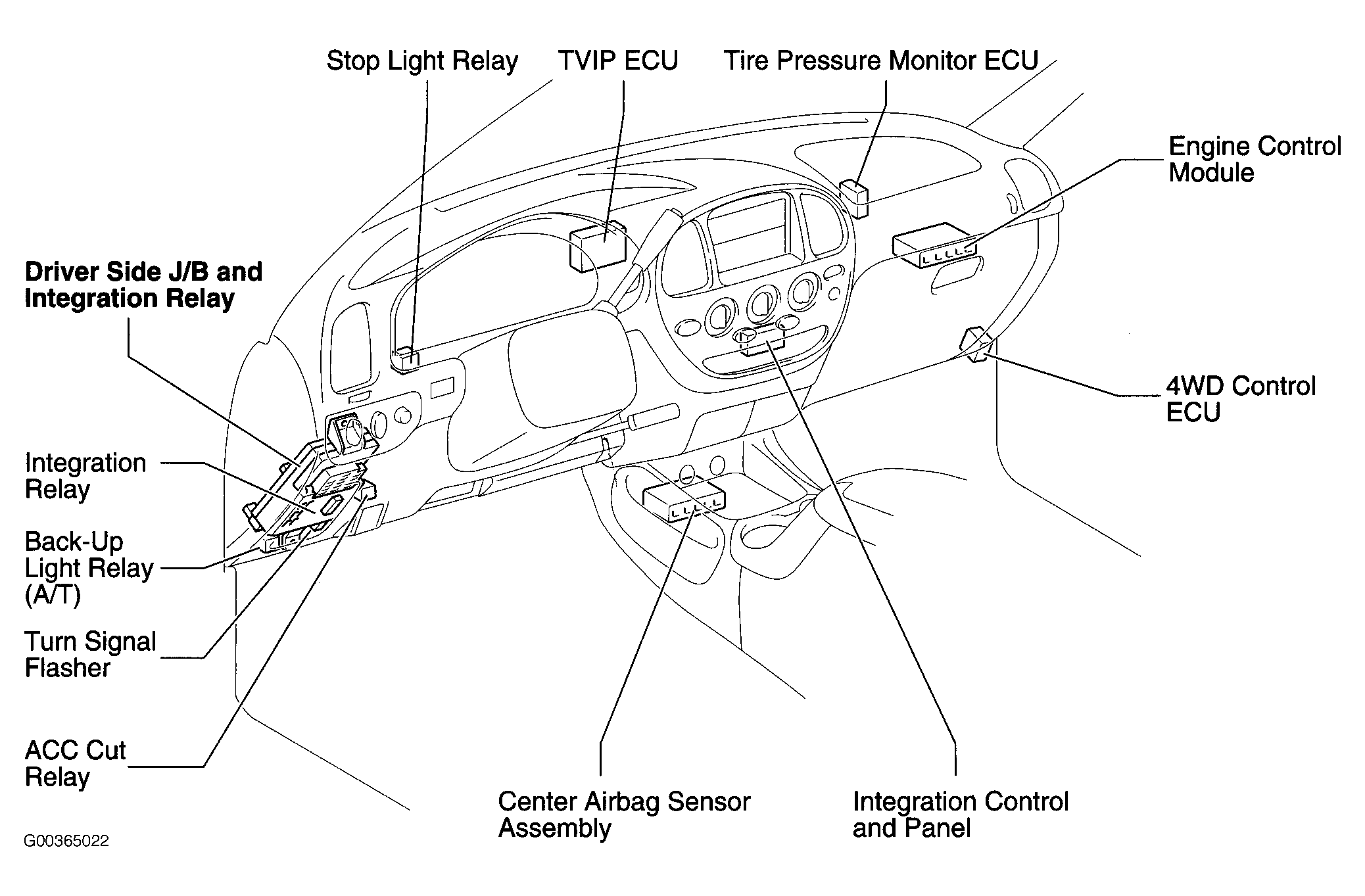

| Driver's Side J/B & Integration Relay (Access & Standard Cab) | Behind lower left side of dash. See Figure. |

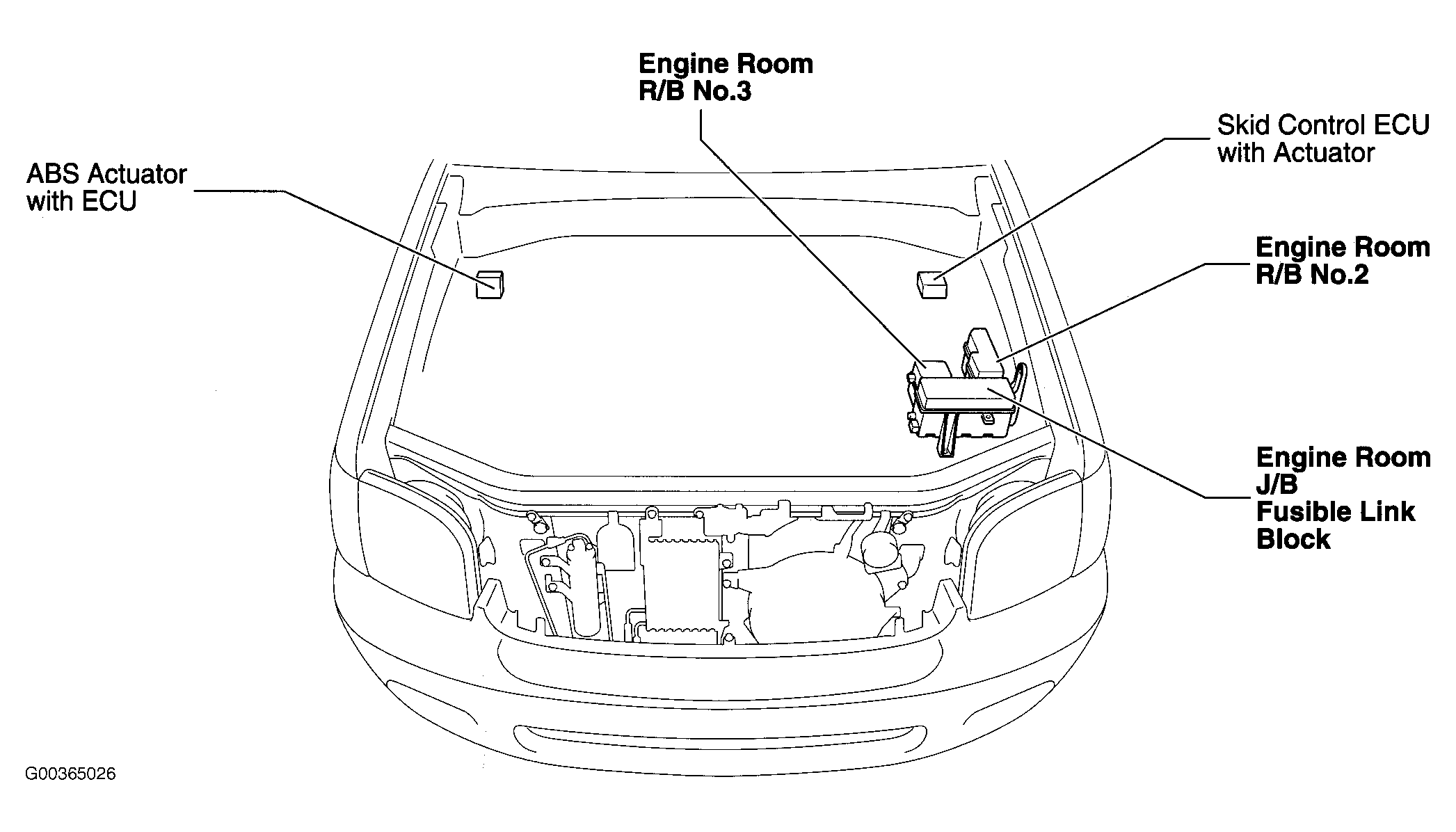

| Engine Room J/B (Double Cab) | On left side of engine compartment. See Figure. |

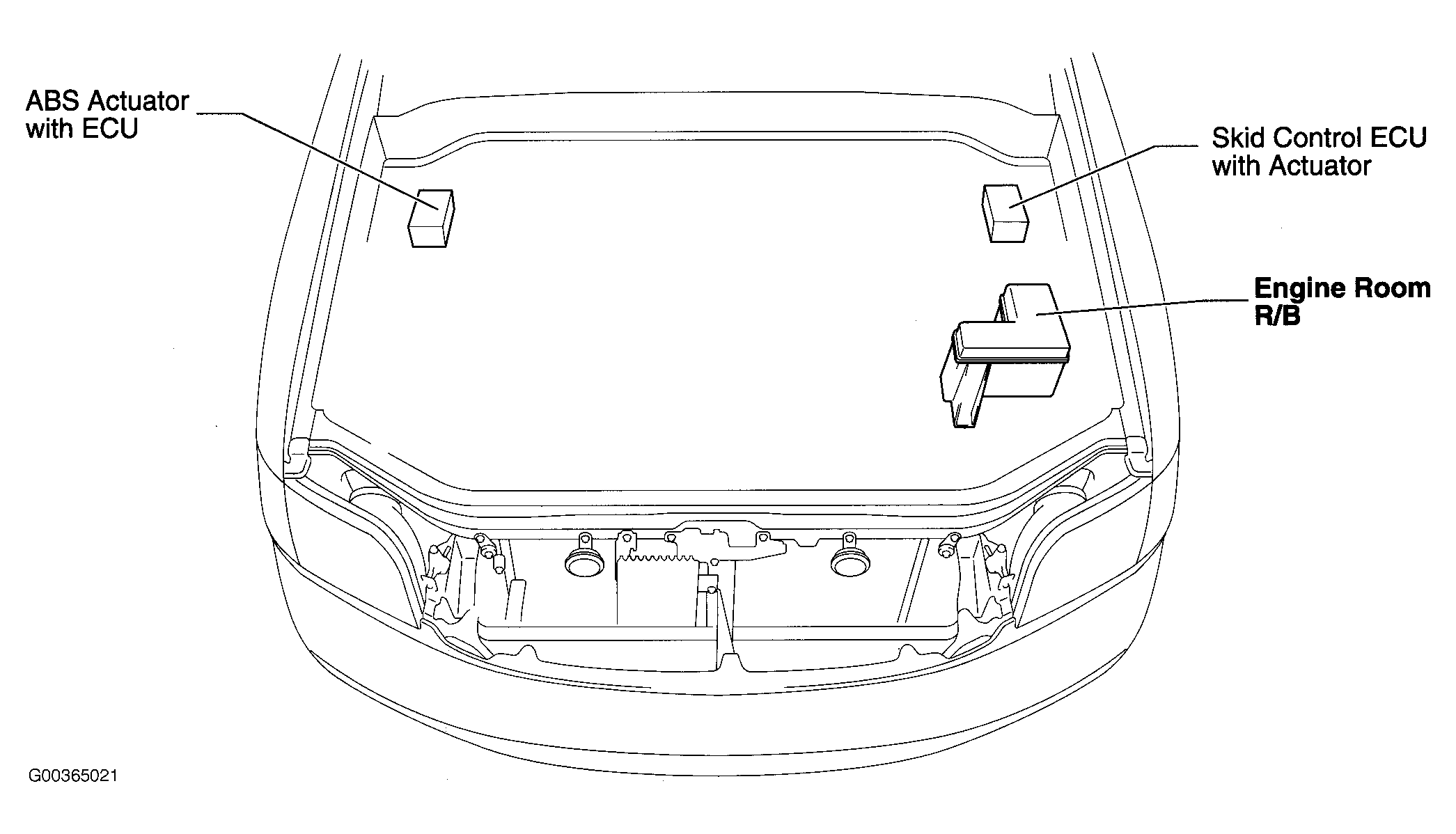

| Engine Room R/B (Access & Standard Cab) | On left side of engine compartment. See Figure. |
| Engine Room R/B No. 2 (Double Cab) | On left side of engine compartment. See Figure. |
| Engine Room R/B No. 3 (Double Cab) | On left side of engine compartment. See Figure. |
| Fusible Link Block (Double Cab) | On left side of engine compartment. See Figure. |
| Sub J/B No. 3 (Double Cab) | Behind center of dash. See Figure. |
| Sub J/B No. 4 (Double Cab) | Behind center of dash. See Figure. |
