Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

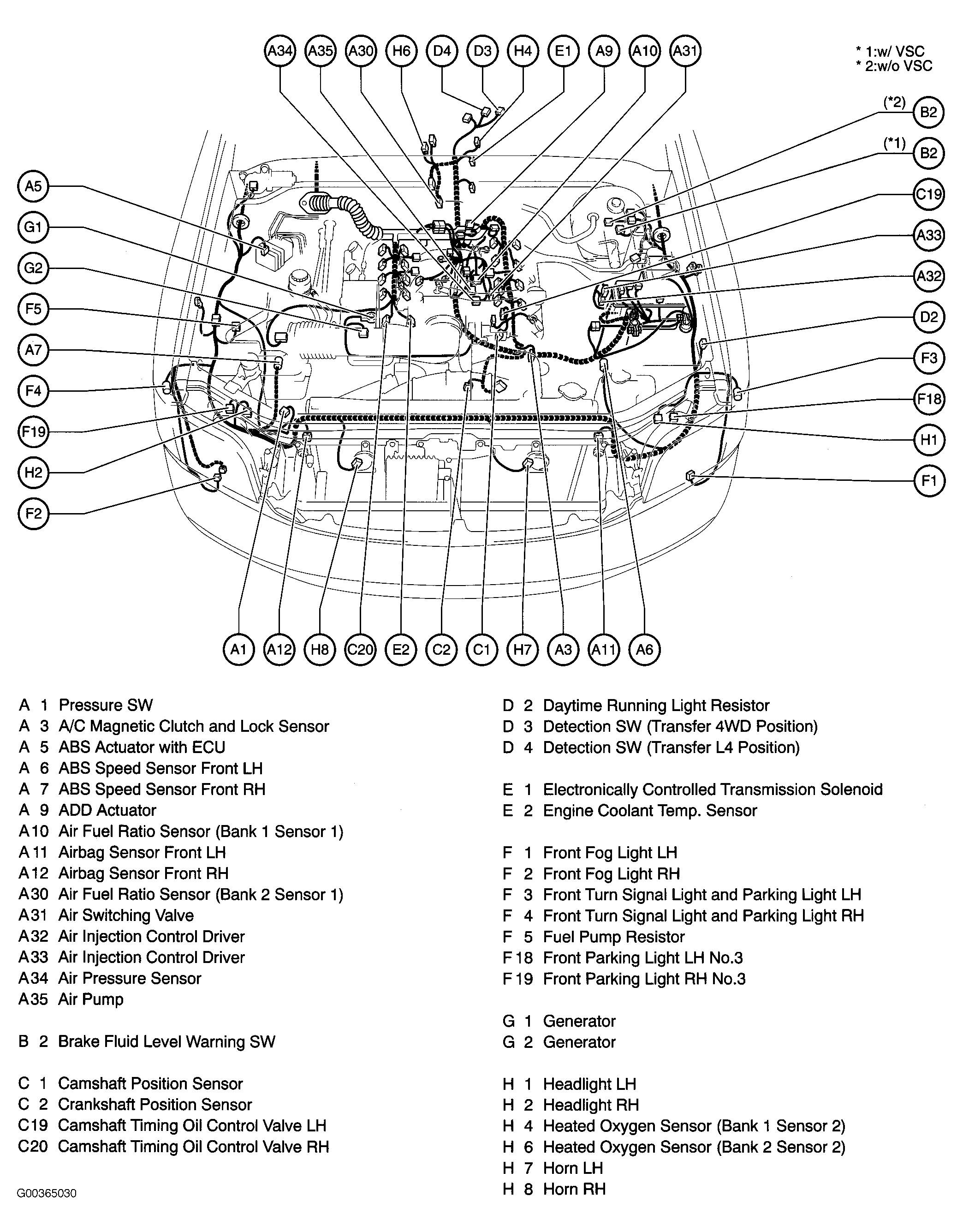

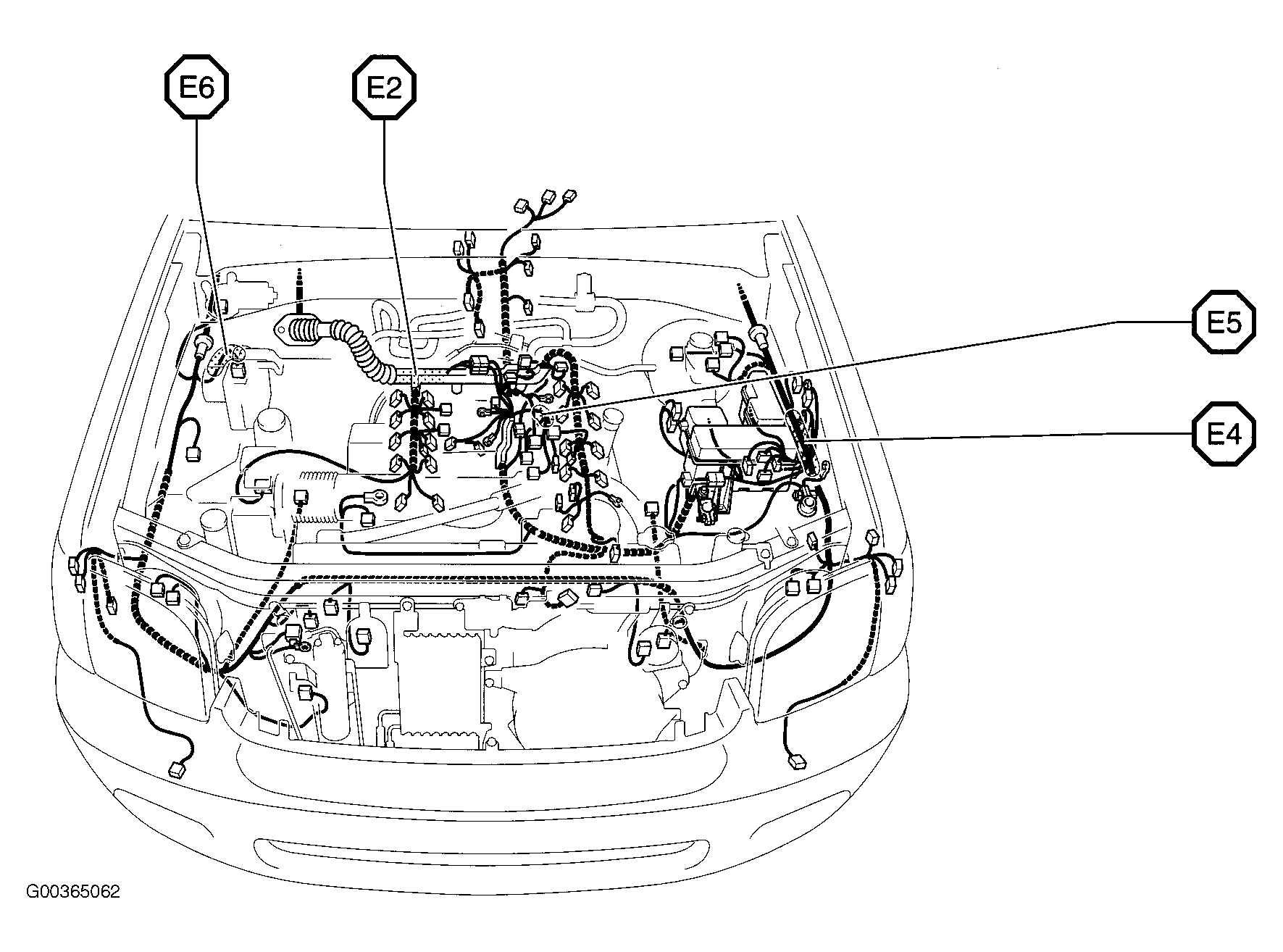

Fig 1: Engine Compartment (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

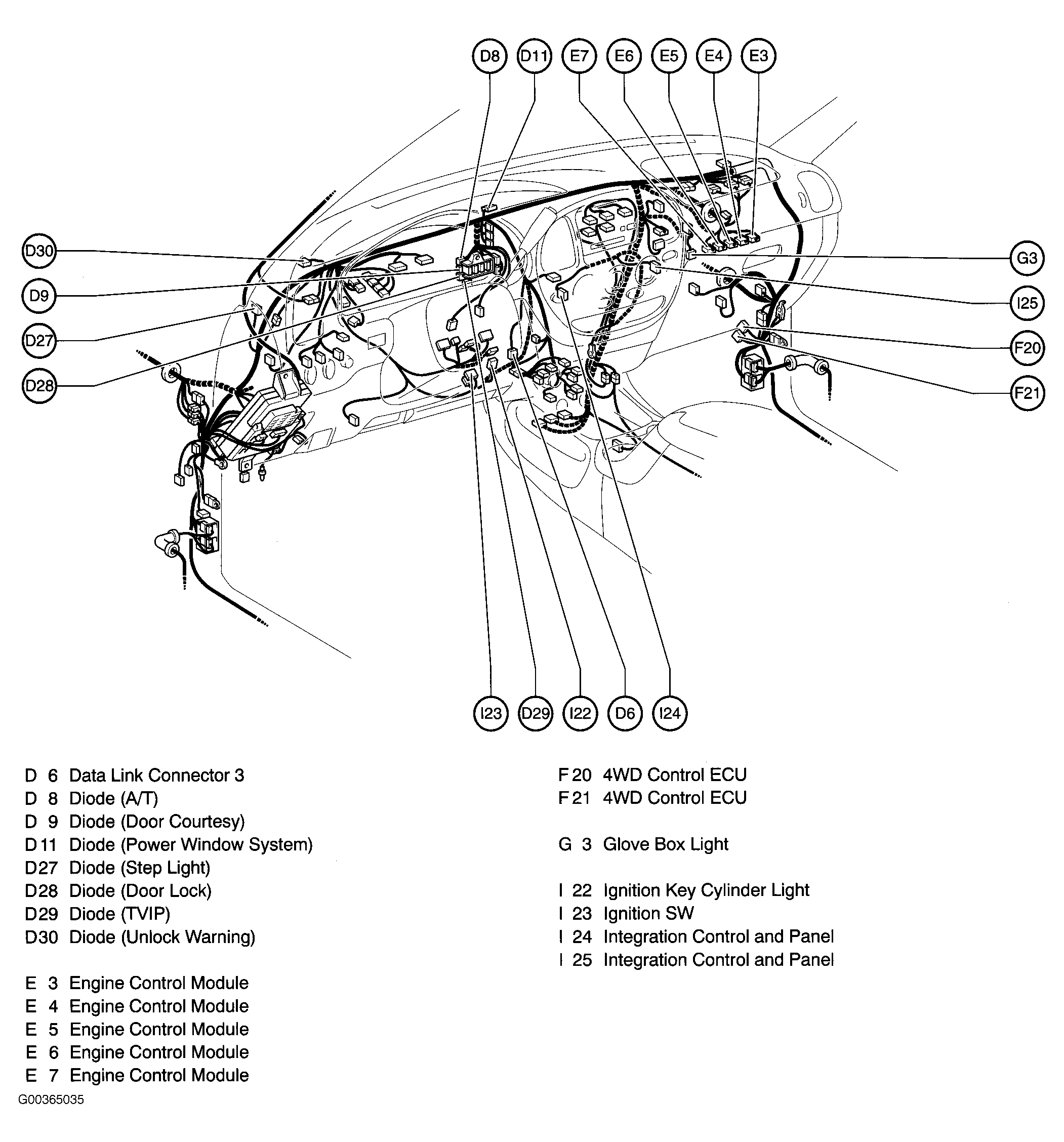

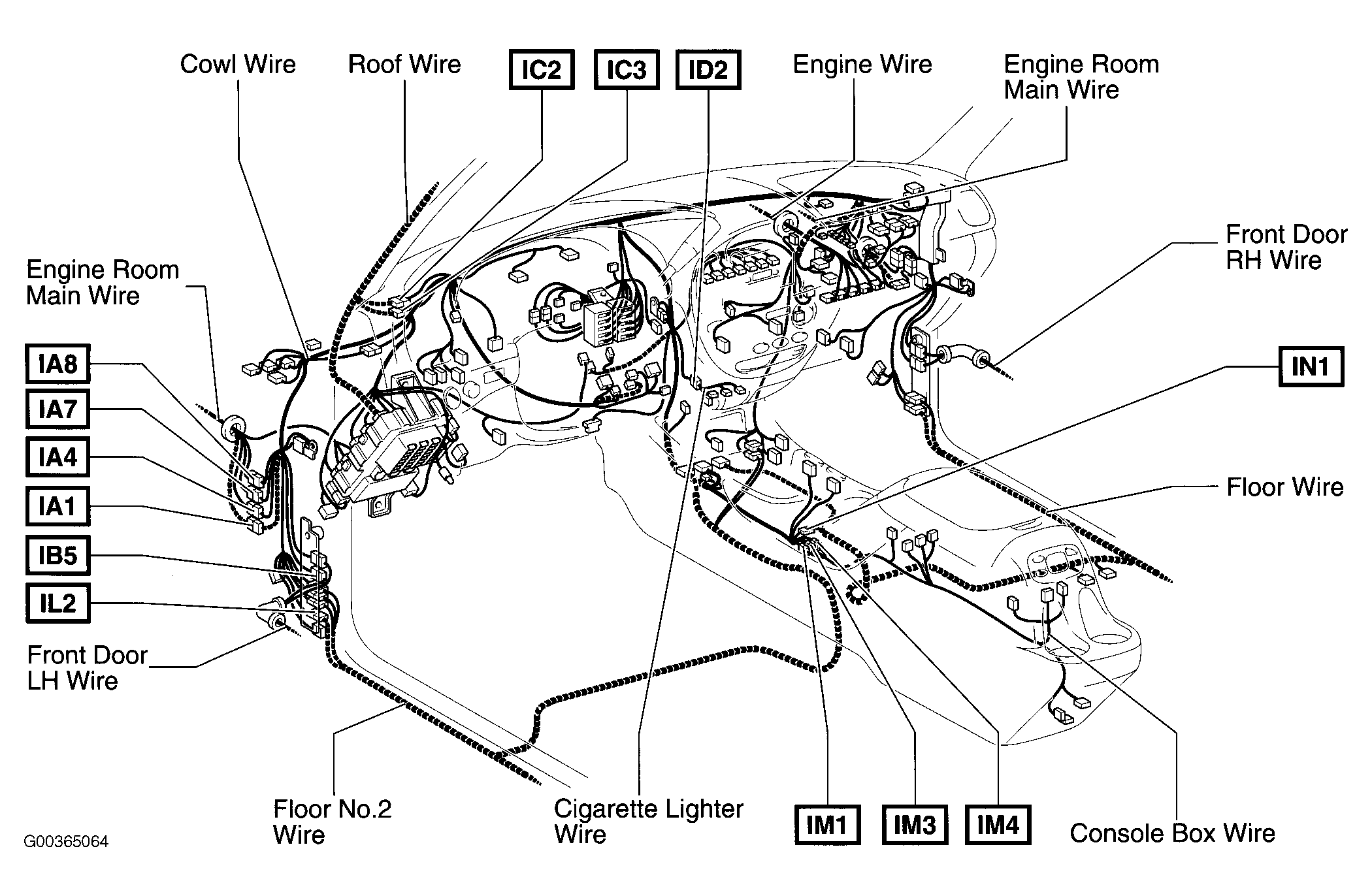

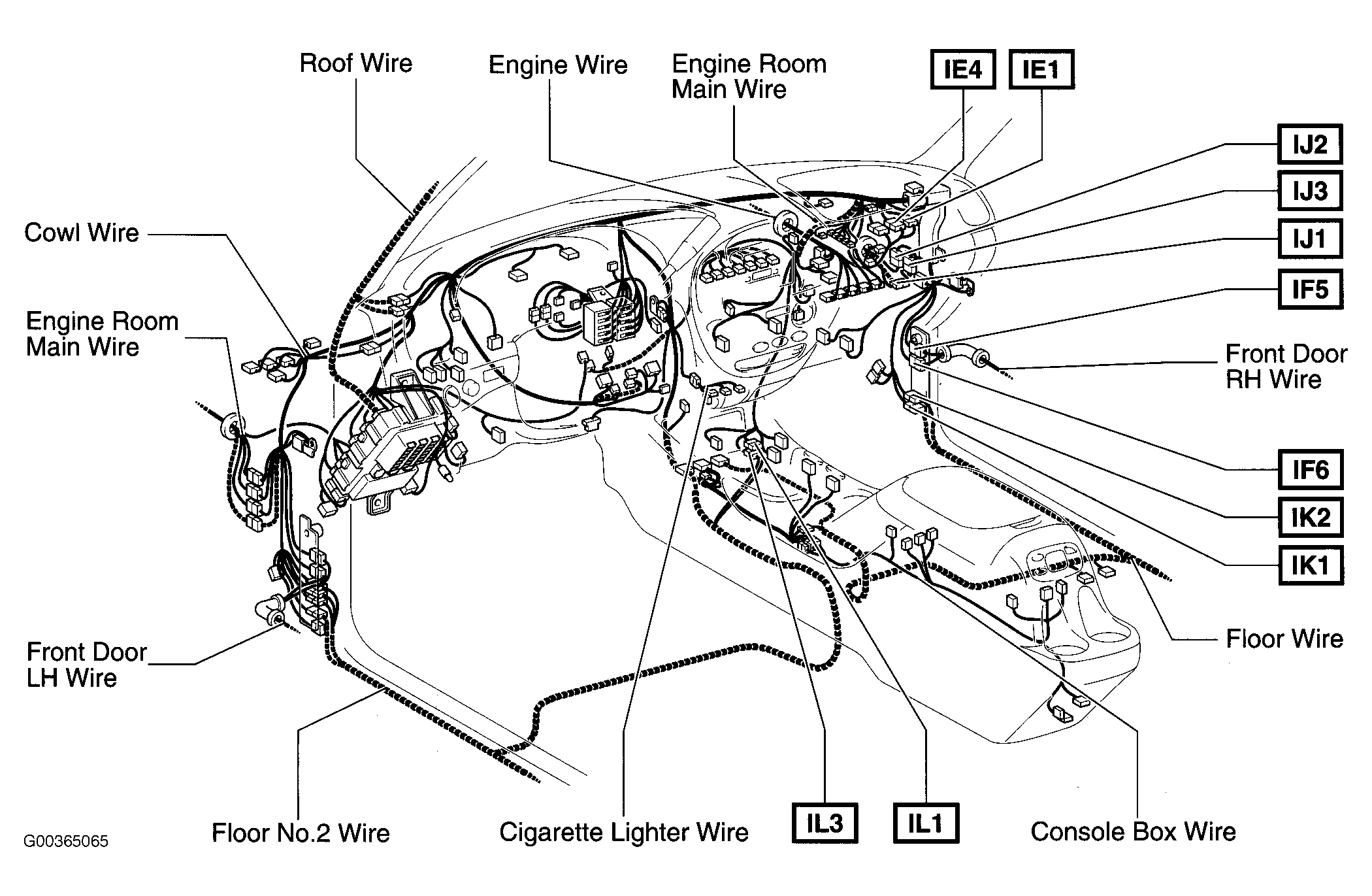

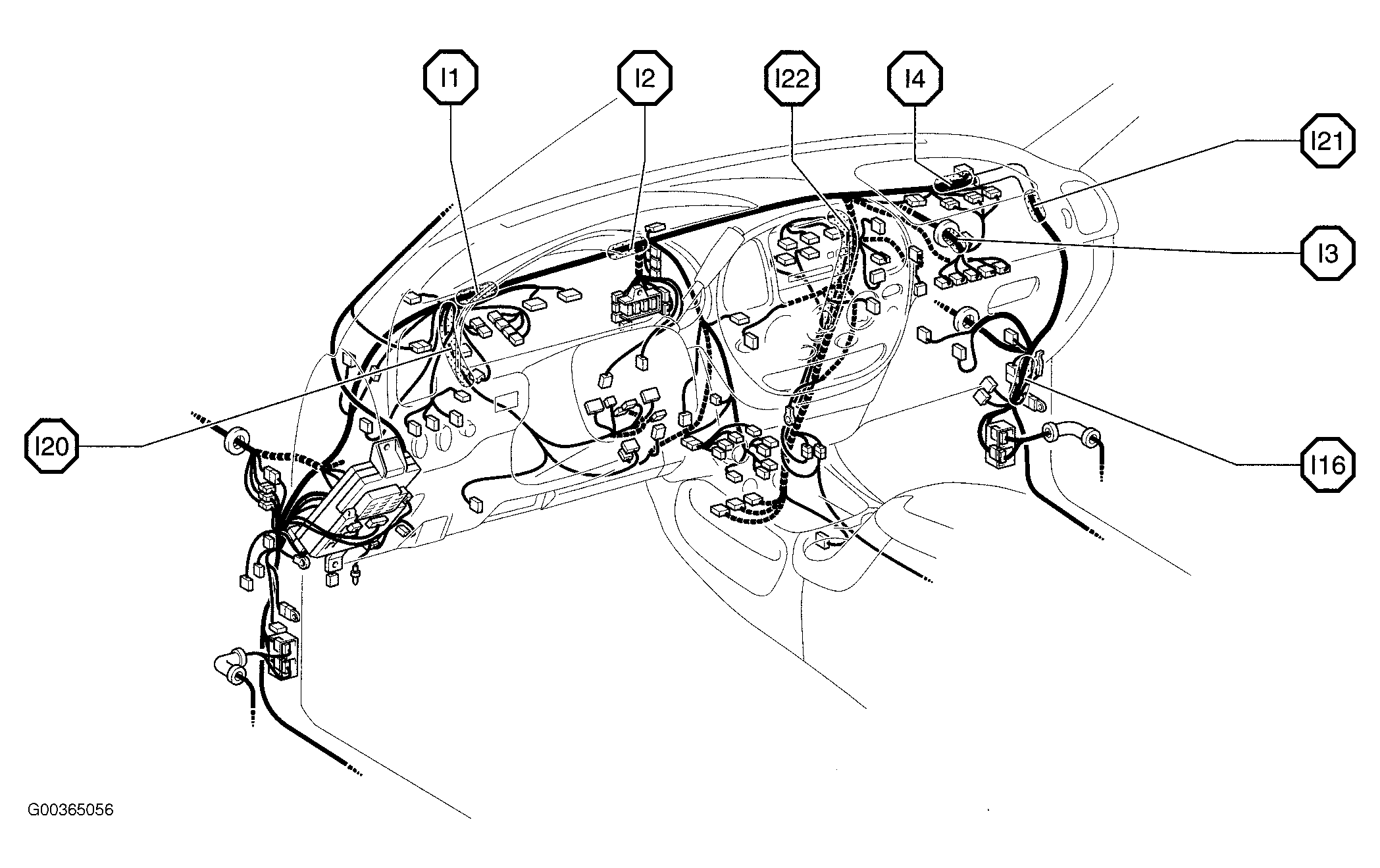

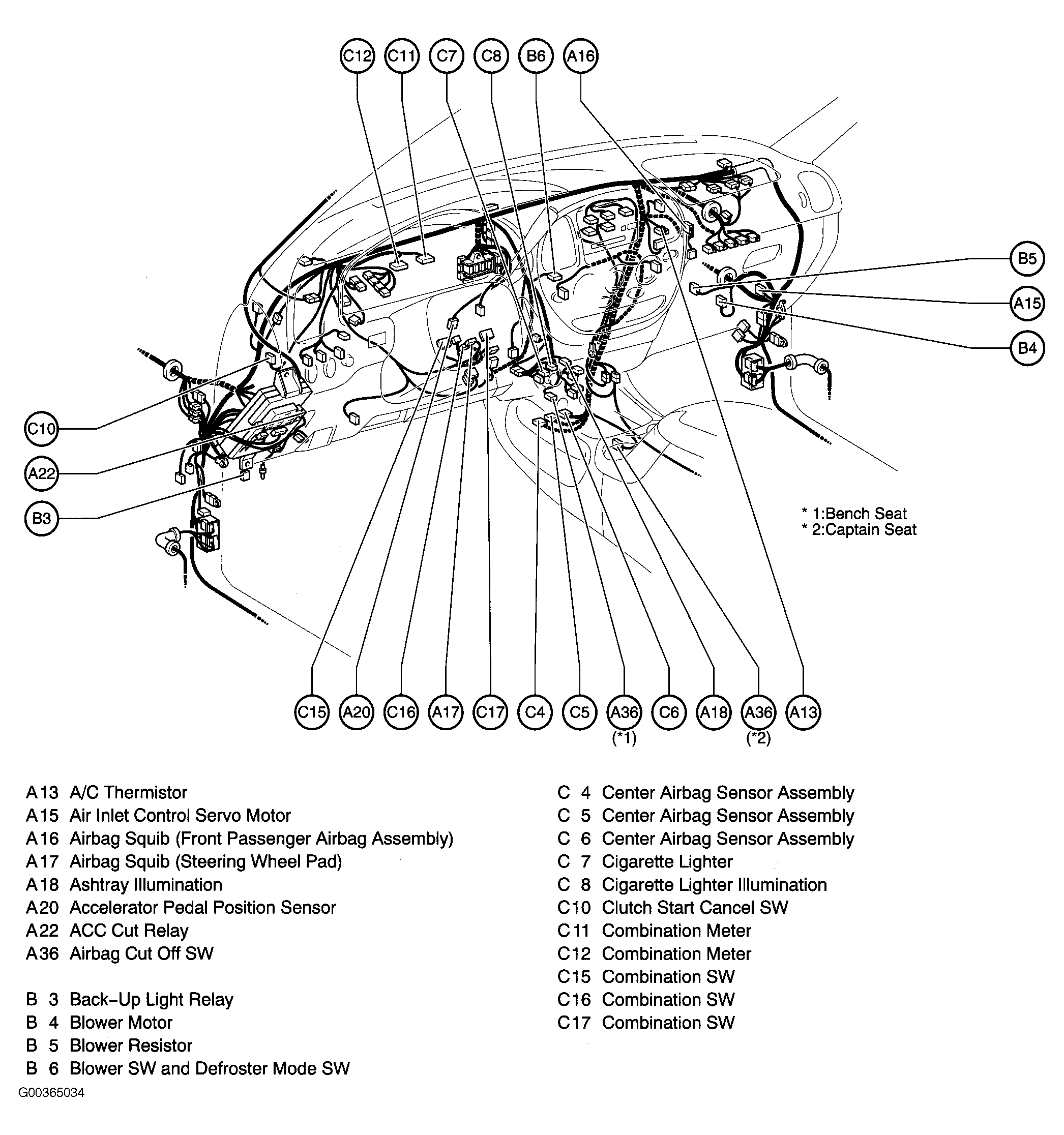

Fig 2: Dash (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL RELAY IDENTIFICATION

RELAY DESCRIPTION
ACC Cut Relay
Back-Up Light Relay (A/T)
Integration Relay
Driver Side J/B and Integration Relay
Stop Light Relay

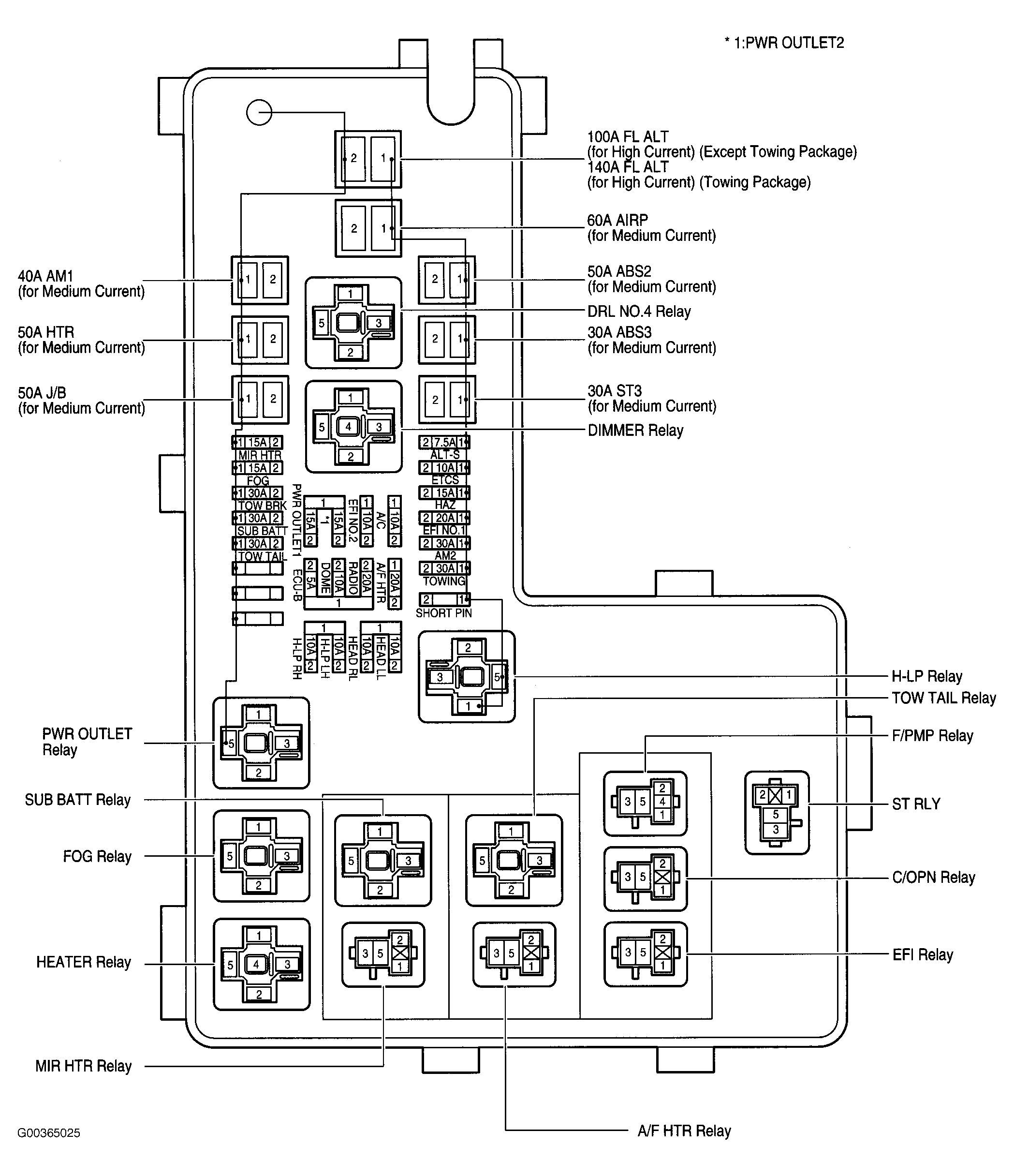

Fig 3: Engine Room R/B (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
MIR HTR Relay
Heater Relay
Fog Relay
SUB BATT Relay
PWR Outlet Relay
DRL No.4 Relay
Dimmer Relay
H-LP Relay
TOW Tail Relay
F/PMP Relay
C/OPN Relay
EFI Relay
A/F HTR Relay

Fig 4: Front Of Driver Side J/B & Integration Relay (Access & Standard Cab W/O DRL)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Rear Of Driver Side J/B & Integration Relay (Access & Standard Cab W/O DRL)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DRIVER SIDE JUNCTION BLOCK RELAY IDENTIFICATION (W/O DRL)

RELAY DESCRIPTION
Integration Relay

Fig 6: Front Of Driver Side J/B & Integration Relay (Access & Standard Cab W/DRL)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Rear Of Driver Side J/B & Integration Relay (Access & Standard Cab W/DRL)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DRIVER SIDE JUNCTION BLOCK RELAY IDENTIFICATION (WITH DRL)

RELAY DESCRIPTION
Integration Relay

Fig 8: Engine Compartment (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Dash & Center Console (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL RELAY IDENTIFICATION

RELAY DESCRIPTION
ACC Cut Relay
Turn Signal Flasher Relay
Stop Light Relay
Back Window Relay

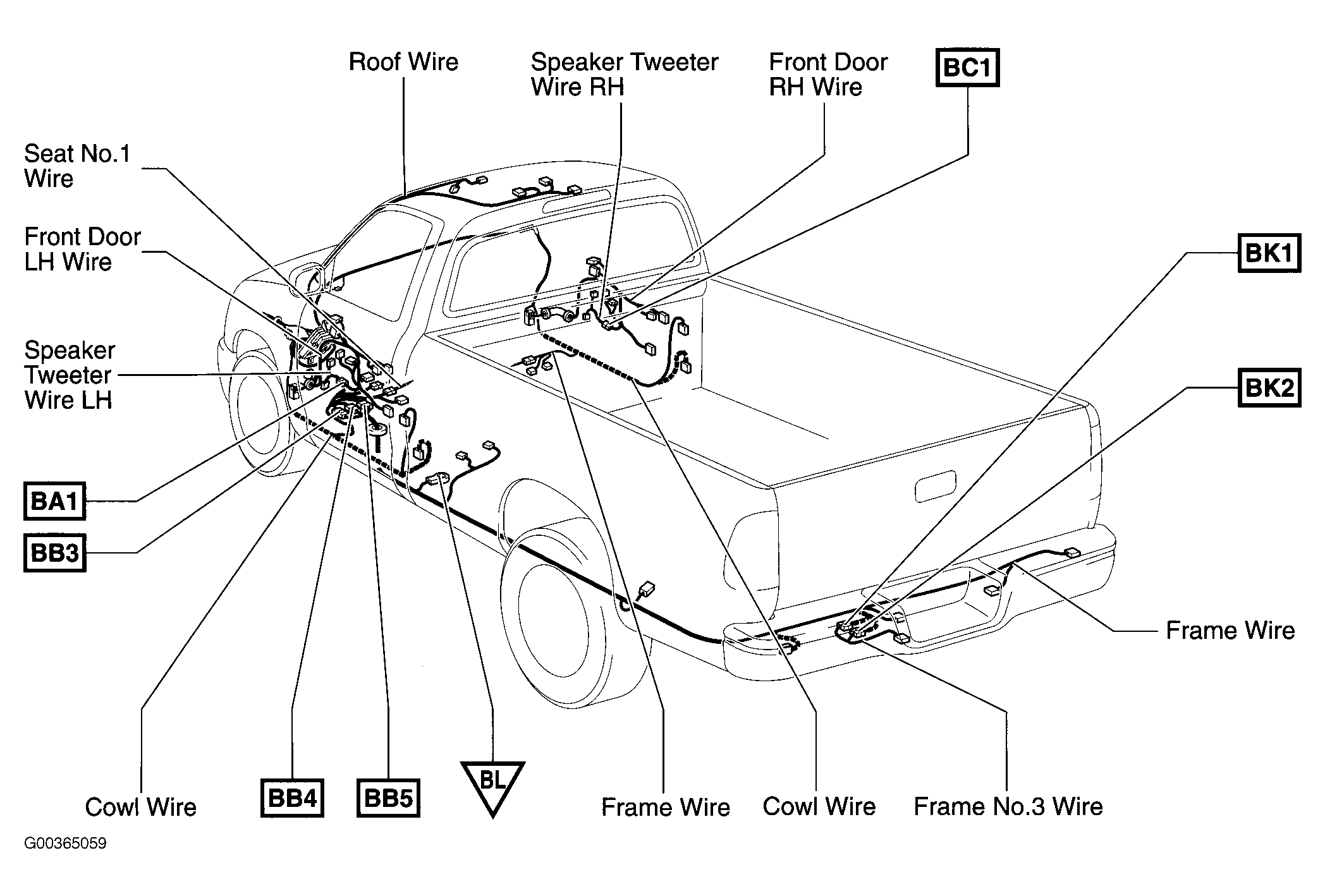

Fig 10: Vehicle Overview (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

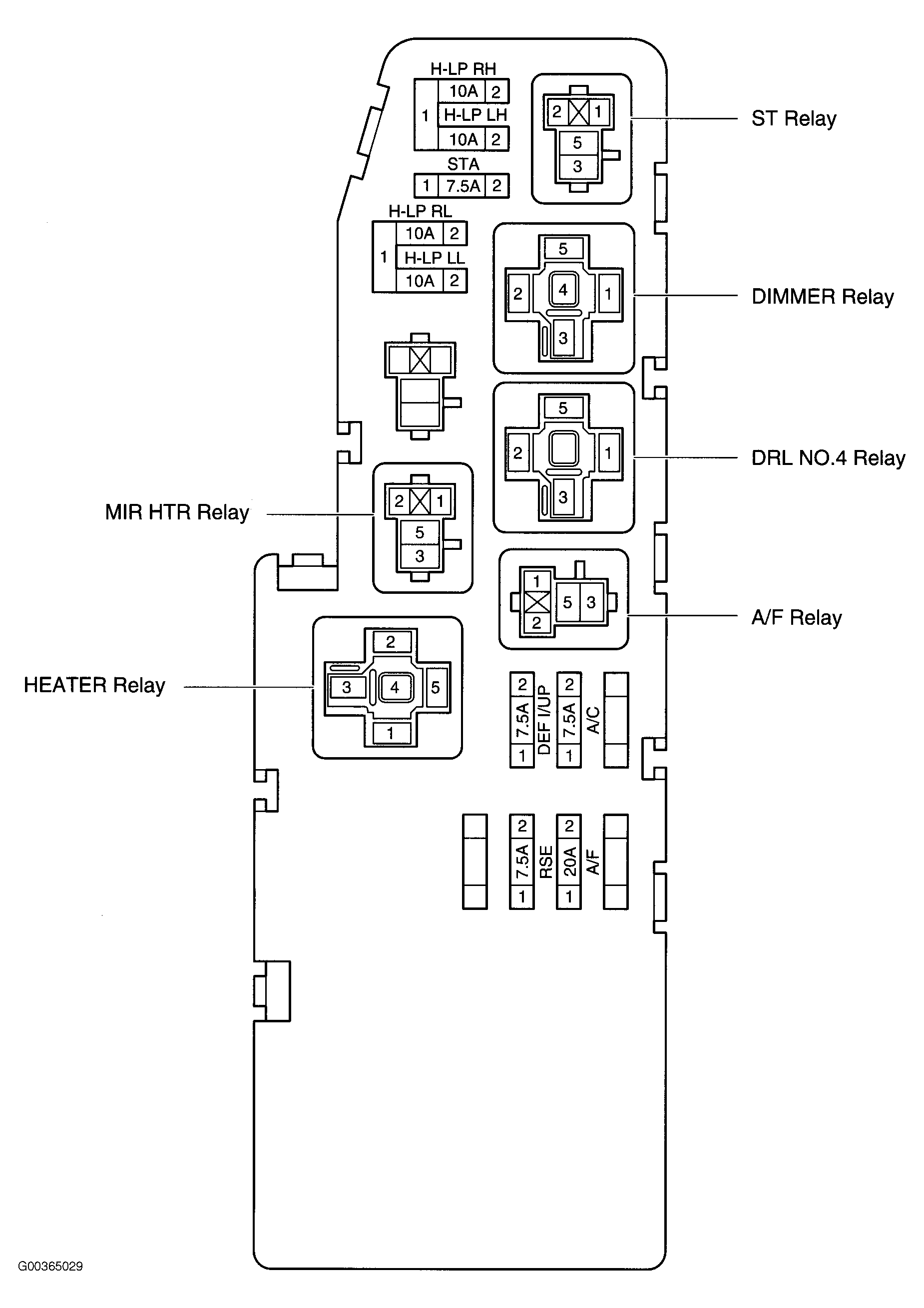

Fig 11: Engine Room R/B No. 2 (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM RELAY BLOCK NO. 2 RELAY IDENTIFICATION

RELAY DESCRIPTION
Heater Relay
MIR HTR Relay
ST Relay
Dimmer Relay
DRL No.4 Relay
A/F Relay

Fig 12: Engine Room R/B No. 3 (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM RELAY BLOCK NO. 3 RELAY IDENTIFICATION

RELAY DESCRIPTION
Towing Tail Relay
BATT Charge Relay

Fig 13: Driver Side R/B (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DRIVER SIDE RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Inverter Relay
Seat Heater Relay

Fig 14: Engine Room J/B (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE COMPARTMENT JUNCTION BLOCK RELAY IDENTIFICATION (DOUBLE CAB)

RELAY DESCRIPTION
Defog Relay
Fuel Pump Relay
EFI Relay
Head Relay
C/OPN Relay
Horn Relay

Fig 15: Rear Of Driver Side J/B (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DRIVER'S SIDE JUNCTION BLOCK RELAY IDENTIFICATION (DOUBLE CAB)

RELAY DESCRIPTION
Power Main Relay
ACC Relay
BACK-UP LIGHT Relay
Taillight Relay
Fog LIGHT Relay

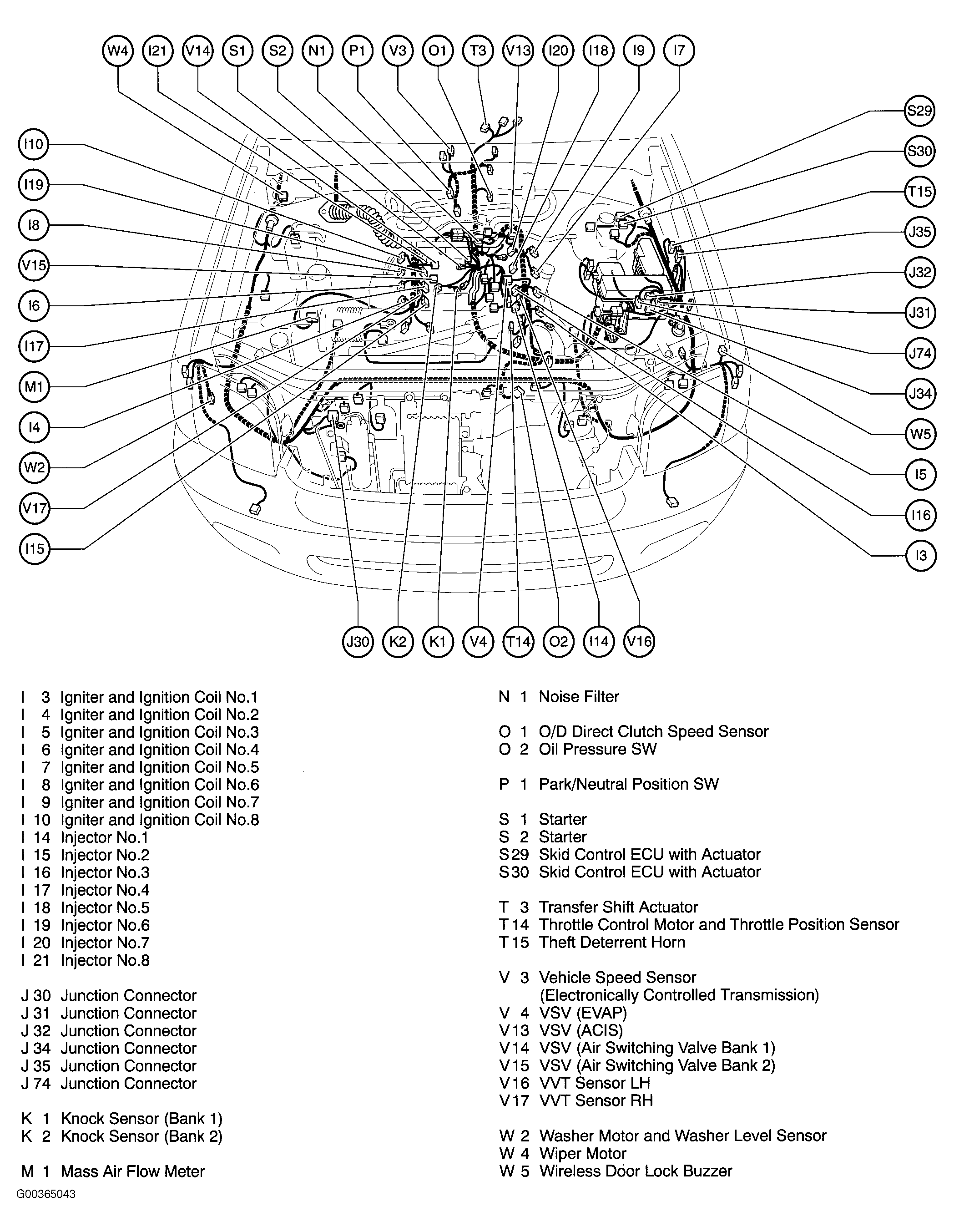

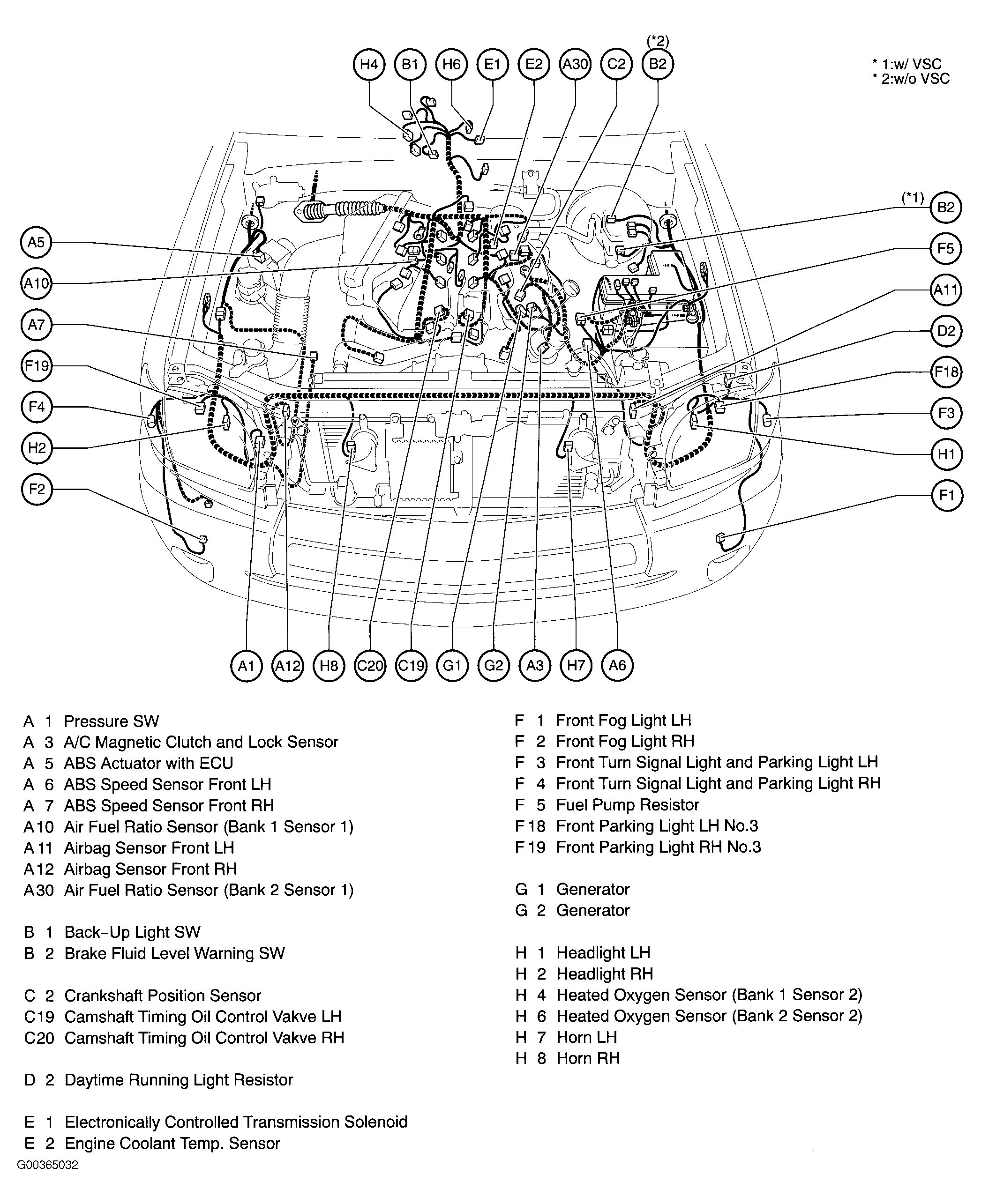

Fig 16: Engine Compartment (4.7L) (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Engine Compartment (4.7L) (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

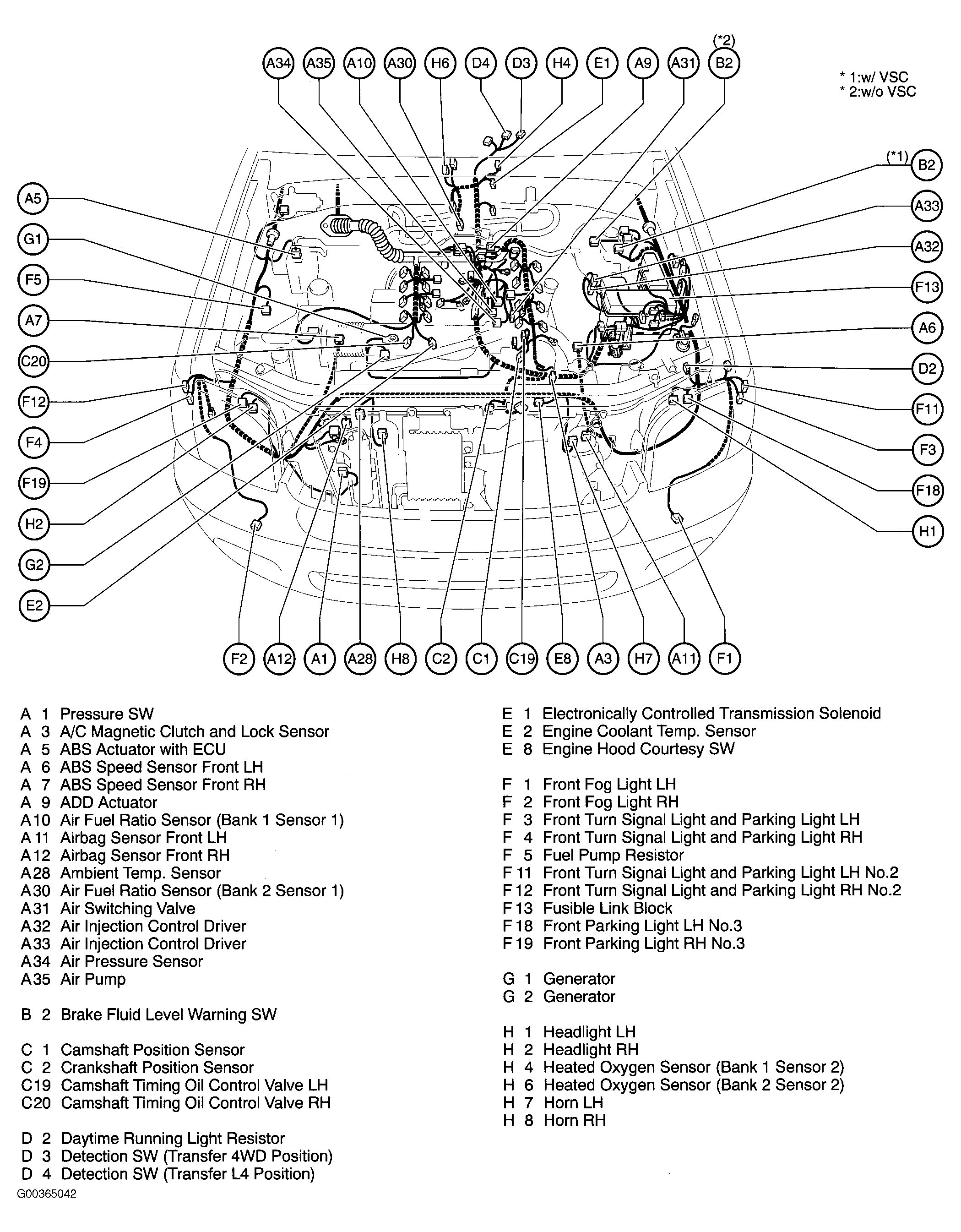

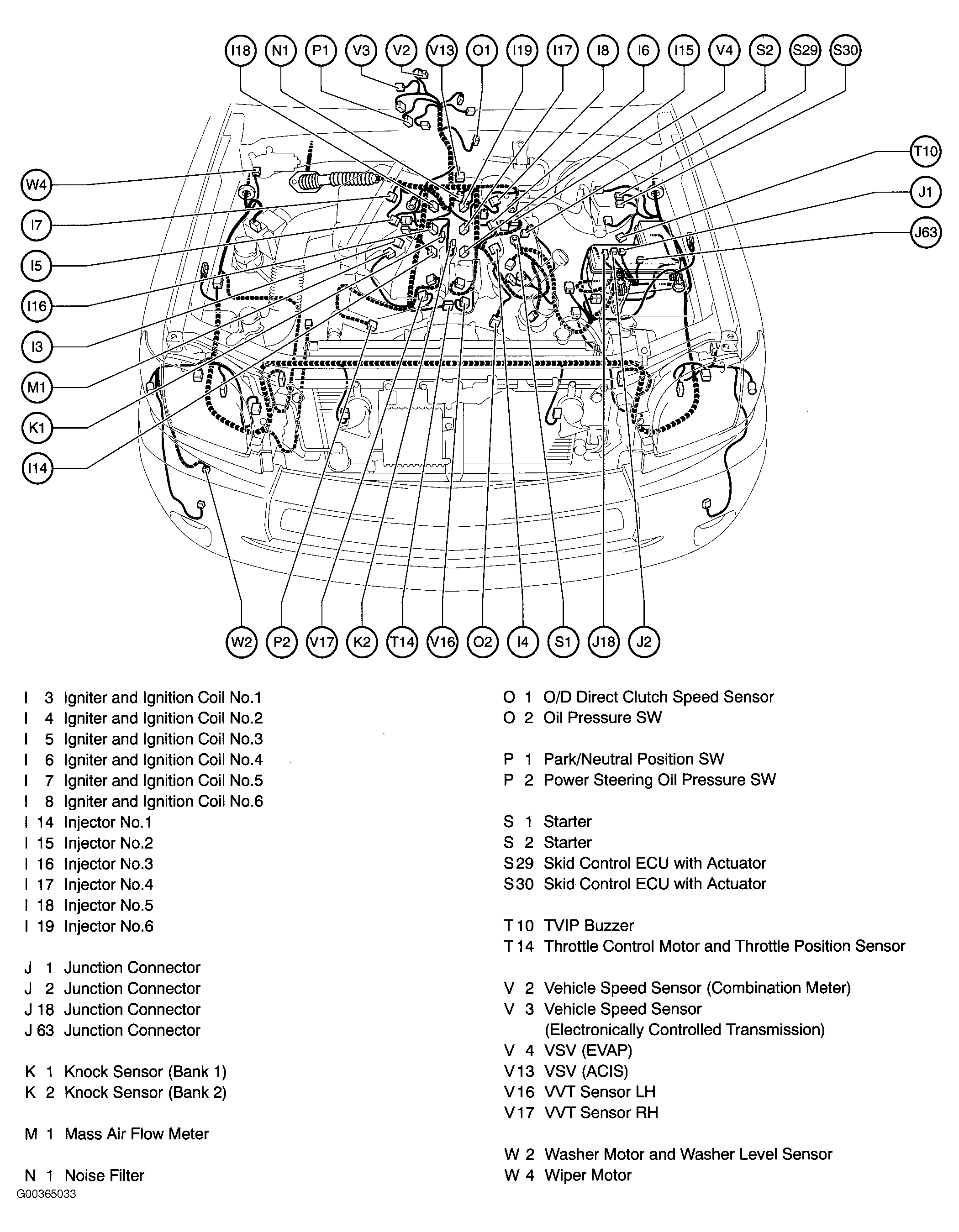

Fig 18: Engine Compartment (4.0L) (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Engine Compartment (4.0L) (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

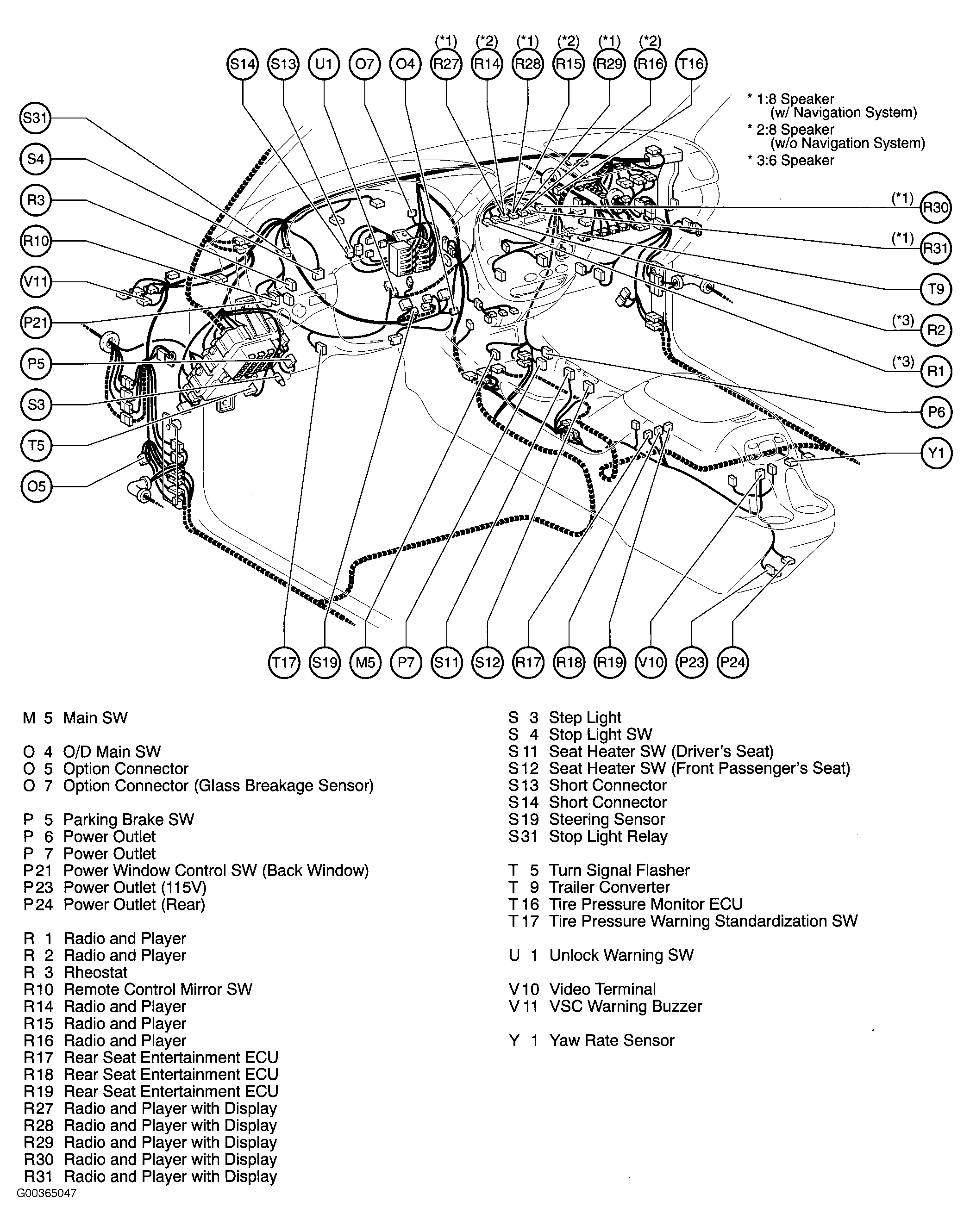

Fig 20: Dash (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Dash (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Dash (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Dash (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

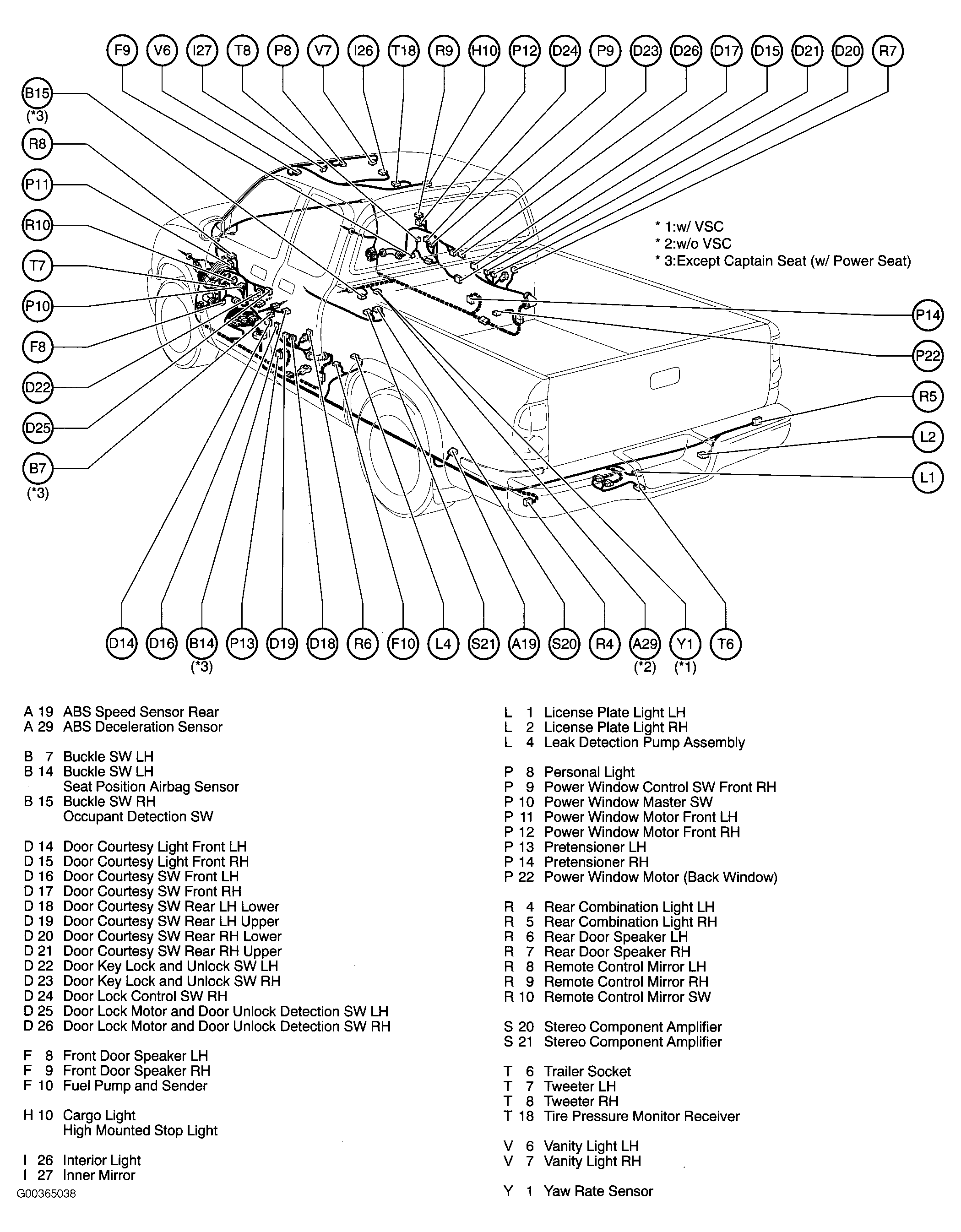

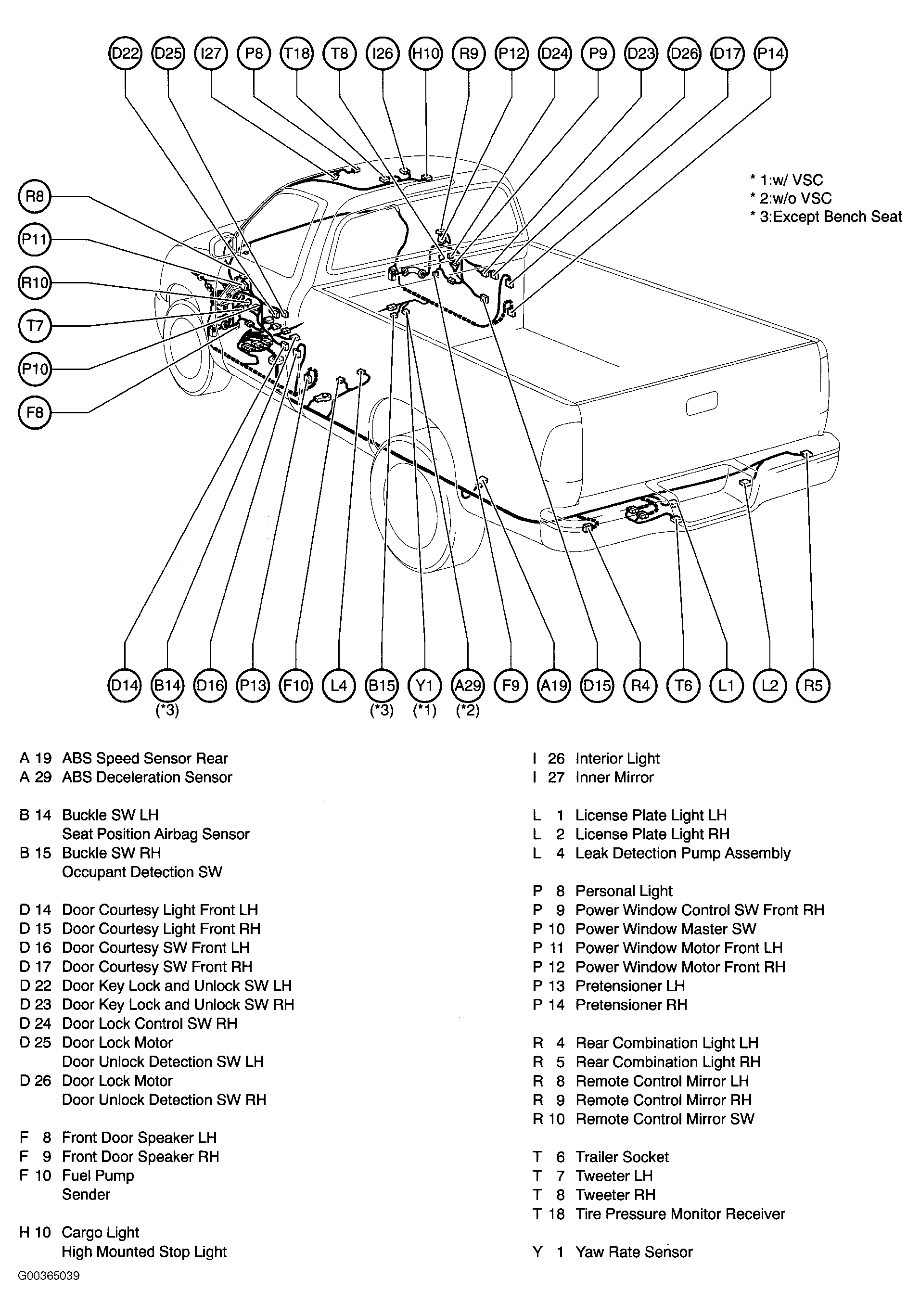

Fig 24: Vehicle Overview (Access Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 25: Vehicle Overview (Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

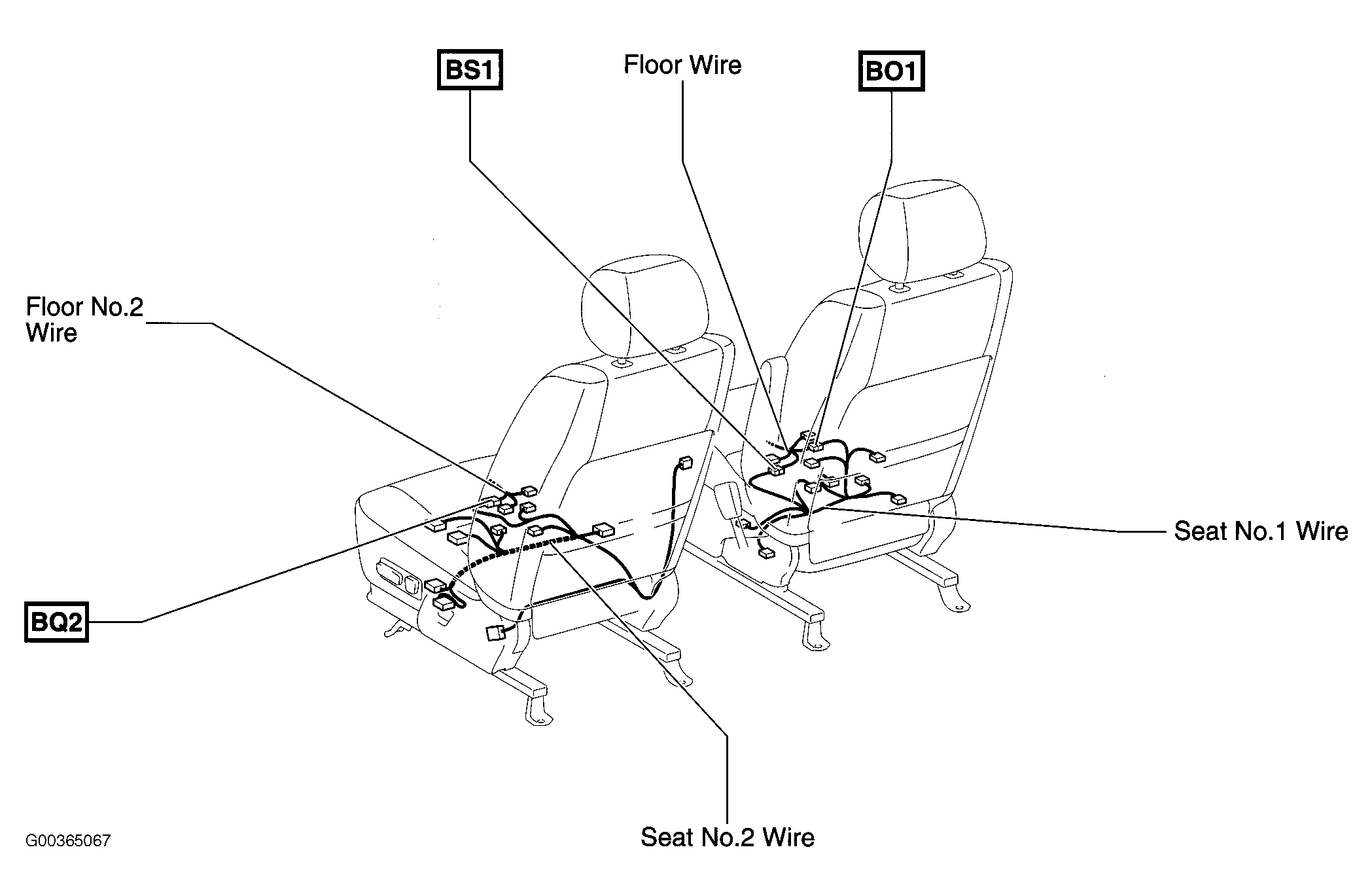

Fig 26: Captain Seat (Access Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 27: Engine Compartment (4.7L) (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 28: Engine Compartment (4.7L) (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

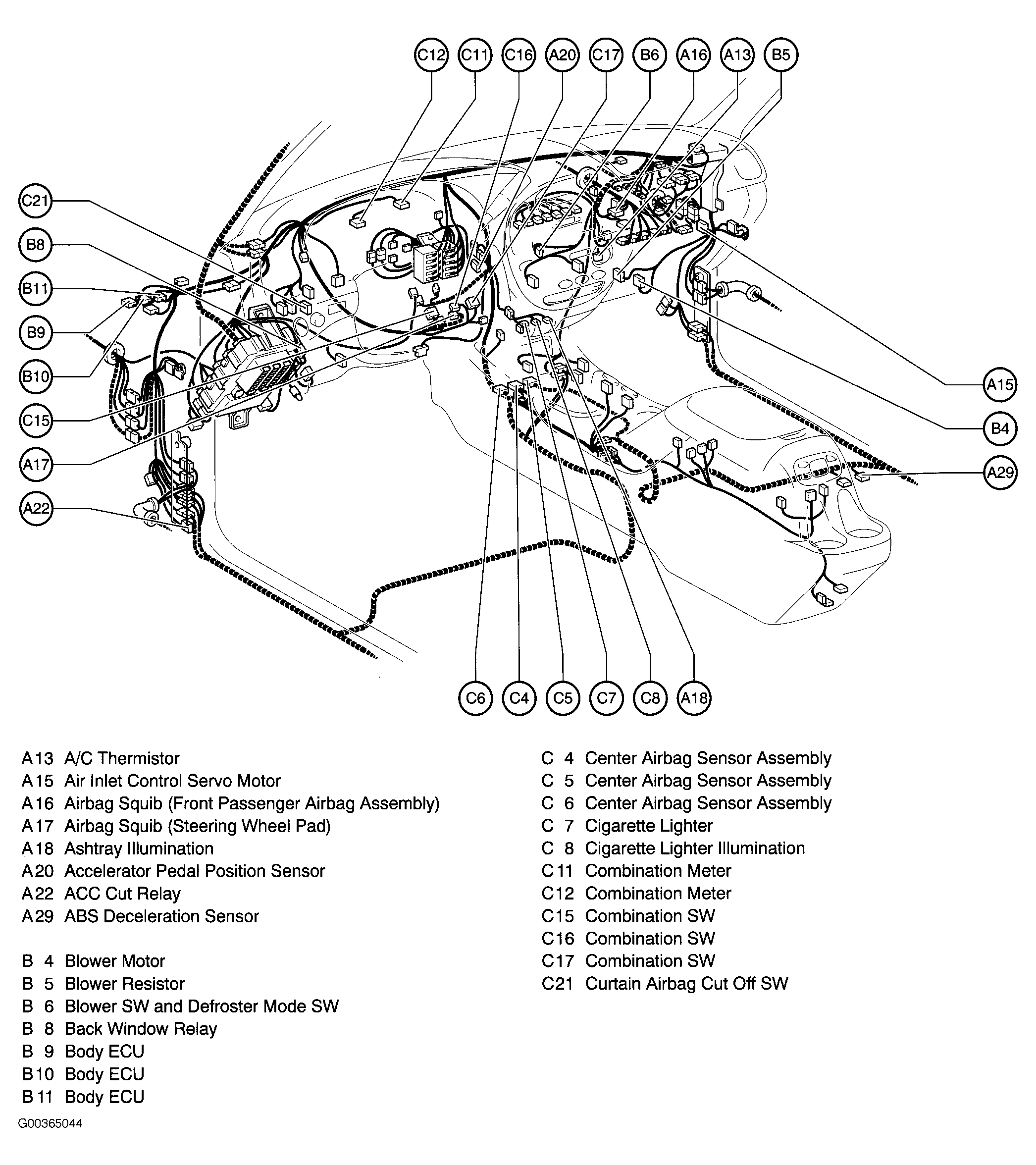

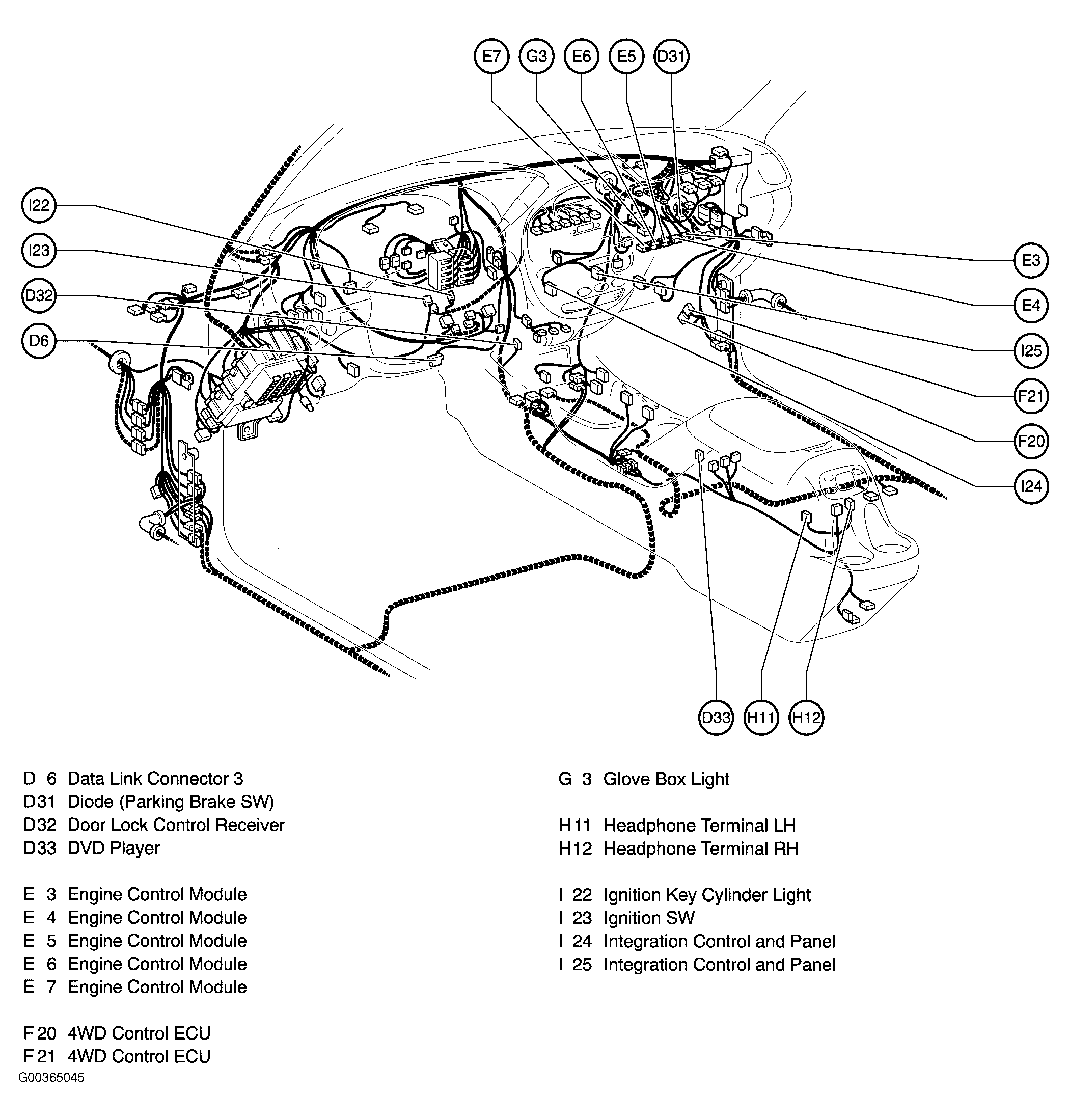

Fig 29: Dash & Center Console (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

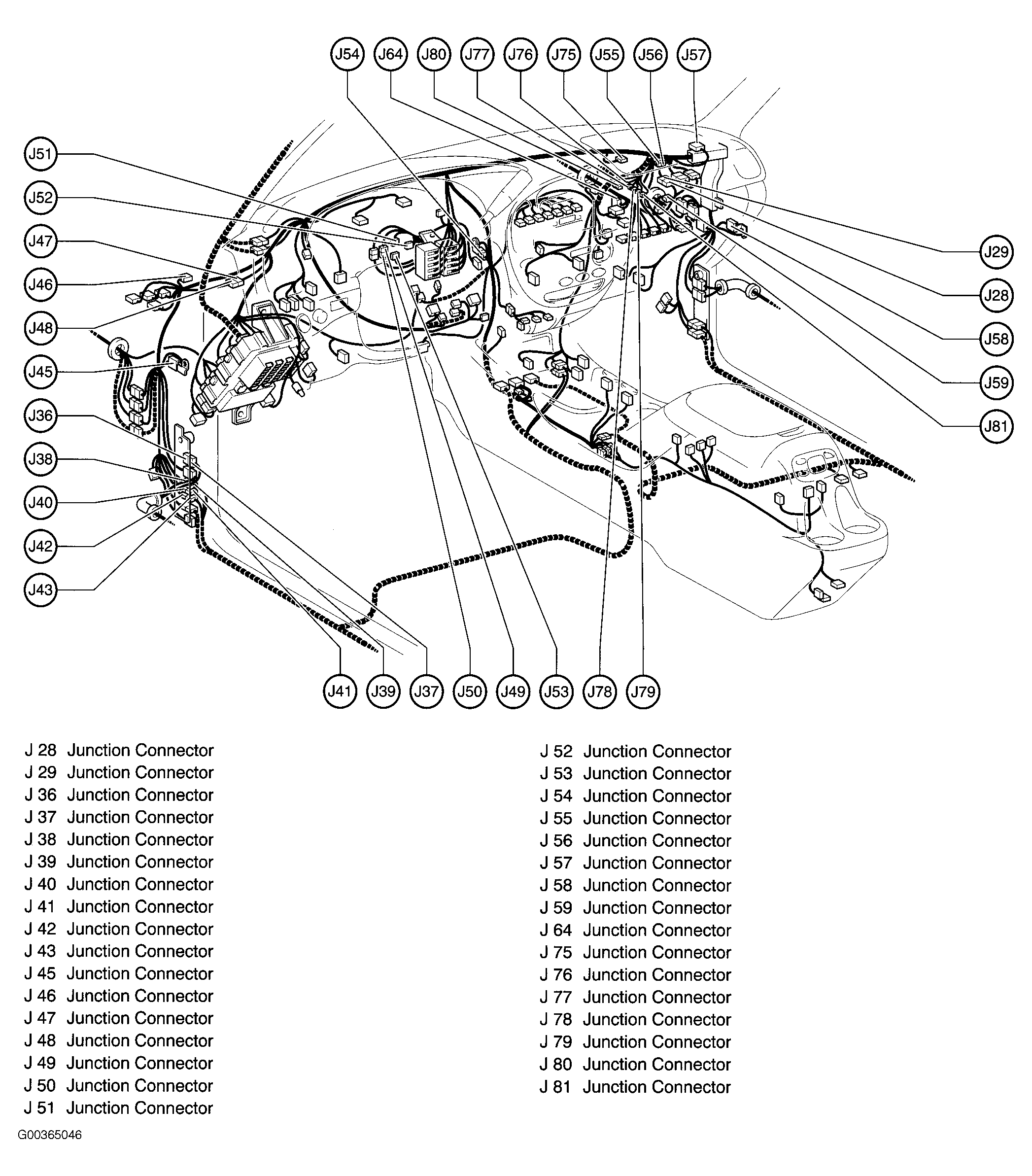

Fig 30: Dash & Center Console (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

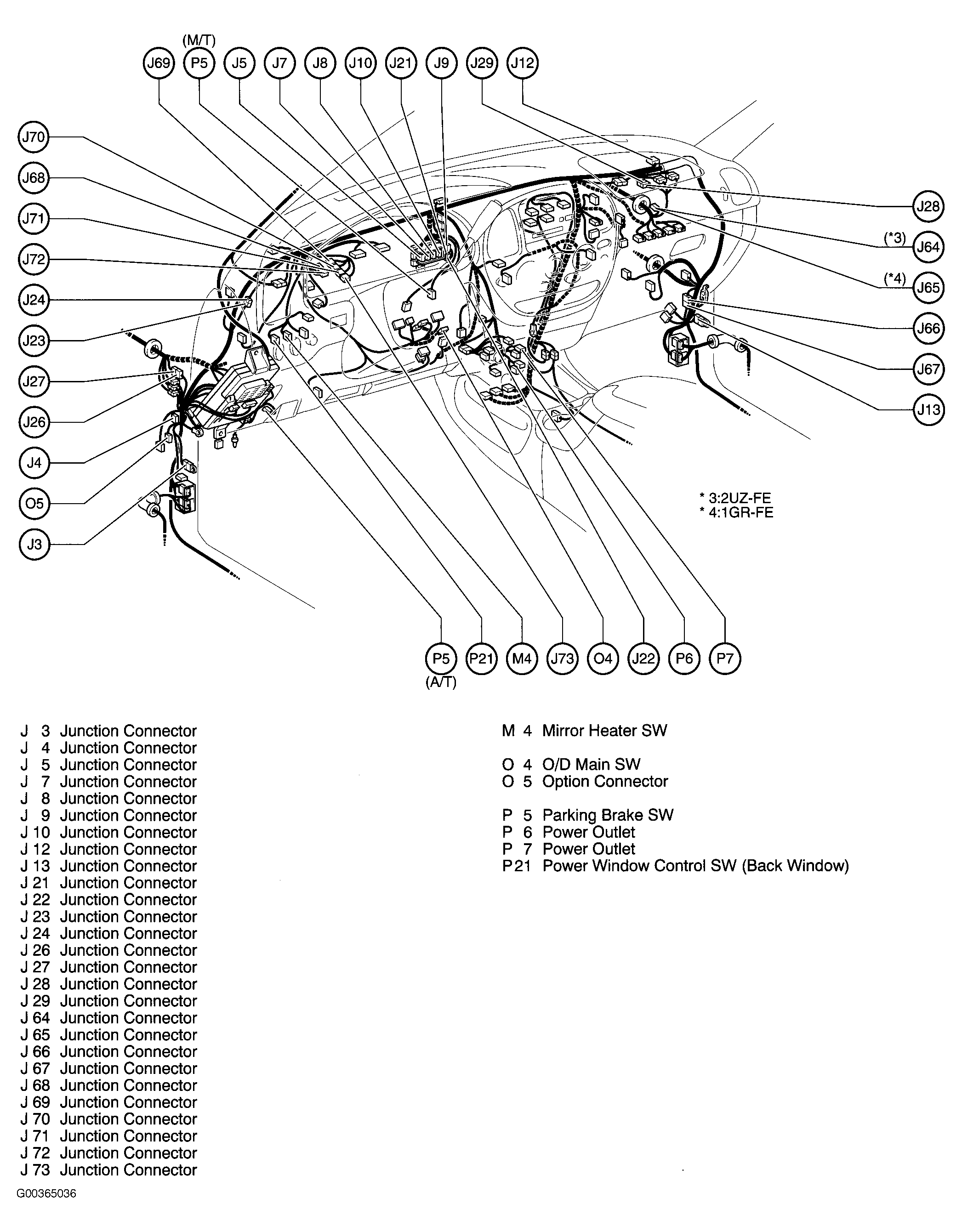

Fig 31: Dash & Center Console (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

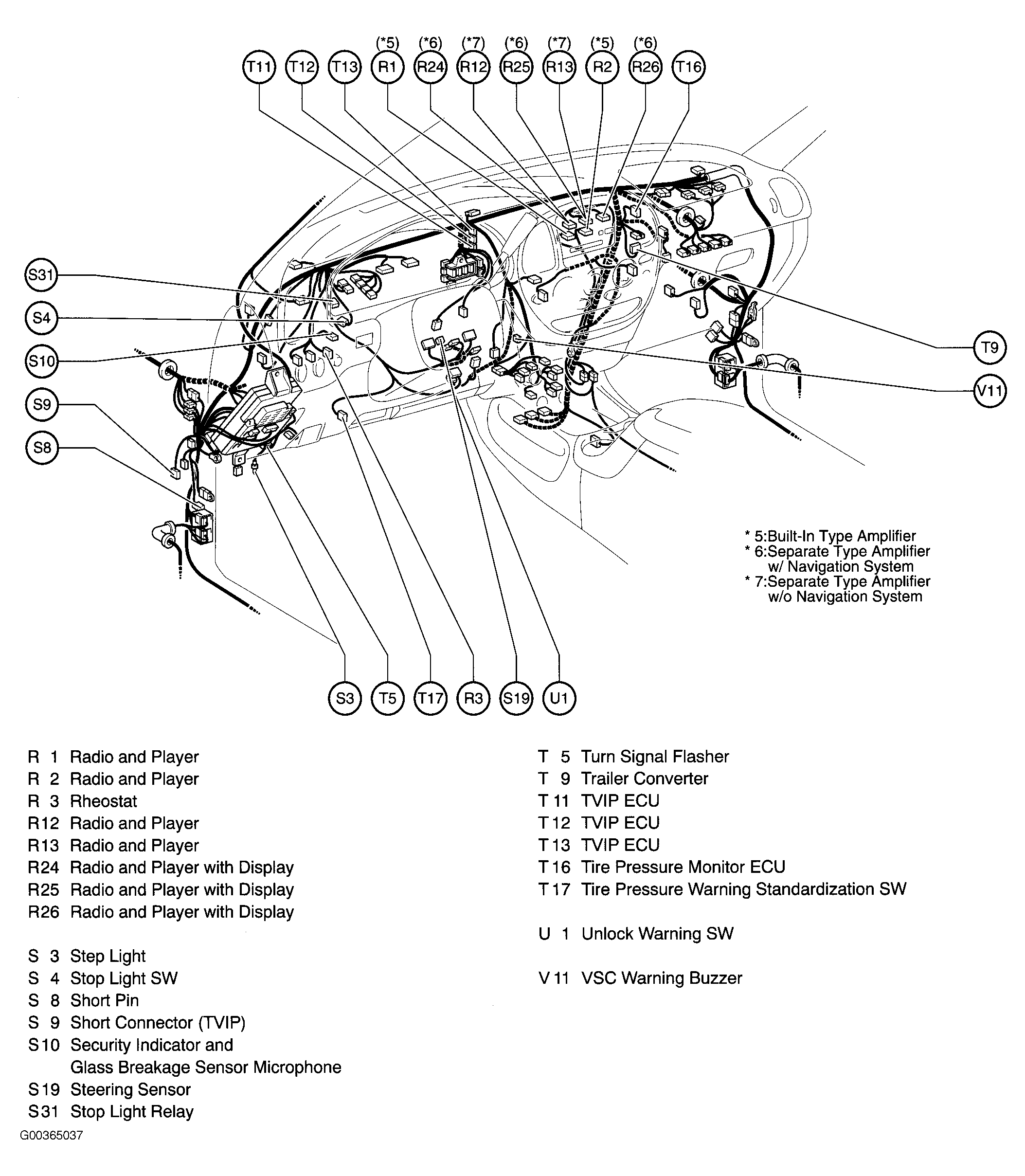

Fig 32: Dash & Center Console (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

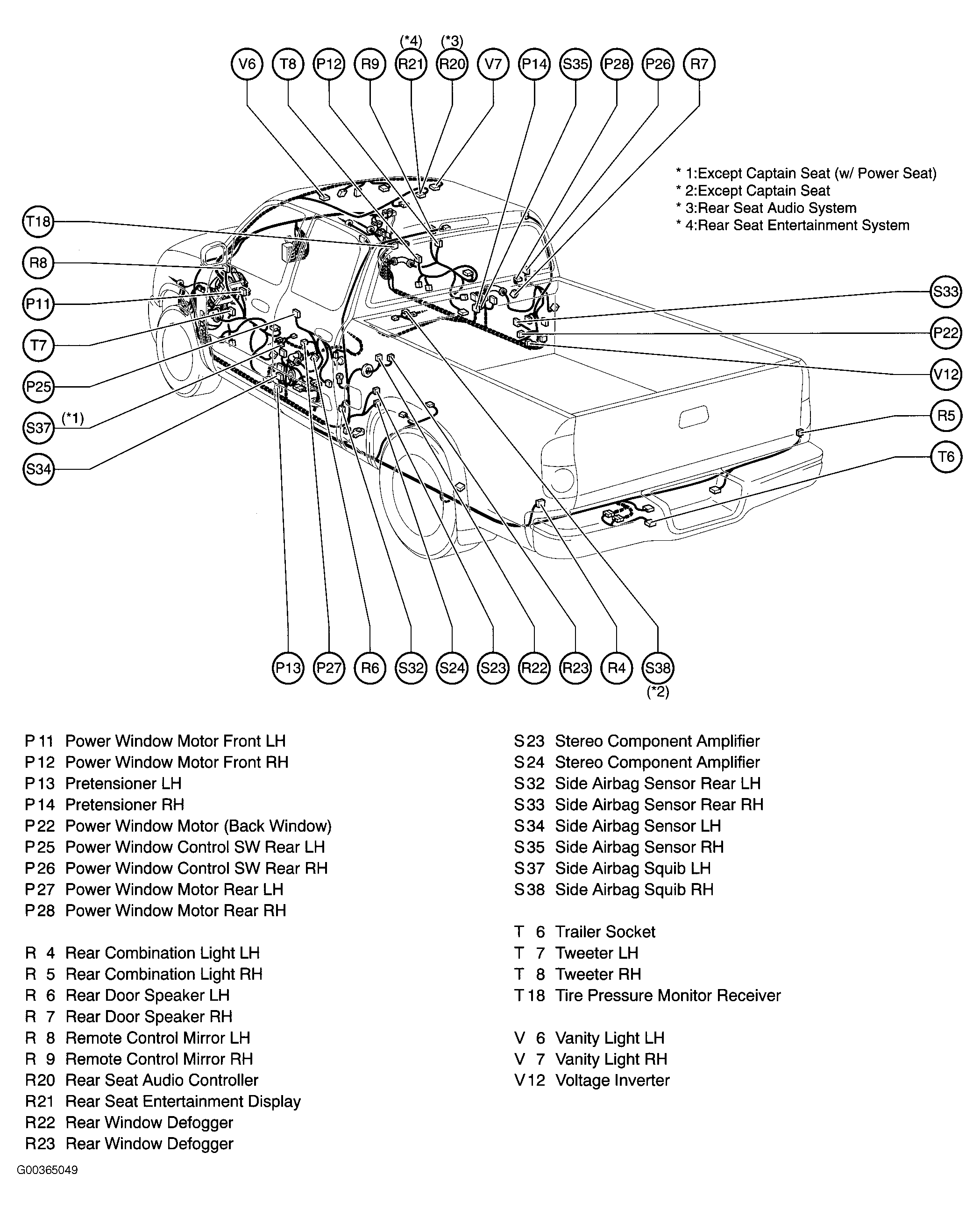

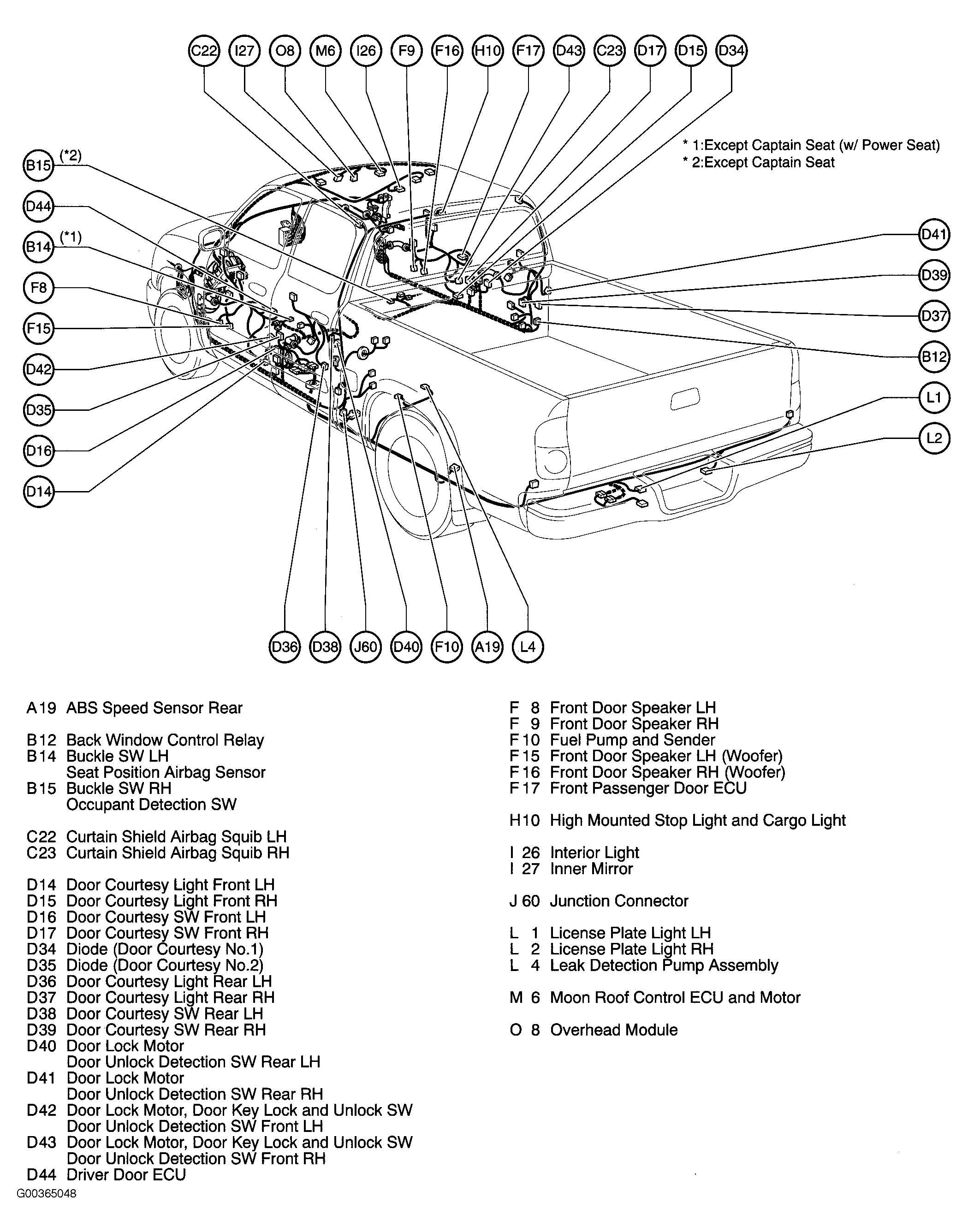

Fig 33: Vehicle Overview (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 34: Vehicle Overview (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

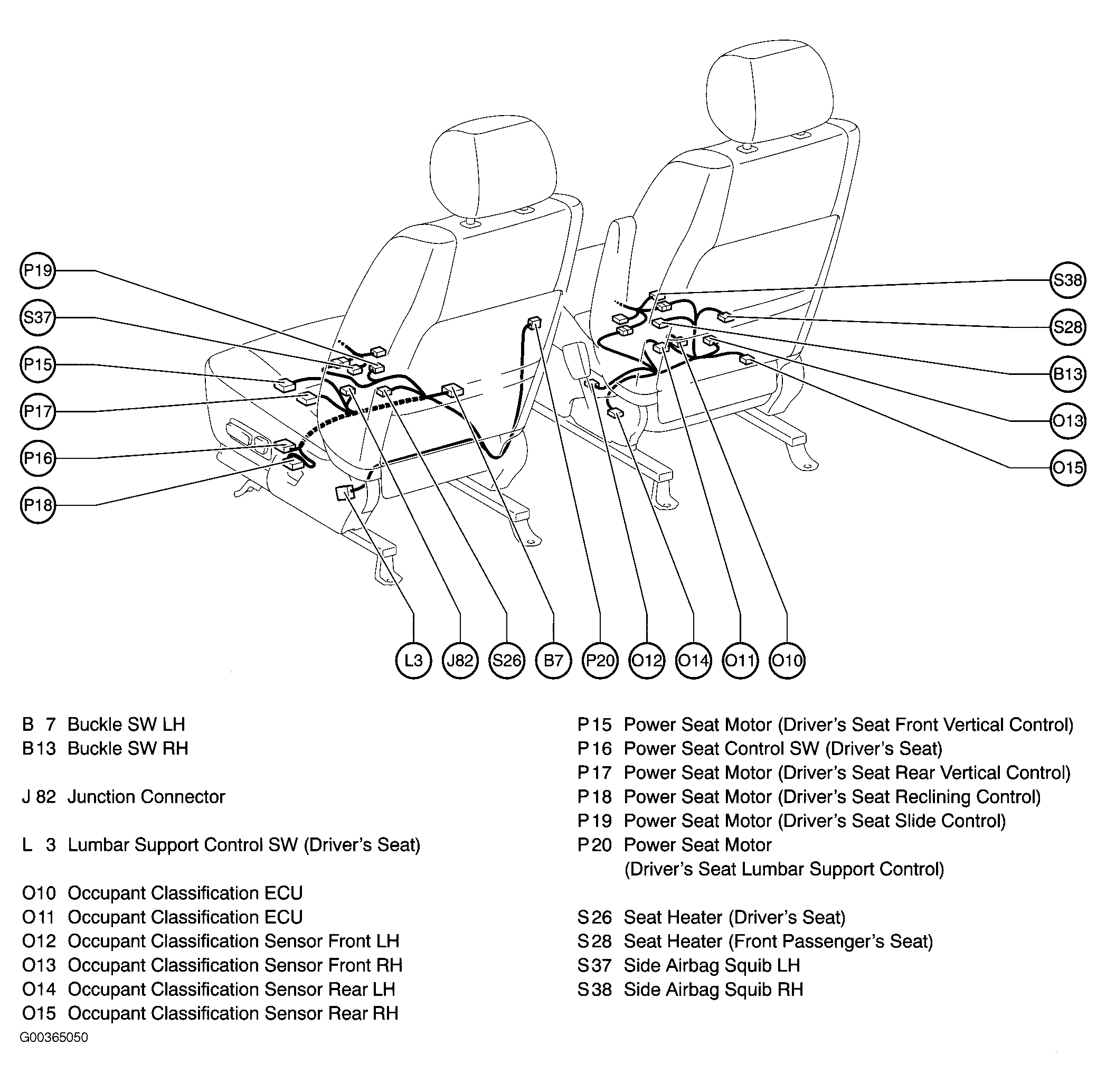

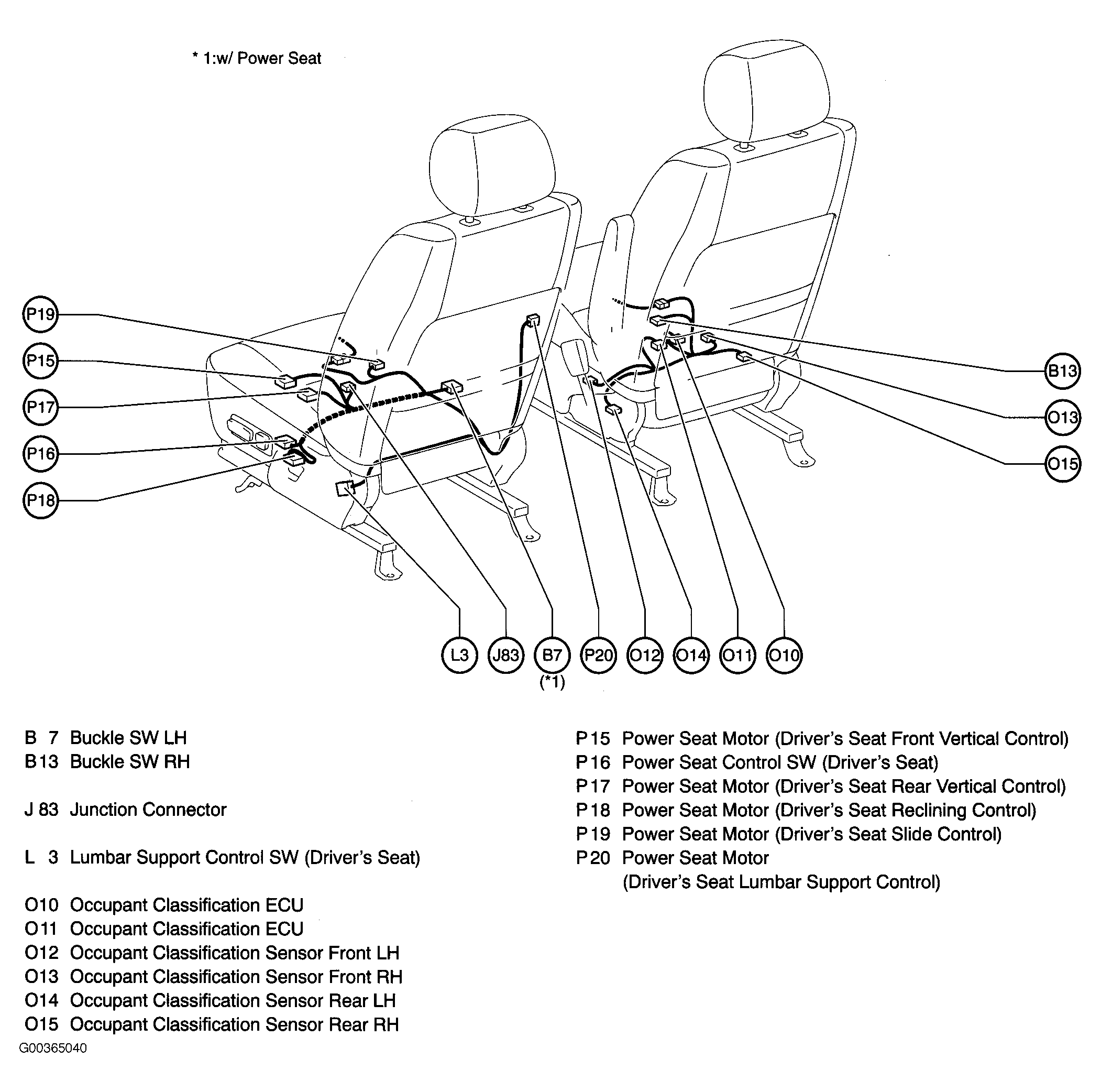

Fig 35: Front Seats (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

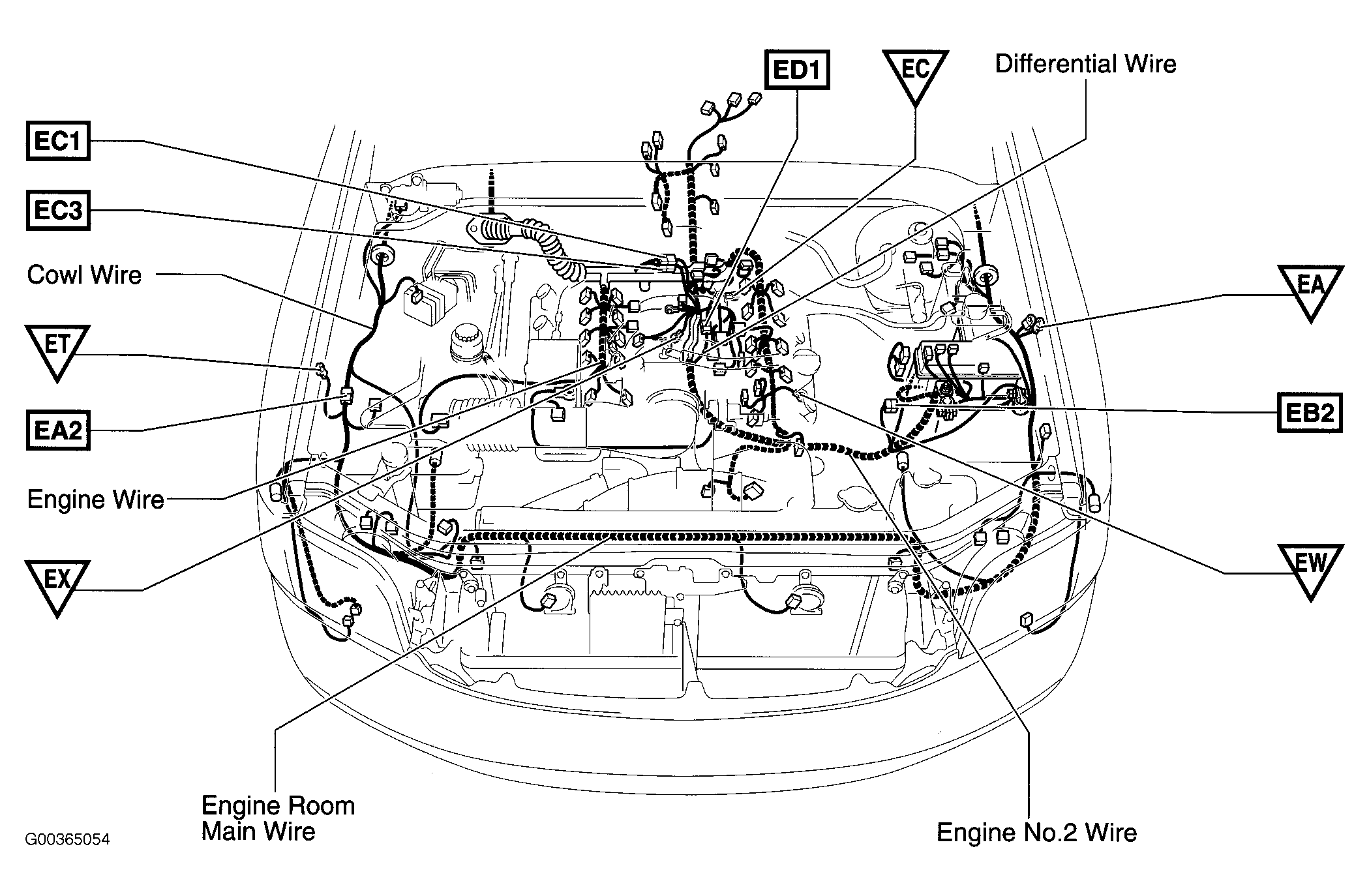

Fig 36: Engine Compartment (4.7L) (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 37: Engine Compartment (4.7L) (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 38: Engine Compartment (4.0L) (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 39: Engine Compartment (4.0L) (Access & Standard Cab)

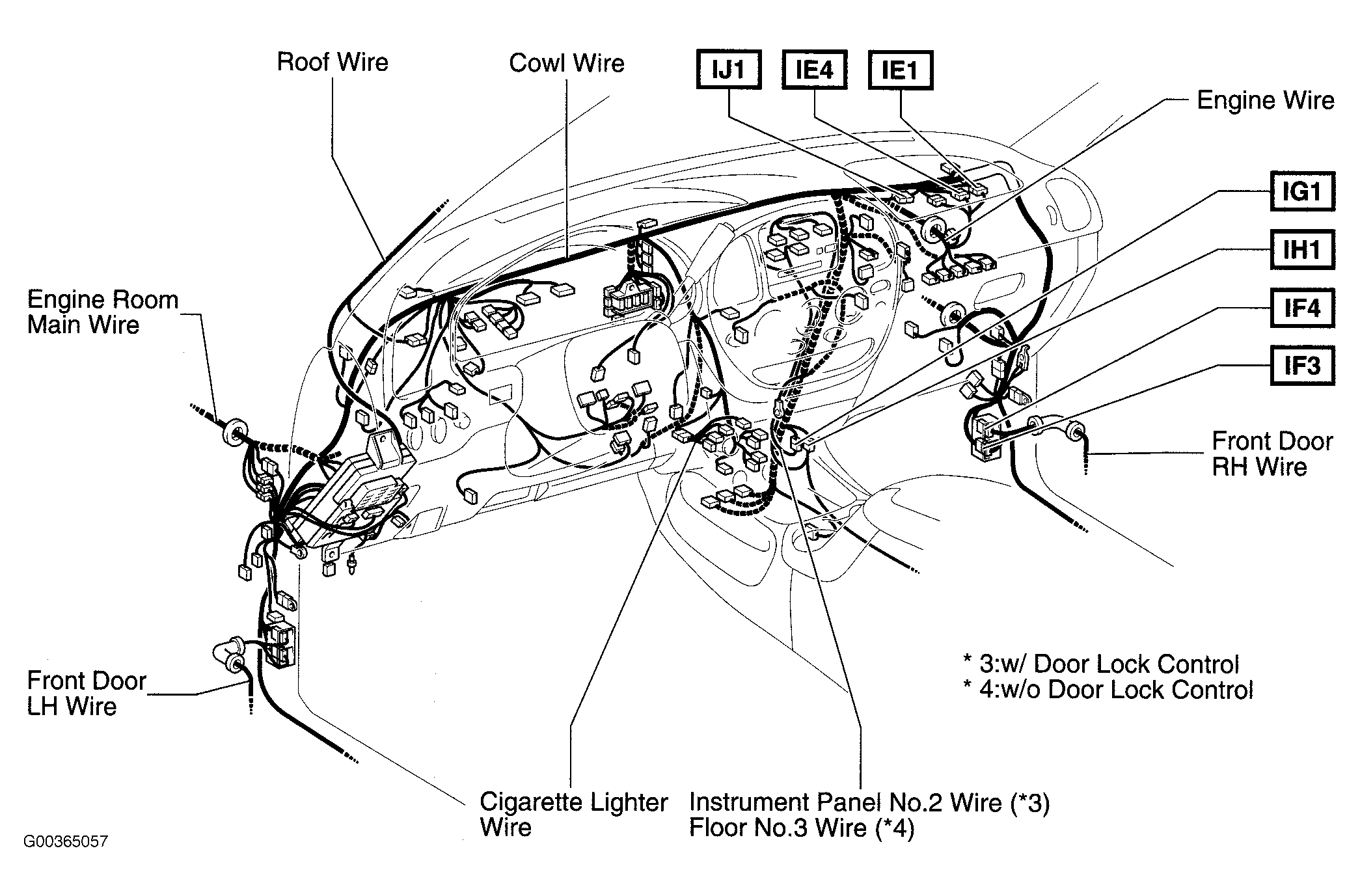

Fig 40: Dash (Access & Standard Cab)

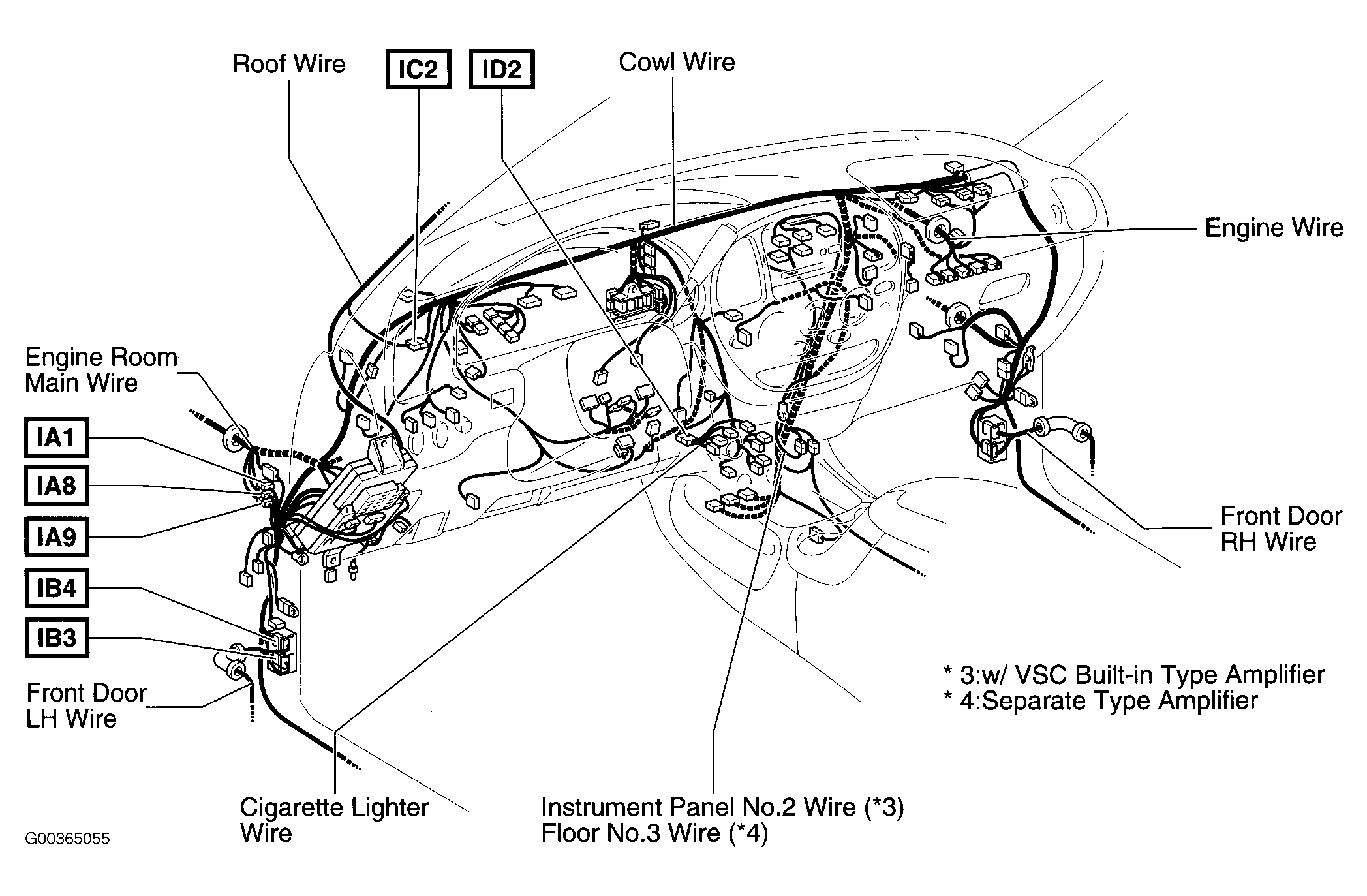

Fig 41: Dash (Access & Standard Cab)

Fig 42: Dash (Access & Standard Cab)

Fig 43: Dash (Access & Standard Cab)

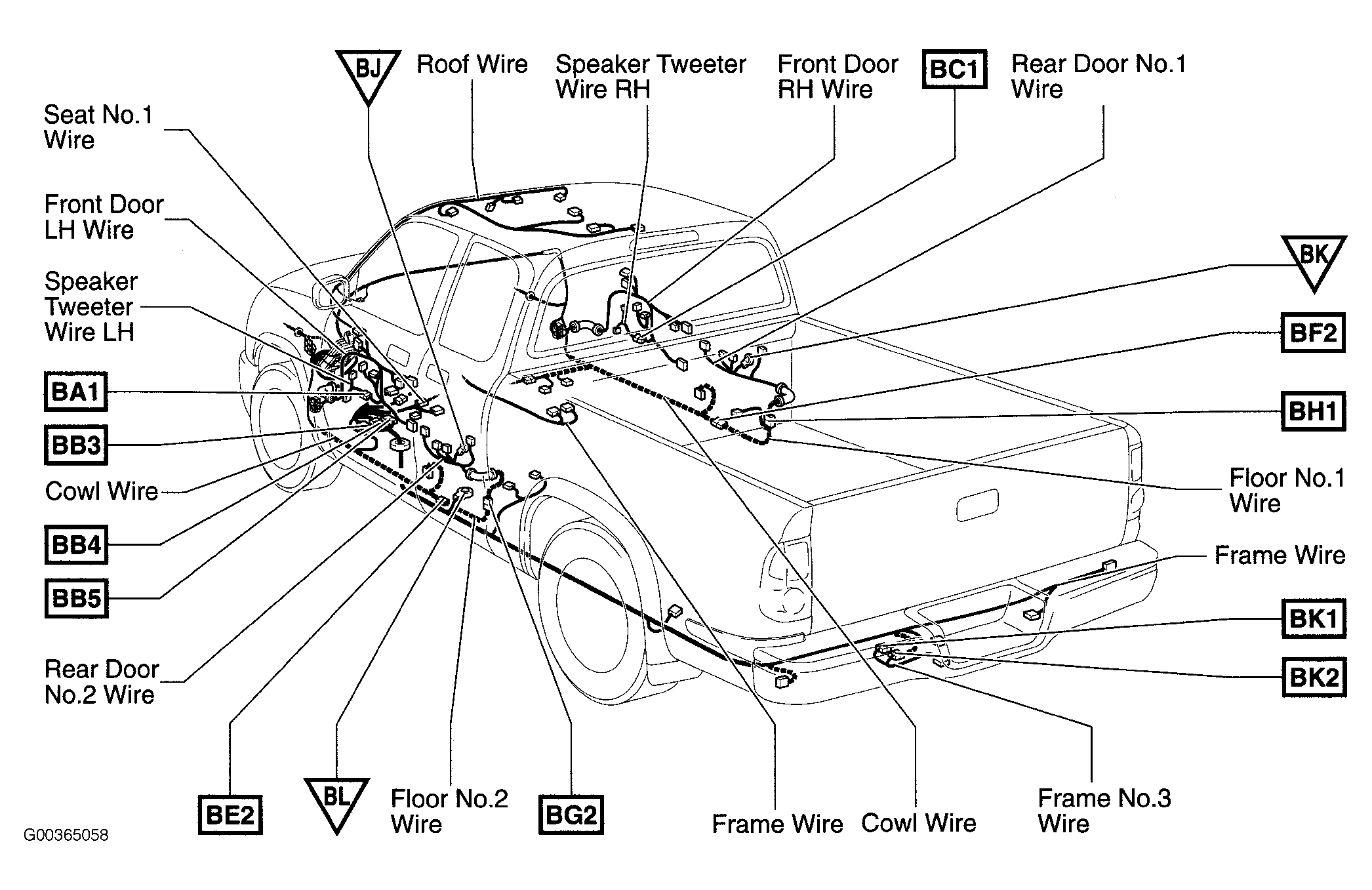

Fig 44: Vehicle Overview (Access Cab)

Fig 45: Vehicle Overview (Access Cab)

Fig 46: Vehicle Overview (Standard Cab)

Fig 47: Vehicle Overview (Standard Cab)

Fig 48: Captain Seat (Access Cab)

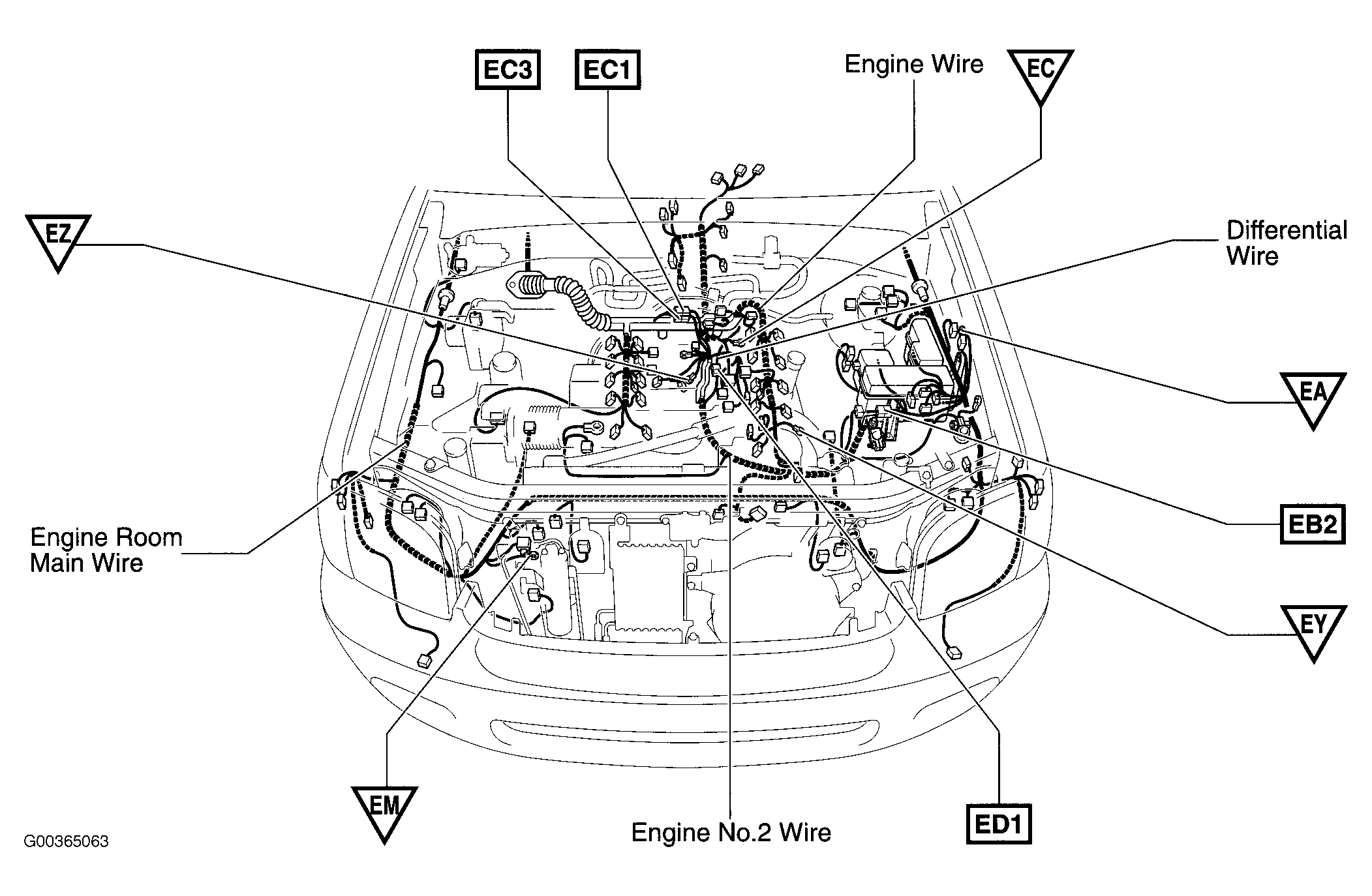

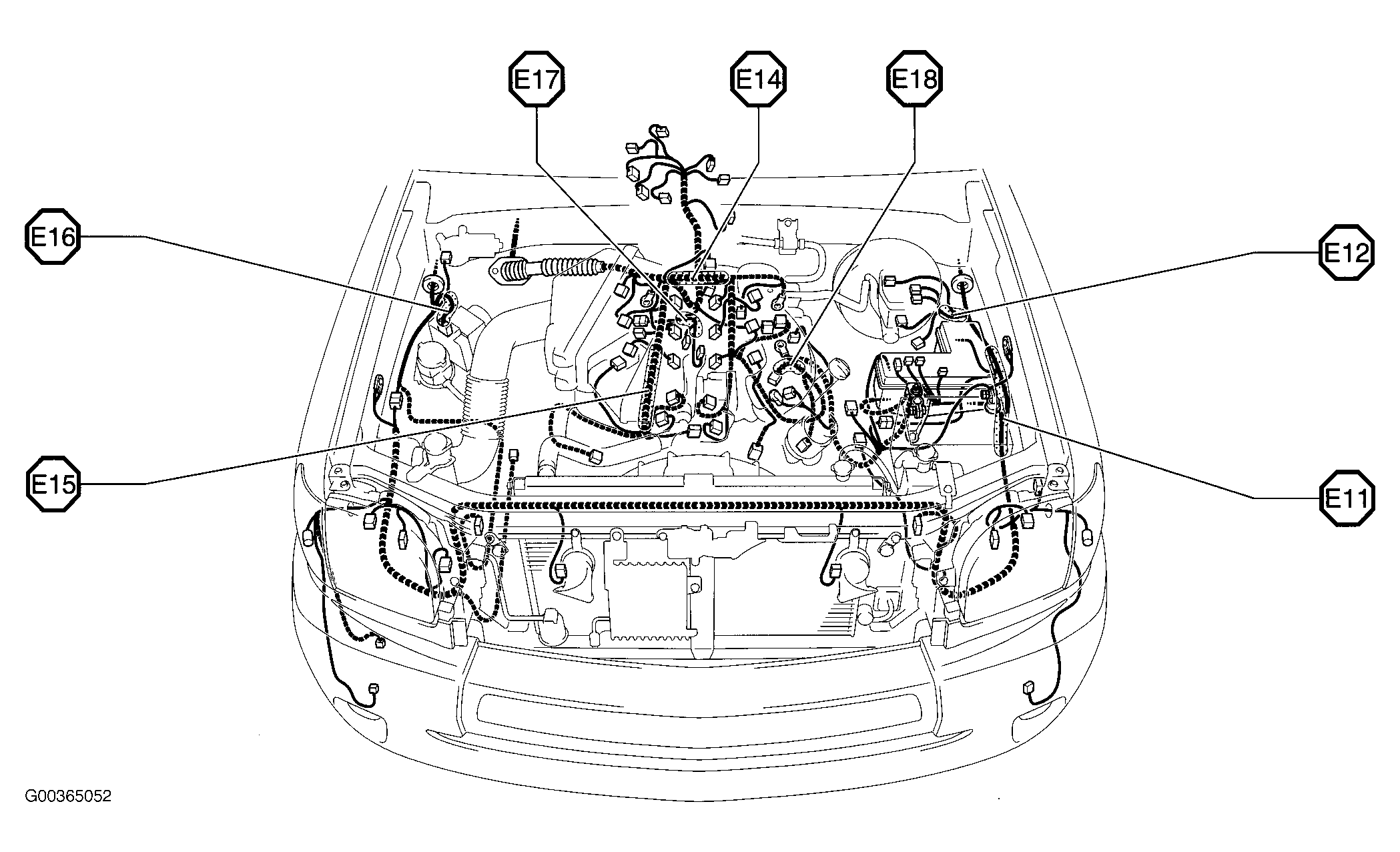

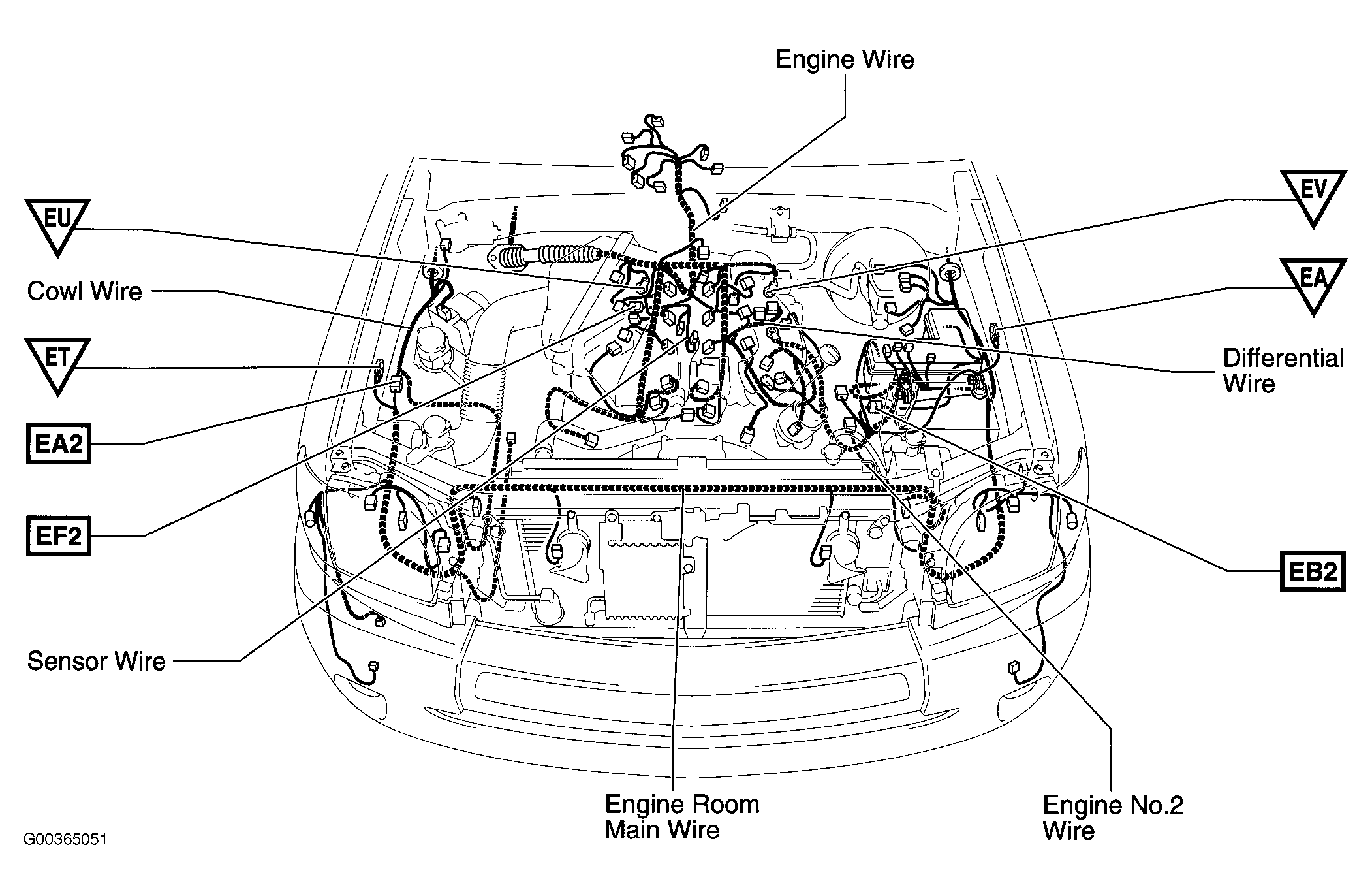

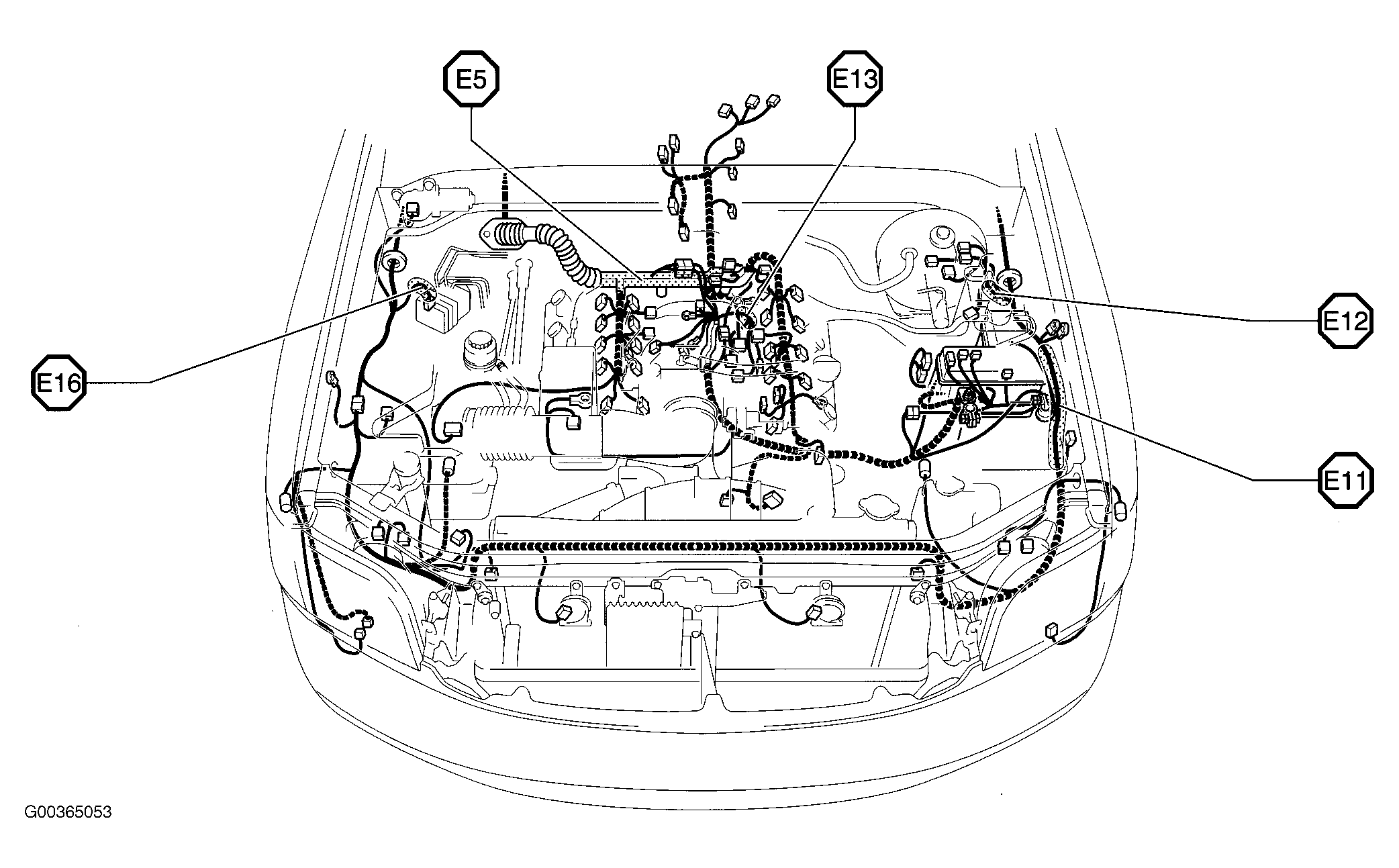

Fig 49: Engine Compartment (Double Cab)

Fig 50: Engine Compartment (Double Cab)

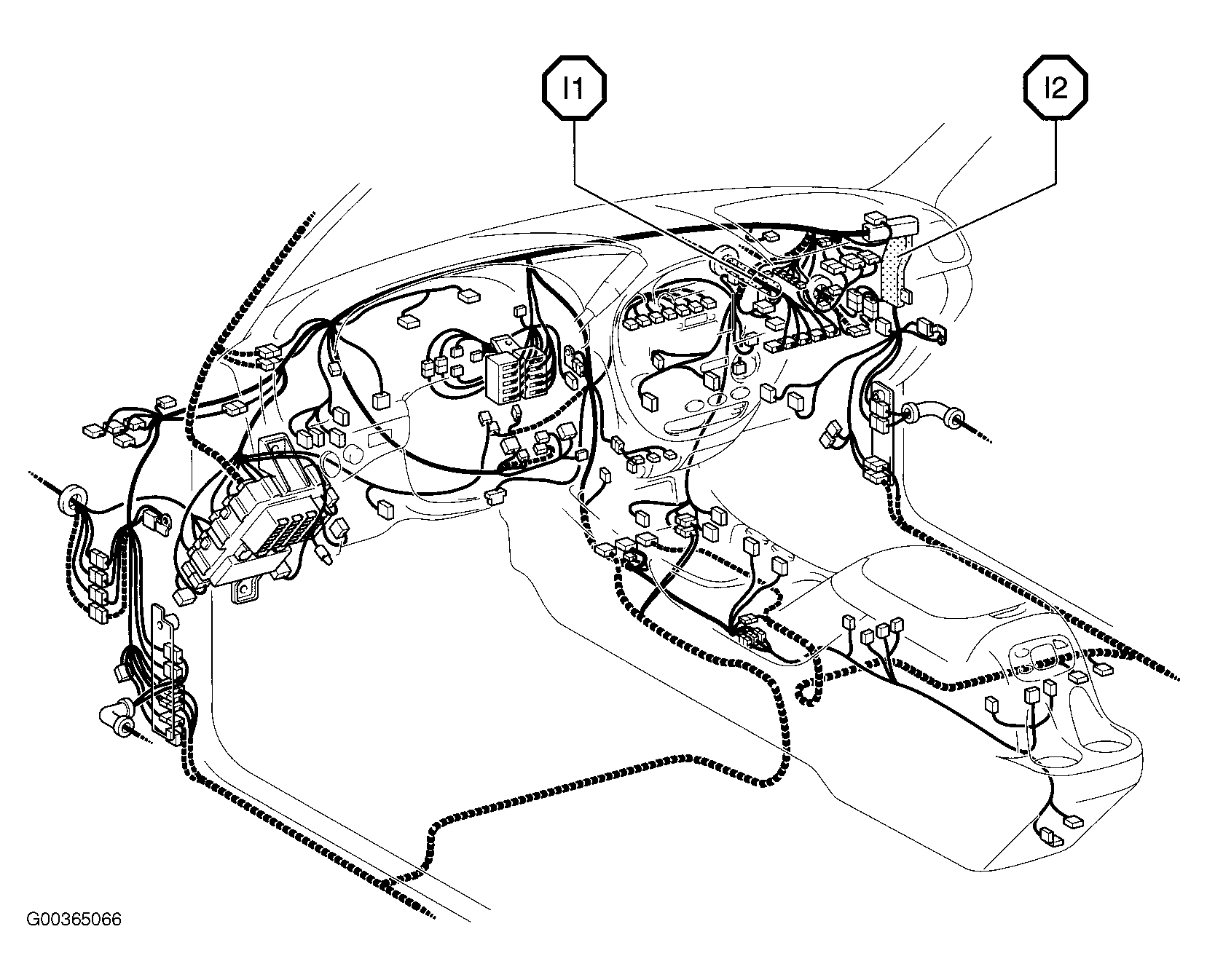

Fig 51: Dash & Center Console (Double Cab)

Fig 52: Dash & Center Console (Double Cab)

Fig 53: Dash & Center Console (Double Cab)

Fig 54: Dash & Center Console (Double Cab)

Fig 55: Vehicle Overview (Double Cab)

Fig 56: Vehicle Overview (Double Cab)

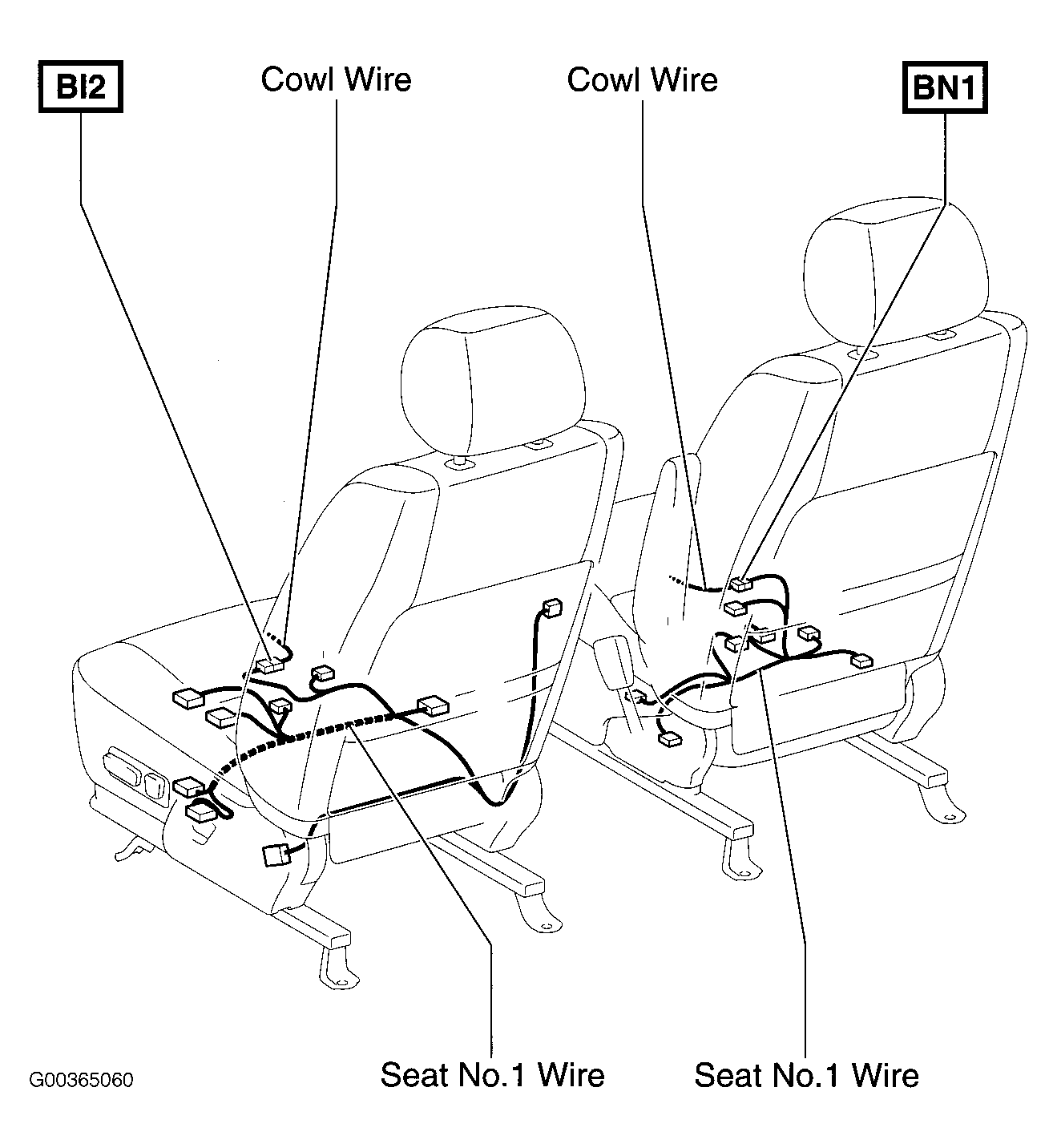

Fig 57: Front Seats (Double Cab)

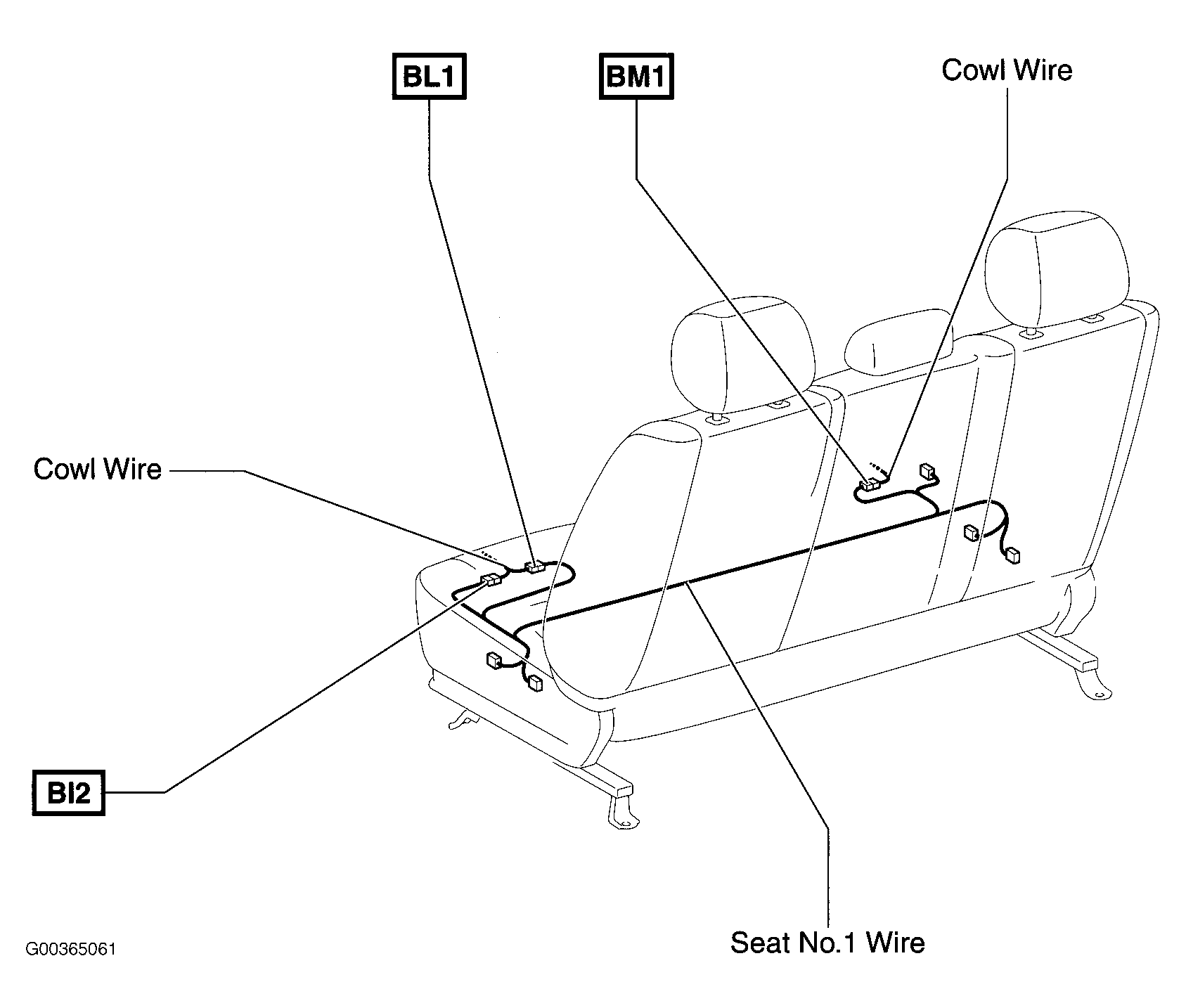

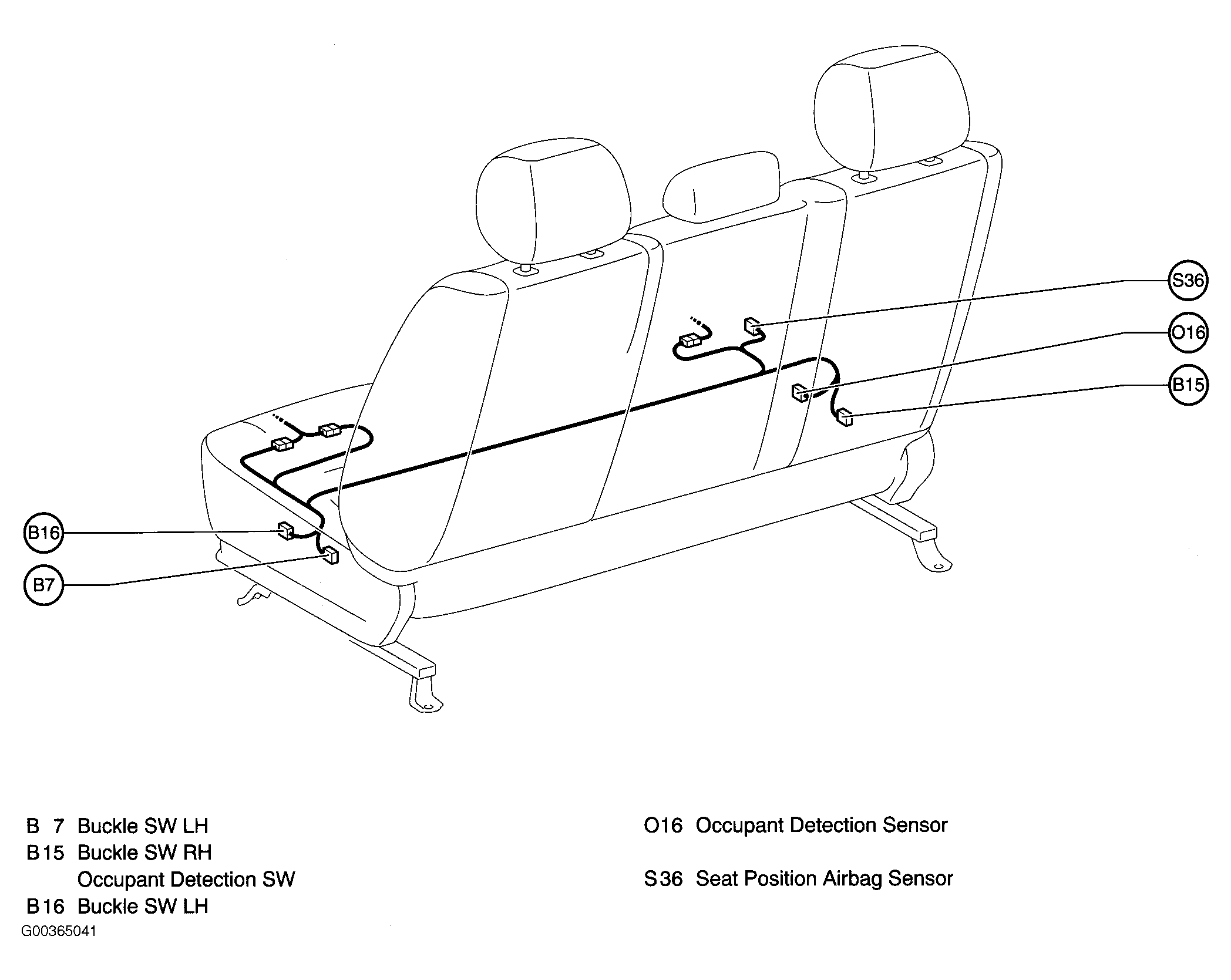

Fig 58: Bench Seat (Standard Cab)

Fig 59: Bench Seat (Standard Cab)
