Fuel Tank And Line: Removal

PREVENT GASOLINE FROM SPILLING OUT (See SFI SYSTEM )
REMOVE FUEL TANK CAP
REMOVE FUEL INLET PIPE SHIELD

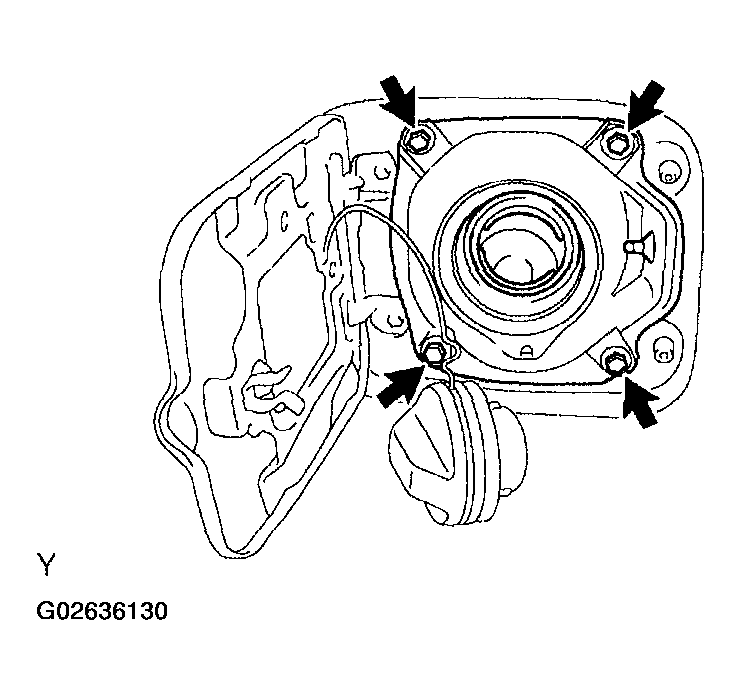

Remove the 4 bolts and fuel inlet pipe shield.

Fig 1: Removing 4 Bolts And Fuel Inlet Pipe Shield
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CHARCOAL CANISTER ASSEMBLY

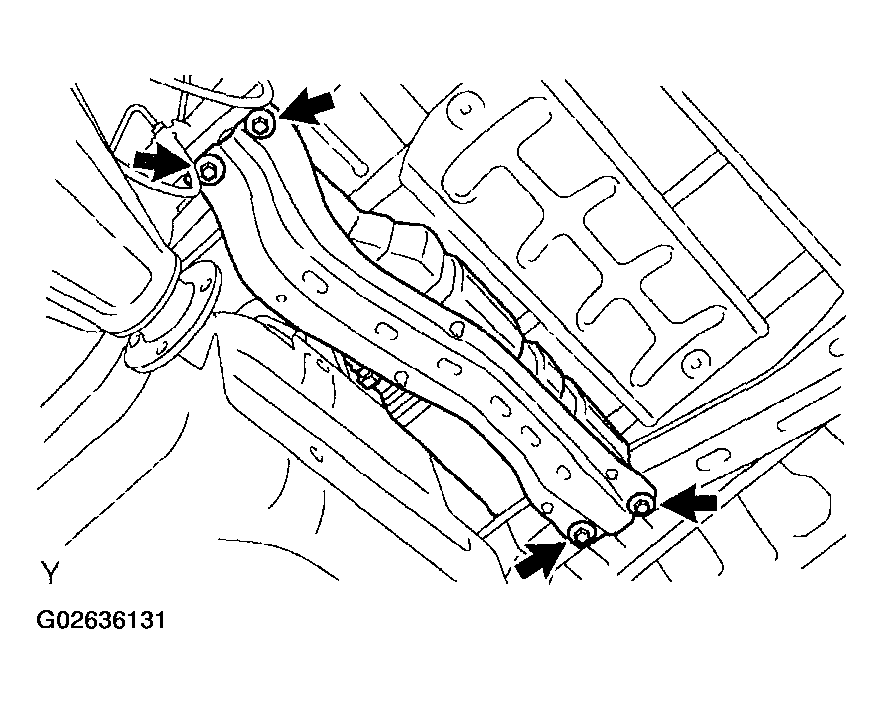

1. Remove the 4 bolts and charcoal canister assembly.
2. Disconnect the pump module connector, vent hose and purge line hose from the charcoal canister.
Fig 2: Removing 4 Bolts And Charcoal Canister Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT SPEED SENSOR WIRE

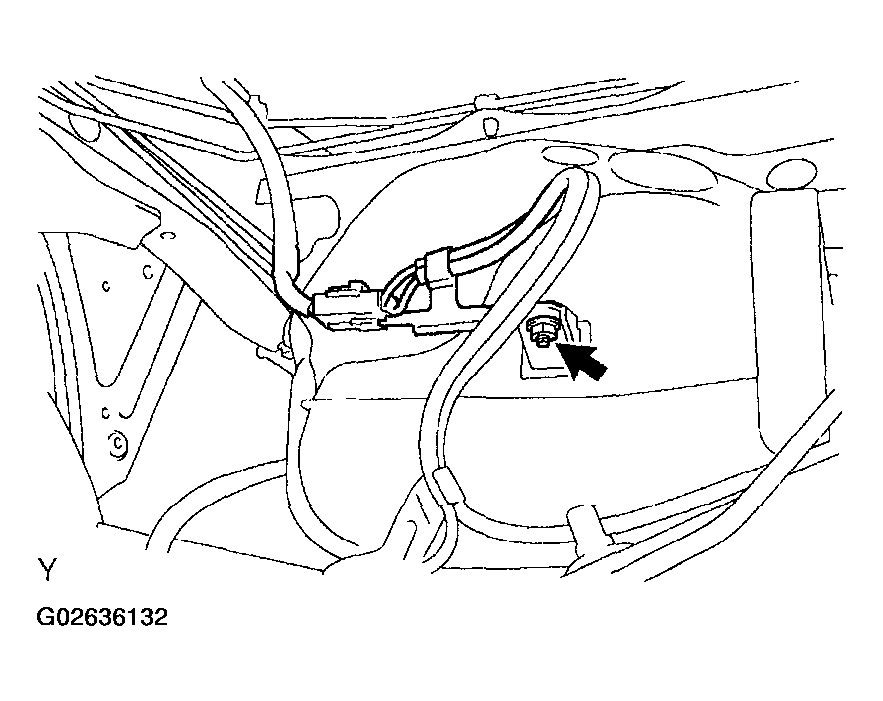

Remove the nut and disconnect the speed sensor wire from the fuel tank.

Fig 3: Removing Nut And Disconnecting Speed Sensor Wire From Fuel Tank
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

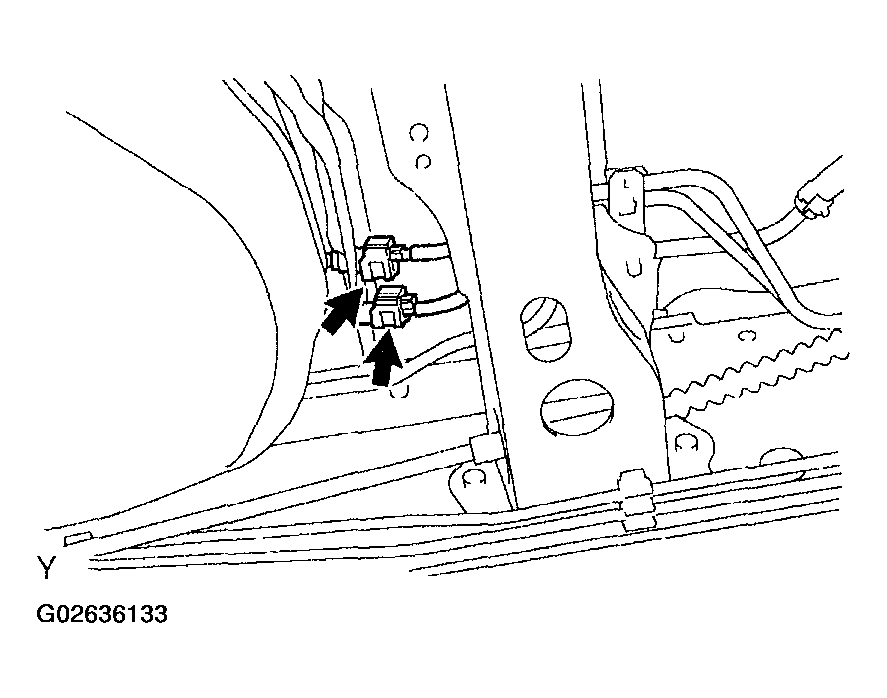

DISCONNECT FUEL MAIN TUBE AND RETURN TUBE (See SFI SYSTEM )

Fig 4: Disconnecting Fuel Main Tube And Return Tube
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL TANK ASSEMBLY
1. Set up a transmission jack under the fuel tank.

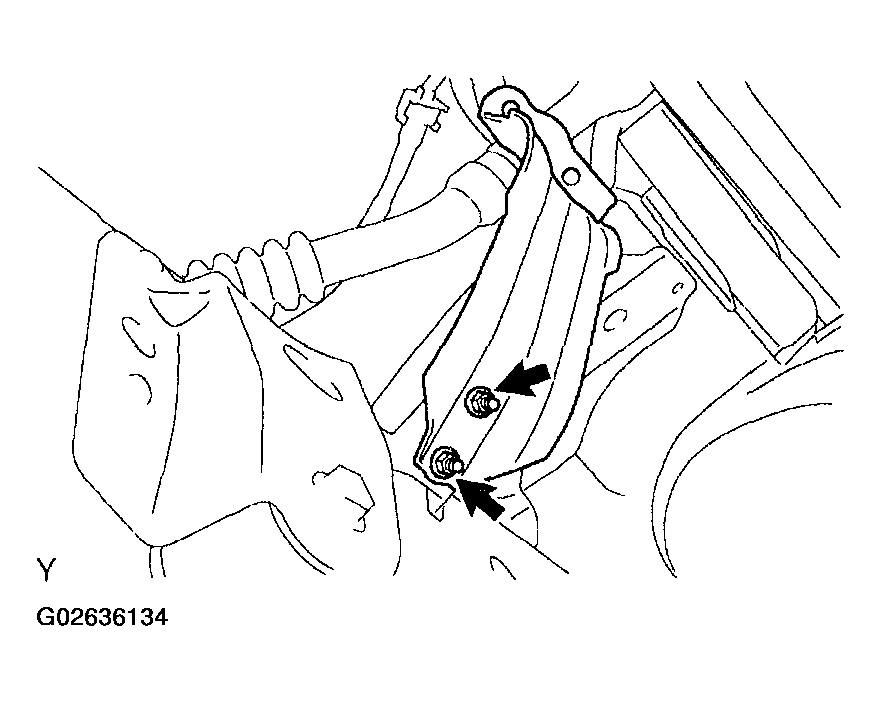

2. Remove the 2 nuts and disconnect the fuel pipe bracket from the body.

  Fig 5: Removing 2 Nuts And Disconnecting Fuel Pipe Bracket From Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

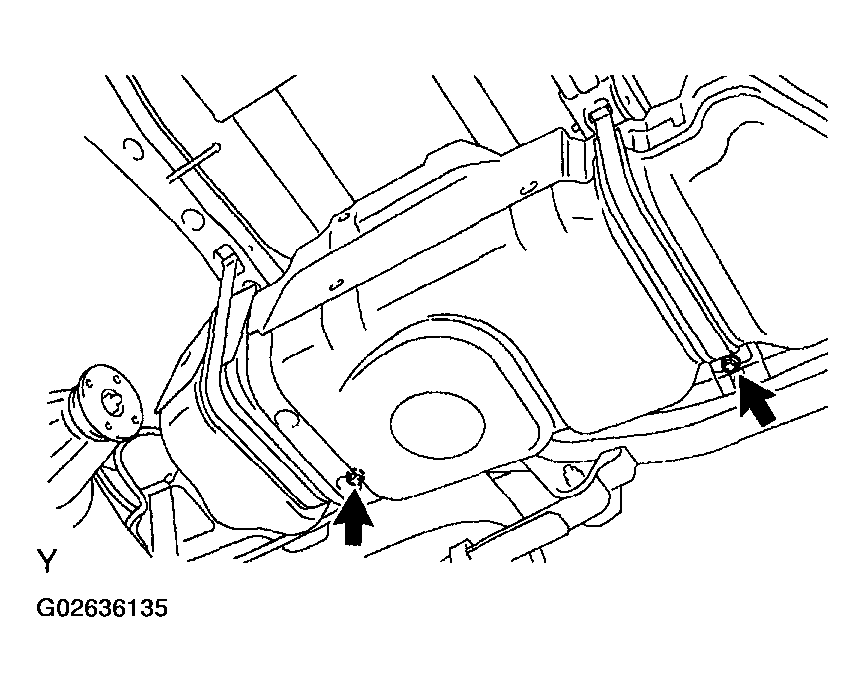

3. Remove the 2 bolts and disconnect the 2 fuel tank bands from the fuel tank.
4. Operate the transmission jack and remove the fuel tank.
REMOVE FUEL PUMP ASSEMBLY (See REMOVAL )

Fig 6: Removing Fuel Pump Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
