SST (Special Service Tools)

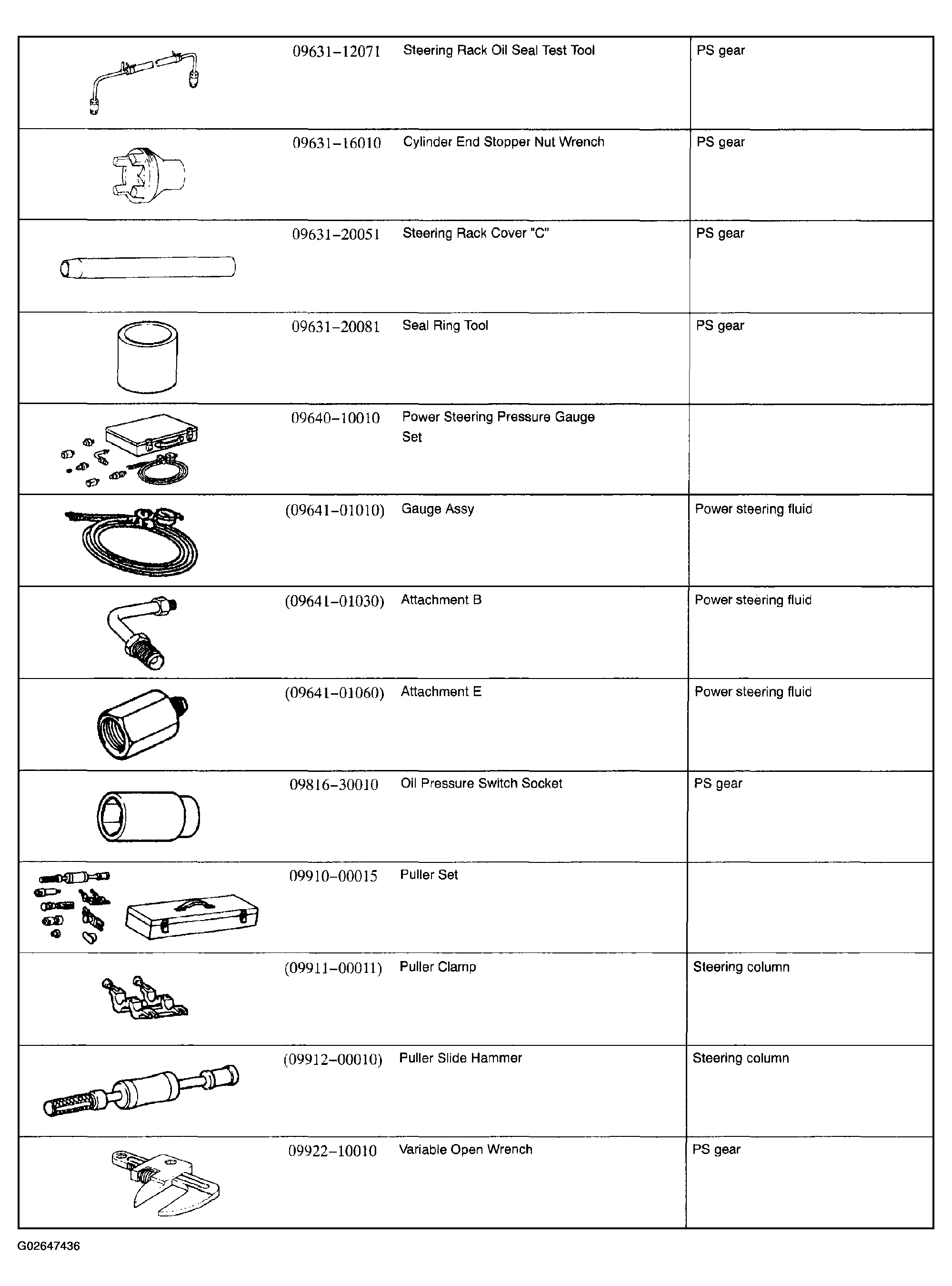

Fig 1: Special Service Tools Chart - Steering (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

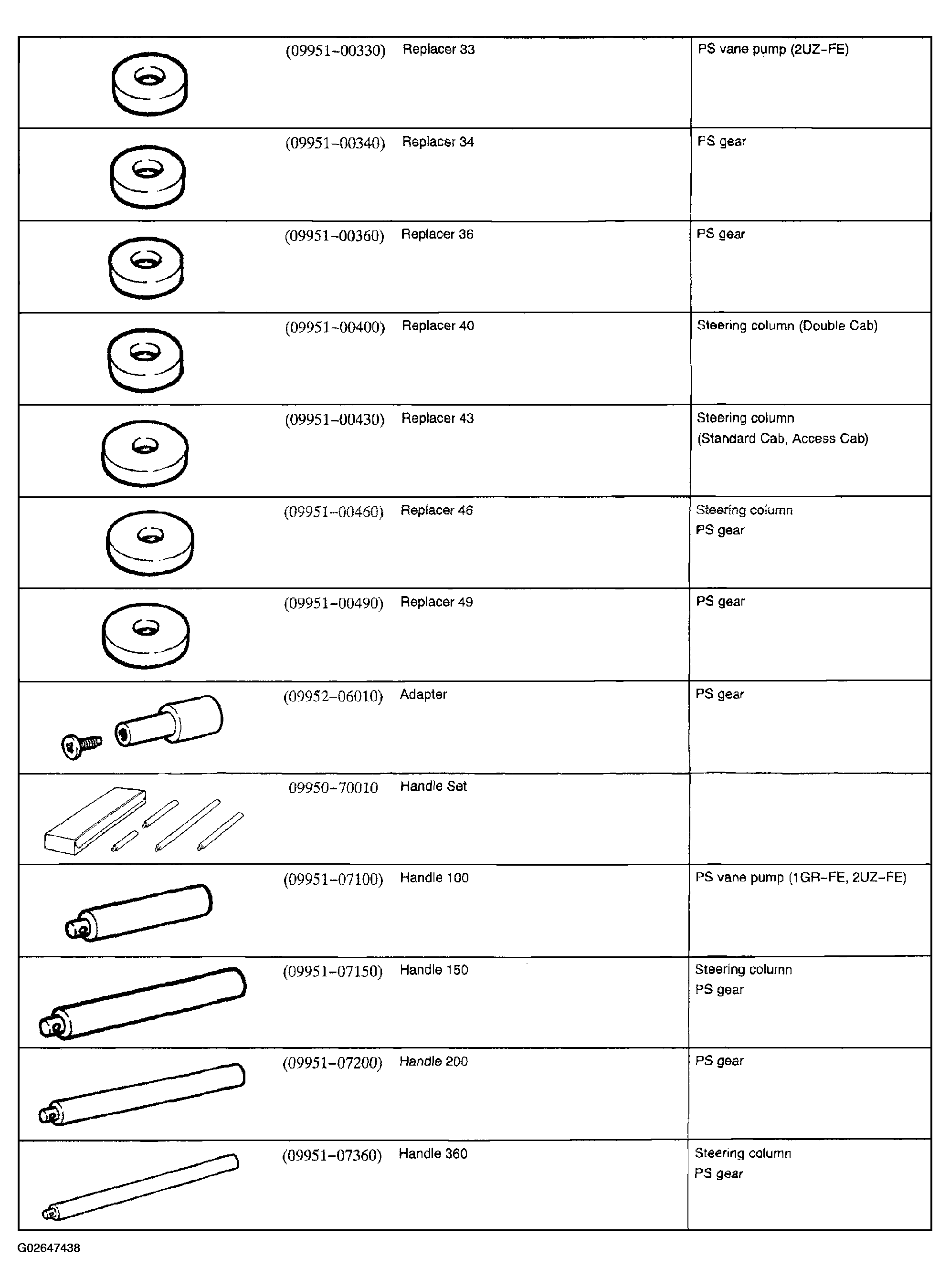

Fig 2: Special Service Tools Chart - Steering (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

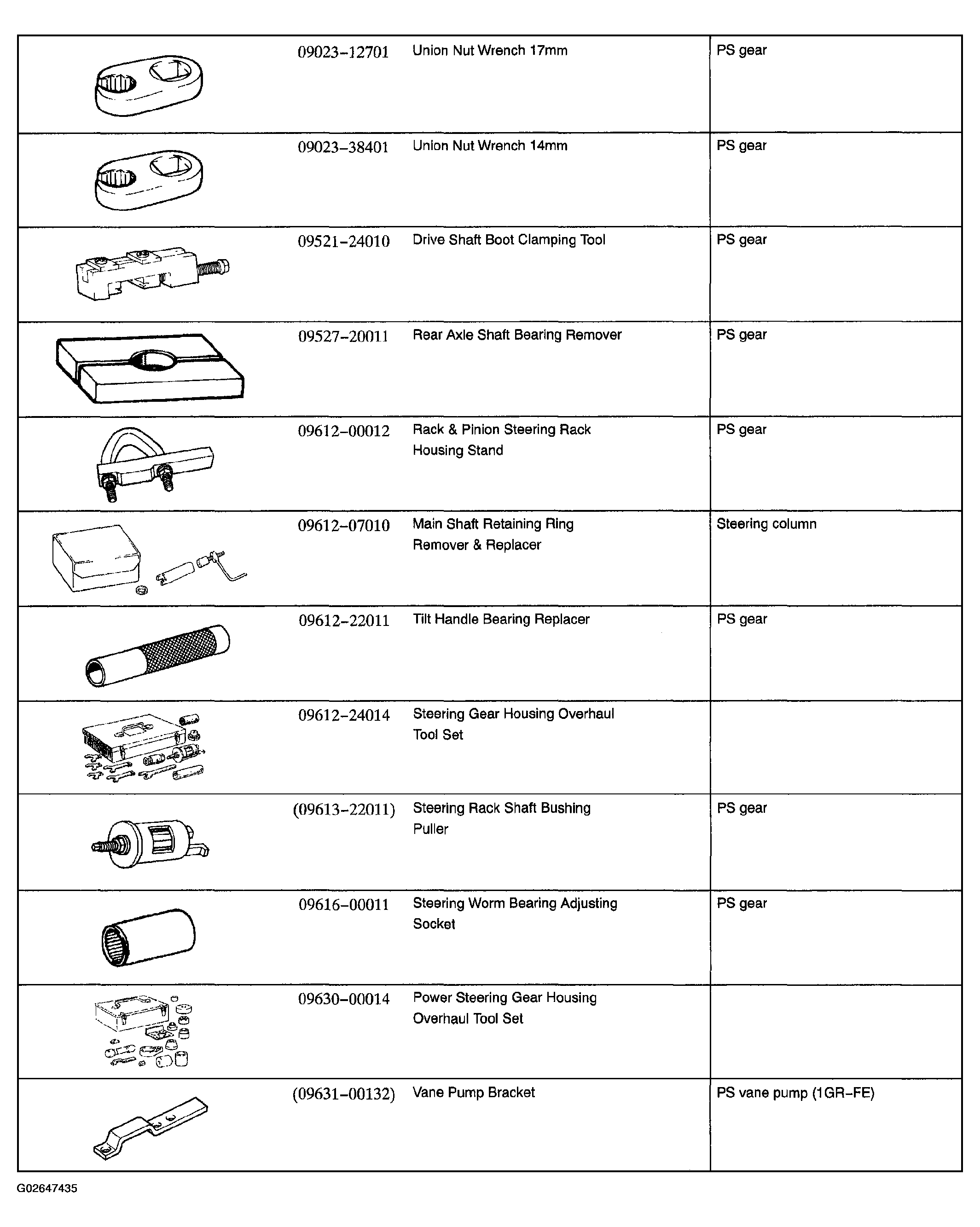

Fig 3: Special Service Tools Chart - Steering (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

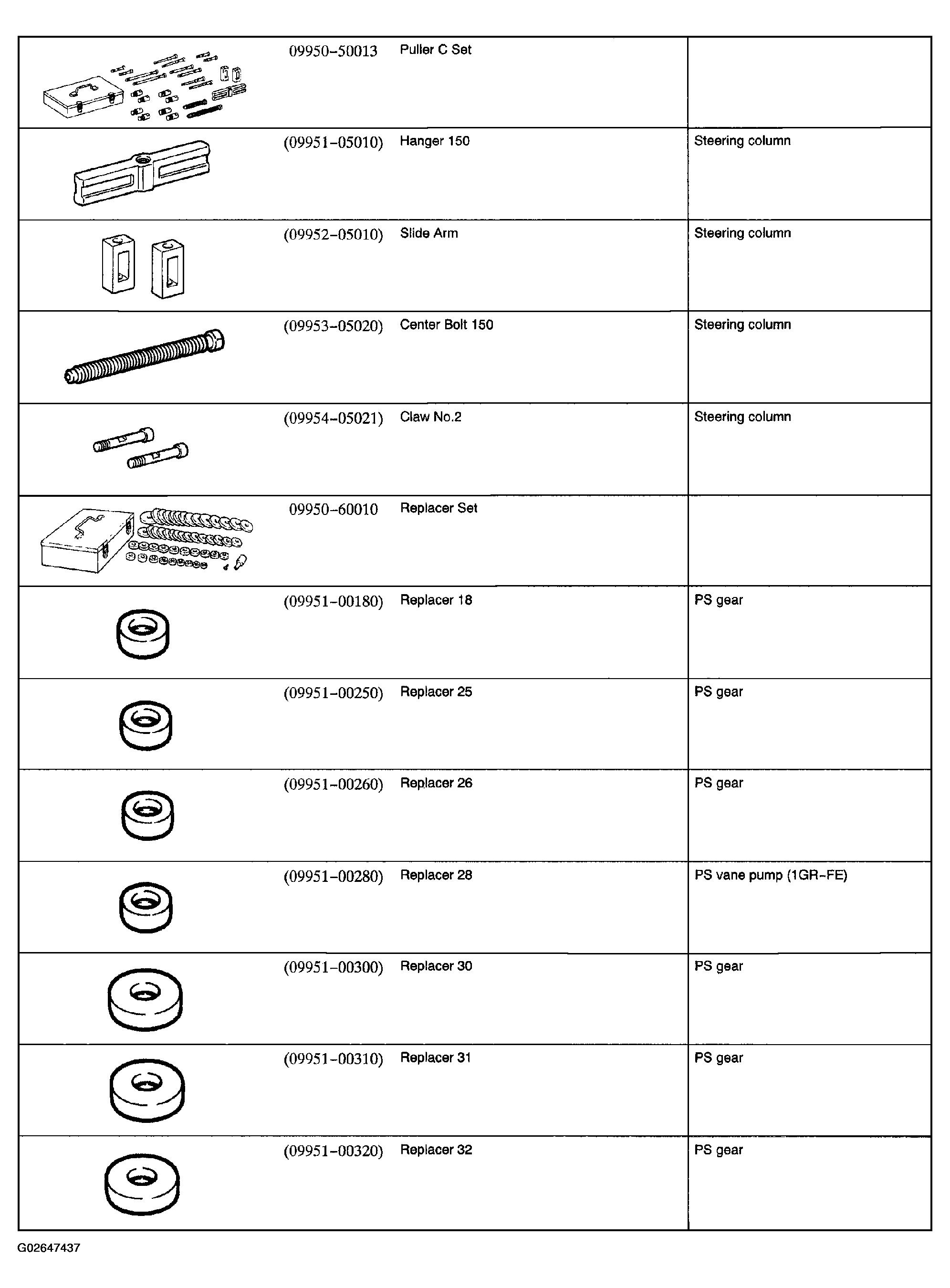

Fig 4: Special Service Tools Chart - Steering (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
