Acoustic Control Induction System (ACIS): Components

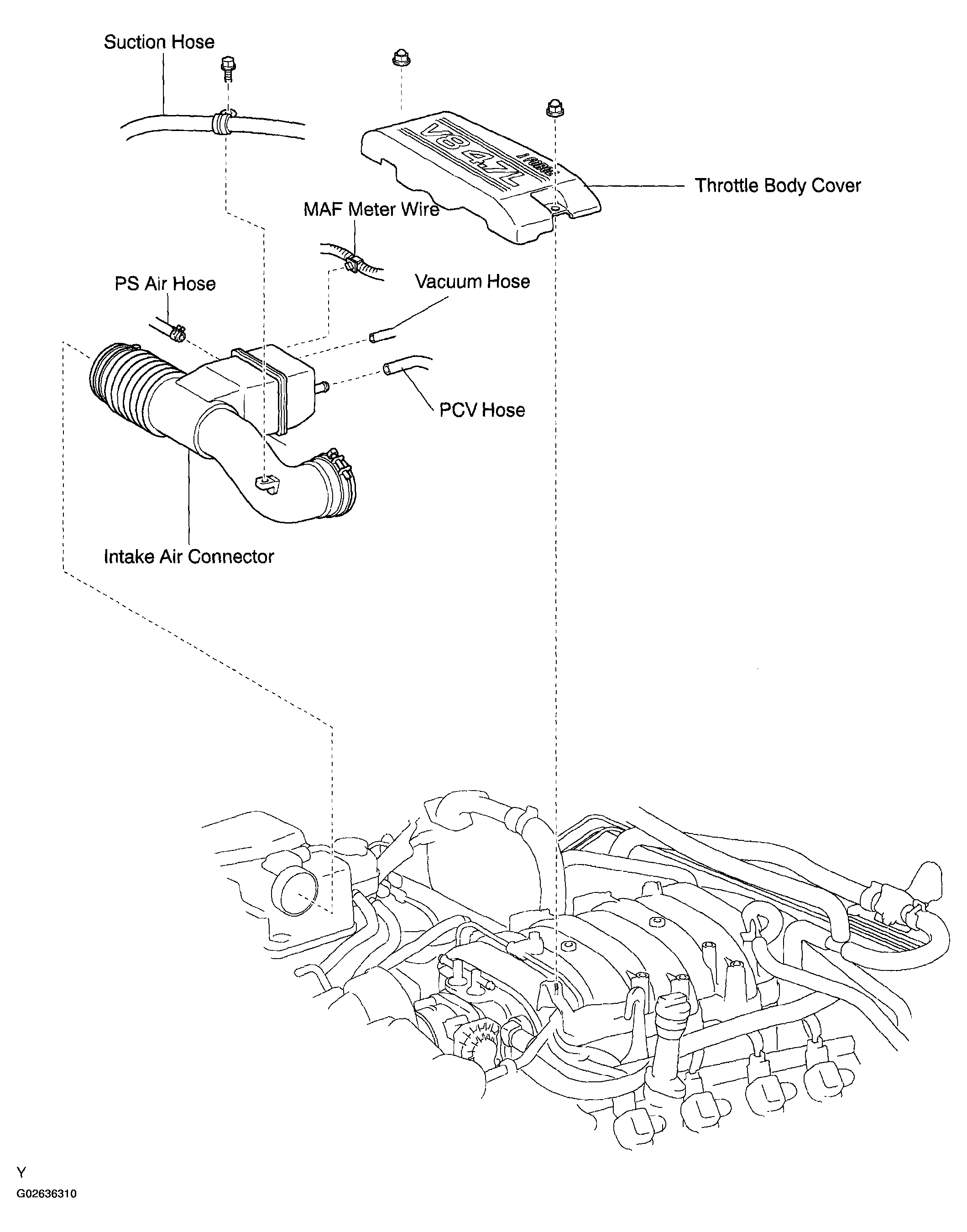

Fig 1: Identifying ACIS Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

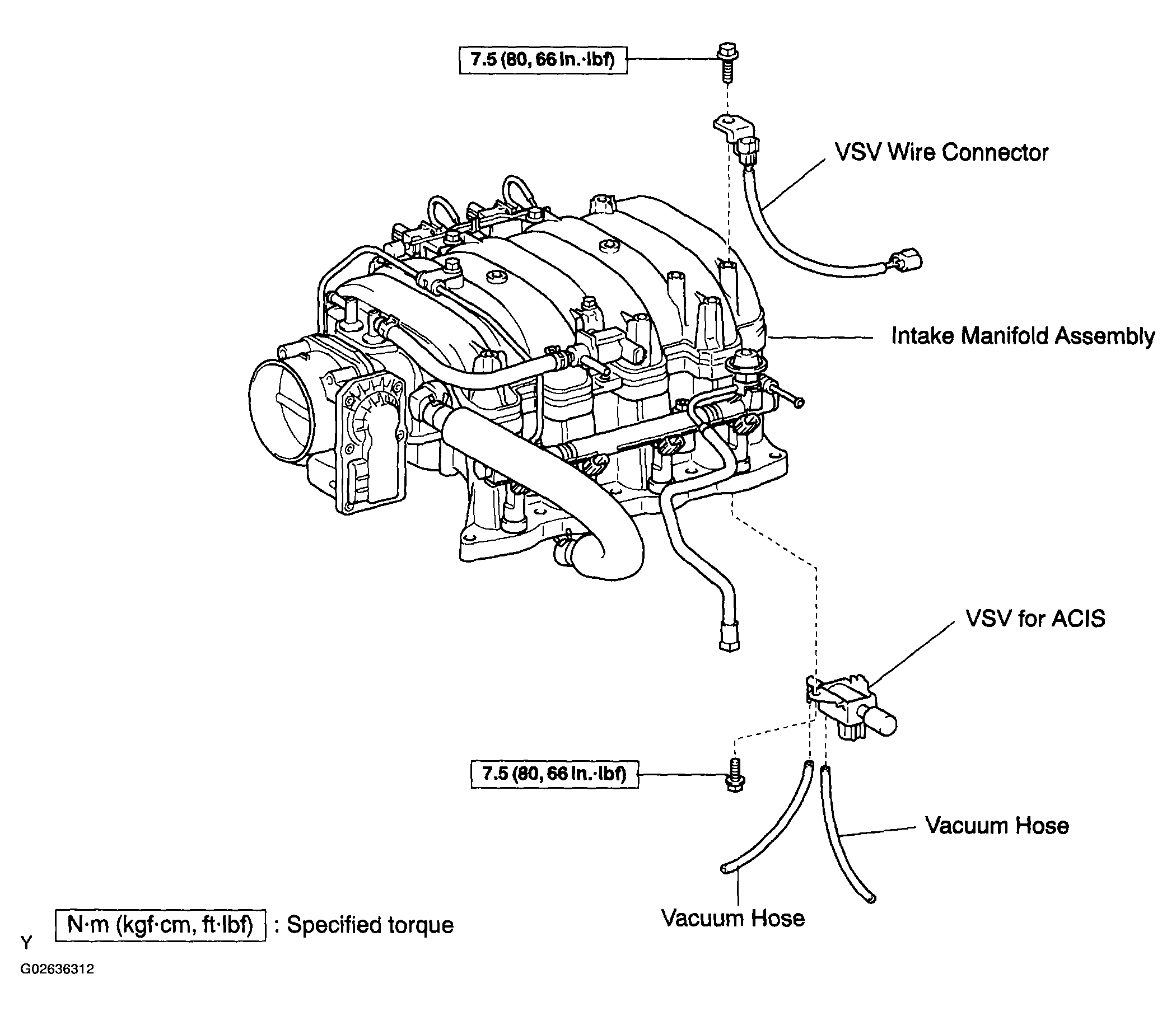

Fig 2: Identifying ACIS Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

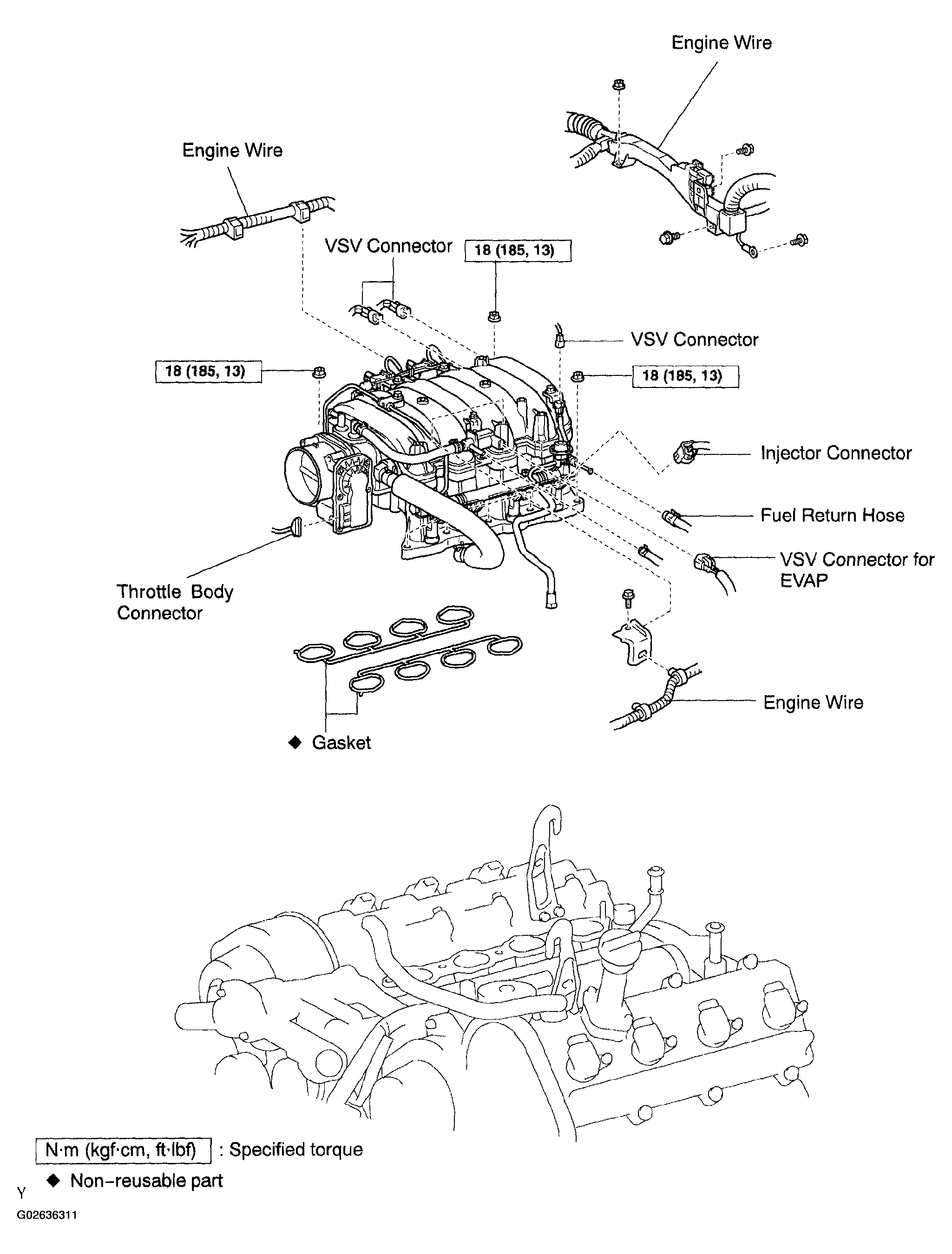

Fig 3: Identifying ACIS Components (3 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
