Engine Coolant Temperature (ECT) Sensor: Components

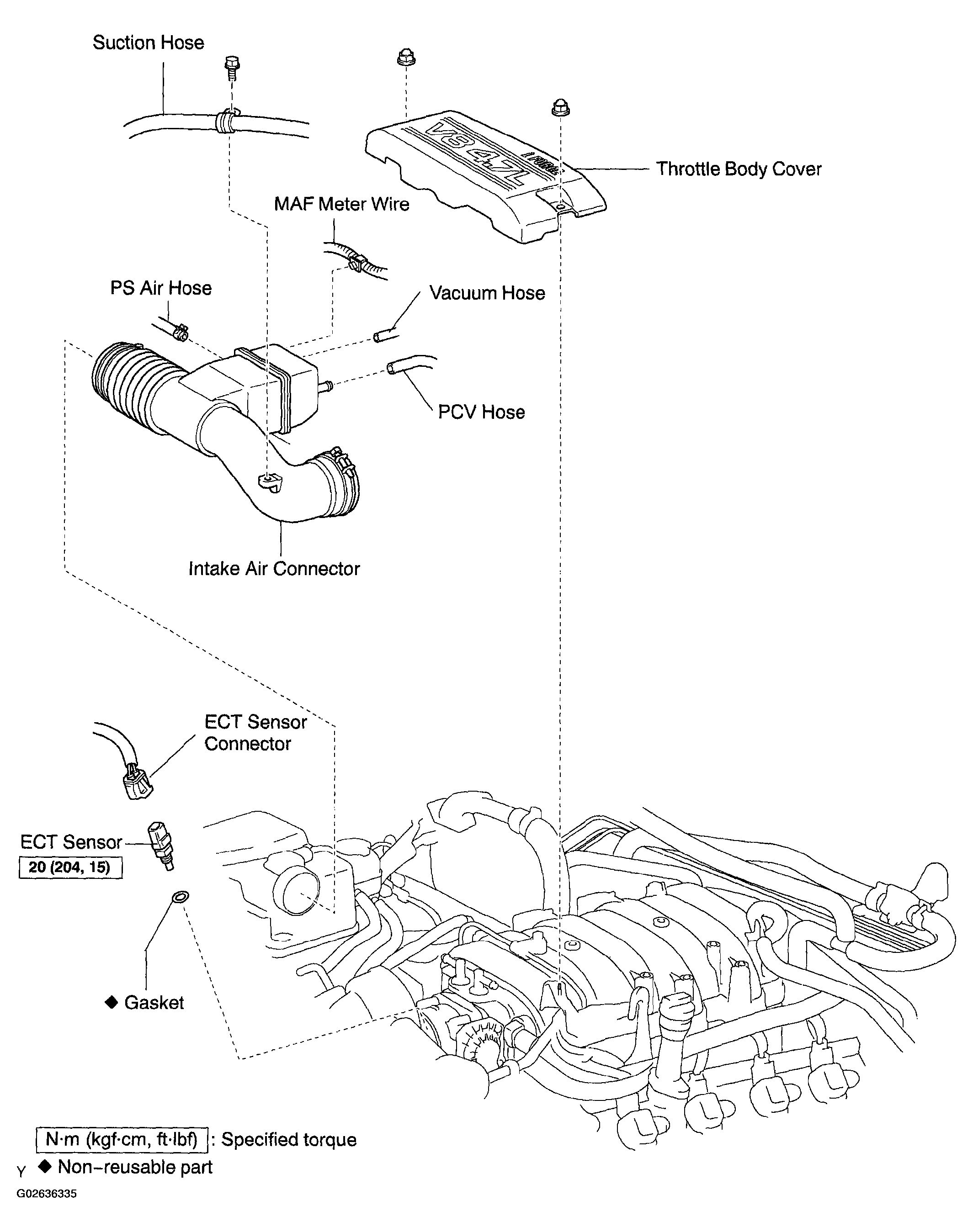

Fig 1: Identifying ECT Sensor Components
G02636335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
