Fuel Tank And Line: Installation

INSTALL FUEL PUMP ASSEMBLY (See INSTALLATION )
INSTALL FUEL TANK ASSEMBLY
1. Set up the fuel tank on the transmission jack.
2. Operate the transmission jack and install the fuel tank.
3. Install the 2 fuel tank bands with the 2 bolts.
  Torque: 62 N.m (632 kgf.cm, 45 ft.lbf)

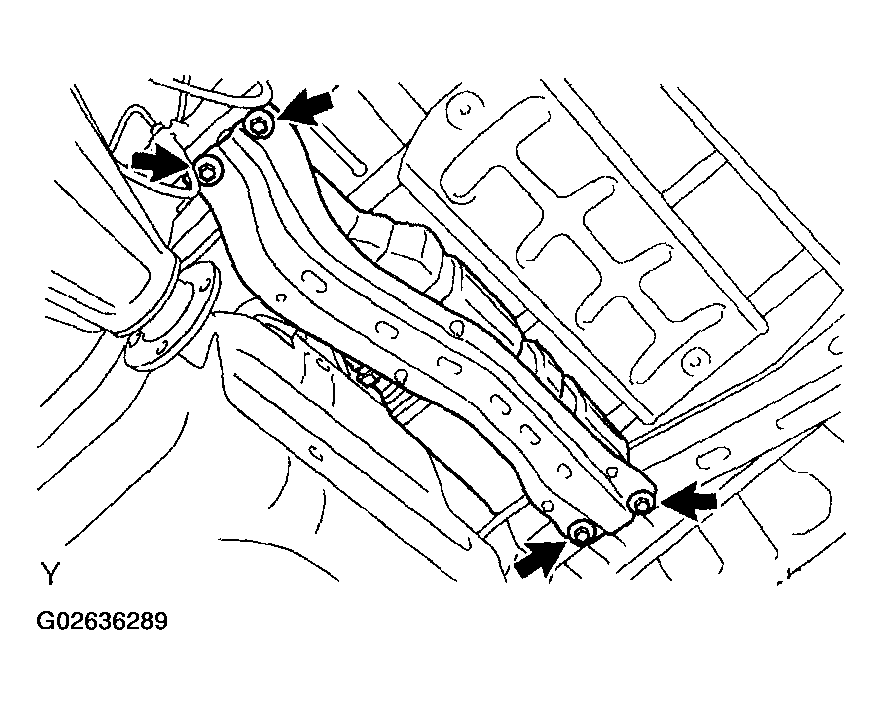

  Fig 1: Installing Fuel Tank Bands
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the fuel pipe bracket to the body with the 2 nuts.
  Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)

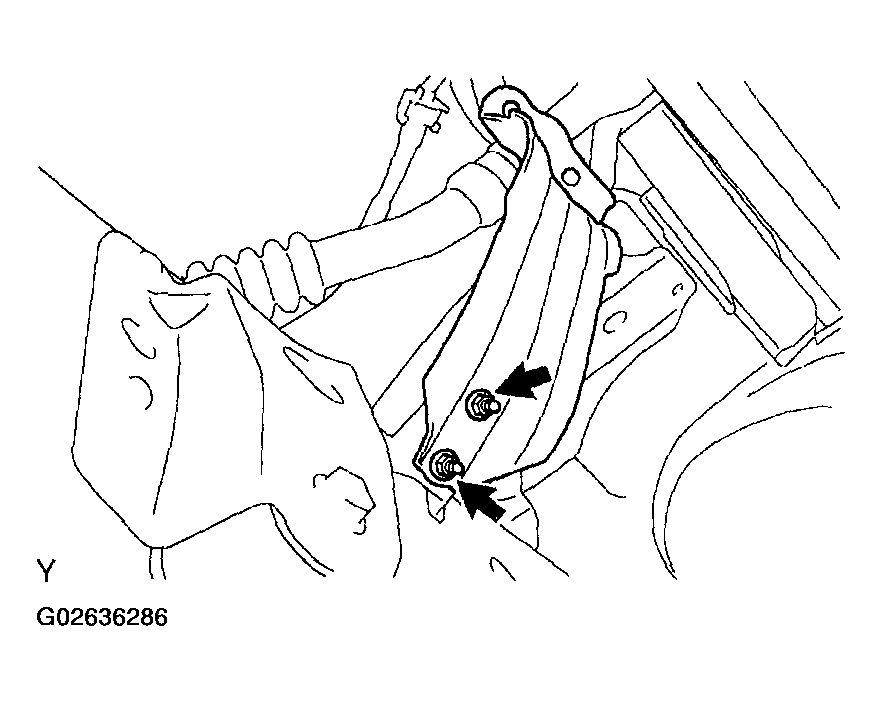

  Fig 2: Installing Fuel Pipe Bracket To Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT FUEL PUMP CONNECTOR
CONNECT FUEL MAIN TUBE AND RETURN TUBE (See SFI SYSTEM )

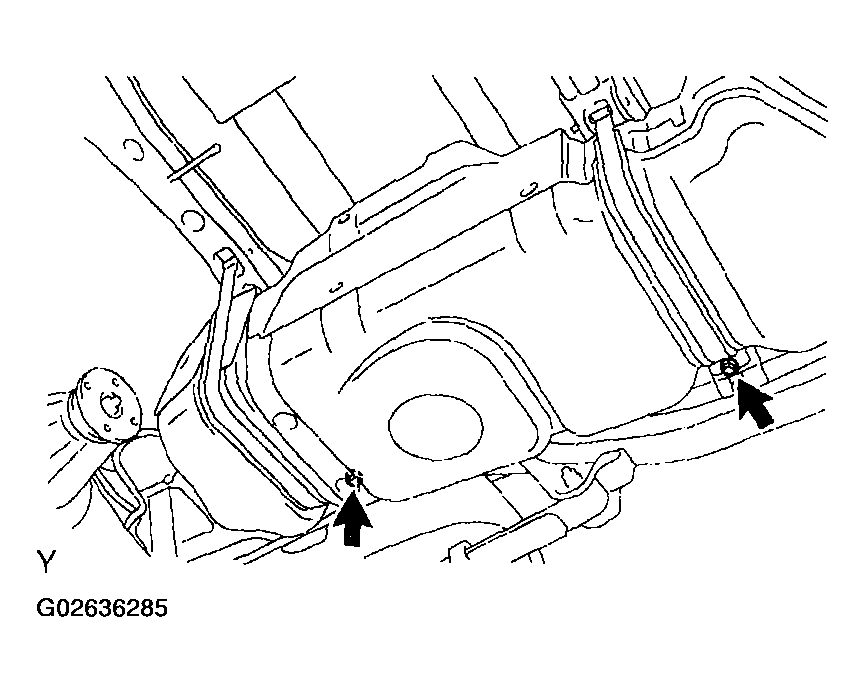

Fig 3: Connecting Fuel Main Tube And Return Tube
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT SPEED SENSOR WIRE
Connect the speed sensor wire to the fuel tank with the nut.

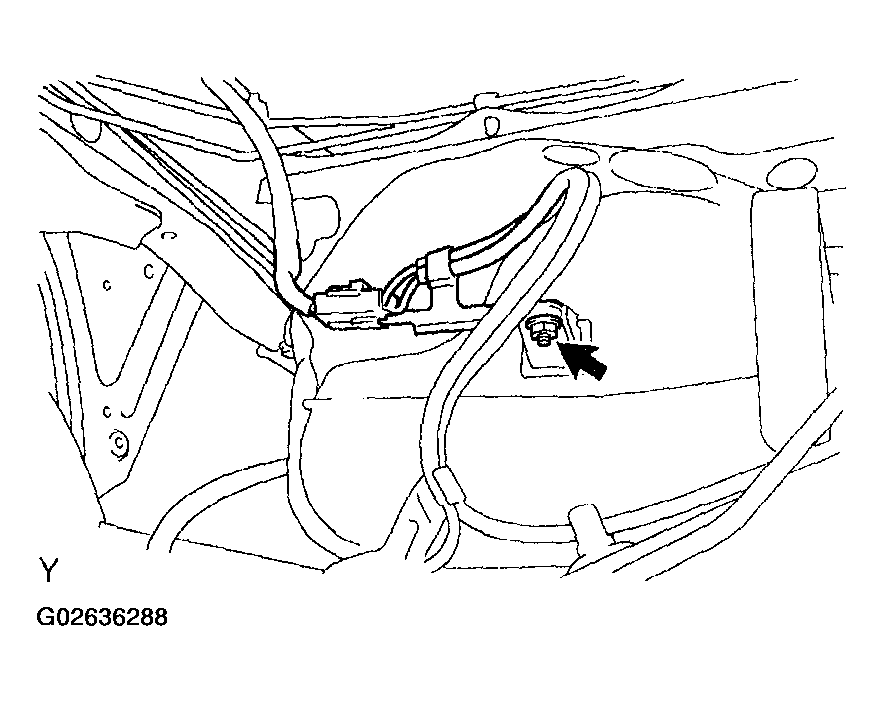

Fig 4: Connecting Speed Sensor Wire
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CHARCOAL CANISTER ASSEMBLY
1. Connect the pump module connector, vent hose and purge line hose to the charcoal canister.
2. Install the charcoal canister assembly with the 4 bolts.
  Torque:14.7 N.m (150 kgf.cm, 11 ft.lbf)

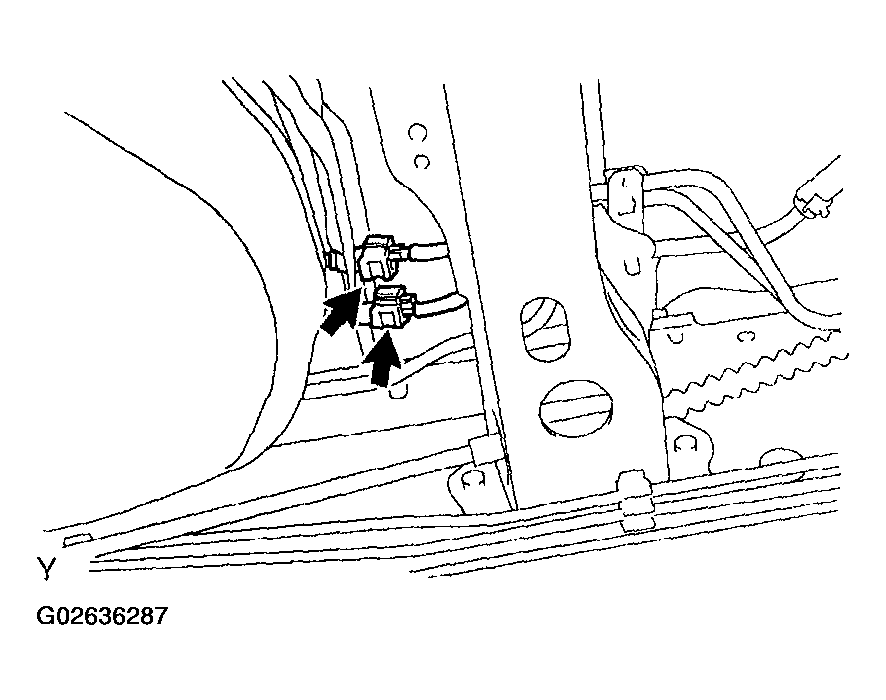

Fig 5: Installing Charcoal Canister Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL INLET PIPE SHIELD
1. Install the fuel inlet pipe shield with the 4 bolts.

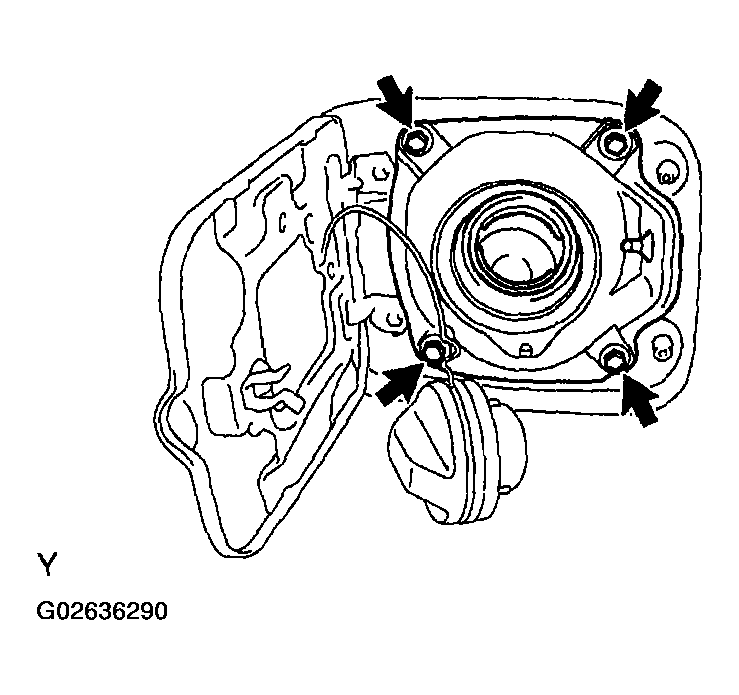

  Fig 6: Installing Fuel Inlet Pipe Shield
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the fuel tank cap.
CHECK FOR FUEL LEAKS
INSTALL SPARE TIRE
