Air Conditioning: Notes

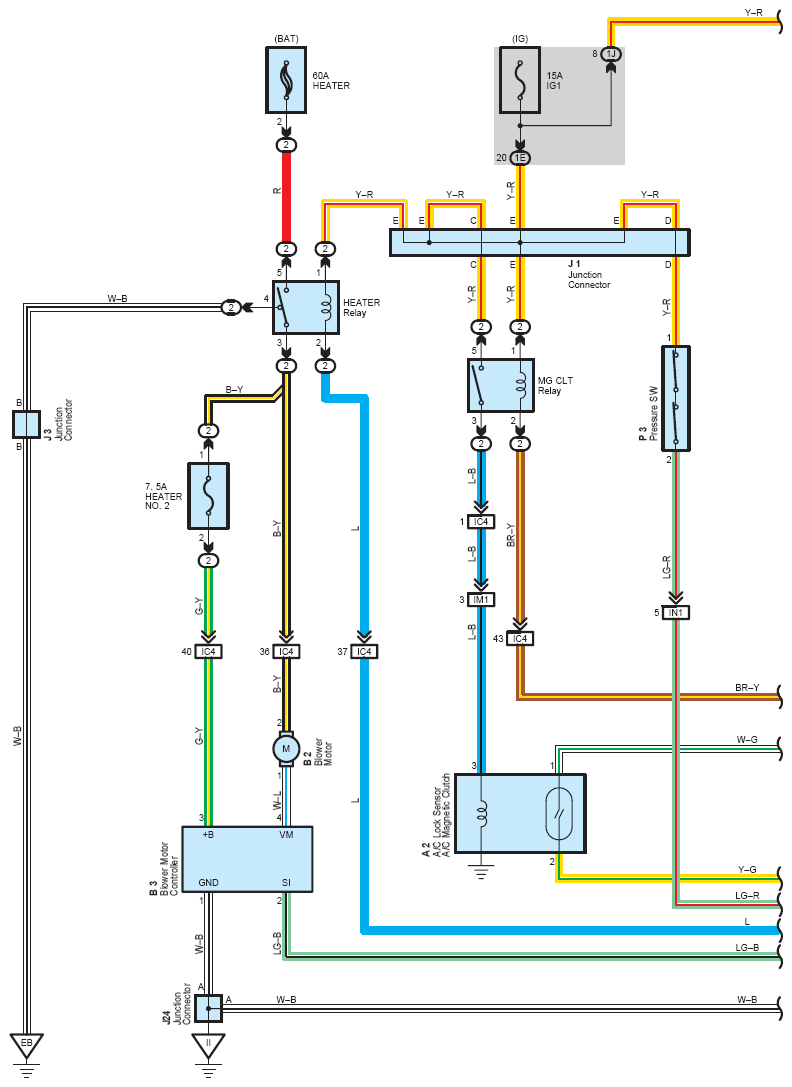

Fig 1: Air Conditioning Wiring Diagram (1 Of 7)

G08778399

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

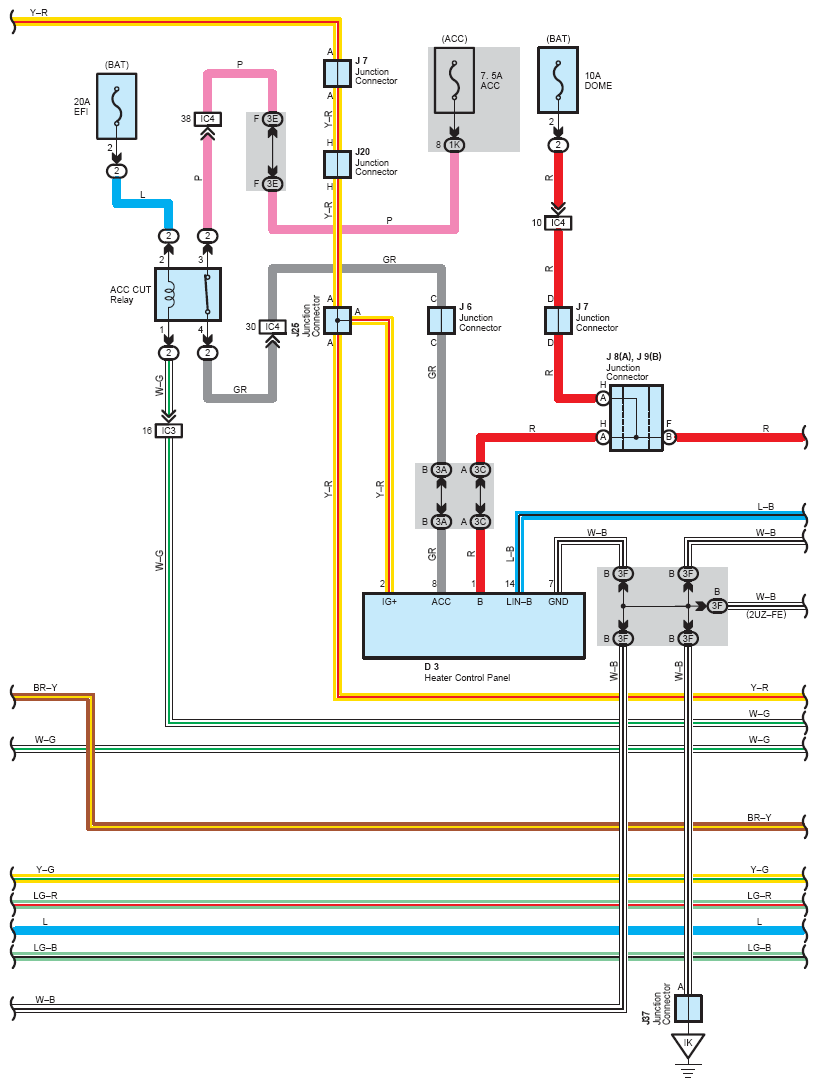

Fig 2: Air Conditioning Wiring Diagram (2 Of 7)

G08778400

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

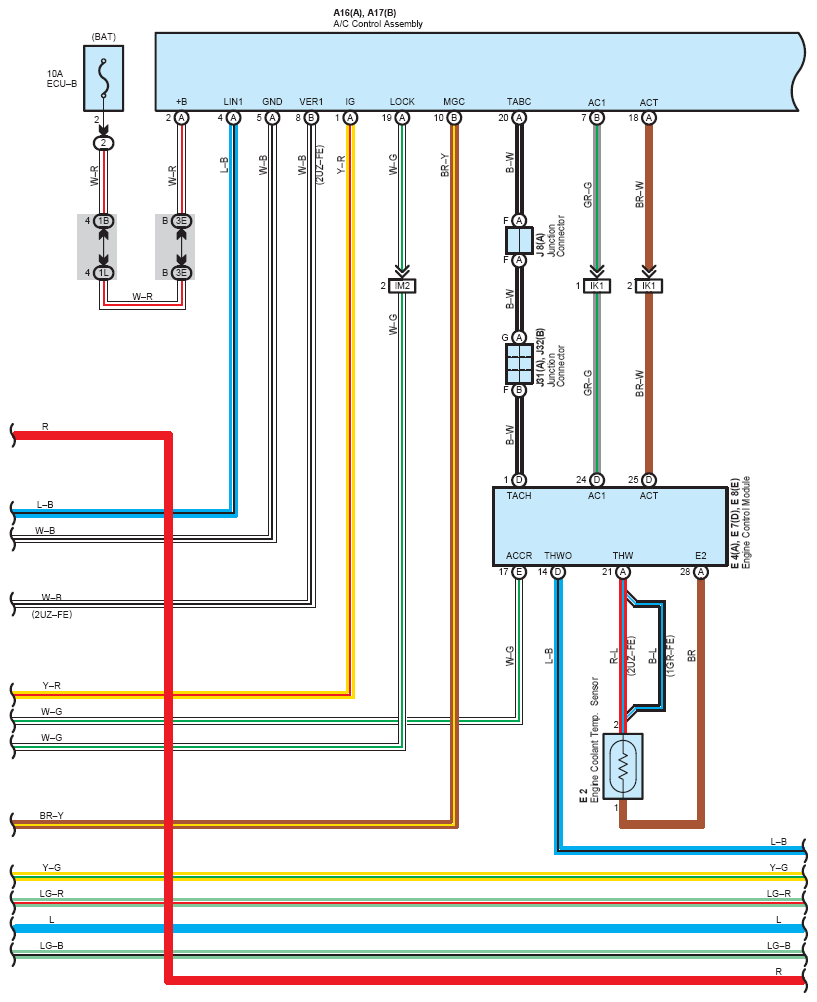

Fig 3: Air Conditioning Wiring Diagram (3 Of 7)

G08778401

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

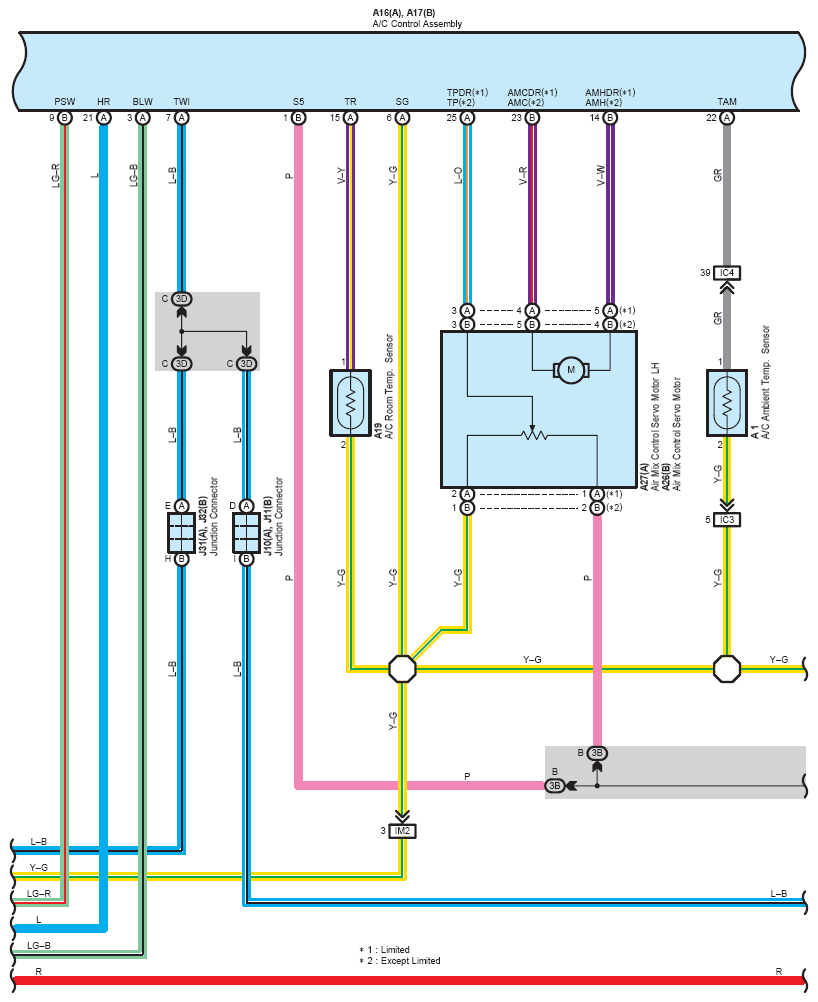

Fig 4: Air Conditioning Wiring Diagram (4 Of 7)

G08778402

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

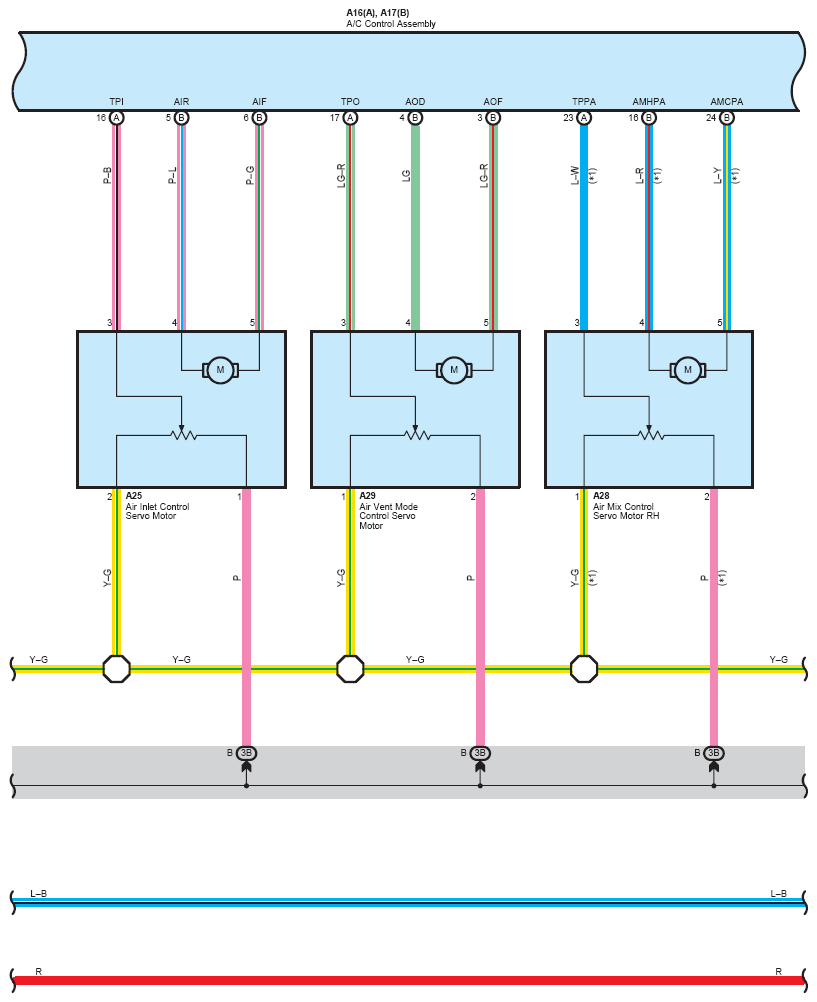

Fig 5: Air Conditioning Wiring Diagram (5 Of 7)

G08778403

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

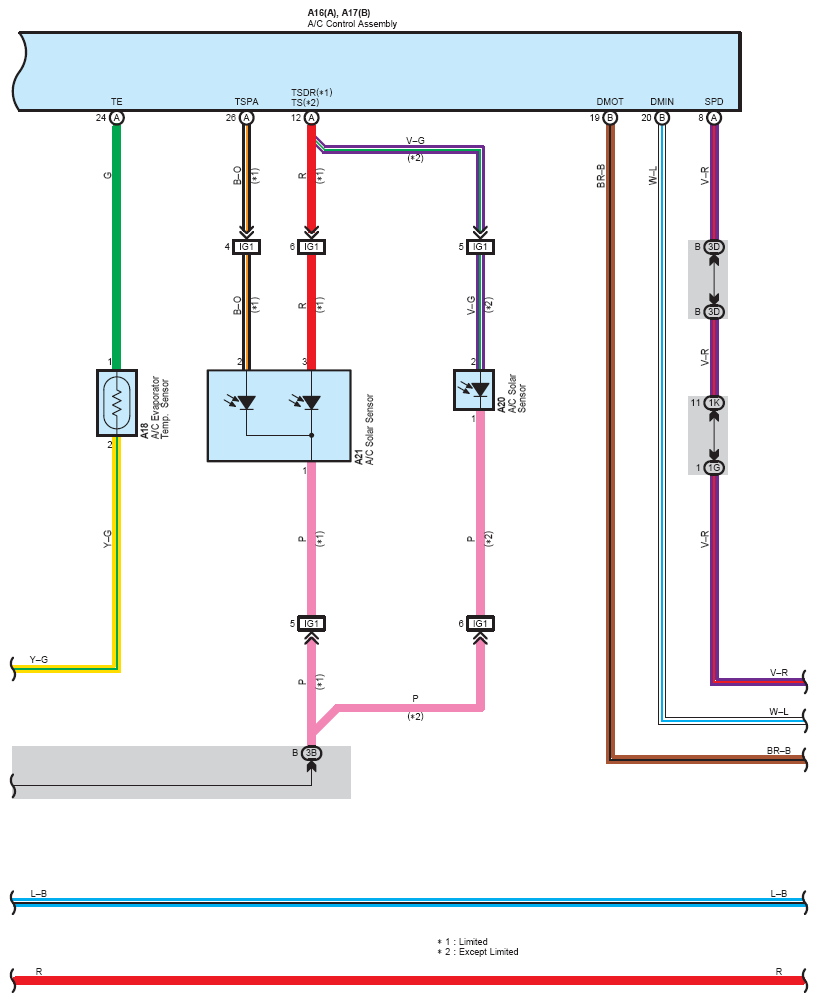

Fig 6: Air Conditioning Wiring Diagram (6 Of 7)

G08778404

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

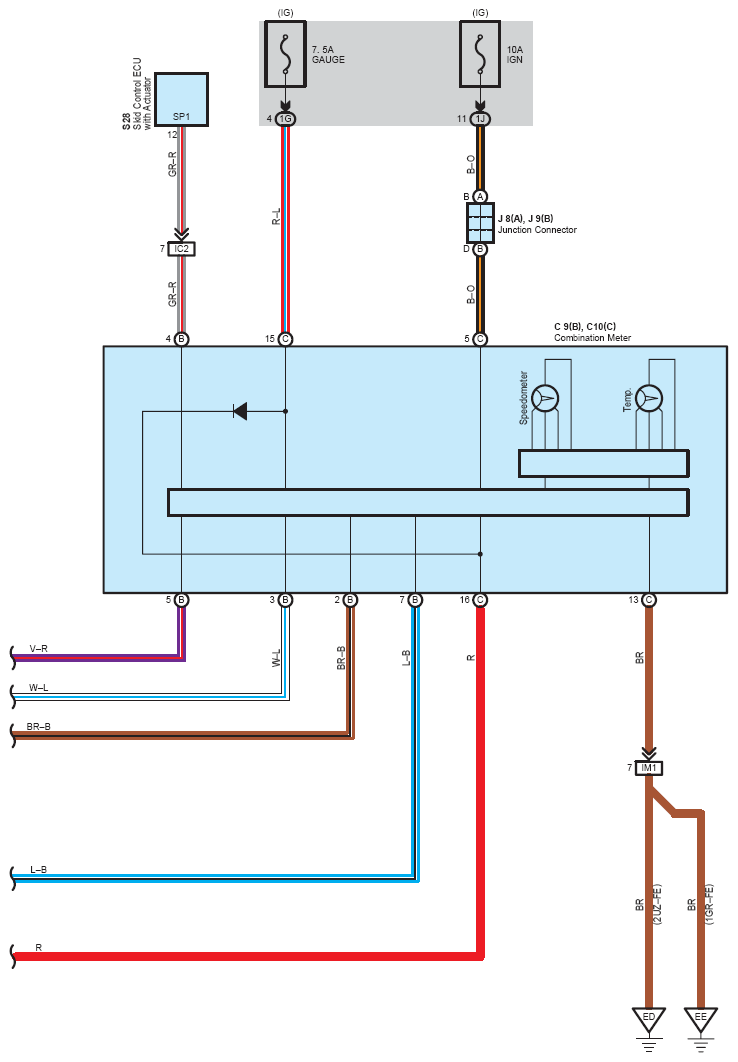

Fig 7: Air Conditioning Wiring Diagram (7 Of 7)

G08778405

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
