Combination Meter: Notes

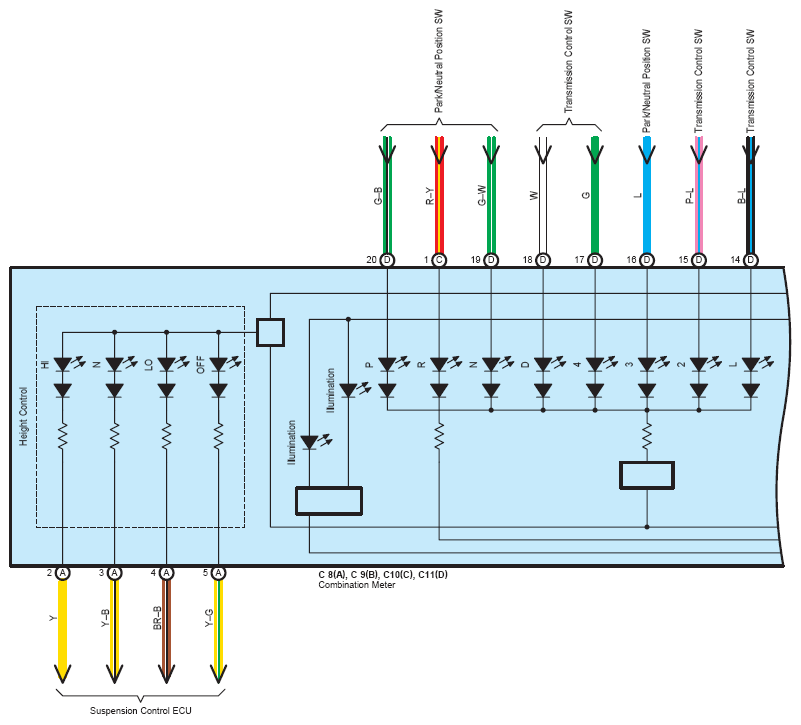

Fig 1: Combination Meter Wiring Diagram (1 Of 5)
G08778394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

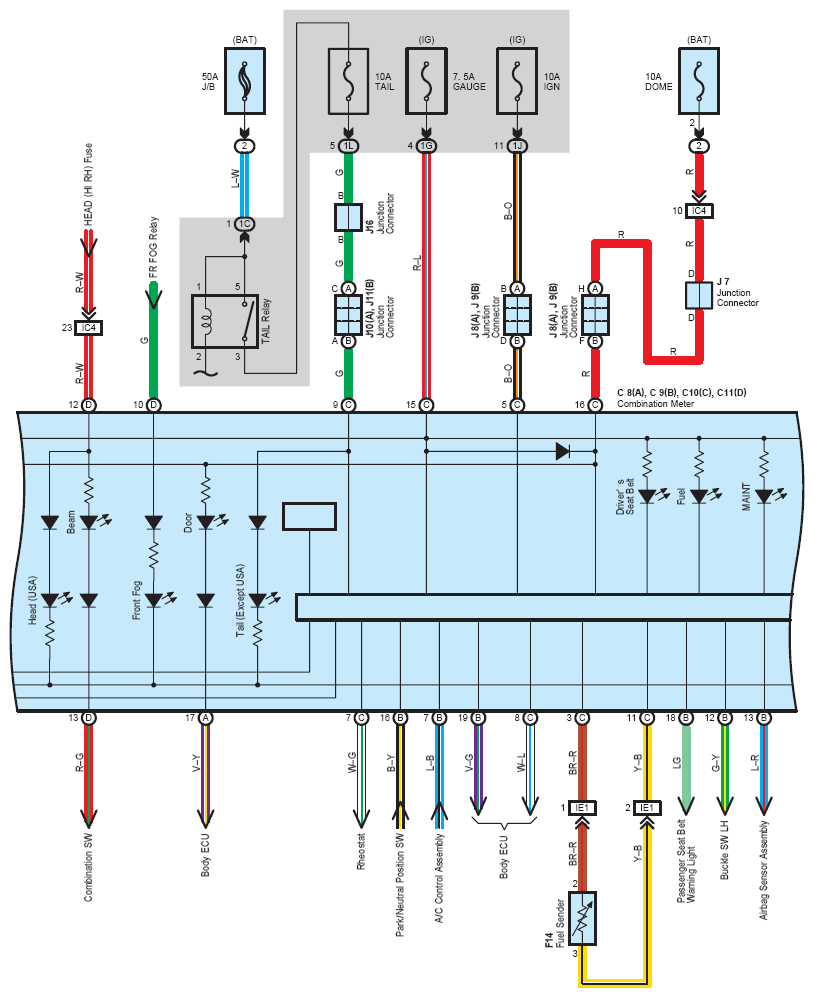

Fig 2: Combination Meter Wiring Diagram (2 Of 5)
G08778395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

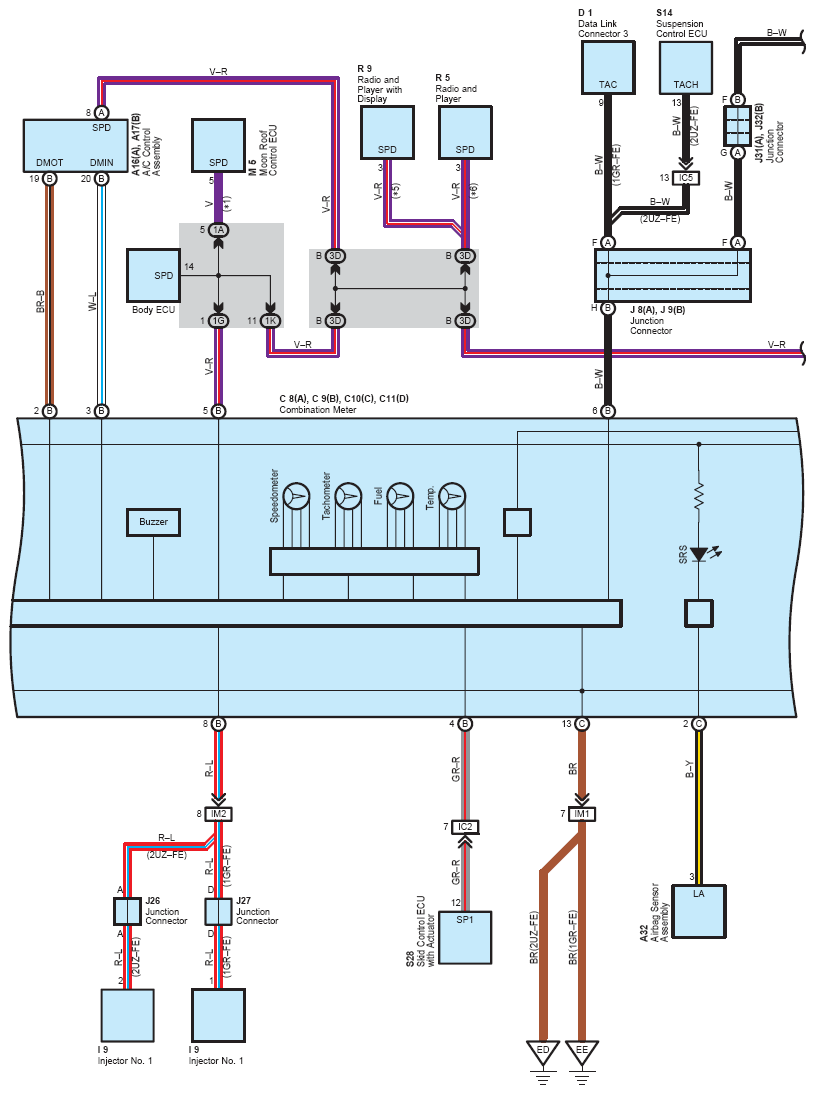

Fig 3: Combination Meter Wiring Diagram (3 Of 5)
G08778396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

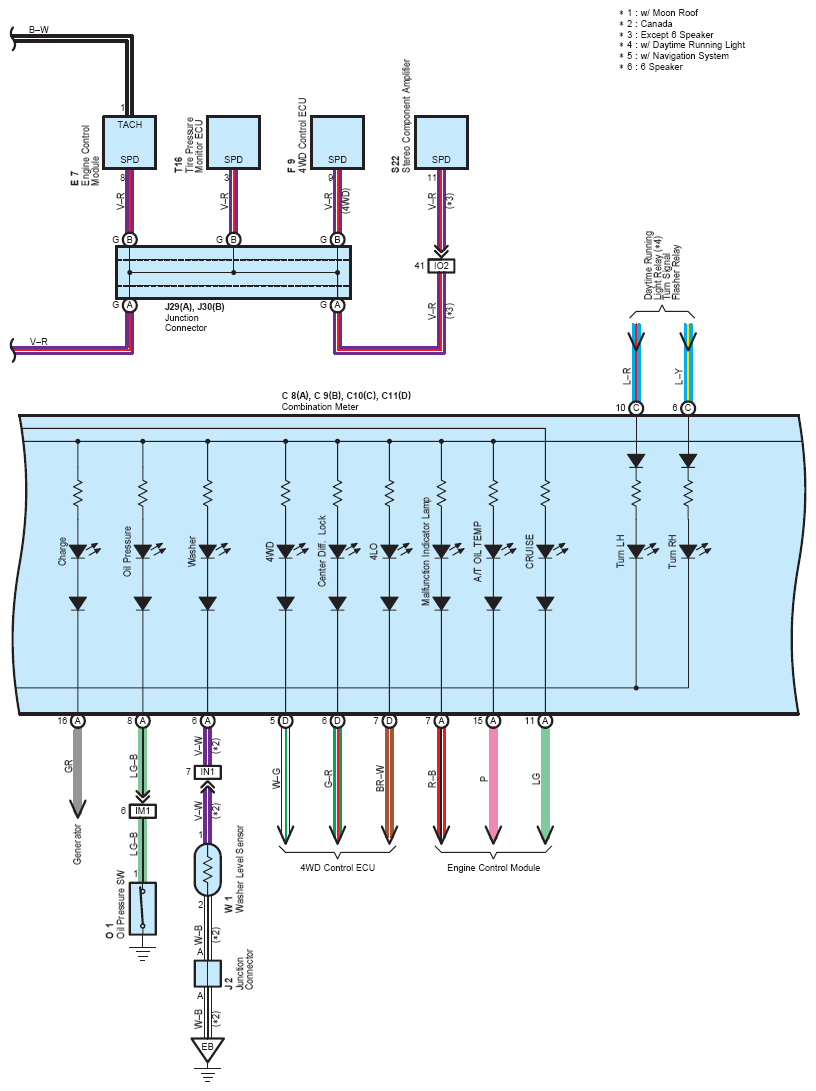

Fig 4: Combination Meter Wiring Diagram (4 Of 5)
G08778397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

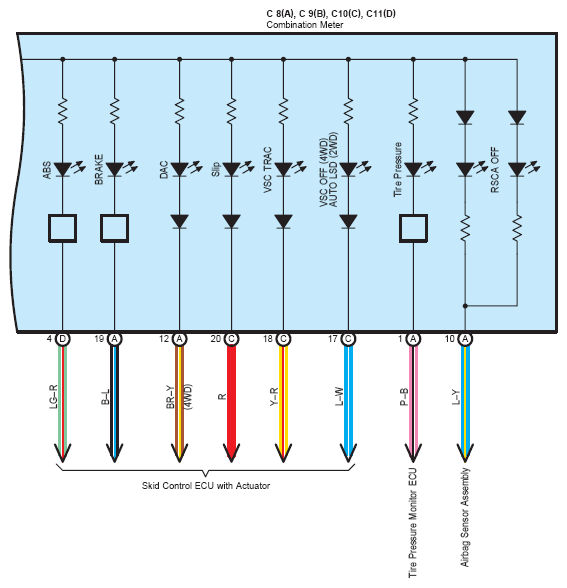

Fig 5: Combination Meter Wiring Diagram (5 Of 5)
G08778398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
