Engine Control for 1GR-FE: Notes

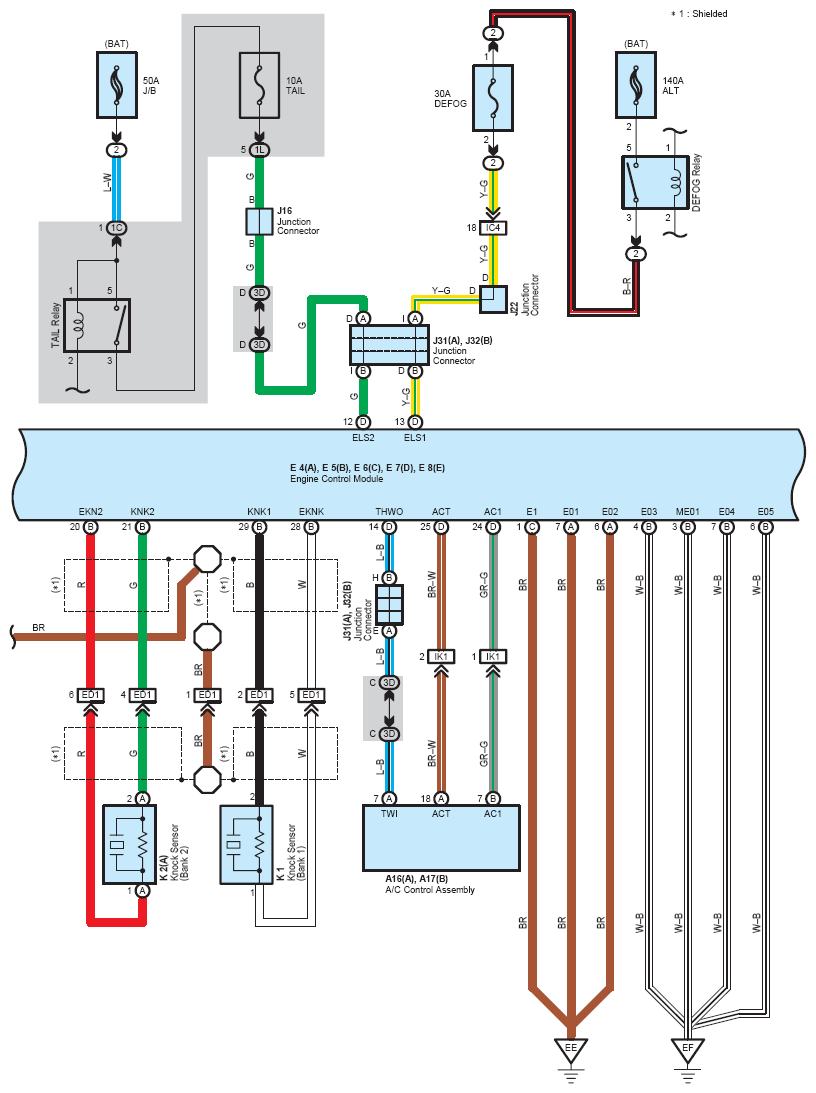

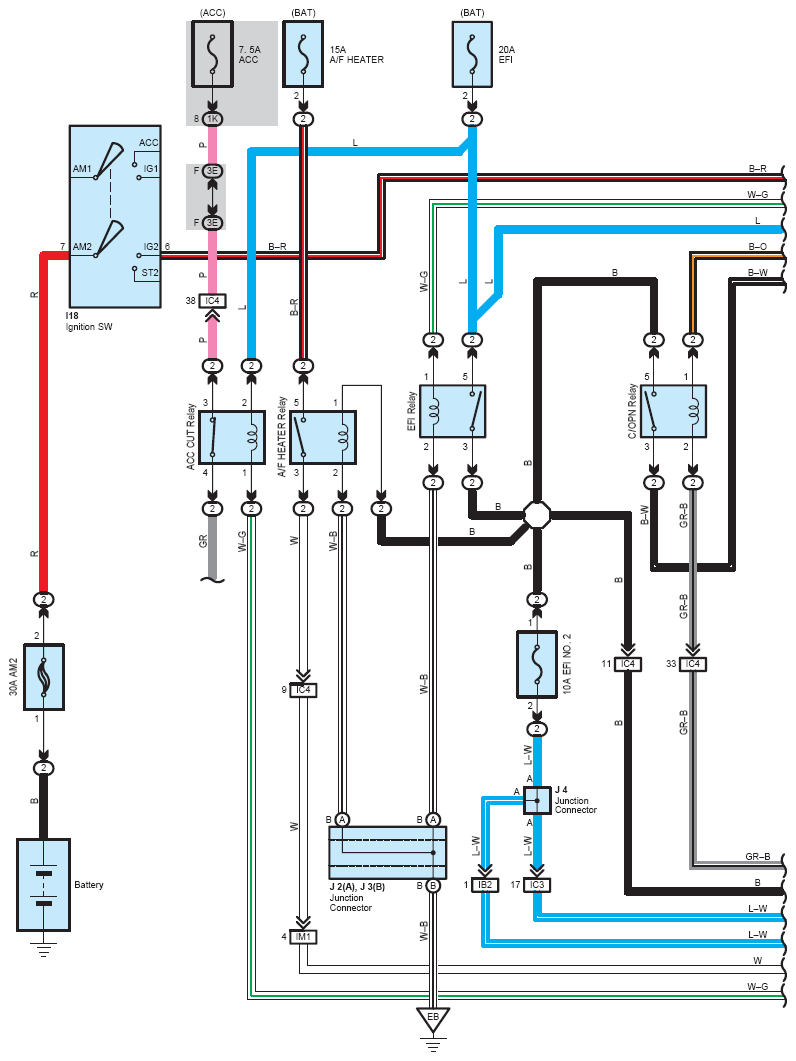

Fig 1: Engine Control System Wiring Diagram (1GR-FE; 1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

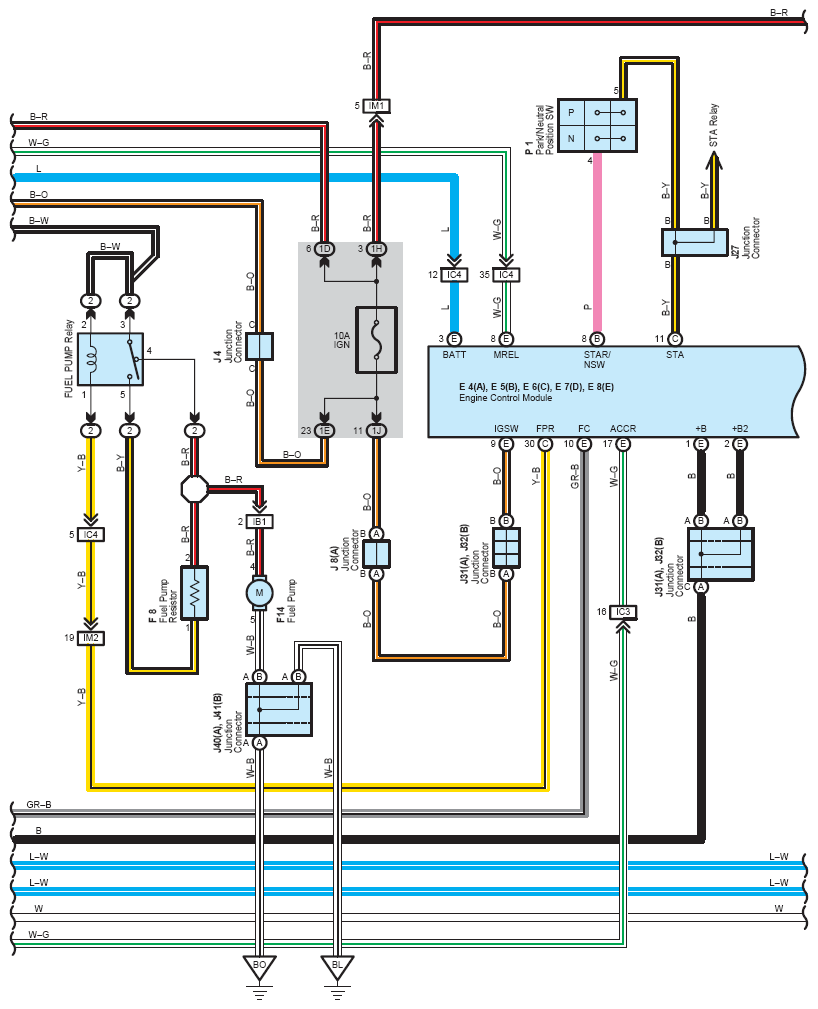

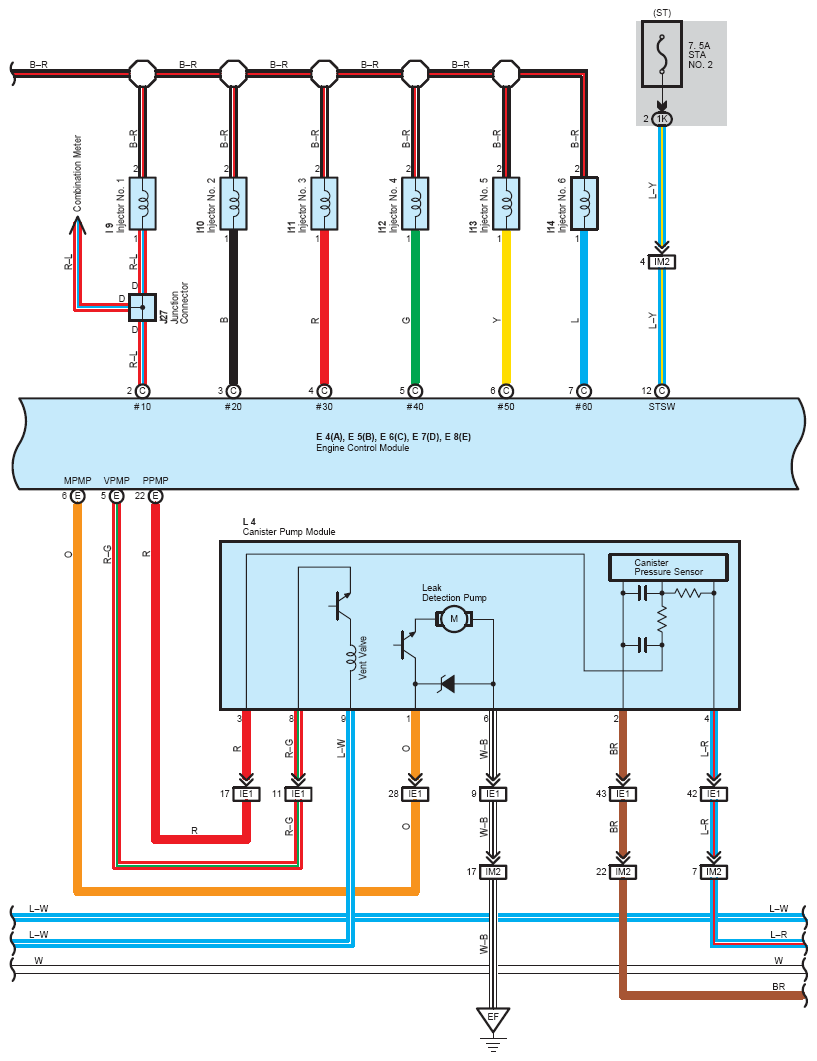

Fig 2: Engine Control System Wiring Diagram (1GR-FE; 2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Engine Control System Wiring Diagram (1GR-FE; 3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

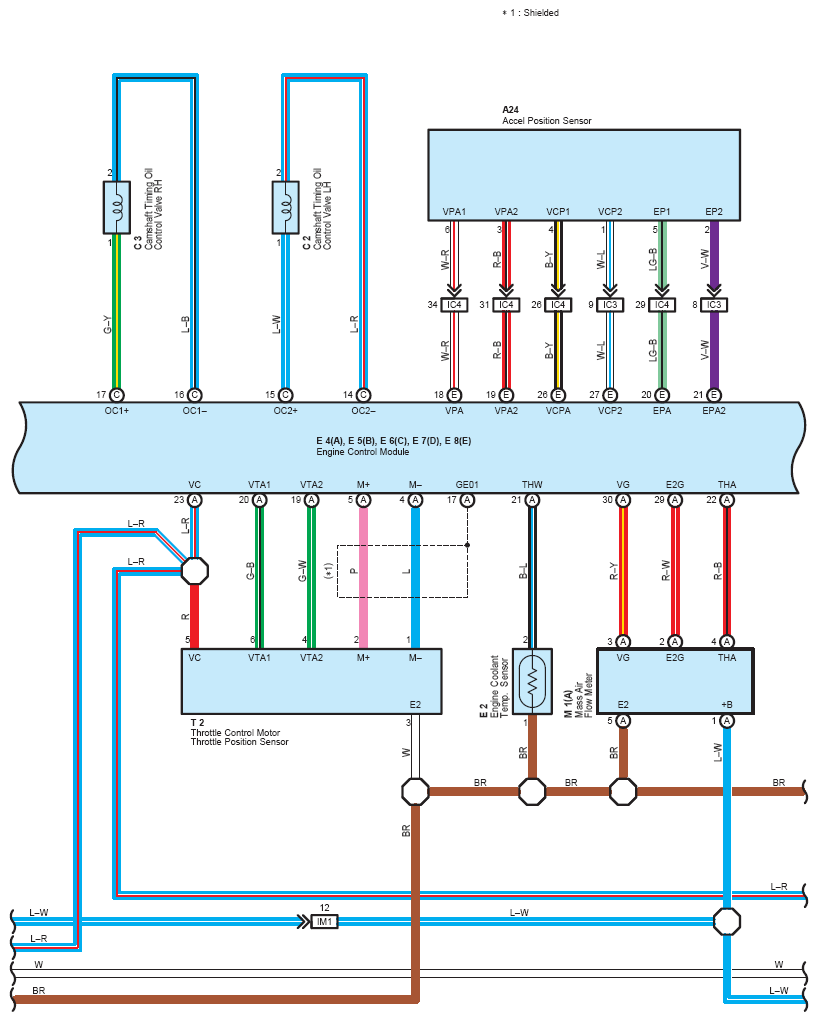

Fig 4: Engine Control System Wiring Diagram (1GR-FE; 4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

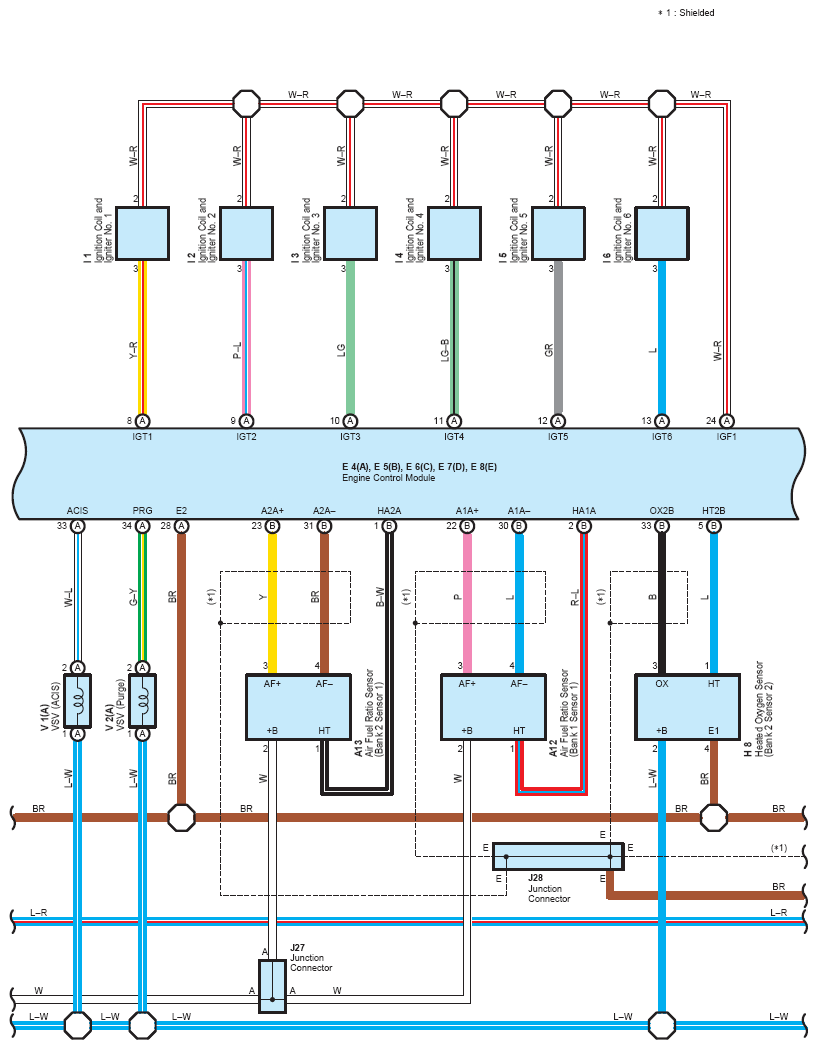

Fig 5: Engine Control System Wiring Diagram (1GR-FE; 5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

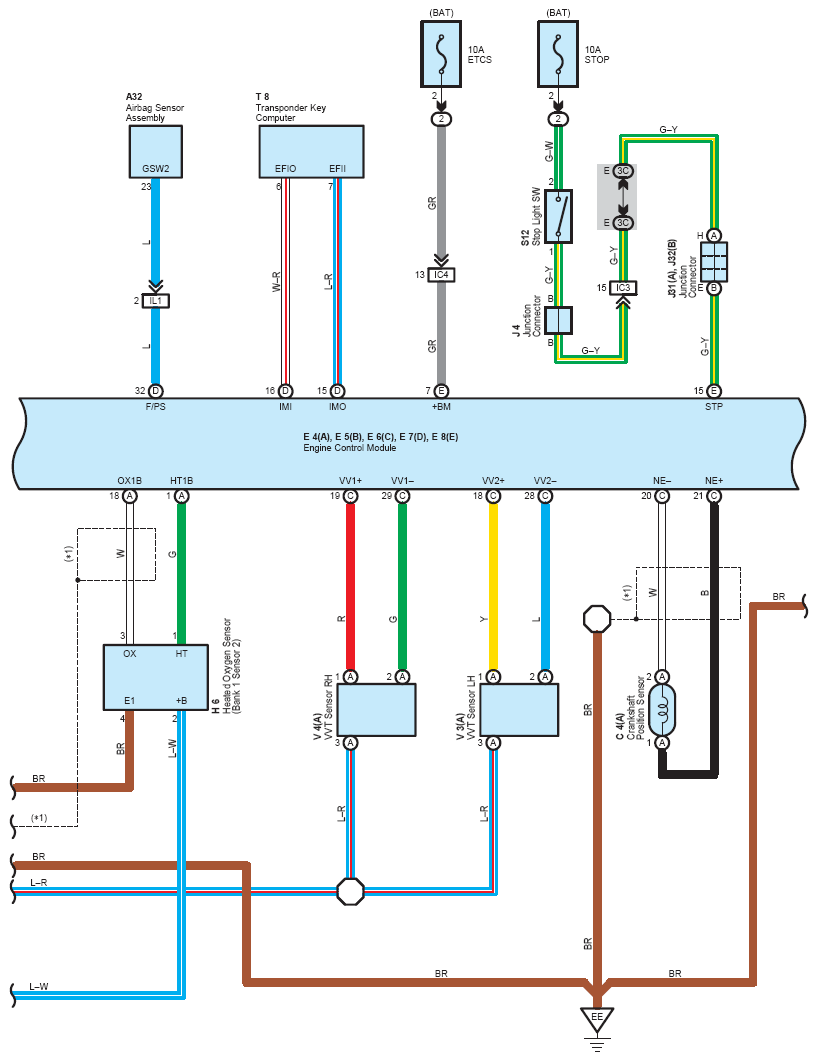

Fig 6: Engine Control System Wiring Diagram (1GR-FE; 6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Engine Control System Wiring Diagram (1GR-FE; 7 Of 10)

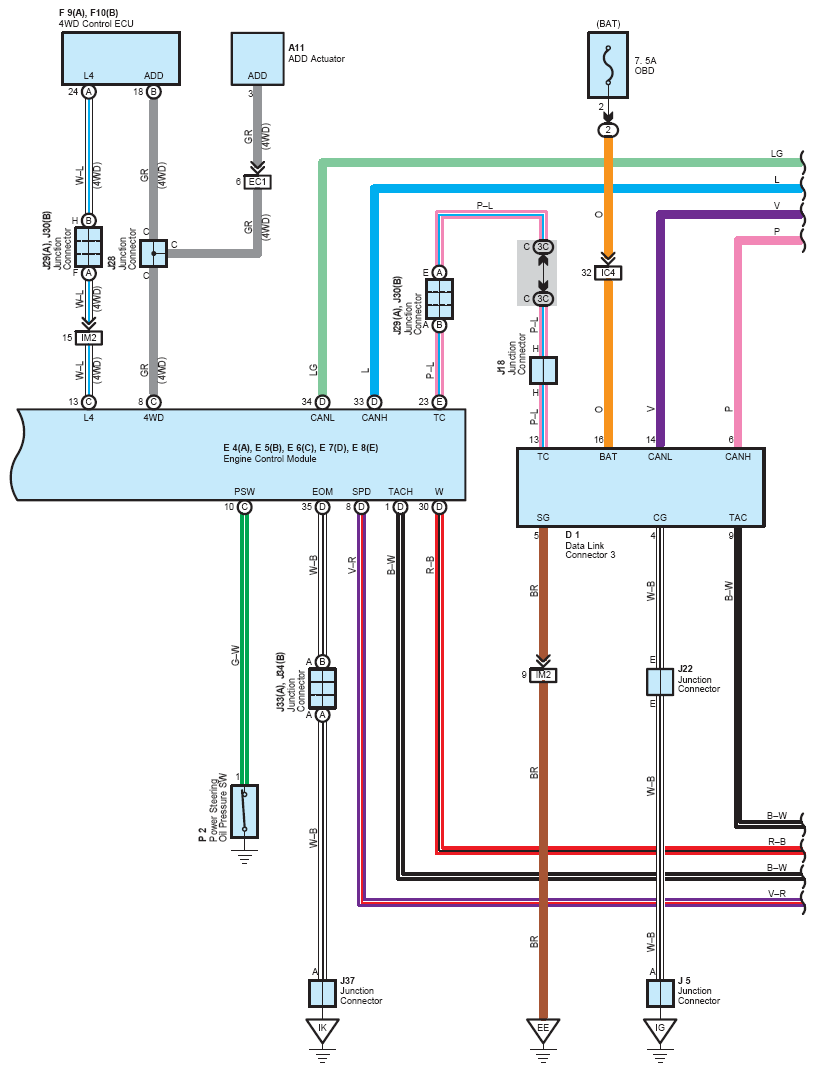

Fig 8: Engine Control System Wiring Diagram (1GR-FE; 8 Of 10)

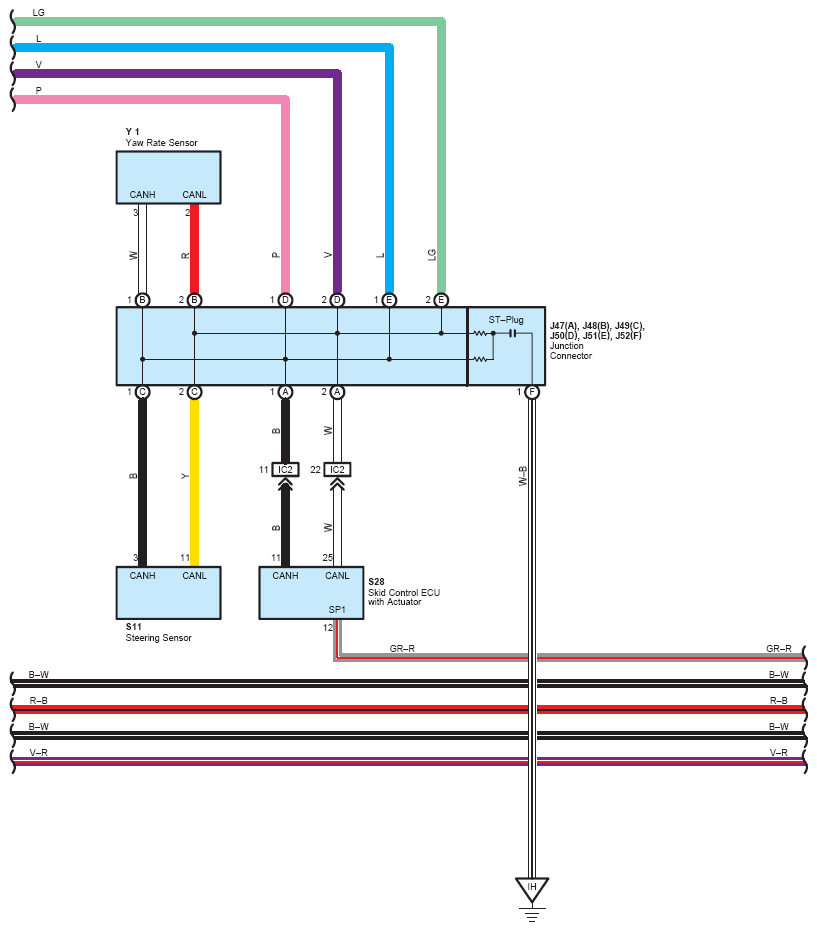

Fig 9: Engine Control System Wiring Diagram (1GR-FE; 9 Of 10)

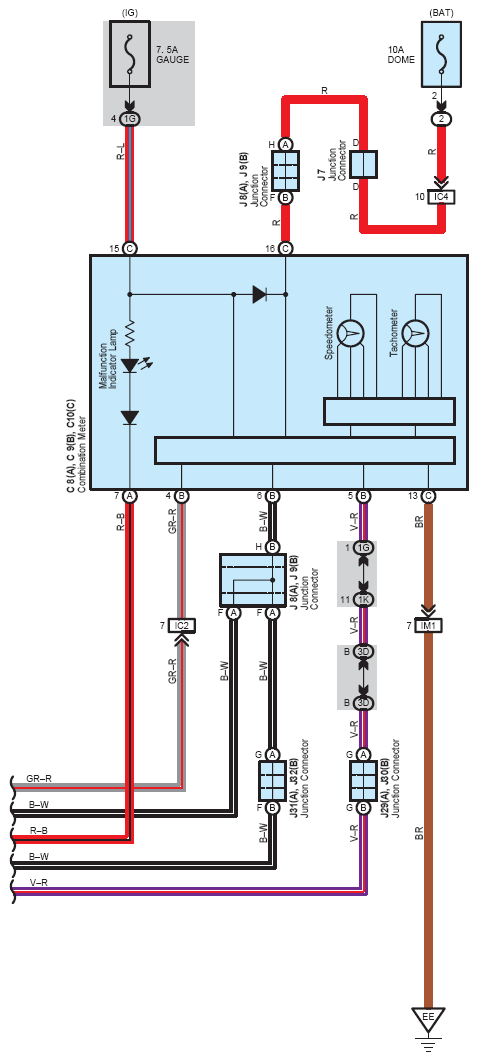

Fig 10: Engine Control System Wiring Diagram (1GR-FE; 10 Of 10)
