Front Fog Light: Notes

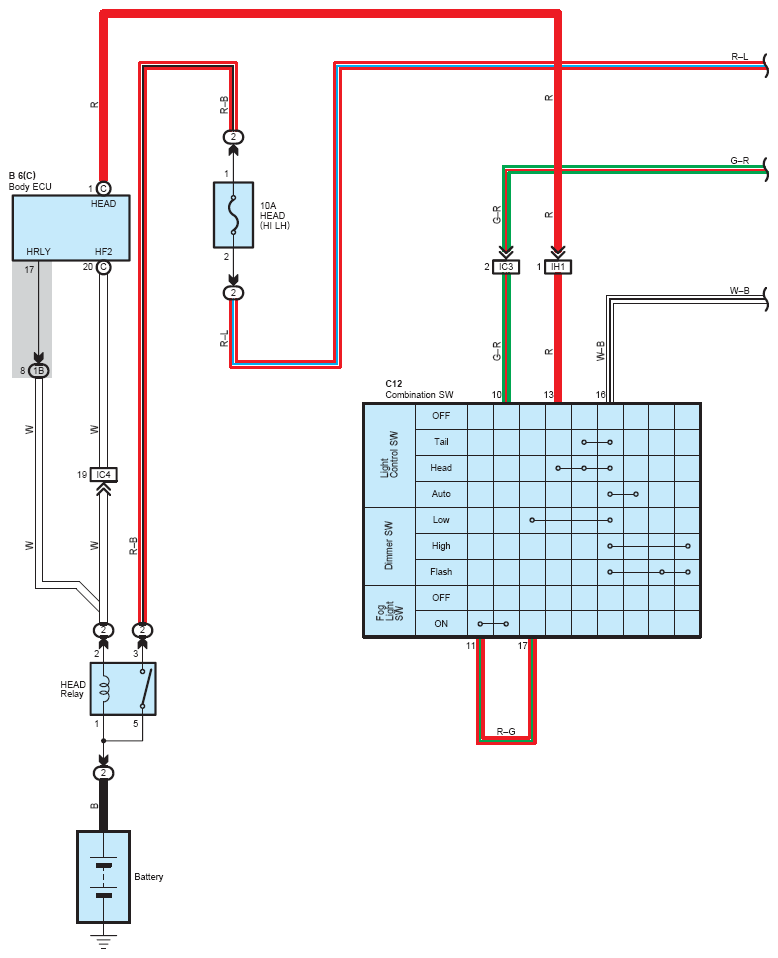

Fig 1: Front Fog Light Wiring Diagram (1 Of 2)
G08778258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

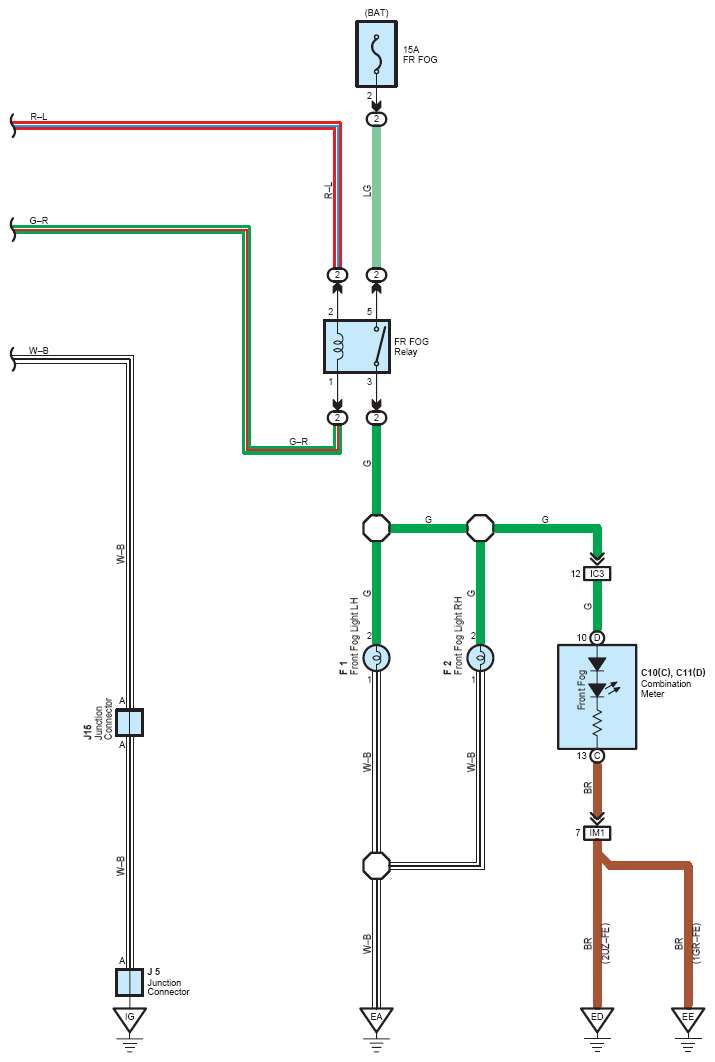

Fig 2: Front Fog Light Wiring Diagram (2 Of 2)
G08778259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
