Interior Light: Notes — 2006 Toyota 4Runner Limited, 4.7 T, AWD Service Manual ~ FixVault

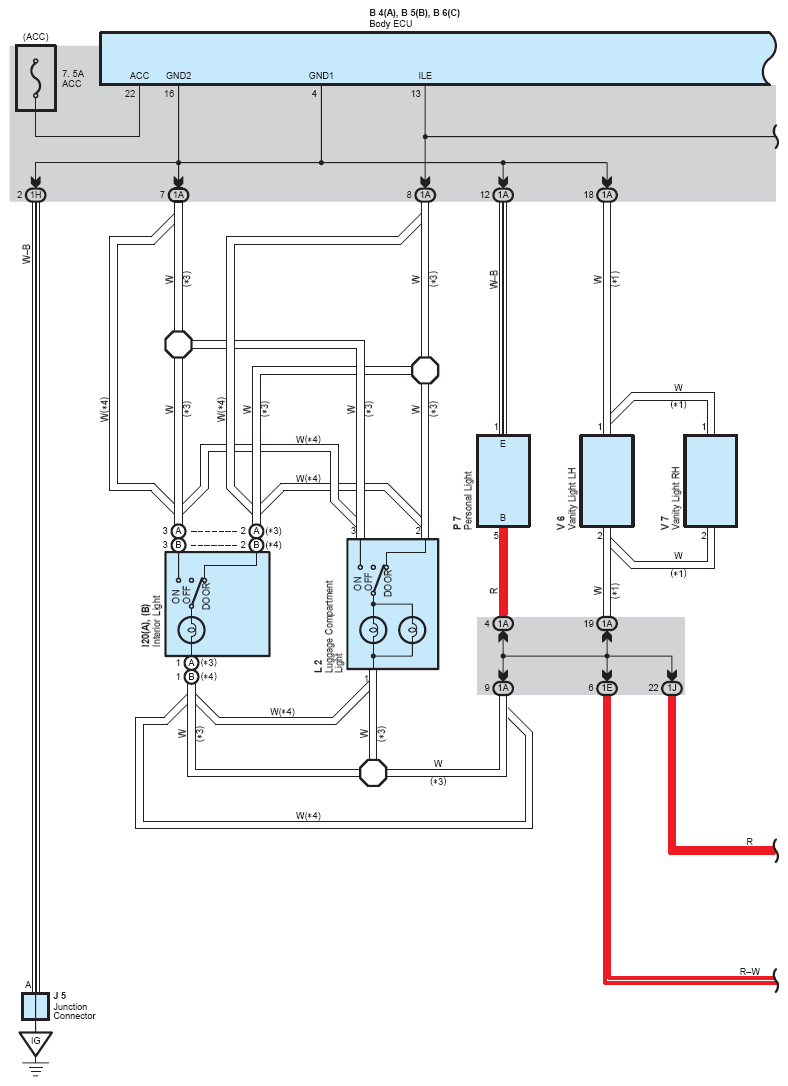

Fig 1: Interior Light Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

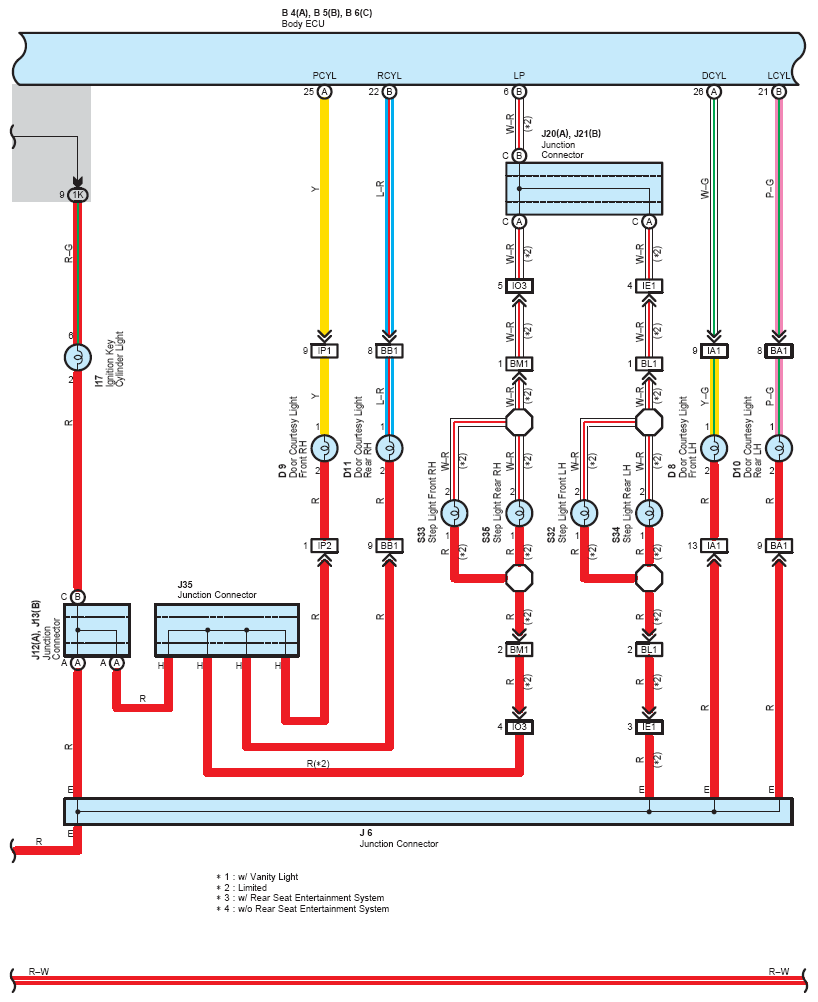

Fig 2: Interior Light Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

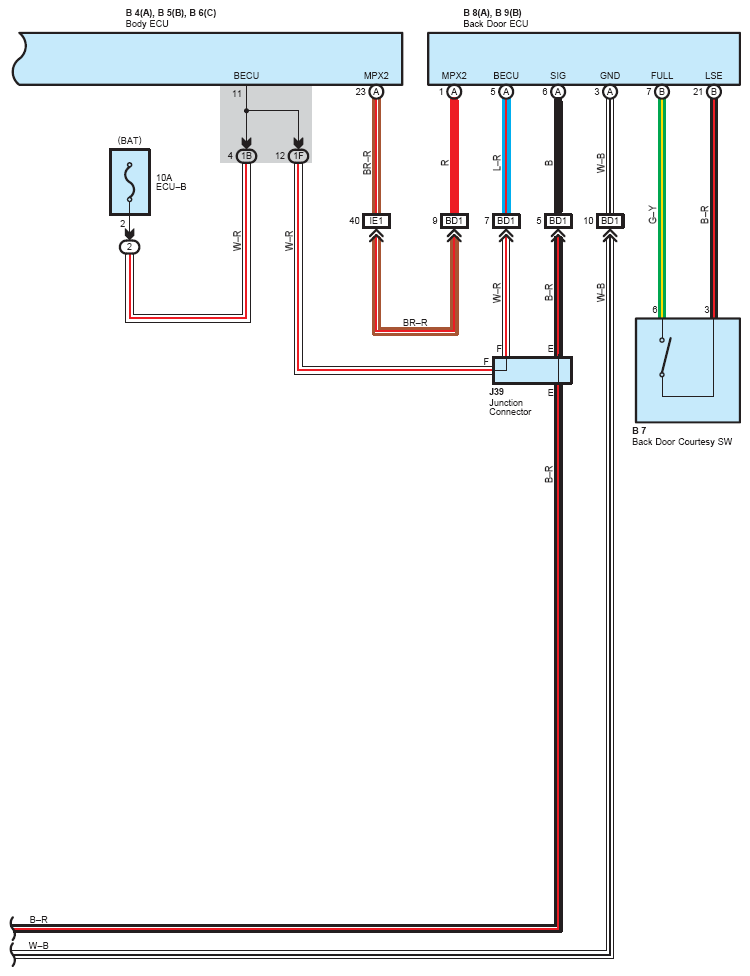

Fig 3: Interior Light Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

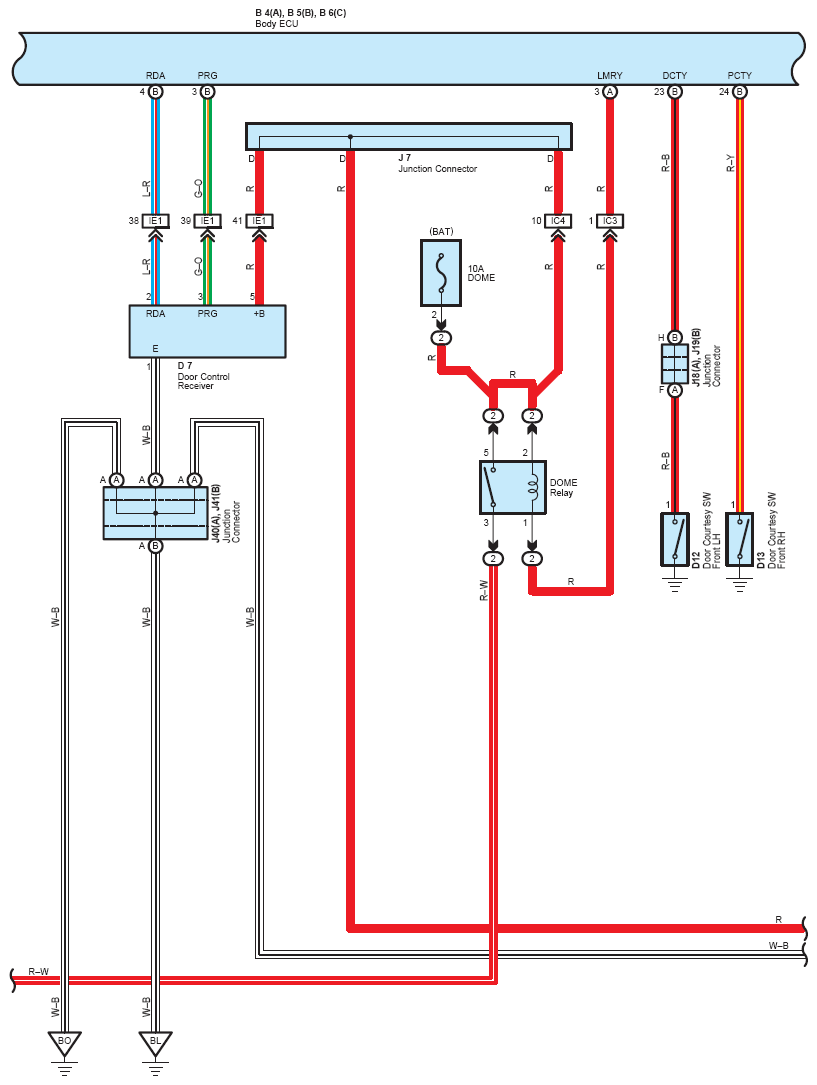

Fig 4: Interior Light Wiring Diagram (4 Of 5)

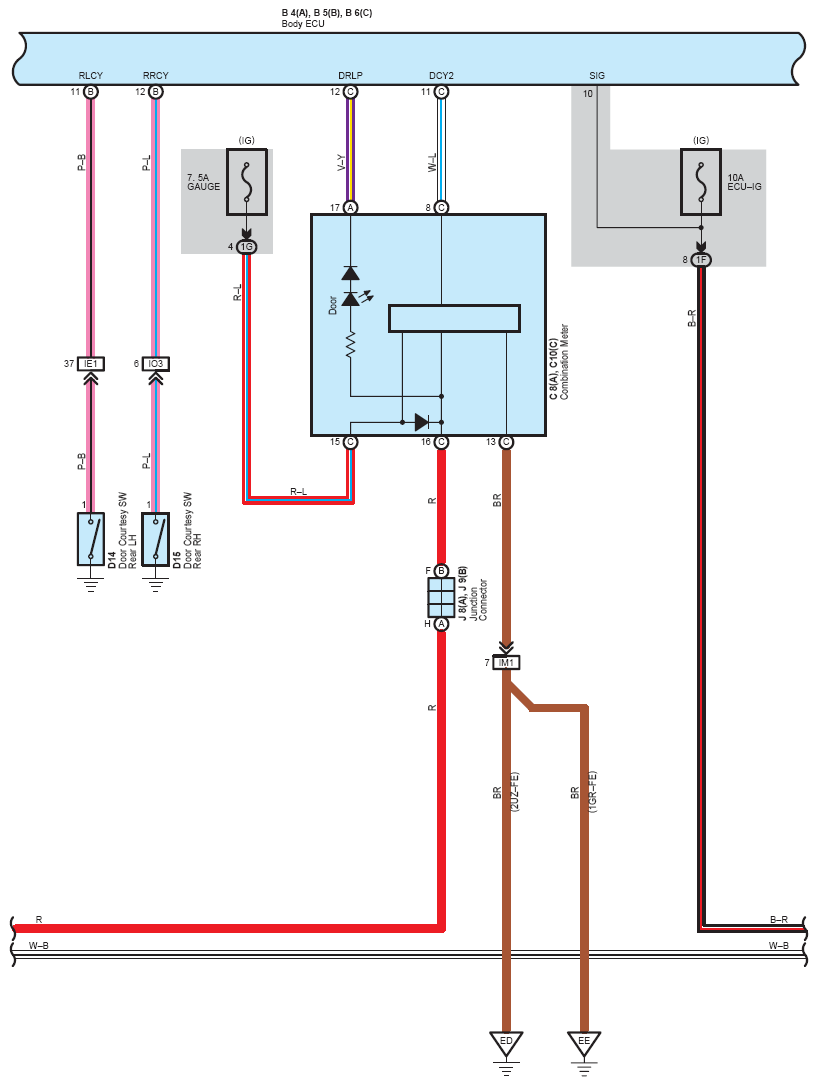

Fig 5: Interior Light Wiring Diagram (5 Of 5)
