4Runner Limited, 4.7 T, AWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Multi Mode 4WD
›
Notes
Multi Mode 4WD: Notes

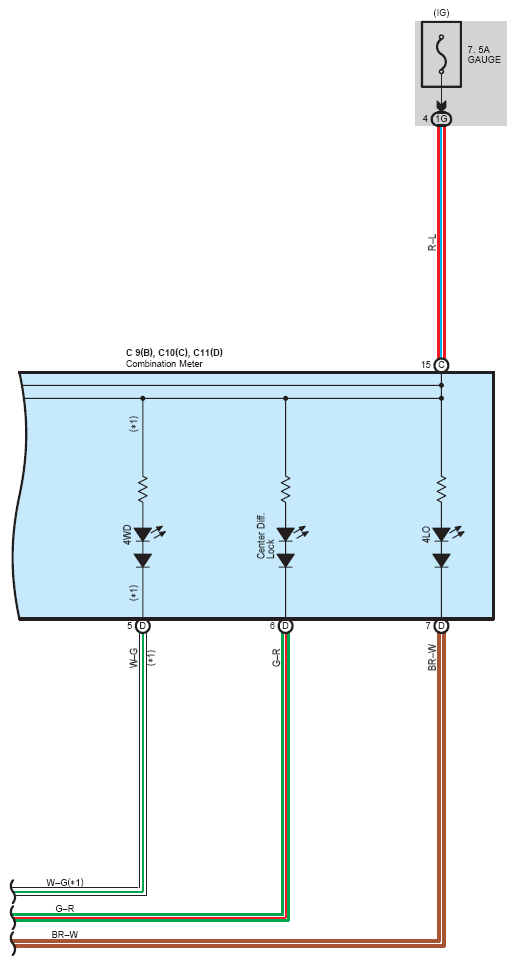

Fig 1: Multi Mode 4WD Wiring Diagram (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

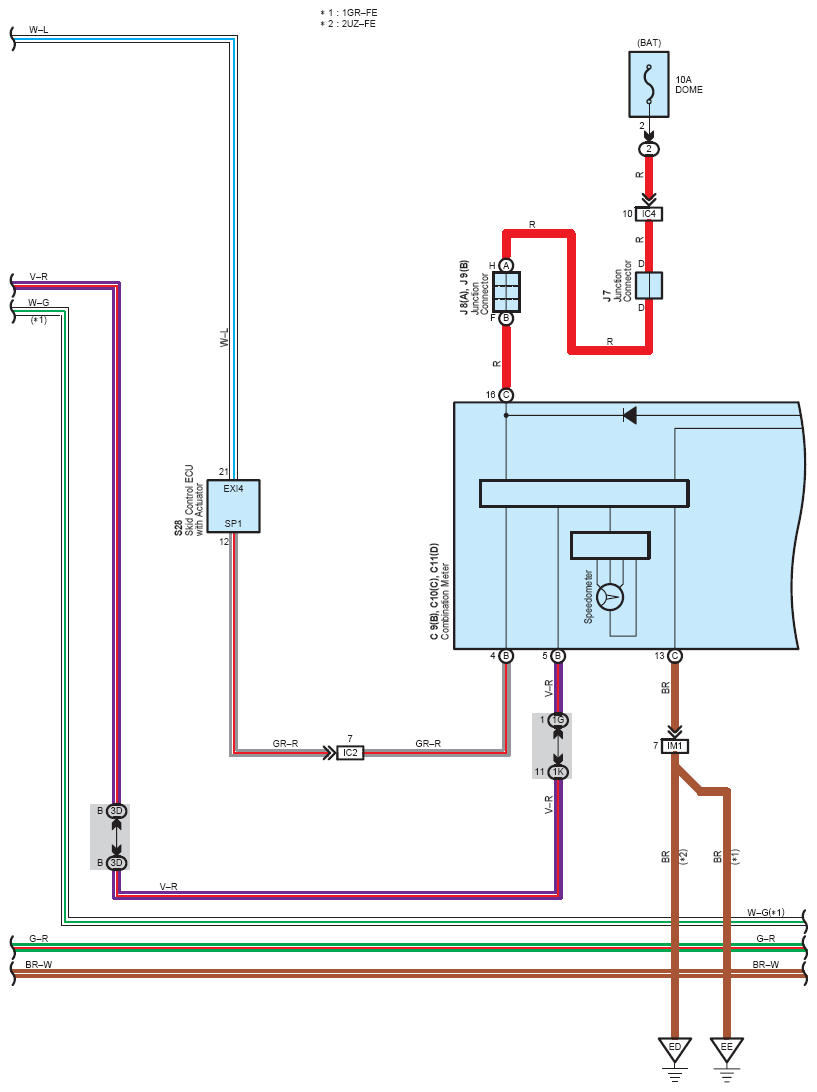

Fig 2: Multi Mode 4WD Wiring Diagram (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

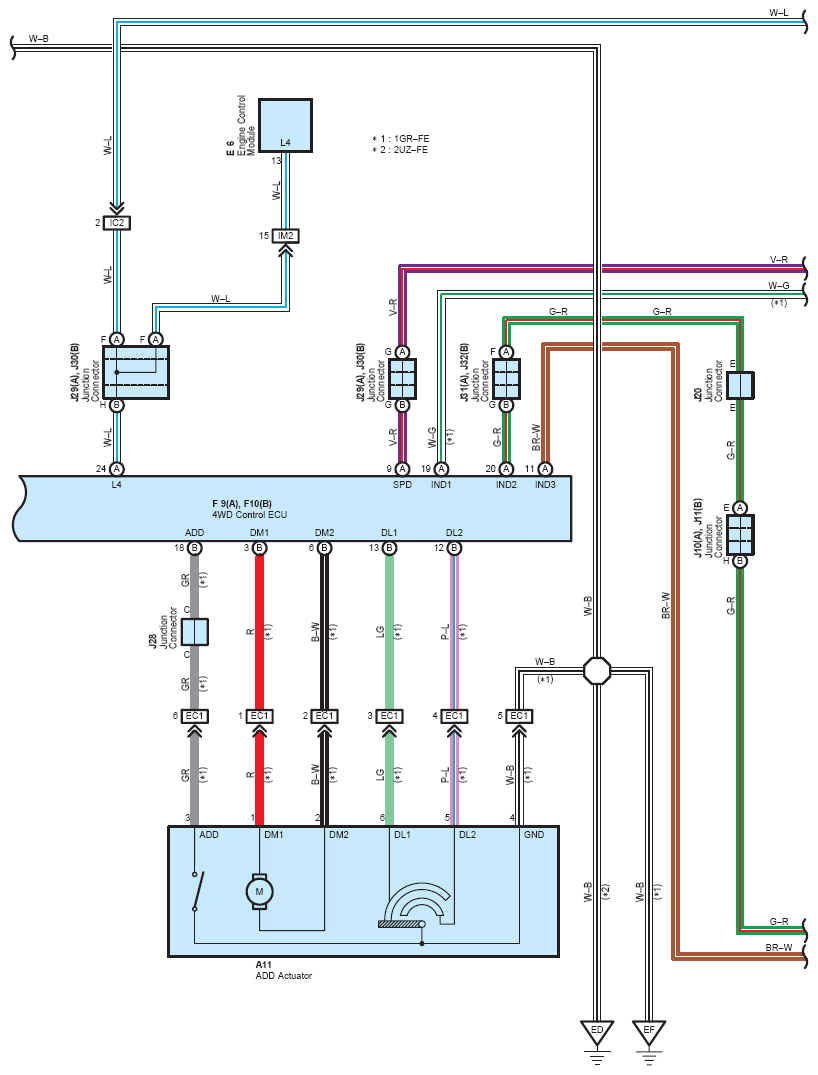

Fig 3: Multi Mode 4WD Wiring Diagram (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

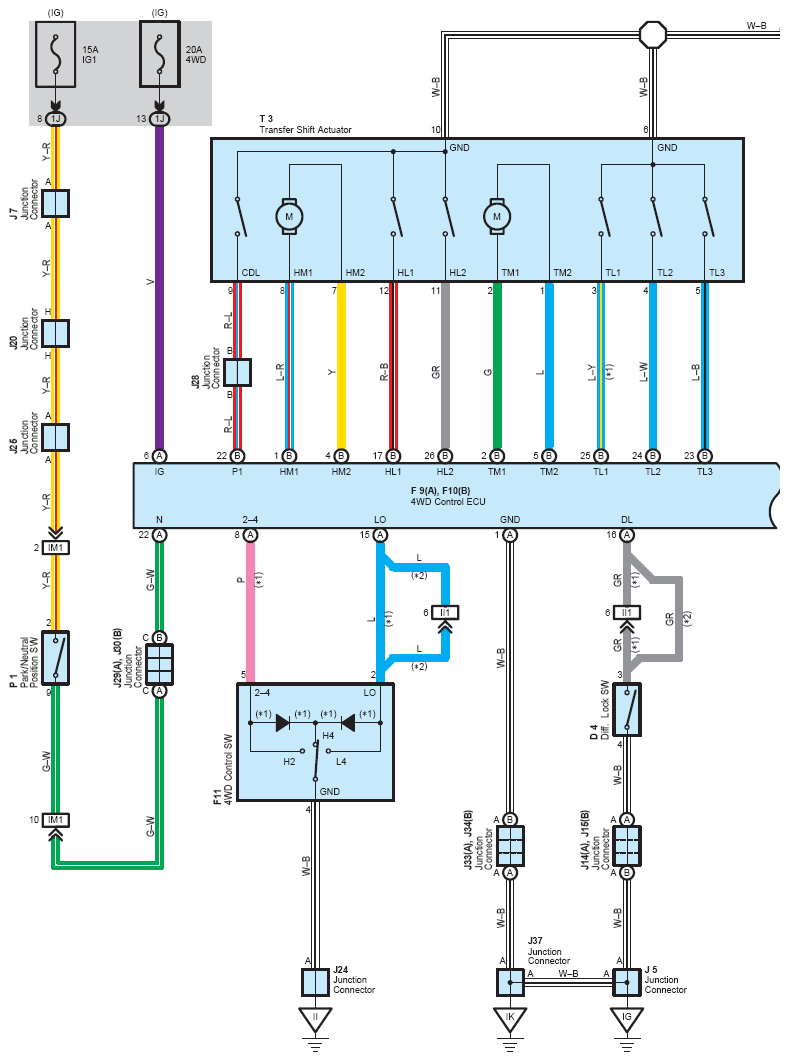

Fig 4: Multi Mode 4WD Wiring Diagram (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
