Multiplex Communication System - BEAN: Notes

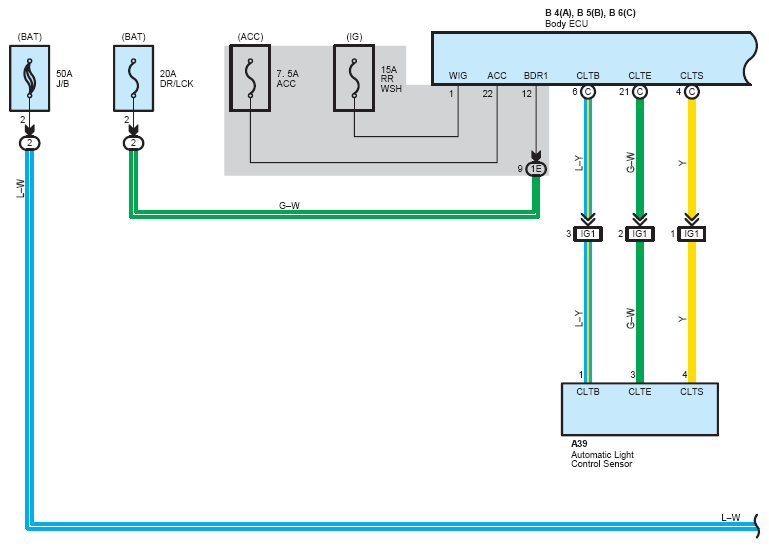

Fig 1: Multiplex Communication System - BEAN Wiring Diagram (1 Of 22)

G08778232

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

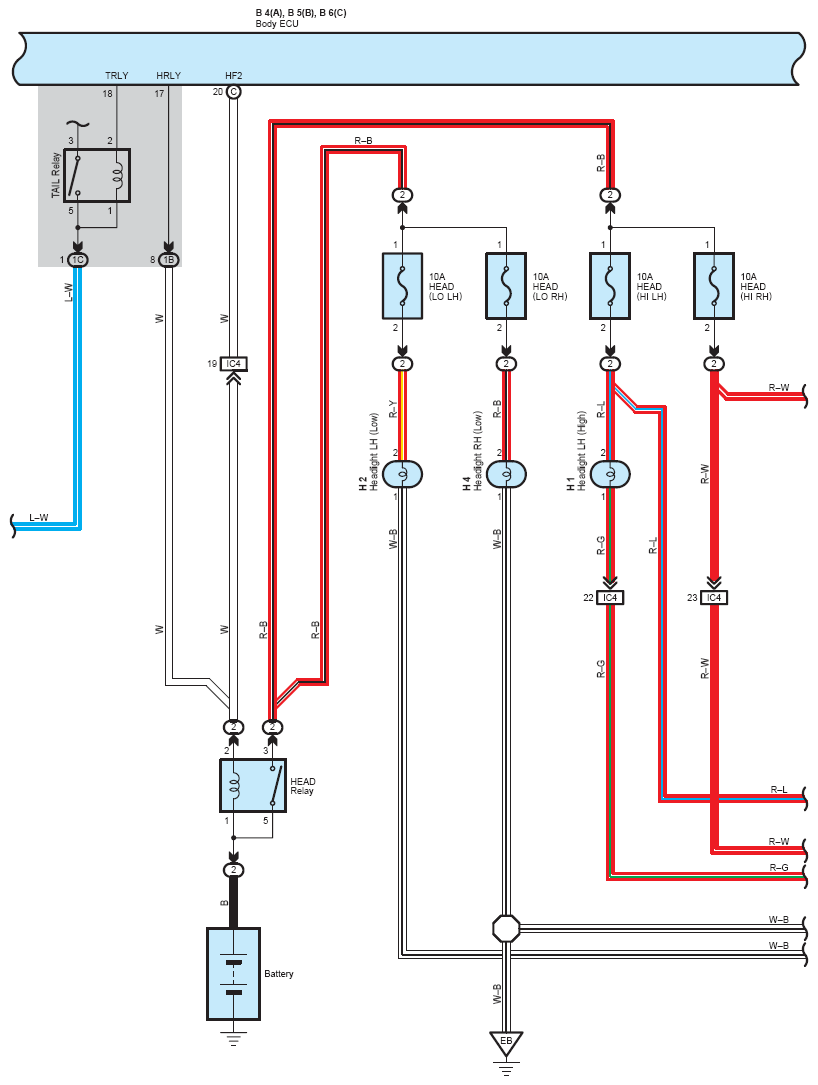

Fig 2: Multiplex Communication System - BEAN Wiring Diagram (2 Of 22)

G08778233

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

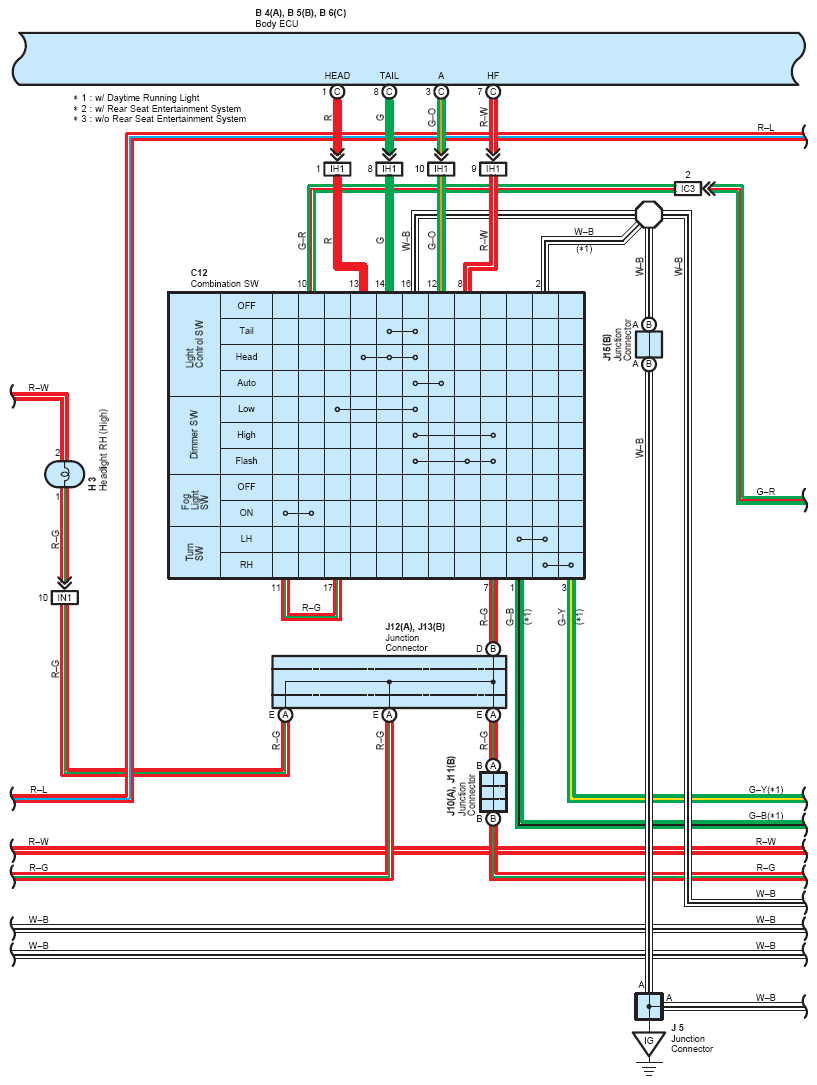

Fig 3: Multiplex Communication System - BEAN Wiring Diagram (3 Of 22)

G08778234

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

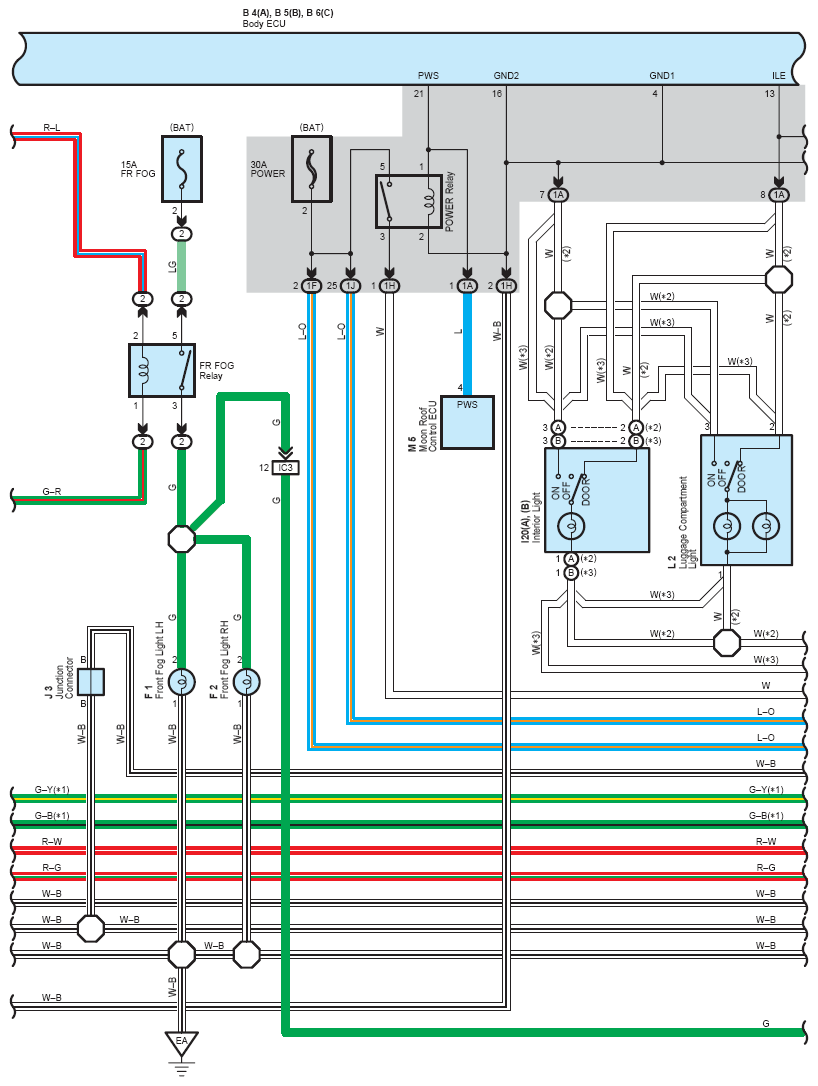

Fig 4: Multiplex Communication System - BEAN Wiring Diagram (4 Of 22)

G08778235

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

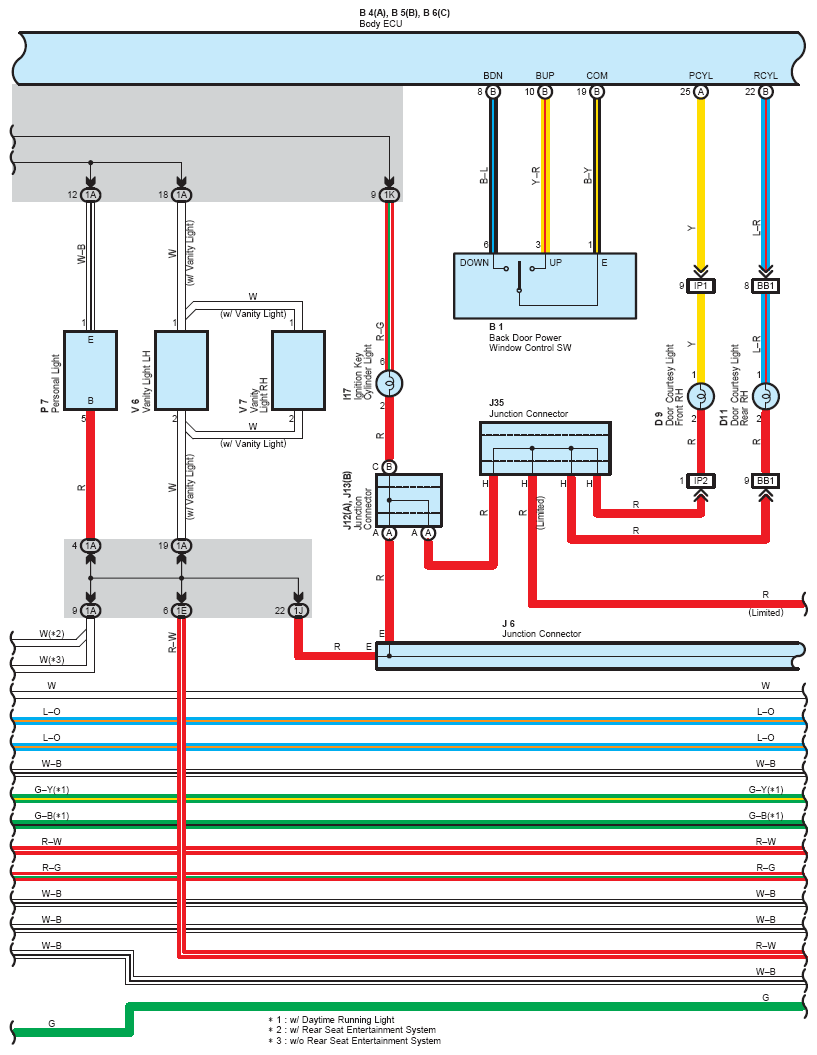

Fig 5: Multiplex Communication System - BEAN Wiring Diagram (5 Of 22)

G08778236

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

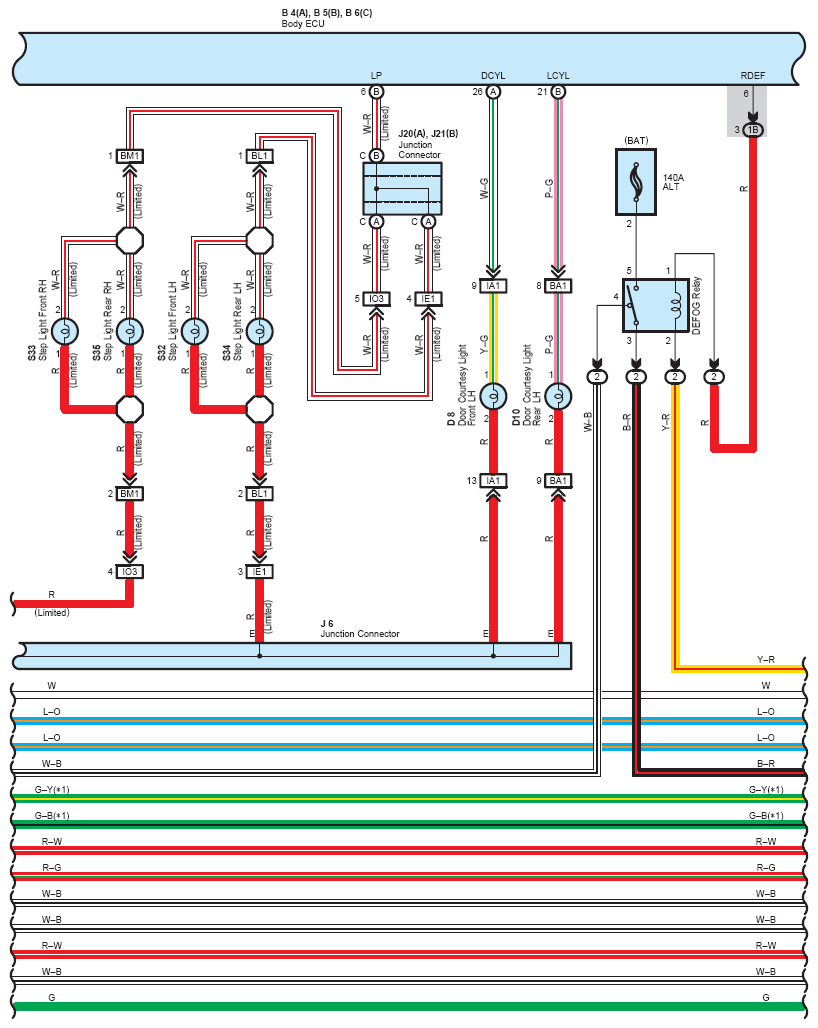

Fig 6: Multiplex Communication System - BEAN Wiring Diagram (6 Of 22)

G08778237

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

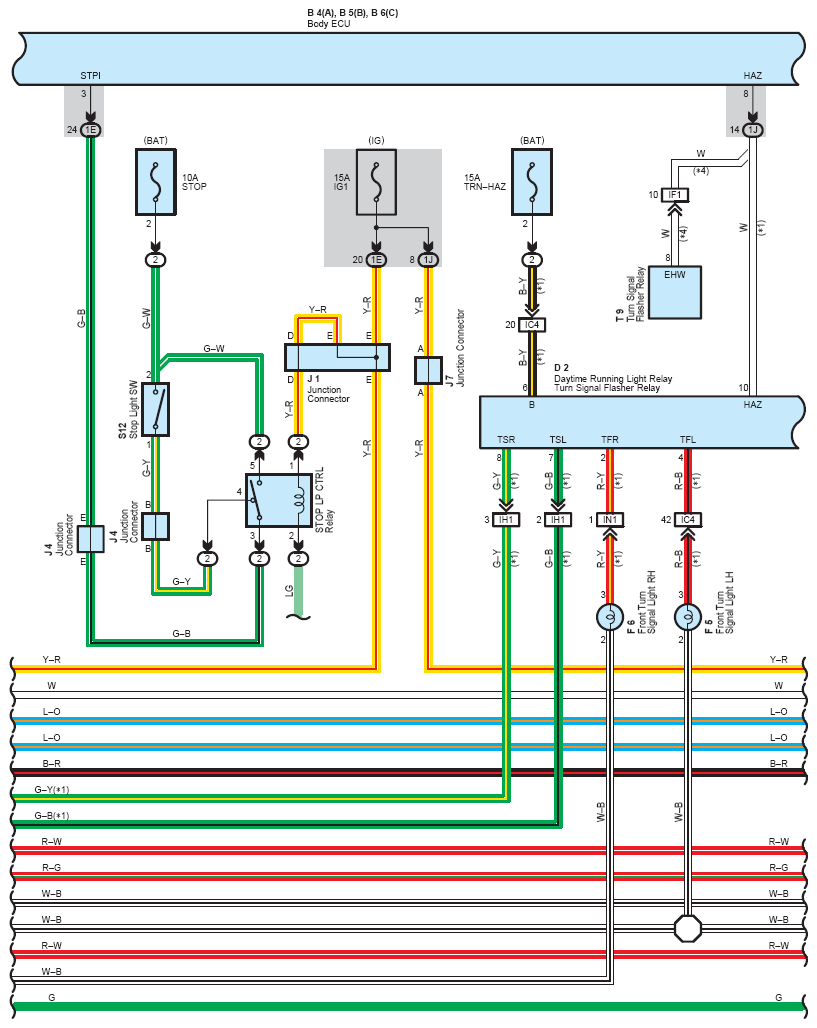

Fig 7: Multiplex Communication System - BEAN Wiring Diagram (7 Of 22)

G08778238

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

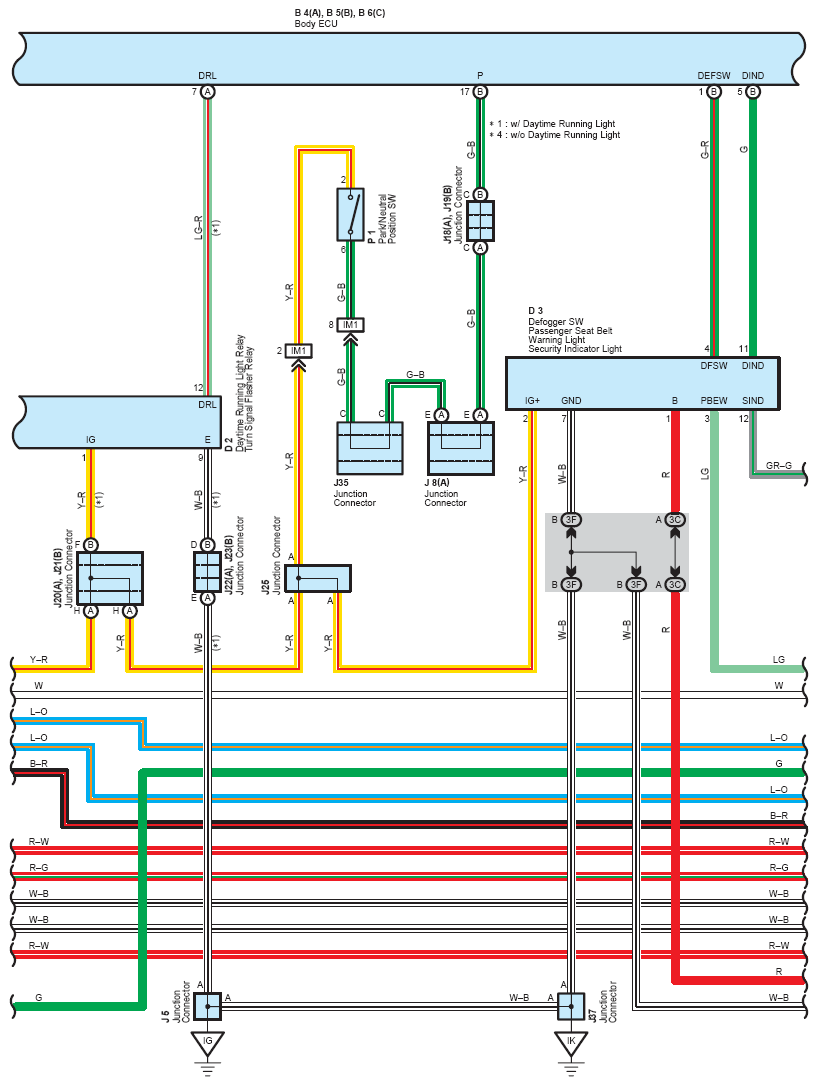

Fig 8: Multiplex Communication System - BEAN Wiring Diagram (8 Of 22)

G08778239

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

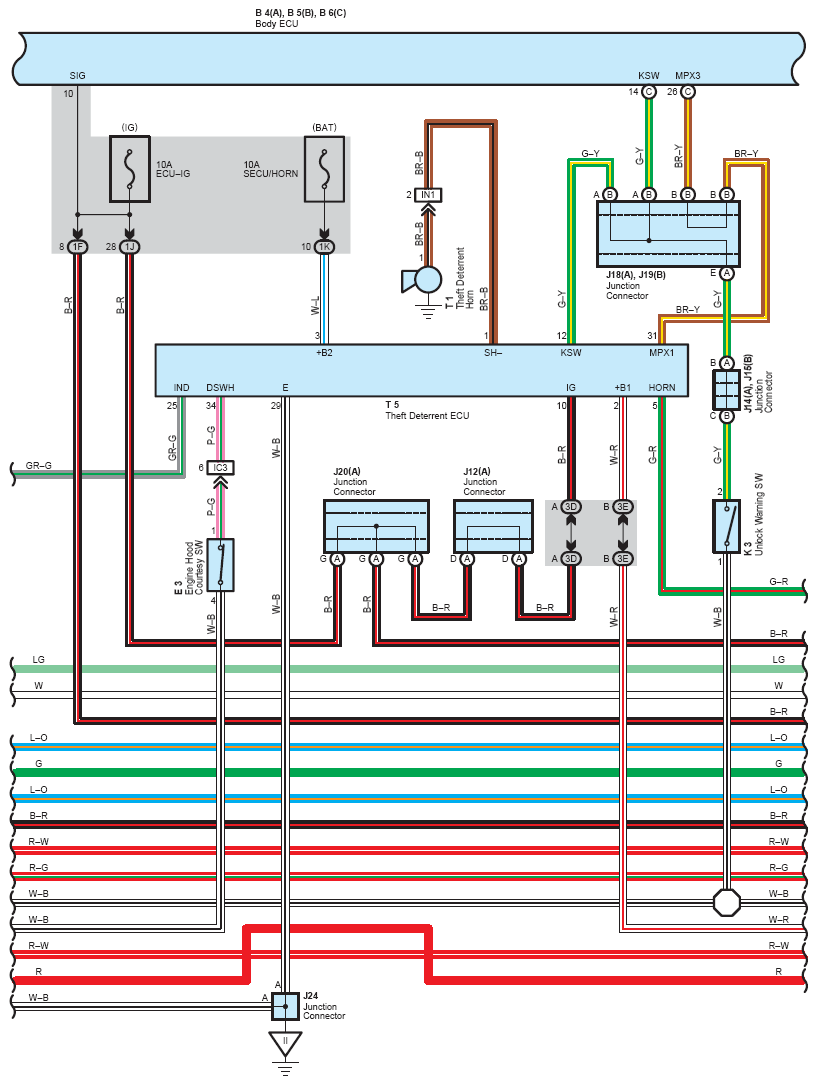

Fig 9: Multiplex Communication System - BEAN Wiring Diagram (9 Of 22)

G08778240

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

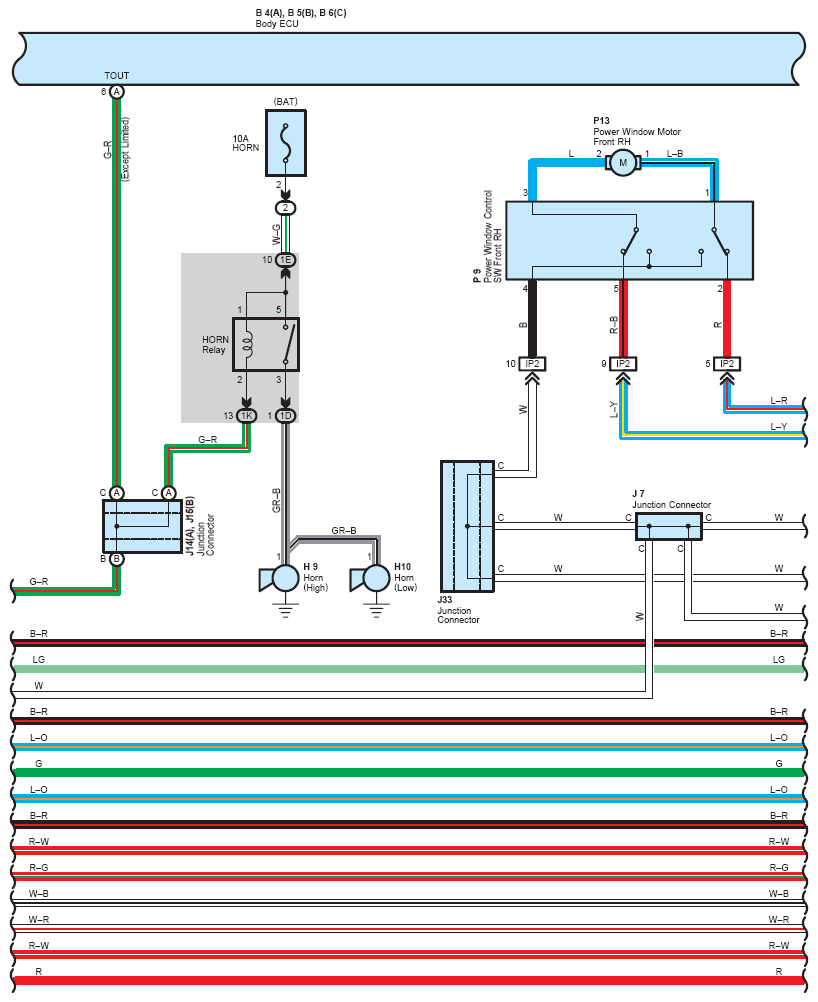

Fig 10: Multiplex Communication System - BEAN Wiring Diagram (10 Of 22)

G08778241

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

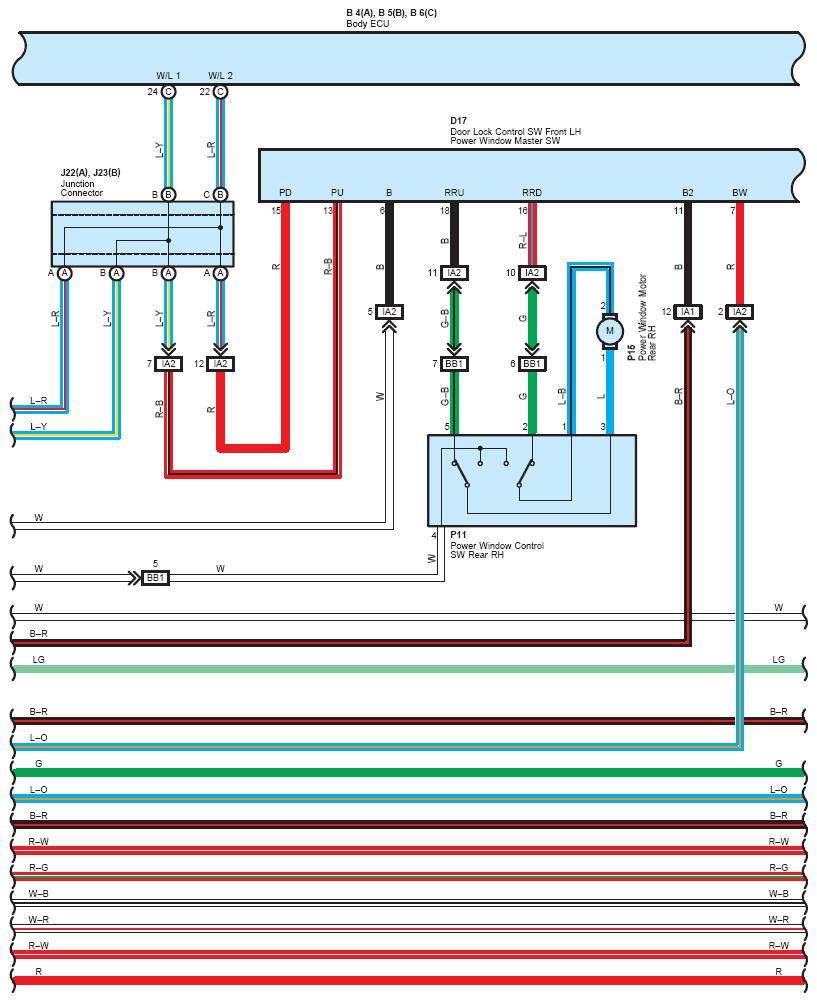

Fig 11: Multiplex Communication System - BEAN Wiring Diagram (11 Of 22)

G08778242

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

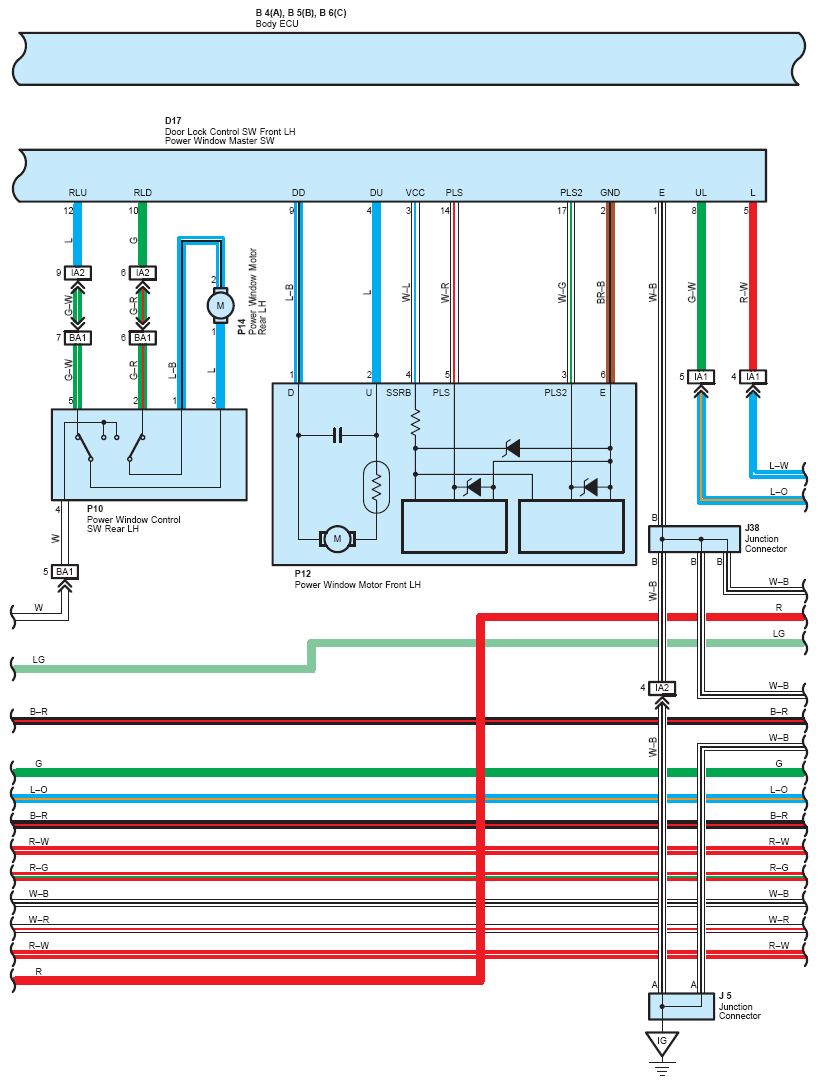

Fig 12: Multiplex Communication System - BEAN Wiring Diagram (12 Of 22)

G08778243

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

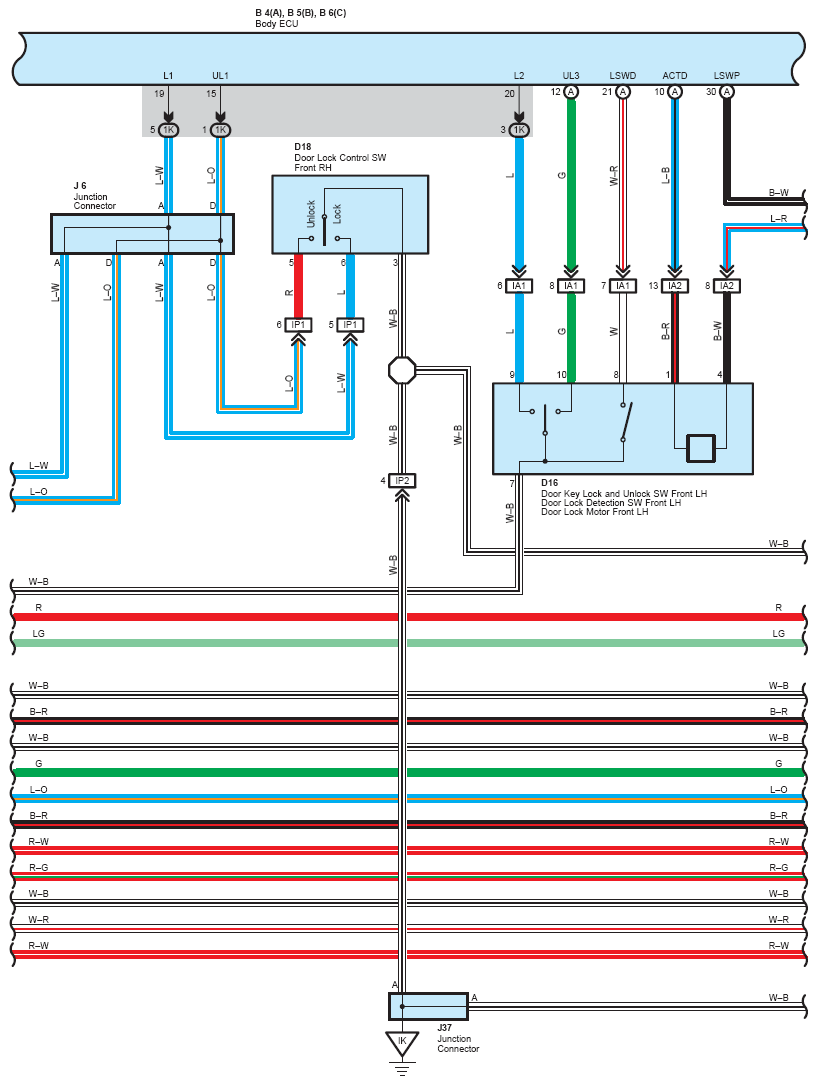

Fig 13: Multiplex Communication System - BEAN Wiring Diagram (13 Of 22)

G08778244

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

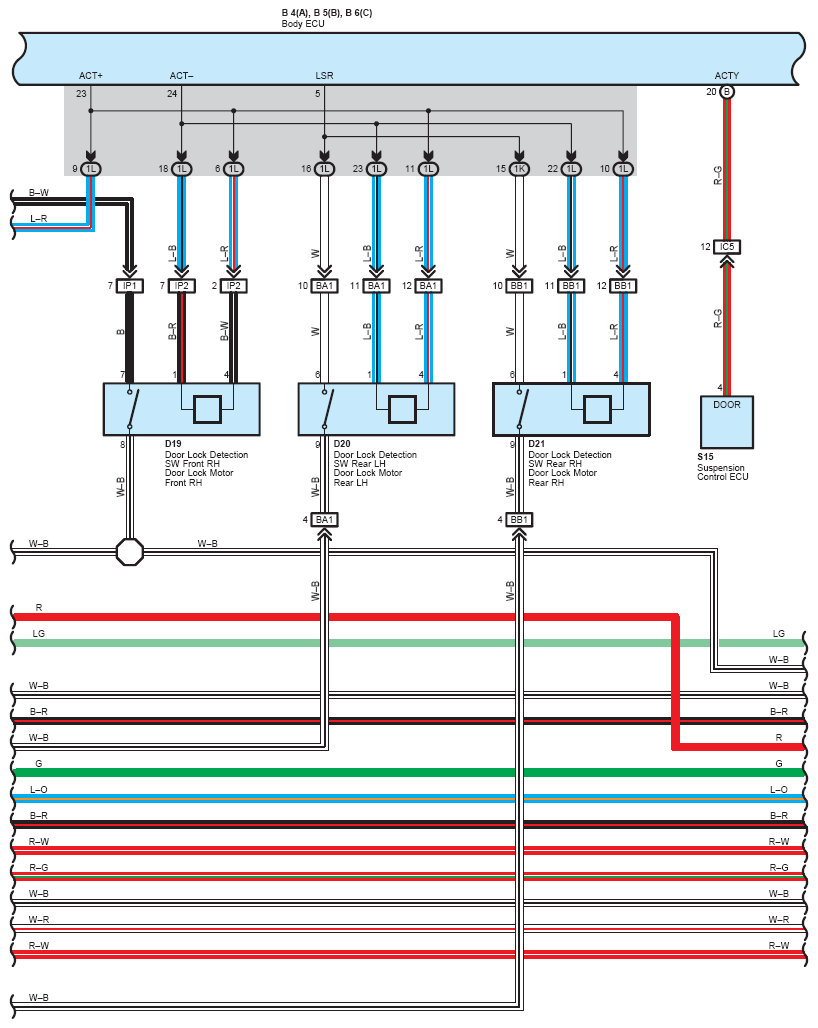

Fig 14: Multiplex Communication System - BEAN Wiring Diagram (14 Of 22)

G08778245

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

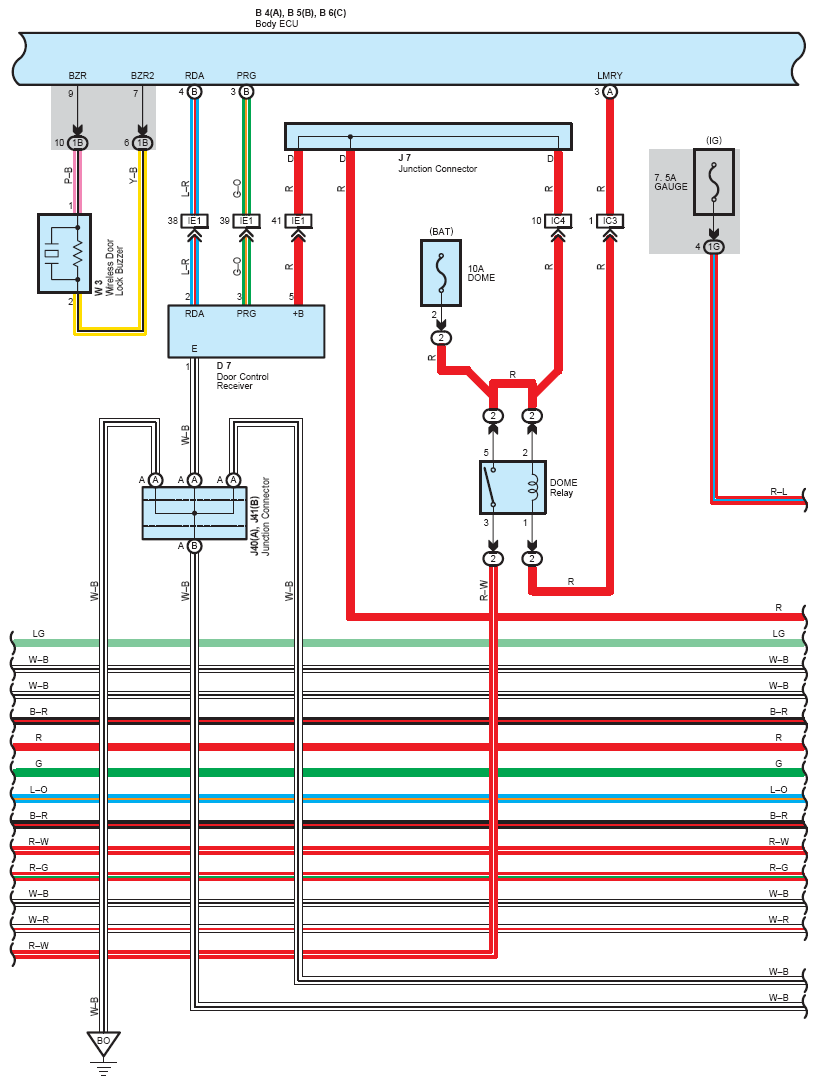

Fig 15: Multiplex Communication System - BEAN Wiring Diagram (15 Of 22)

G08778246

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

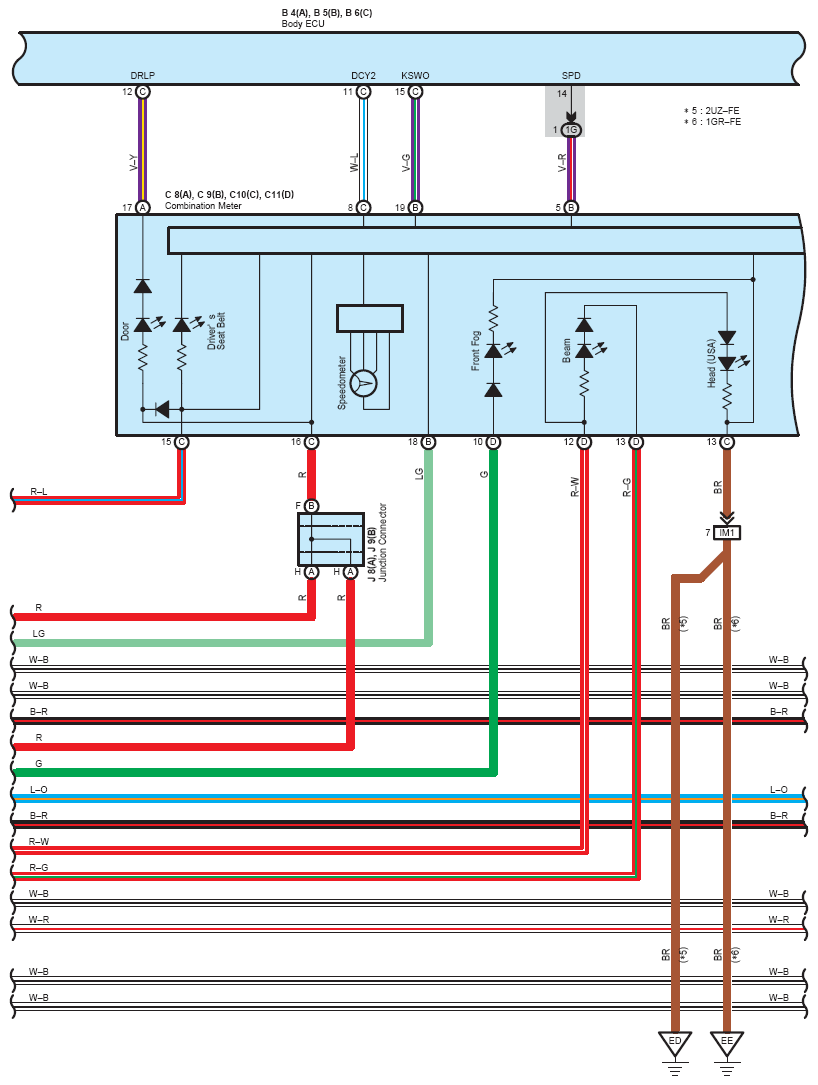

Fig 16: Multiplex Communication System - BEAN Wiring Diagram (16 Of 22)

G08778247

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

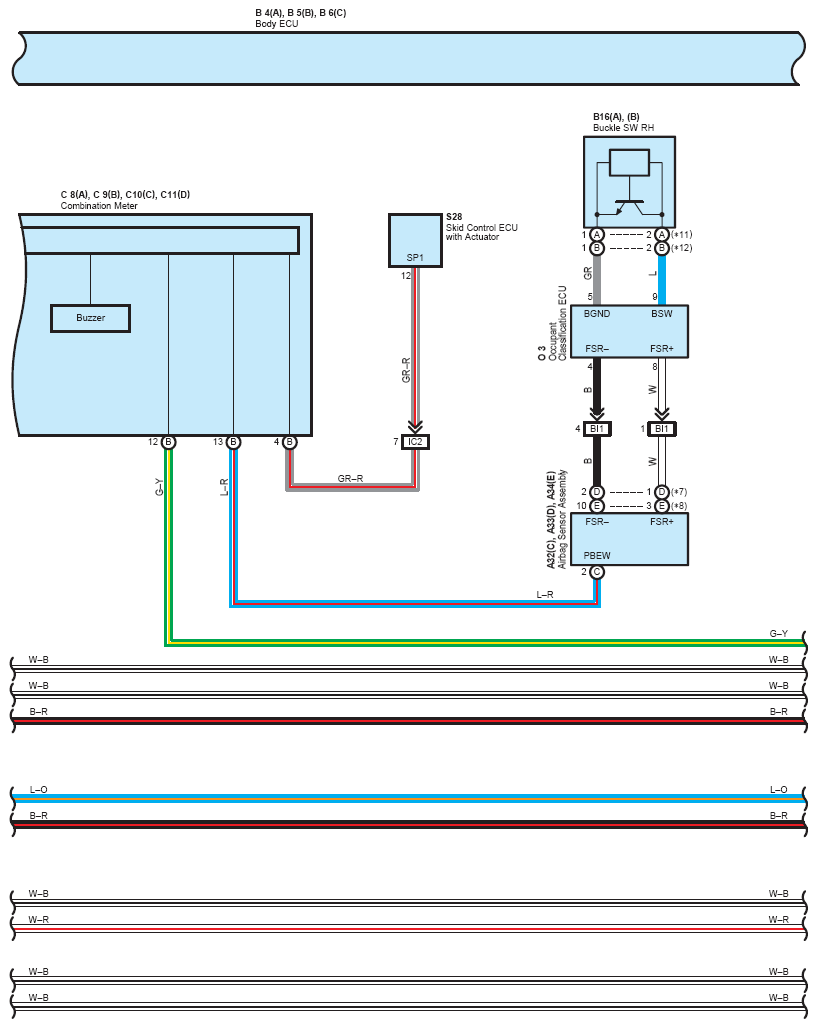

Fig 17: Multiplex Communication System - BEAN Wiring Diagram (17 Of 22)

G08778248

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

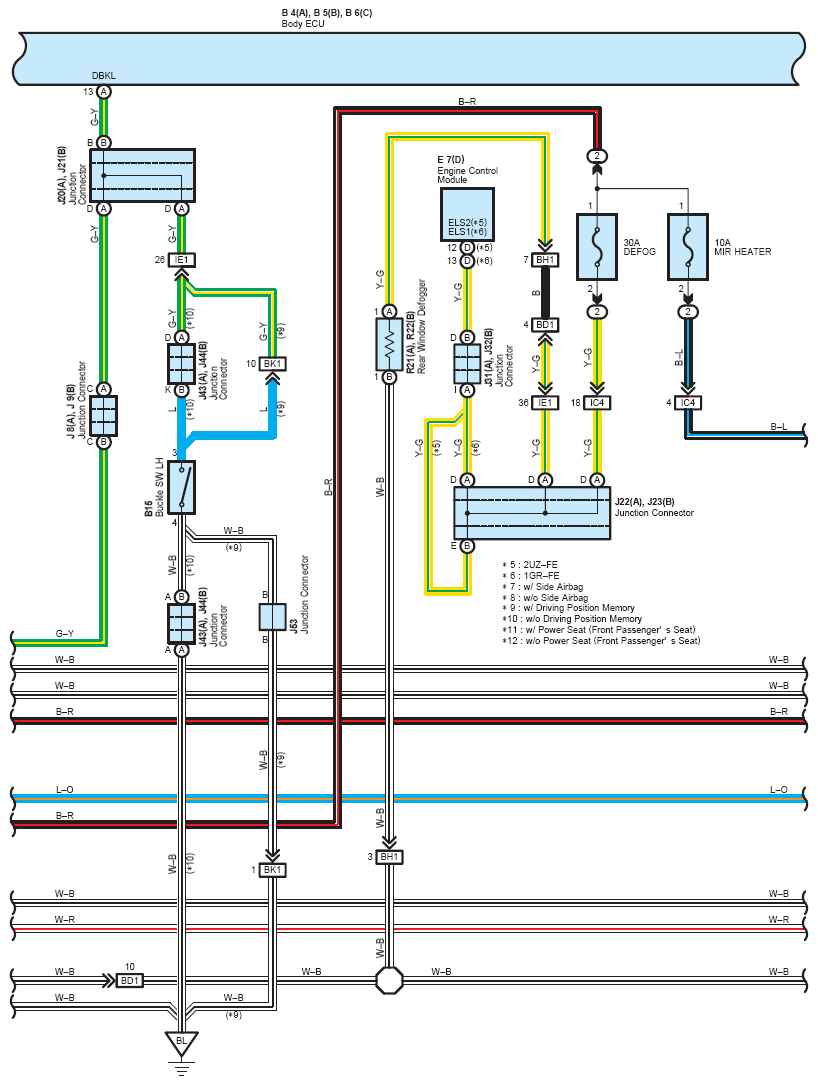

Fig 18: Multiplex Communication System - BEAN Wiring Diagram (18 Of 22)

G08778249

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

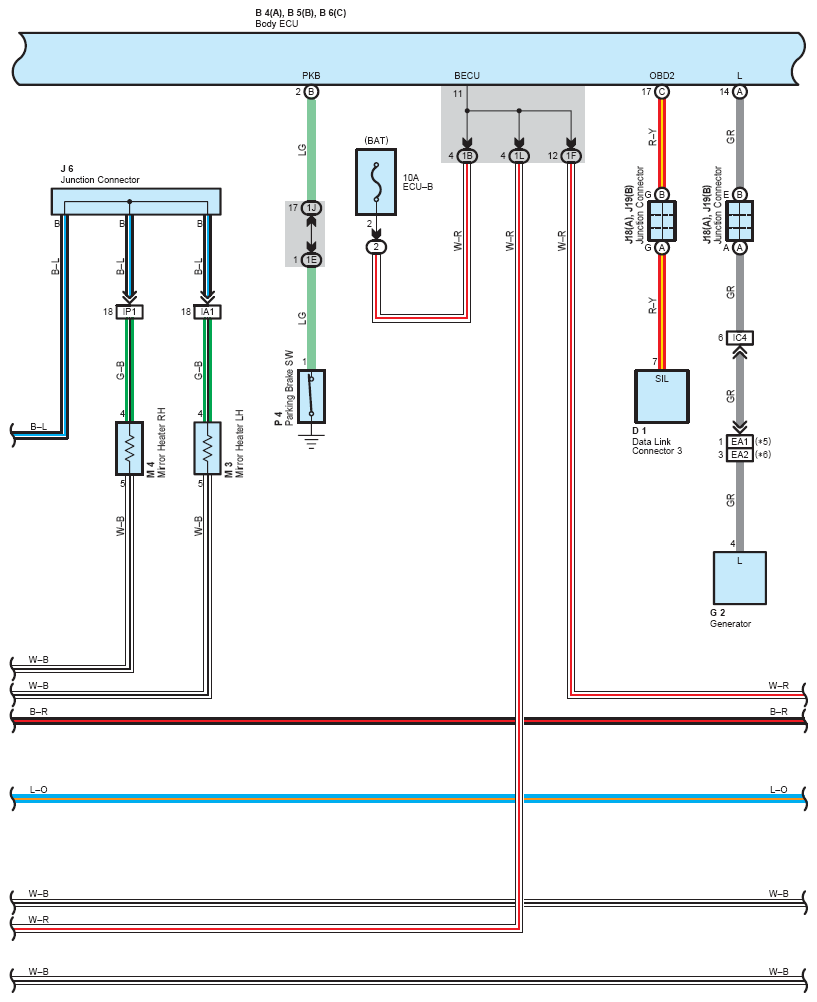

Fig 19: Multiplex Communication System - BEAN Wiring Diagram (19 Of 22)

G08778250

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

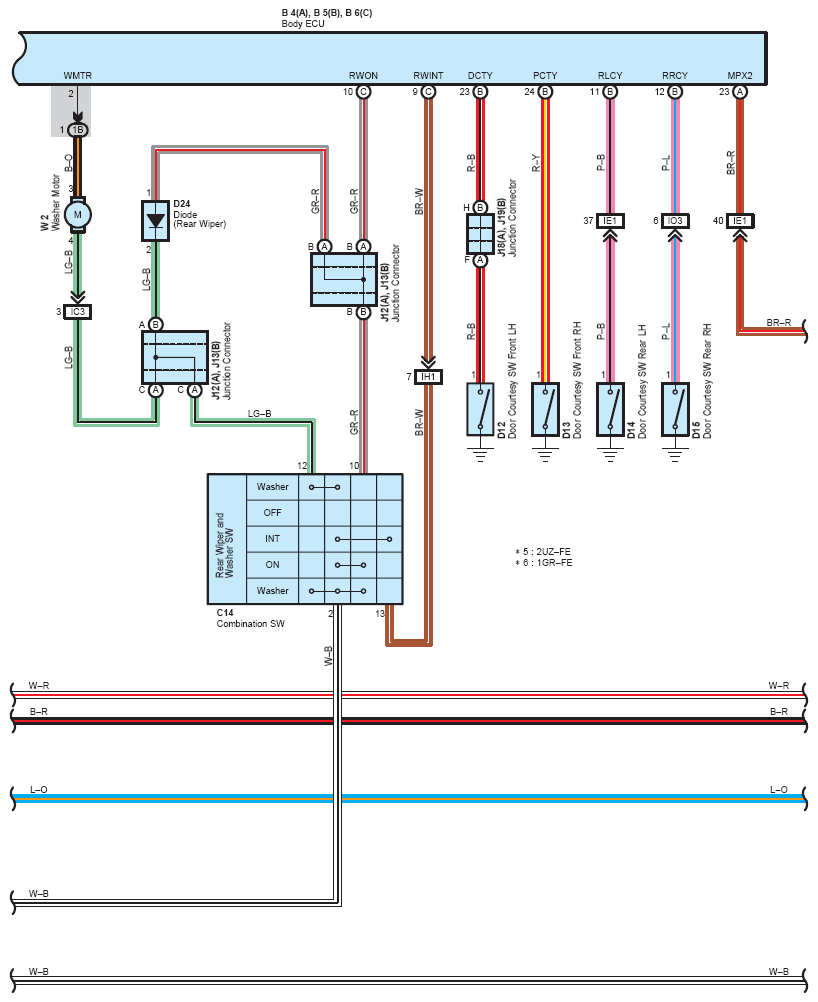

Fig 20: Multiplex Communication System - BEAN Wiring Diagram (20 Of 22)

G08778251

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

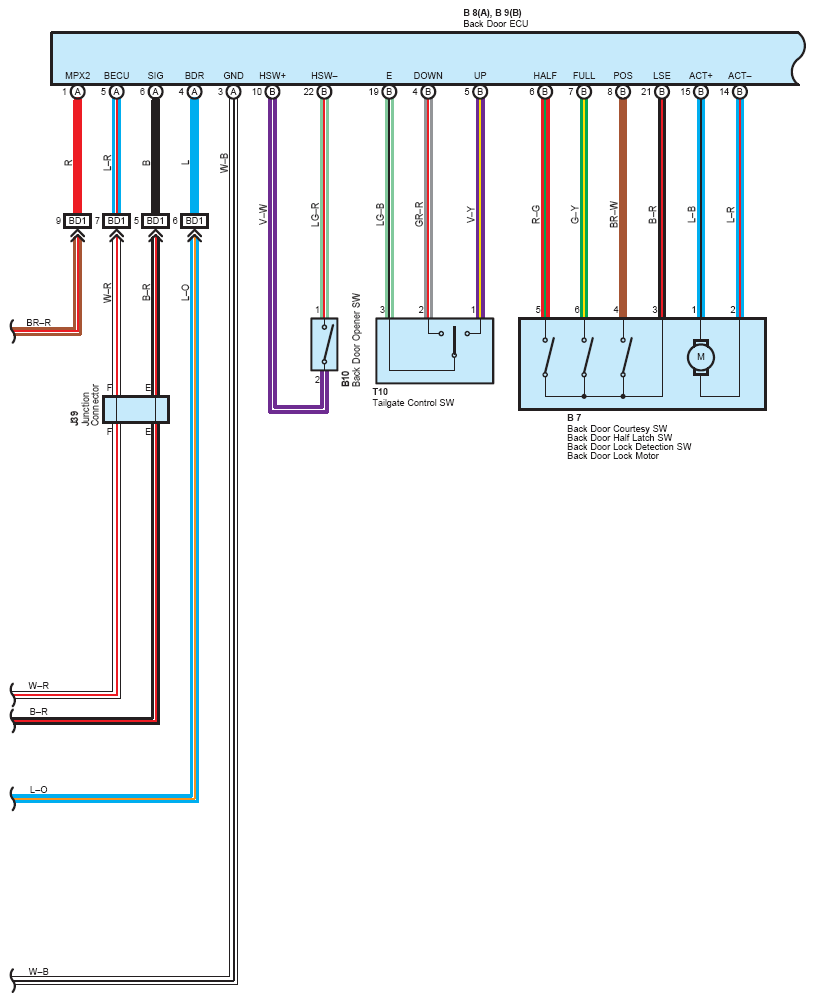

Fig 21: Multiplex Communication System - BEAN Wiring Diagram (21 Of 22)

G08778252

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

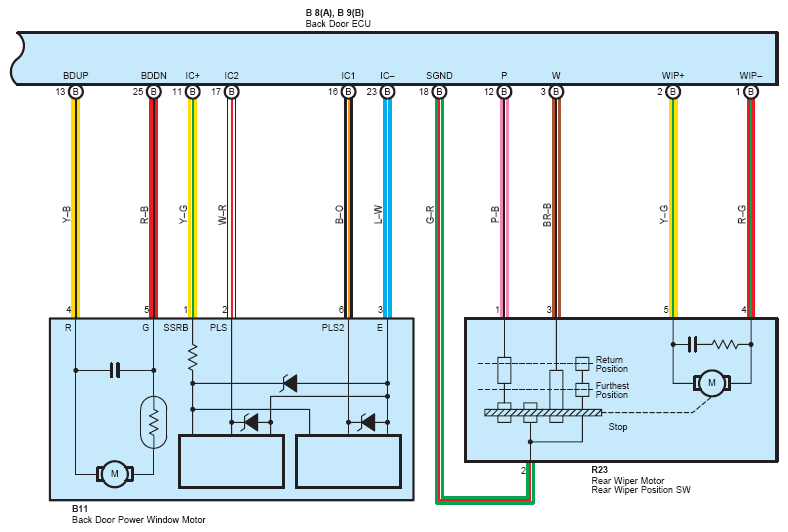

Fig 22: Multiplex Communication System - BEAN Wiring Diagram (22 Of 22)

G08778253

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
