Multiplex Communication System - CAN Bus: Notes

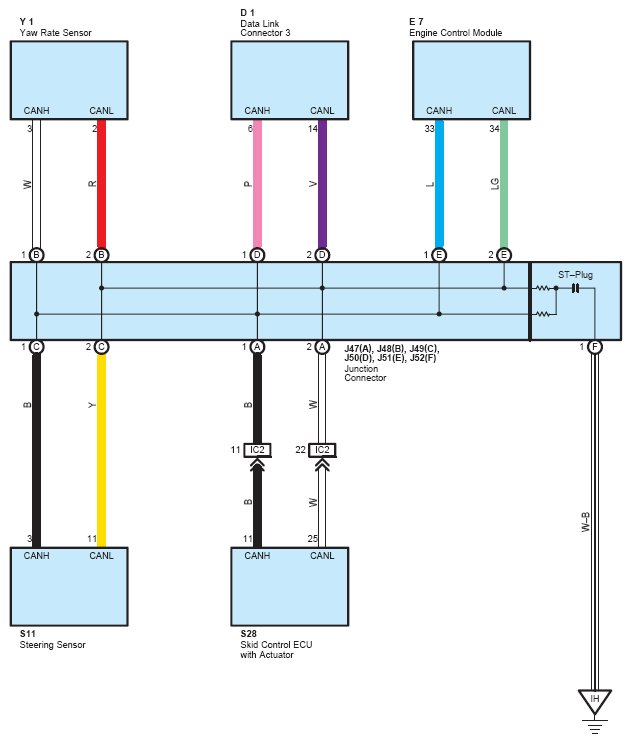

Fig 1: Multiplex Communication System - CAN Bus Wiring Diagram
G08778231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
