Power Outlet for 12V: Notes

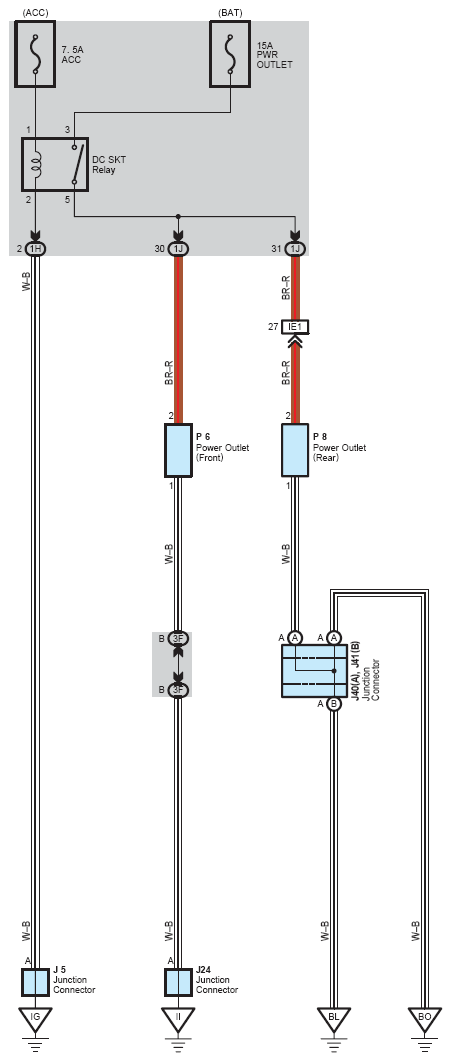

Fig 1: Power Outlet Wiring Diagram (12V)

G08778360

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
