Power Source: Notes

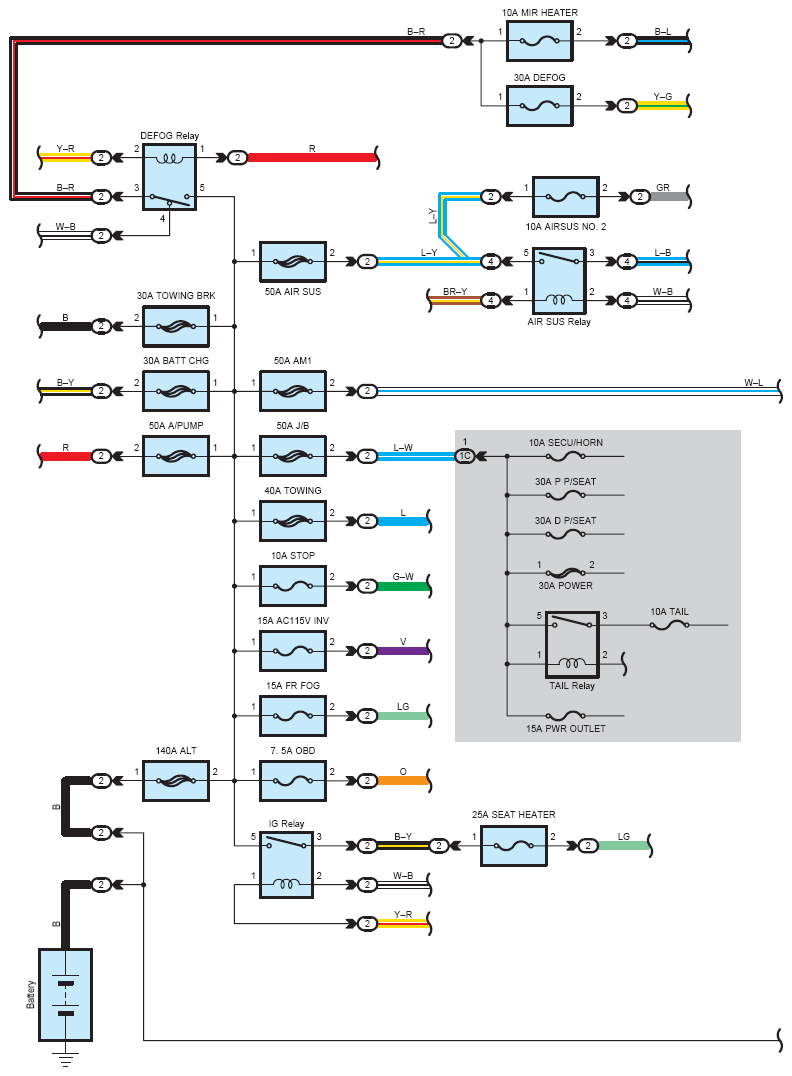

Fig 1: Power Source Wiring Diagram (1 Of 3)
G08778200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

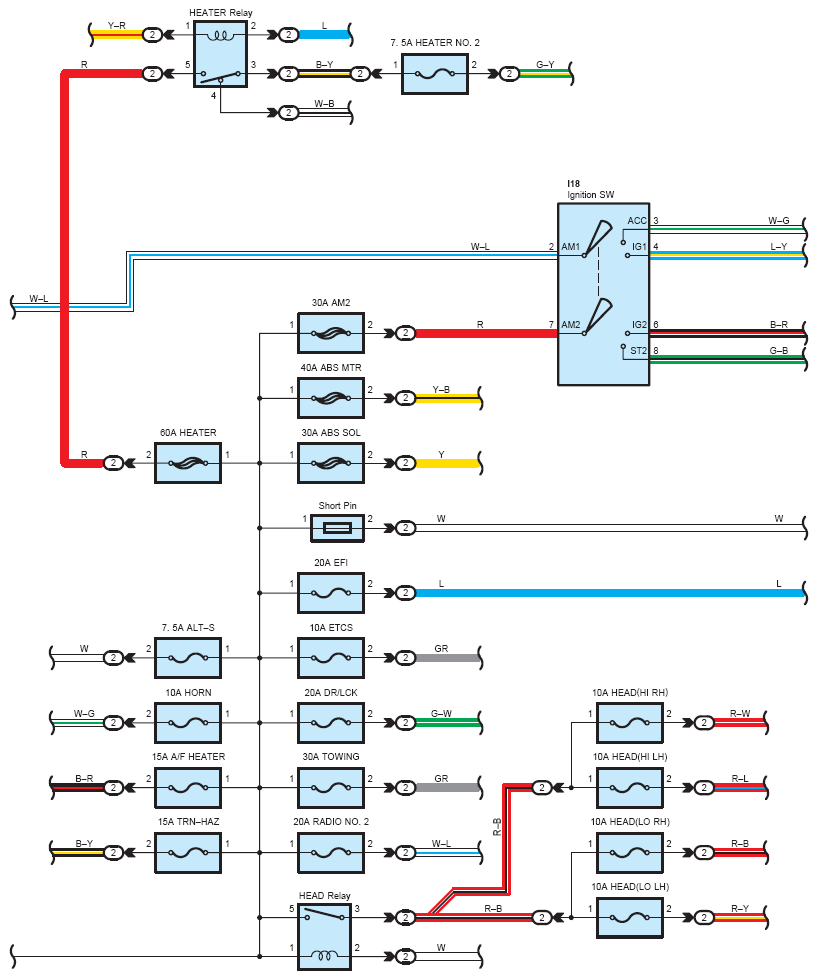

Fig 2: Power Source Wiring Diagram (2 Of 3)
G08778201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

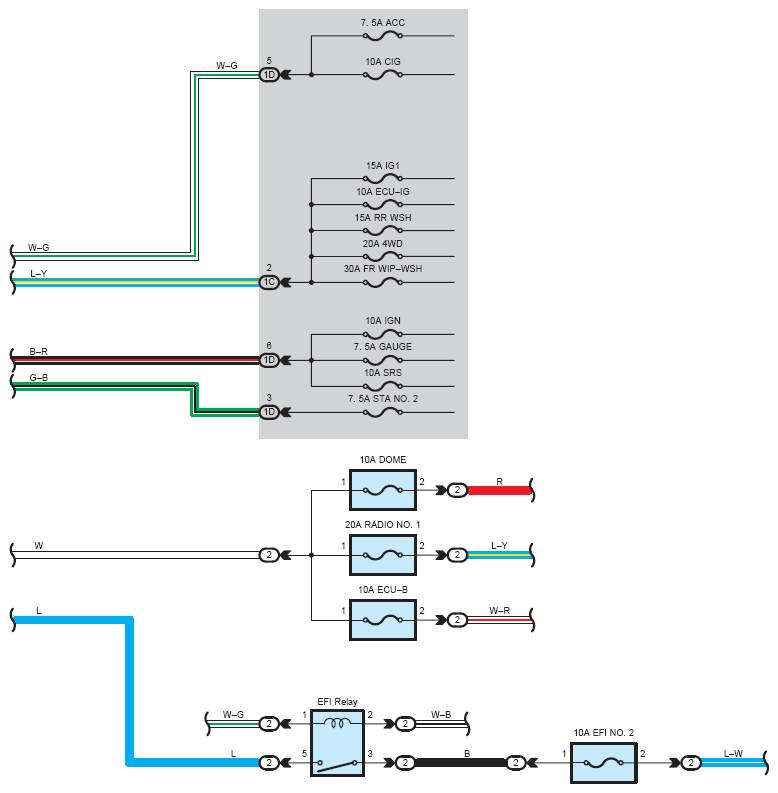

Fig 3: Power Source Wiring Diagram (3 Of 3)
G08778202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
