Throttle W/Motor Body ASSY (1GR-FE)
›
Components
Throttle W/Motor Body ASSY (1GR-FE): Components

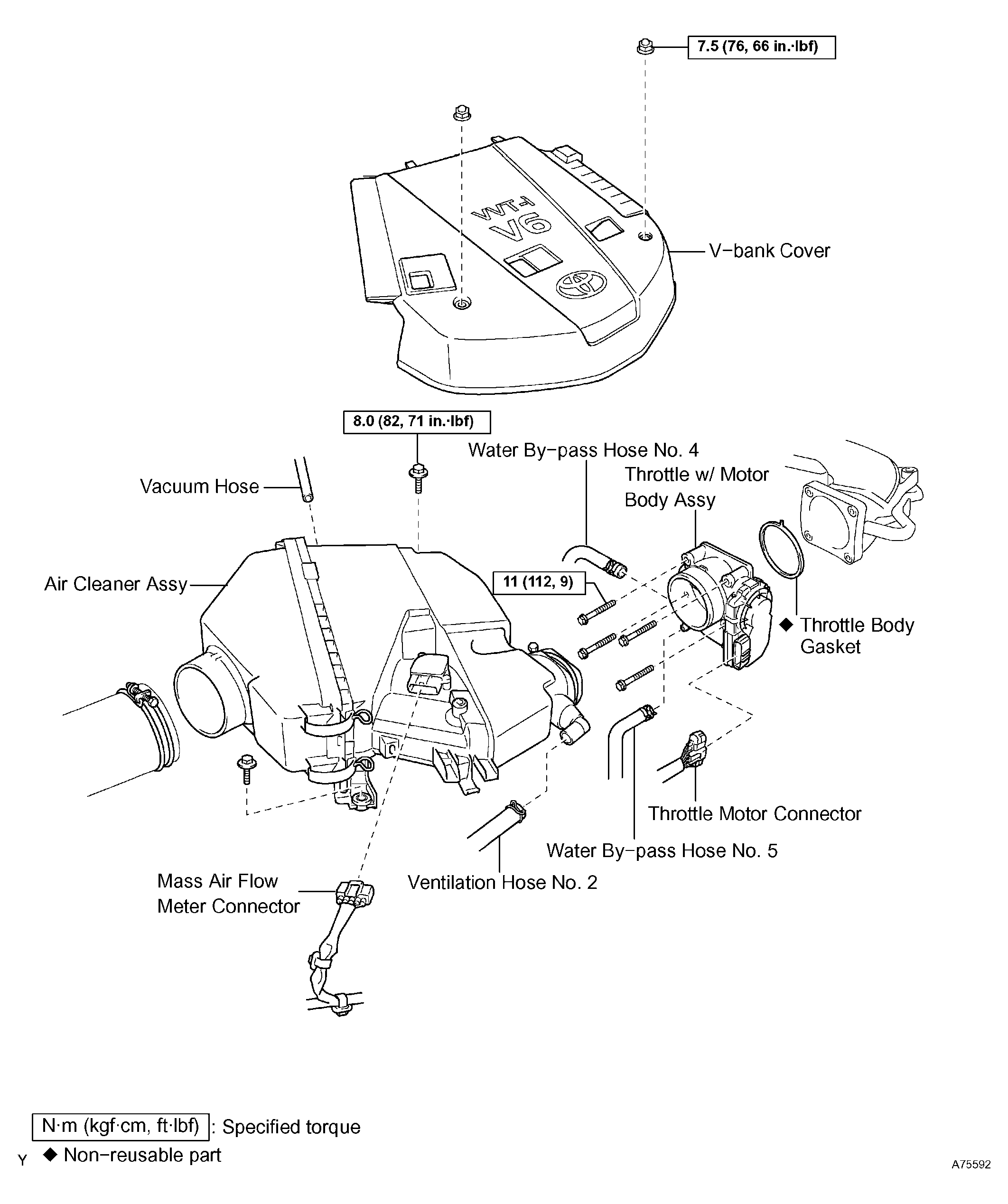

Fig 1: Identifying Throttle With Motor Body Assy Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
