Transmission Control Cable ASSY: Replacement

  1. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY (SEE  REPLACEMENT  )
  2. REMOVE CONSOLE PANEL SUB-ASSY UPPER (SEE  REPLACEMENT  )
  3. REMOVE CONSOLE UPPER PANEL GARNISH NO.1 (SEE  REPLACEMENT  )
  4. REMOVE CONSOLE UPPER PANEL GARNISH NO.2 (SEE  REPLACEMENT  )
  5. REMOVE CONSOLE BOX ASSY REAR (SEE  REPLACEMENT  )
  6. REMOVE TRANSMISSION CONTROL CABLE ASSY
    1. Disconnect the transmission control cable assy from shift lever assy.
    2. Remove the lock plate and disconnect the transmission control cable.

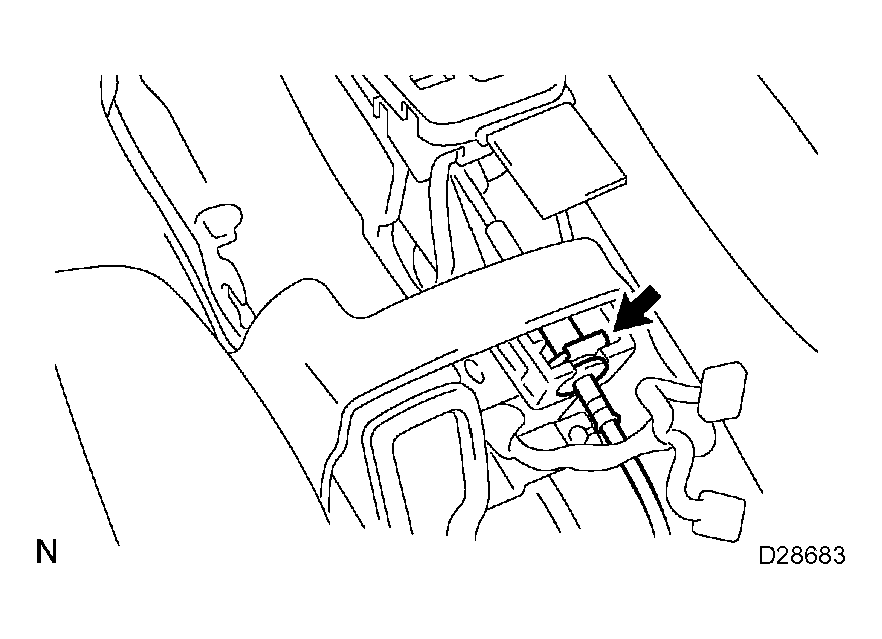

      Fig 1: Disconnecting Transmission Control Cable
      G04334126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and disconnect the transmission control cable assy from body.
      Fig 2: Disconnecting Transmission Control Cable Assy From Body (1 Of 2)
      G04334127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 nuts and disconnect the transmission control cable assy from body.
      Fig 3: Disconnecting Transmission Control Cable Assy From Body (2 Of 2)
      G04334128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the lock plate and transmission control cable bracket.
    6. Remove the nut and transmission control cable assy.
      Fig 4: Removing Lock Plate & Transmission Control Cable Bracket
      G04334129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL TRANSMISSION CONTROL CABLE ASSY
    1. Install the transmission control cable assy with the nut.

      Torque: 12 N.m (122 kgf.cm, 9 ft.lbf)

    2. Install the transmission control cable bracket and lock plate.

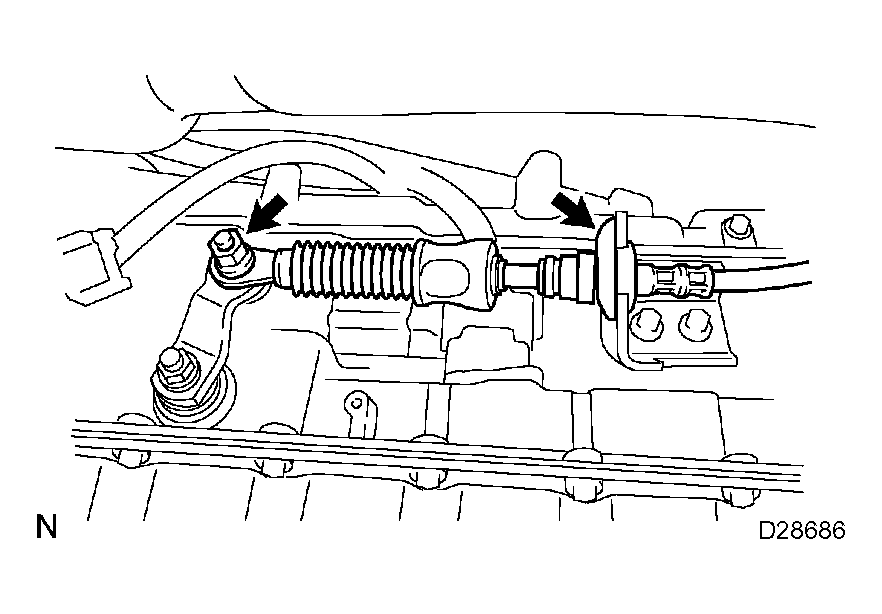

      Fig 5: Installing Transmission Control Cable Bracket & Lock Plate
      G04334130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the transmission control cable with the 2 nuts to body.
      Fig 6: Connecting Transmission Control Cable With Nuts To Body
      G04334131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the transmission control cable with the 2 bolts to body.
      Fig 7: Connecting Transmission Control Cable With Bolts To Body
      G04334132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the transmission control cable with the lock plate to floor shift assy.
    6. Install the transmission control cable to floor shift assy.
      Fig 8: Connecting Transmission Control Cable With Lock Plate To Floor Shift Assy
      G04334133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL CONSOLE BOX ASSY REAR (SEE  REPLACEMENT  )
  9. INSTALL CONSOLE UPPER PANEL GARNISH NO.2 (SEE  REPLACEMENT  )
  10. INSTALL CONSOLE UPPER PANEL GARNISH NO.1 (SEE  REPLACEMENT  )
  11. INSTALL CONSOLE PANEL SUB-ASSY UPPER (SEE  REPLACEMENT  )
  12. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSY (SEE  REPLACEMENT  )
