Front Passenger Side Power Window Switch Power Source Circuit: Wiring Diagram

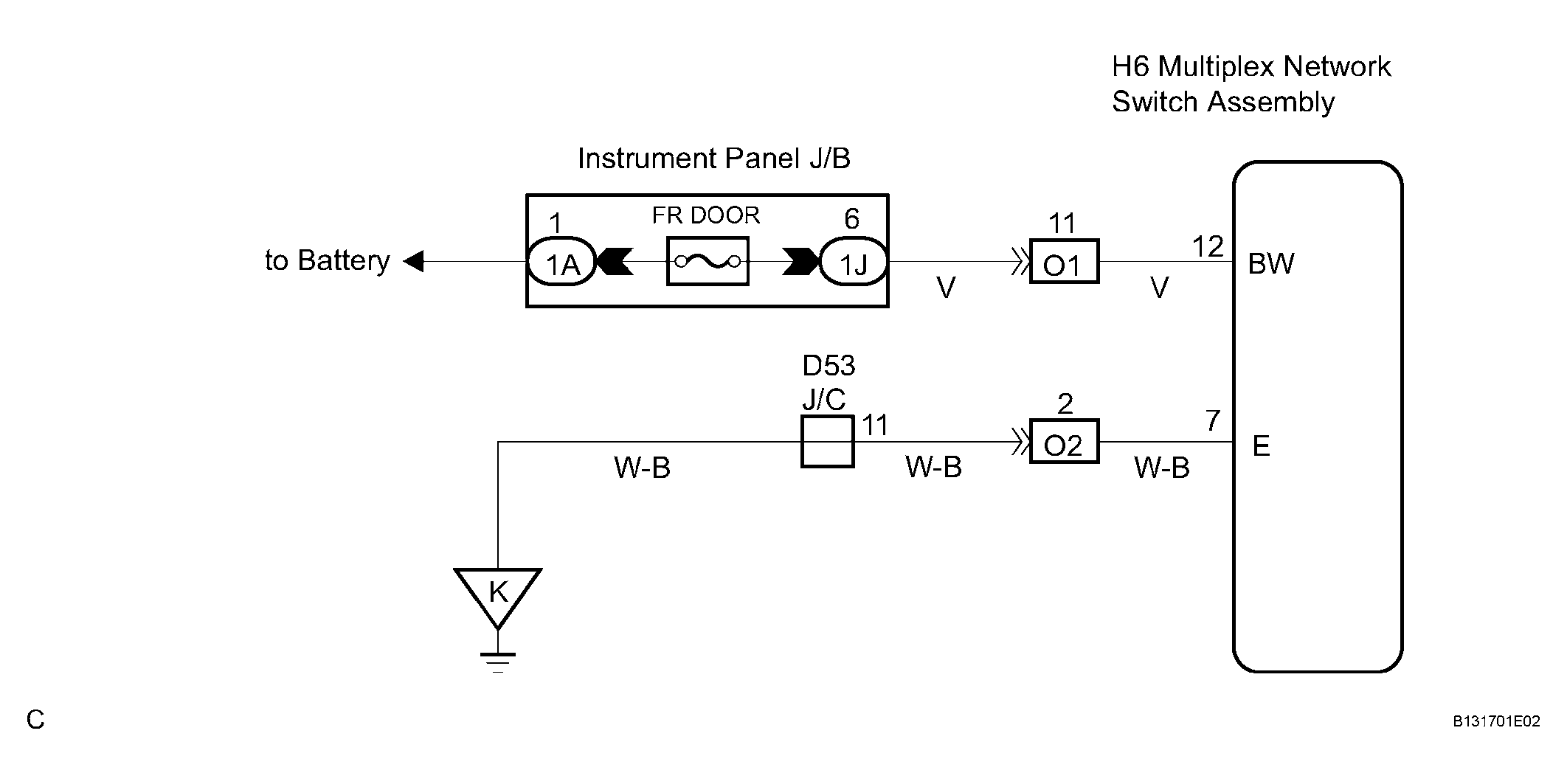

Fig 1: Front Passenger Side Power Window Switch Power Source Circuit Wiring Diagram
G04379116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
