Charging System
›
Charging System
›
System Diagram
System Diagram

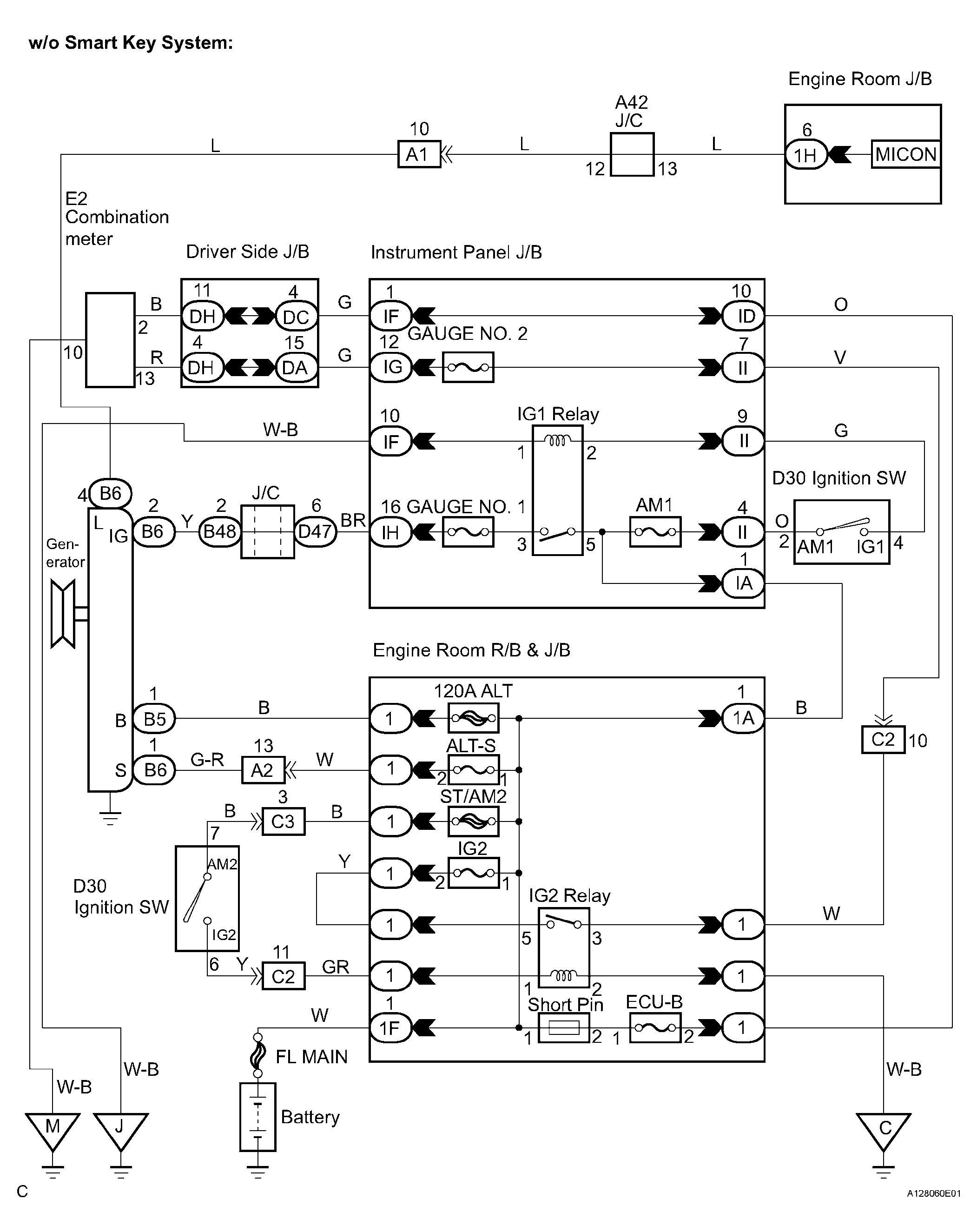

Fig 1: Charging System Diagram (W/O Smart Key System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

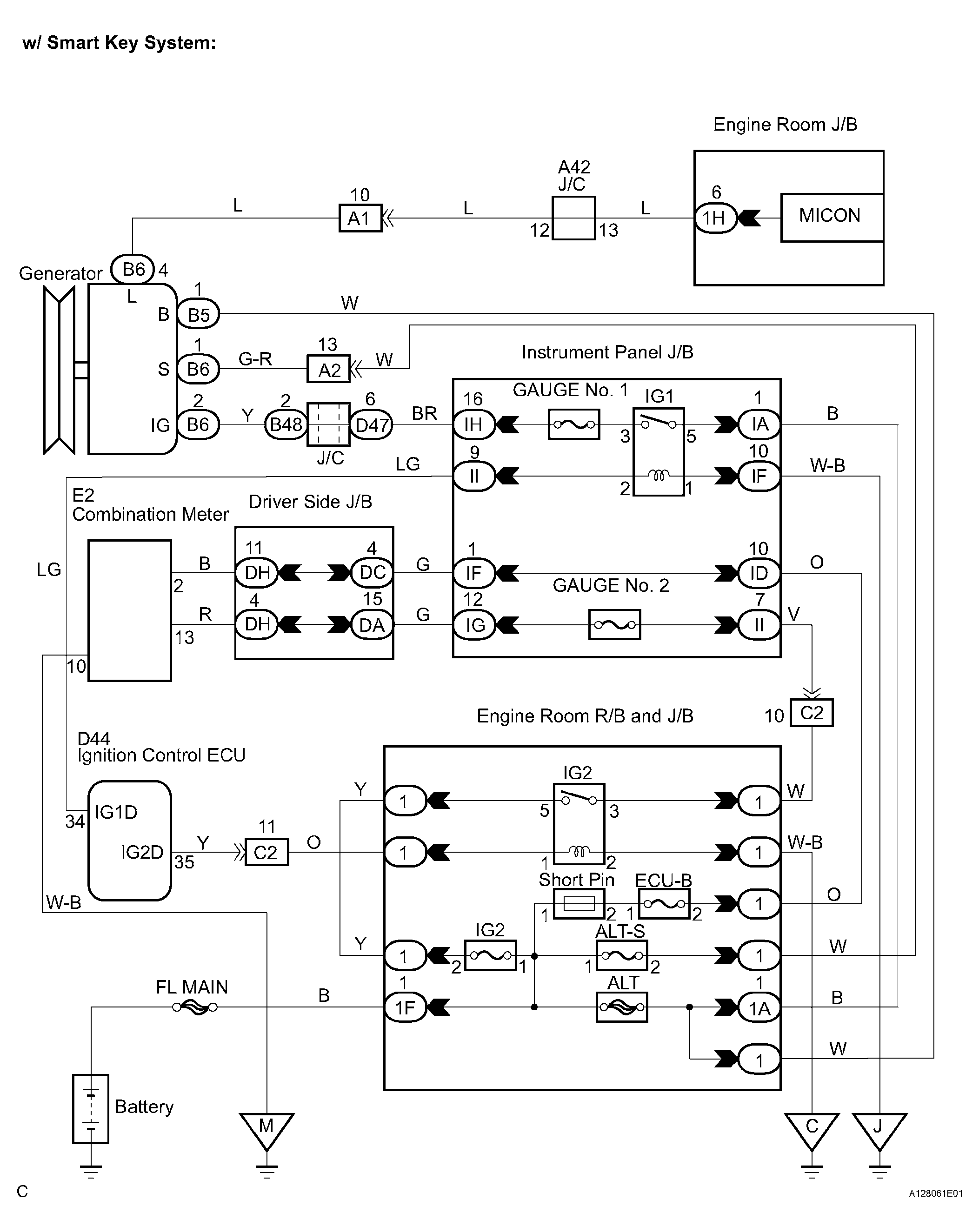

Fig 2: Charging System Diagram (W/ Smart Key System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
