Starting System: Starter: Removal

DISCONNECT BATTERY NEGATIVE TERMINAL
REMOVE AIR CLEANER ASSEMBLY WITH HOSE (See REMOVAL )
REMOVE AIR CLEANER INLET NO.1 (See REMOVAL )
REMOVE STARTER ASSEMBLY
1. Disconnect terminal 50 of the connector from the starter assembly.
2. Open the terminal cap, remove the nut and disconnect the wire harness from terminal 30.

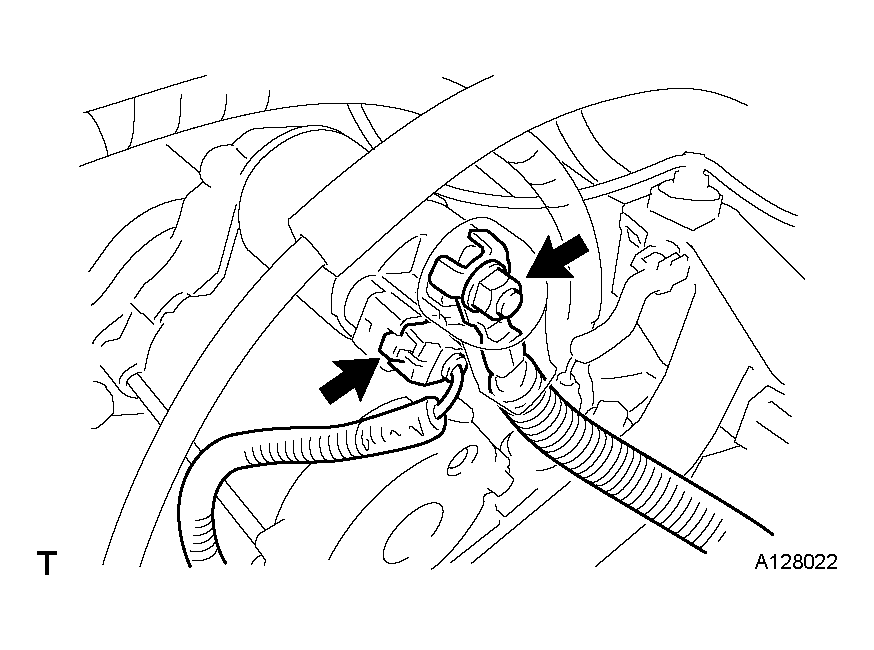

  Fig 1: Disconnecting Terminal 50 Of Connector From Starter Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 bolts and the starter assembly.

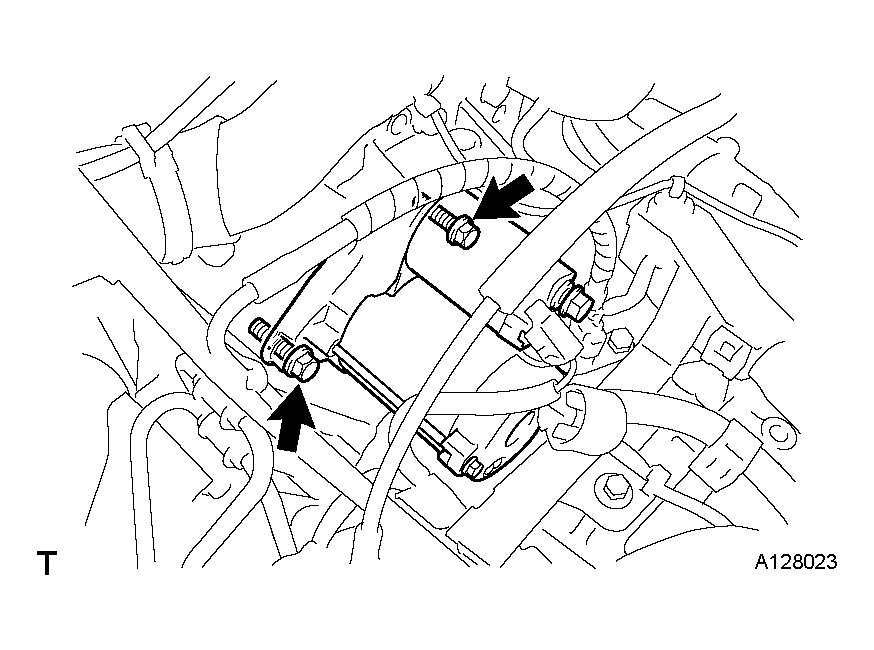

  Fig 2: Removing Starter Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
