Cranking Holding Function Circuit: Wiring Diagram

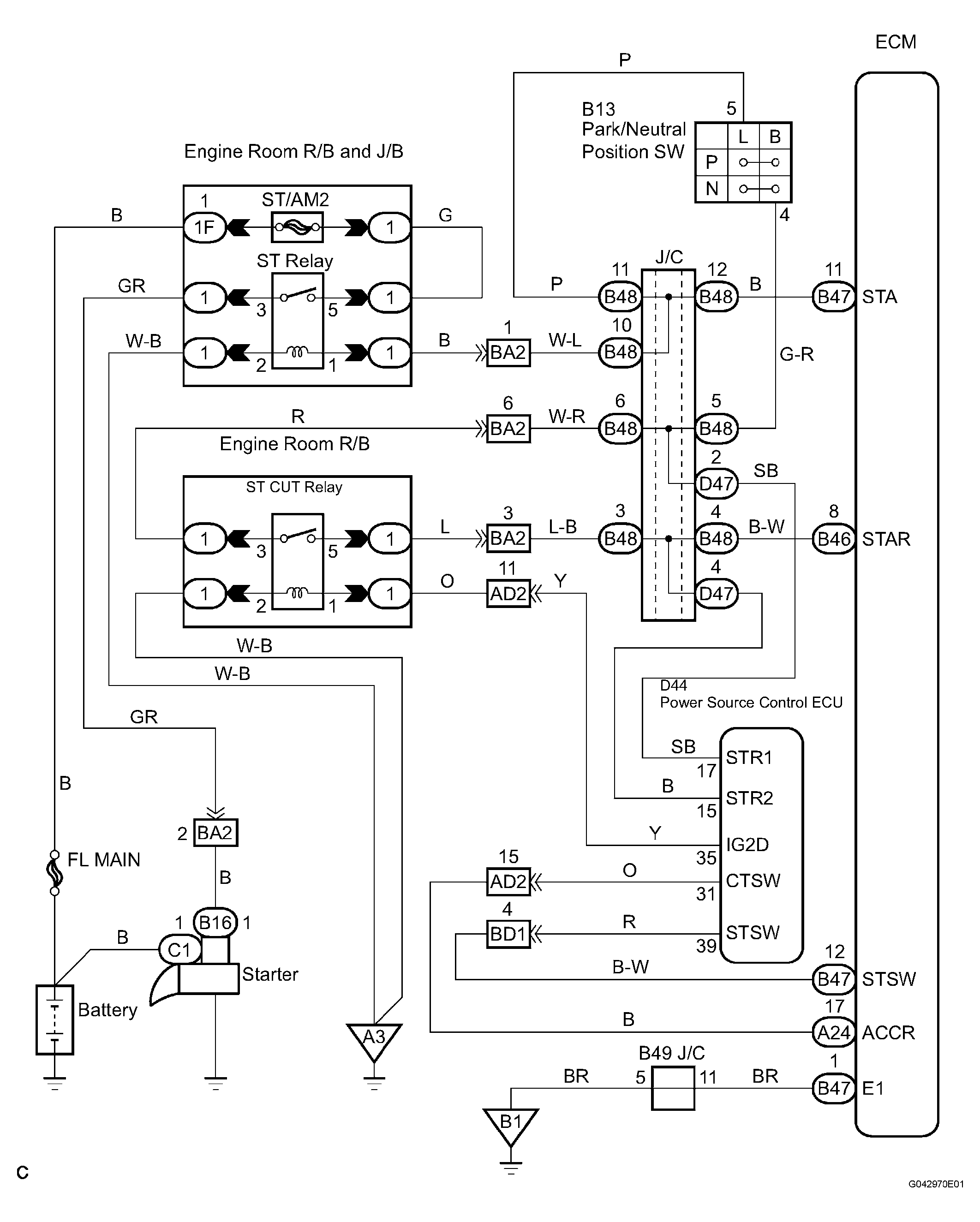

Fig 1: Cranking Holding Function Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
