Inspection Procedure
WARNING: This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

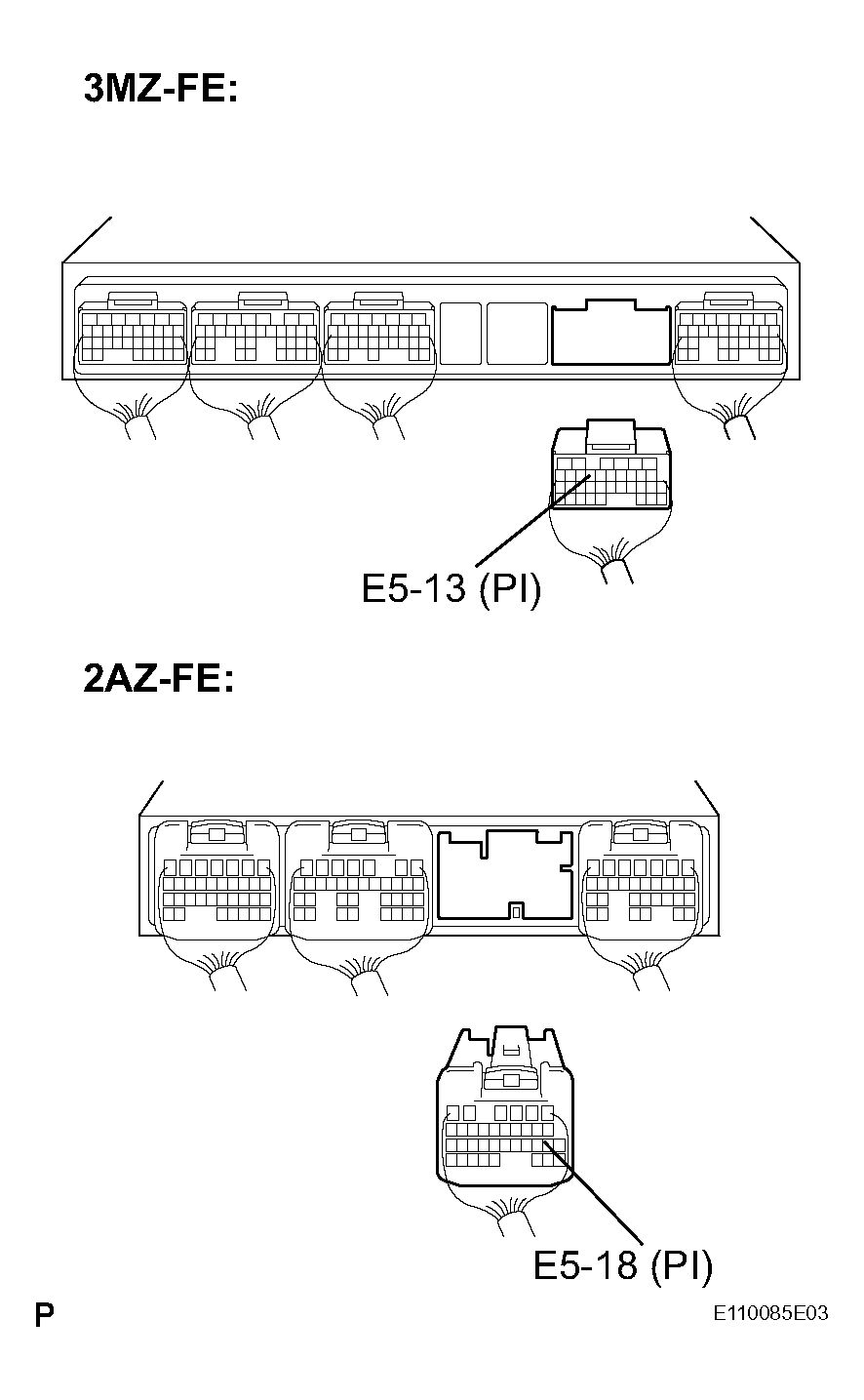

- CHECK HARNESS AND CONNECTOR (ECM - BATTERY)
- Turn the ignition switch off.
- Disconnect the ECM connector.
- Measure the voltage according to the value(s) in ECM - BATTERY (3MZ-FE) and ECM - BATTERY (2AZ-FE)
.
Standard voltage:
3MZ-FE
ECM - BATTERY (3MZ-FE)Tester connection Condition Specification PI (E5-13) - Body ground Ignition ON 10 to 14 V 2AZ-FE
ECM - BATTERY (2AZ-FE)Tester connection Condition Specification PI (E5-18) - Body ground Ignition ON 10 to 14 V
NG: Go to step 2
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

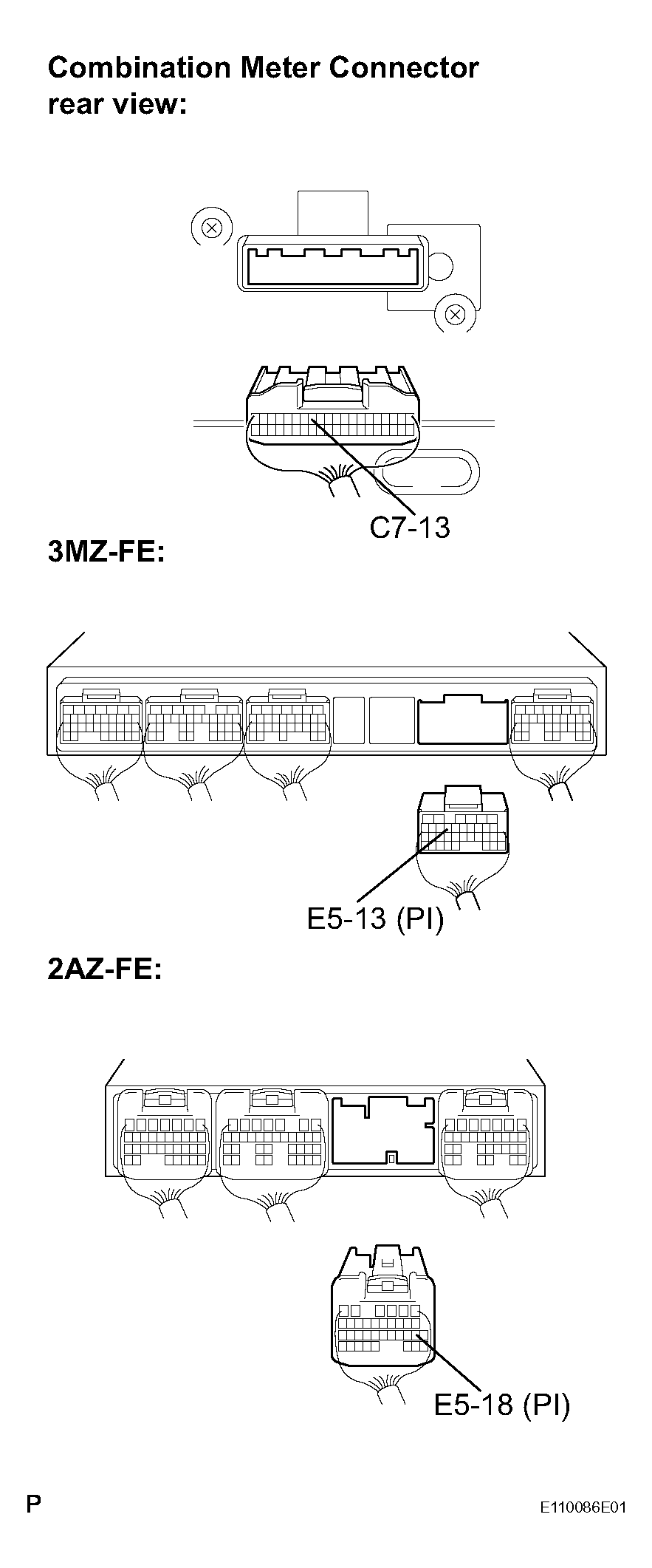

- CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - ECM)
- Turn the ignition switch off.
- Disconnect the combination meter connector.
- Measure the resistance according to the value(s) in COMBINATION METER ASSEMBLY - ECM (3MZ-FE) and COMBINATION METER ASSEMBLY - ECM (2AZ-FE)
.
Standard resistance:
3MZ-FE
COMBINATION METER ASSEMBLY - ECM (3MZ-FE)Tester connection Condition Specification C7-13 - PI (E5-13) Always Below 1 Ω C7-13 - Body ground Always 10 kΩ or higher 2AZ-FE
COMBINATION METER ASSEMBLY - ECM (2AZ-FE)Tester connection Condition Specification C7-13 - PI (E5-18) Always Below 1 Ω C7-13 - Body ground Always 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (COMBINATION METER ASSEMBLY - ECM)
OK: GO TO NEXT STEP
- CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - BATTERY)
- Measure the voltage according to the value(s) in COMBINATION METER ASSEMBLY - BATTERY
.
Standard voltage
COMBINATION METER ASSEMBLY - BATTERYTester connection Condition Specification C7-27 - Body ground Ignition ON 10 to 14 V
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (COMBINATION METER - BATTERY)
OK: REPLACE COMBINATION METER ASSEMBLY
- Measure the voltage according to the value(s) in COMBINATION METER ASSEMBLY - BATTERY
.
