Front Lower Ball Joint: Components

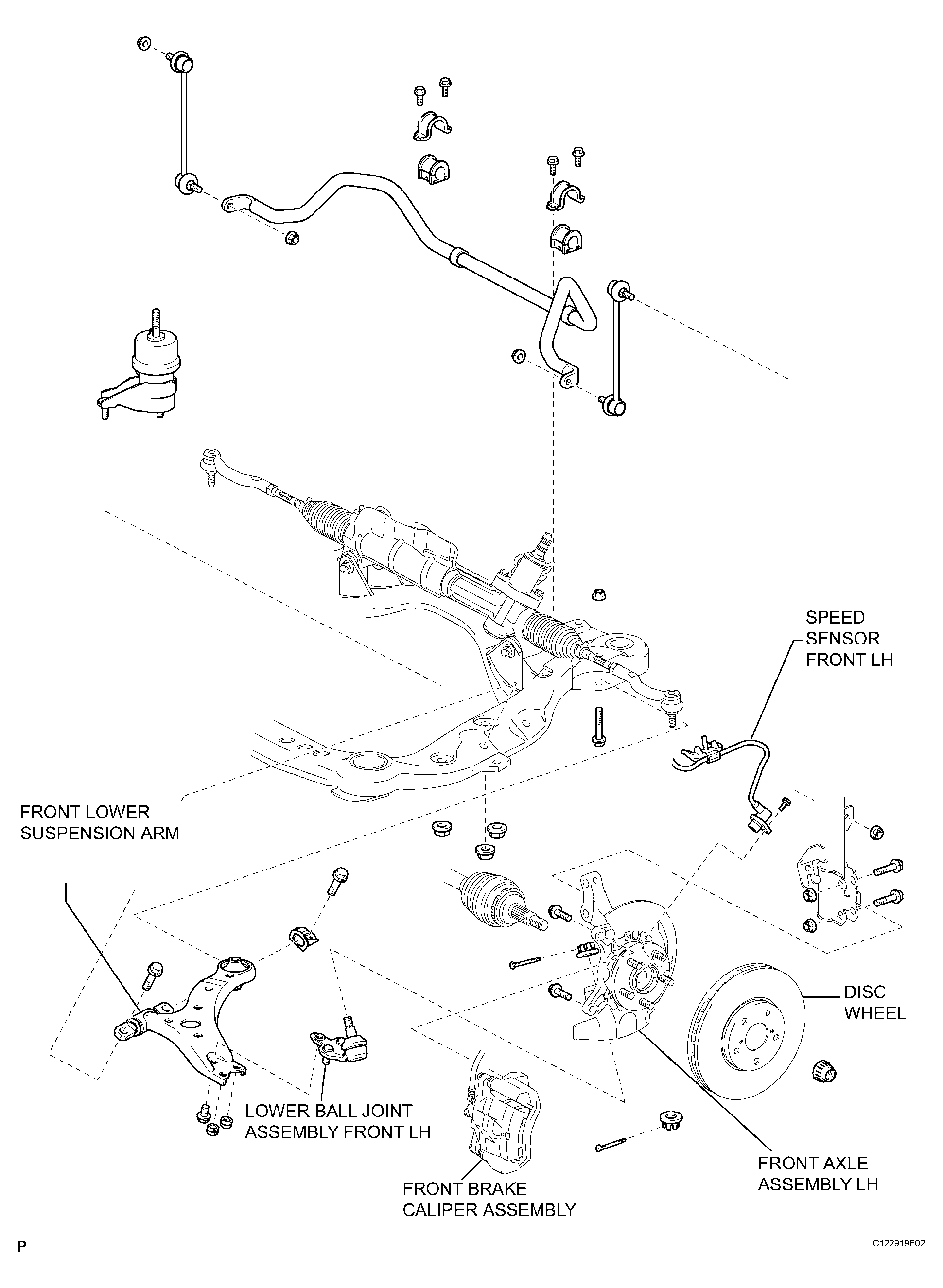

Fig 1: Front Lower Ball Joint Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Front Lower Ball Joint Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
