Front Stabilizer Bar: Components

Fig 1: Identifying Front Stabilizer Bar Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

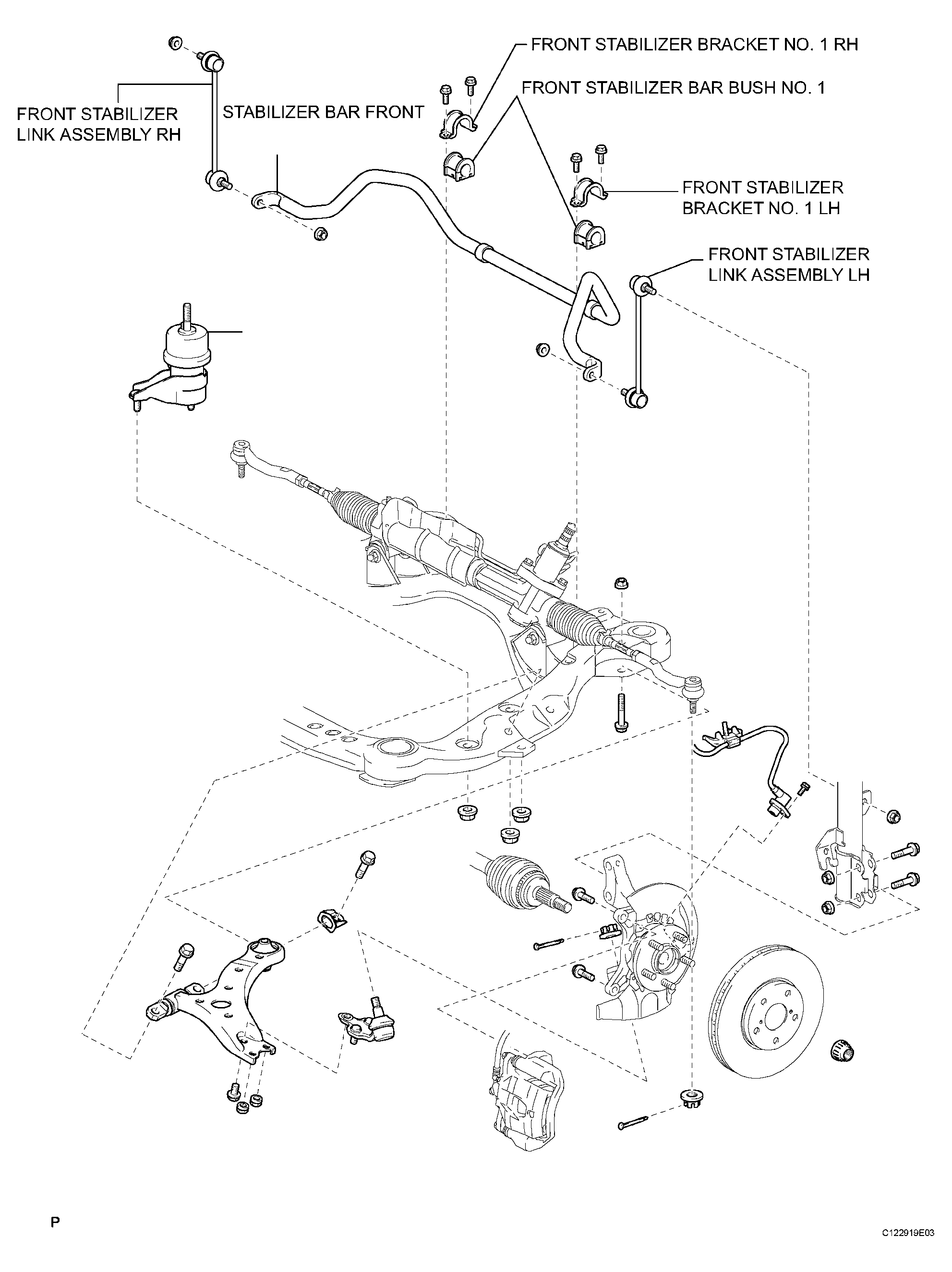

Fig 2: Identifying Front Stabilizer Bar Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
