Front Stabilizer Bar: Installation

1. Install the stabilizer bar front to the vehicle.

HINT:

• Install the bushes as to the outer side of the each bush stopper on the stabilizer bar.
• Place the cutout of the stabilizer bushes as facing the rear side as shown in Fig 1.
  Fig 1: Placing Cutout Of Stabilizer Bushes

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the front stabilizer bracket No. 1 LH with the 2 bolts.

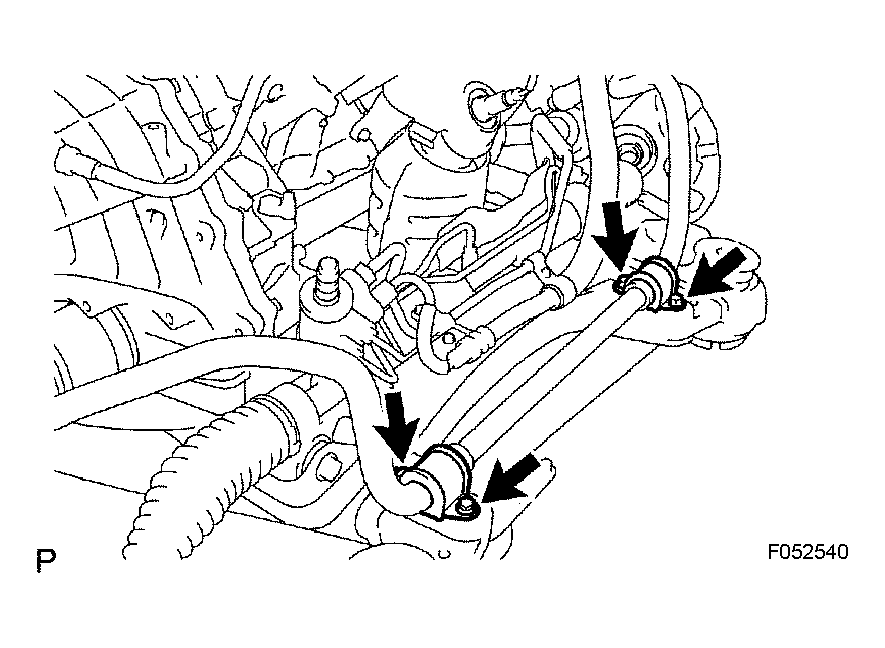

   Fig 2: Installing Front Stabilizer Bracket No. 1 LH With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

HINT:

Install the RH side following the same procedures as with the LH side.

1. Install the engine assembly with transaxle (See INSTALLATION ).

1. Install the front stabilizer link assembly LH with the 2 nuts.

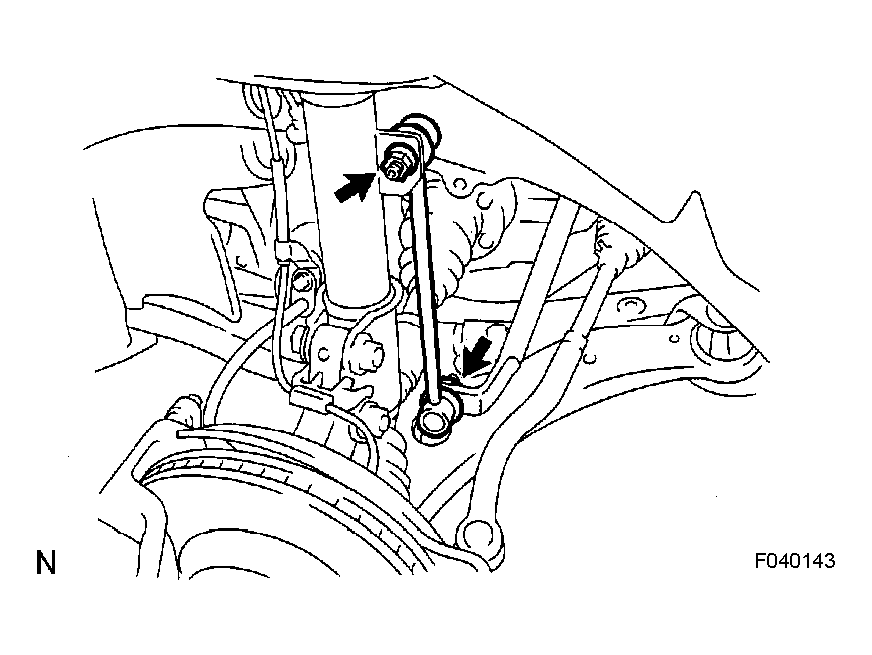

   Fig 3: Installing Front Stabilizer Link Assembly LH With Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)

   HINT:

   Use a hexagon (6 mm) wrench to hold the stud if the ball joint turns together with the nut.

HINT:

Install the RH side following the same procedures as with the LH side.

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

1. Bleed the power steering fluid (See step 2 under ON-VEHICLE INSPECTION ).

1. Inspect and adjust the front wheel alignment (See FRONT WHEEL ALIGNMENT ).
