Rear Sunshade: Notes

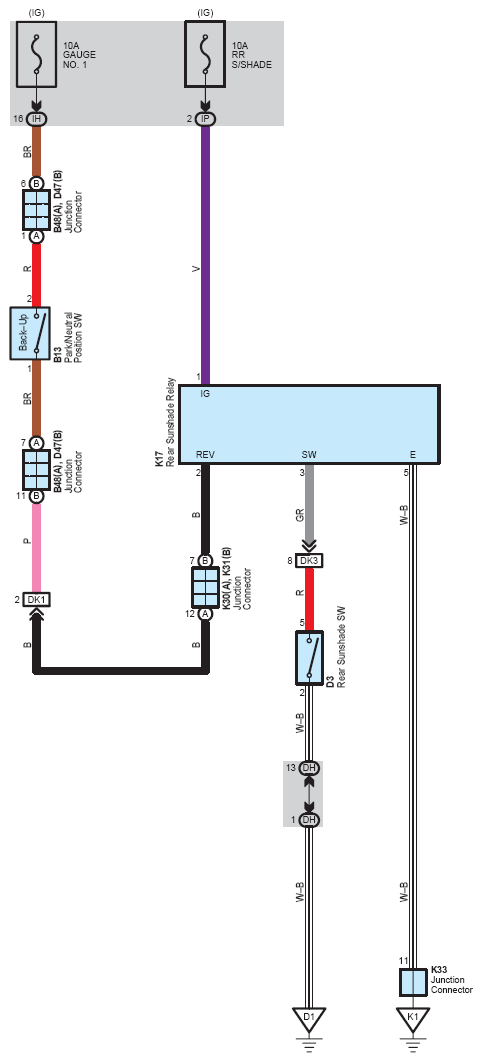

Fig 1: Rear Sunshade System Wiring Diagram
G08779146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
