Oil Pump: Components

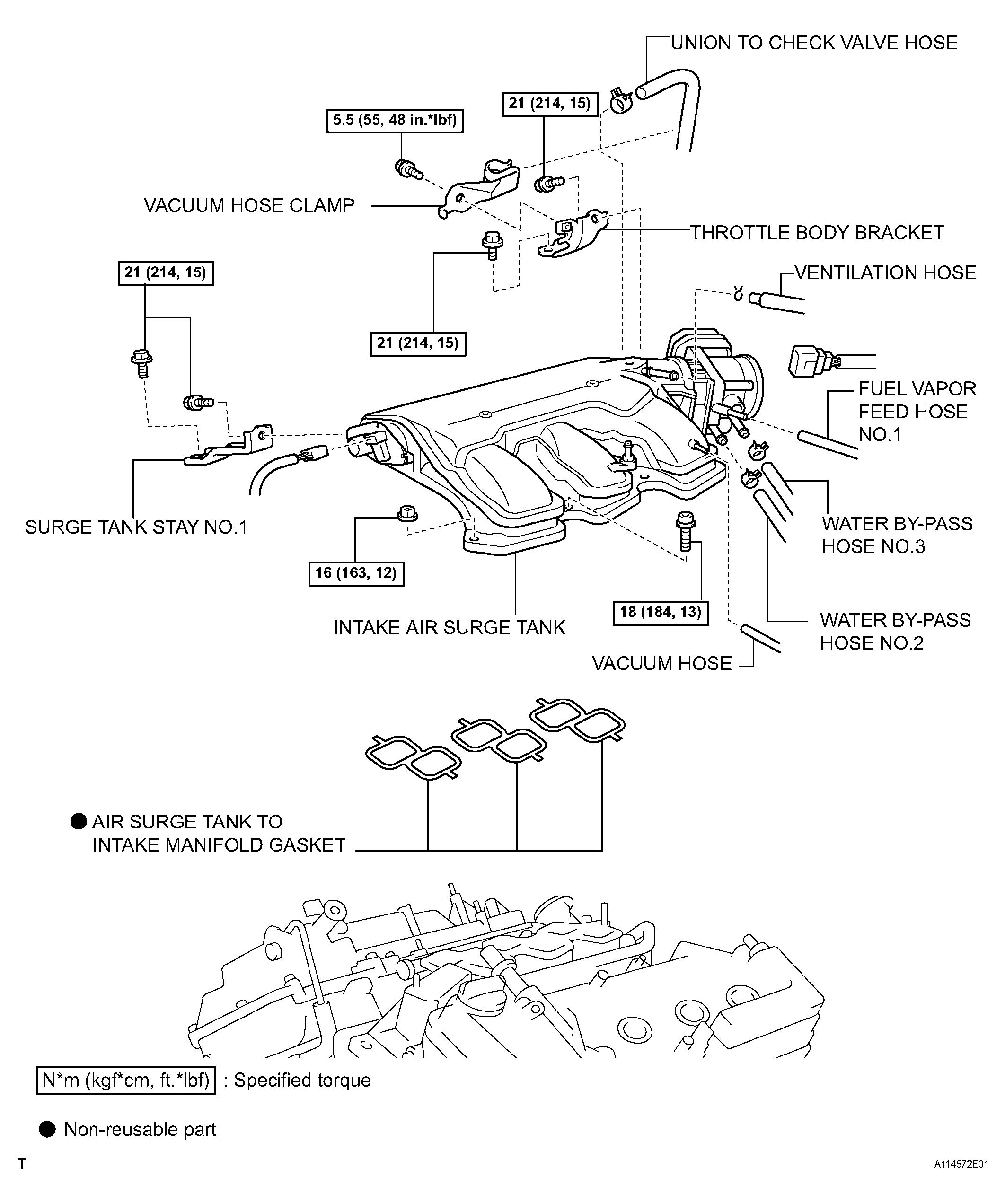

Fig 1: Oil Pump Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

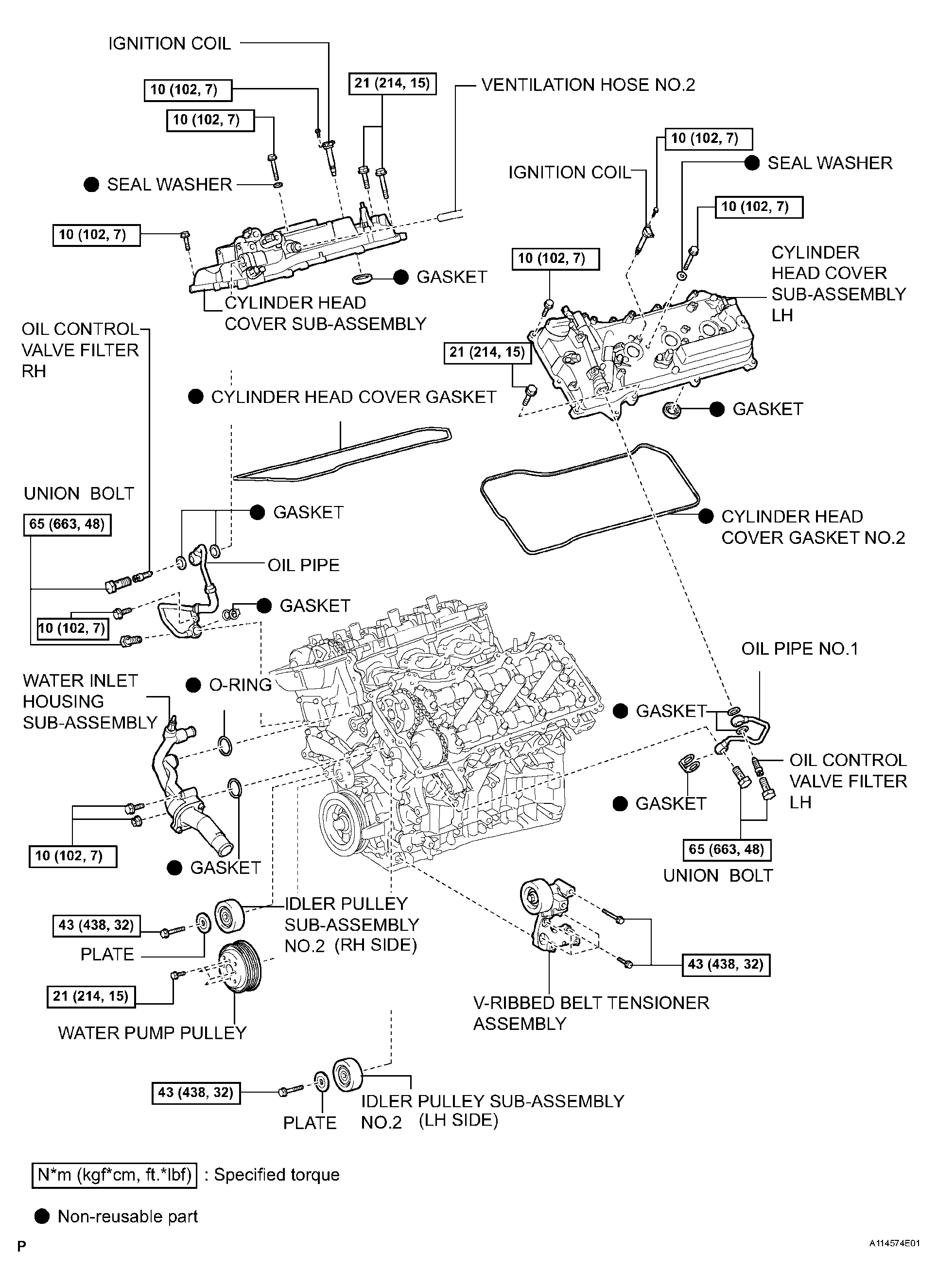

Fig 2: Oil Pump Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

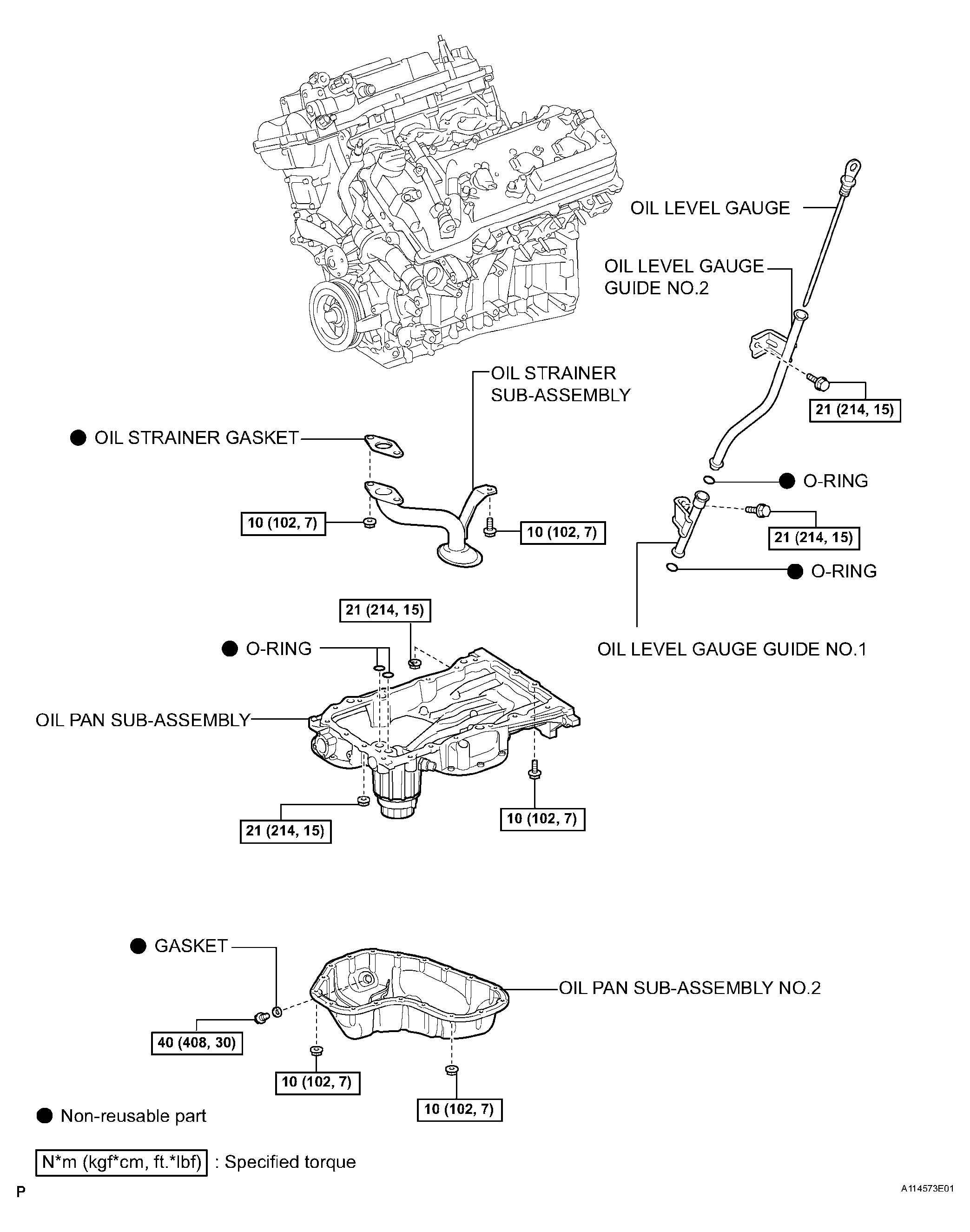

Fig 3: Oil Pump Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Oil Pump Replacement Components With Torque Specifications (4 Of 5)

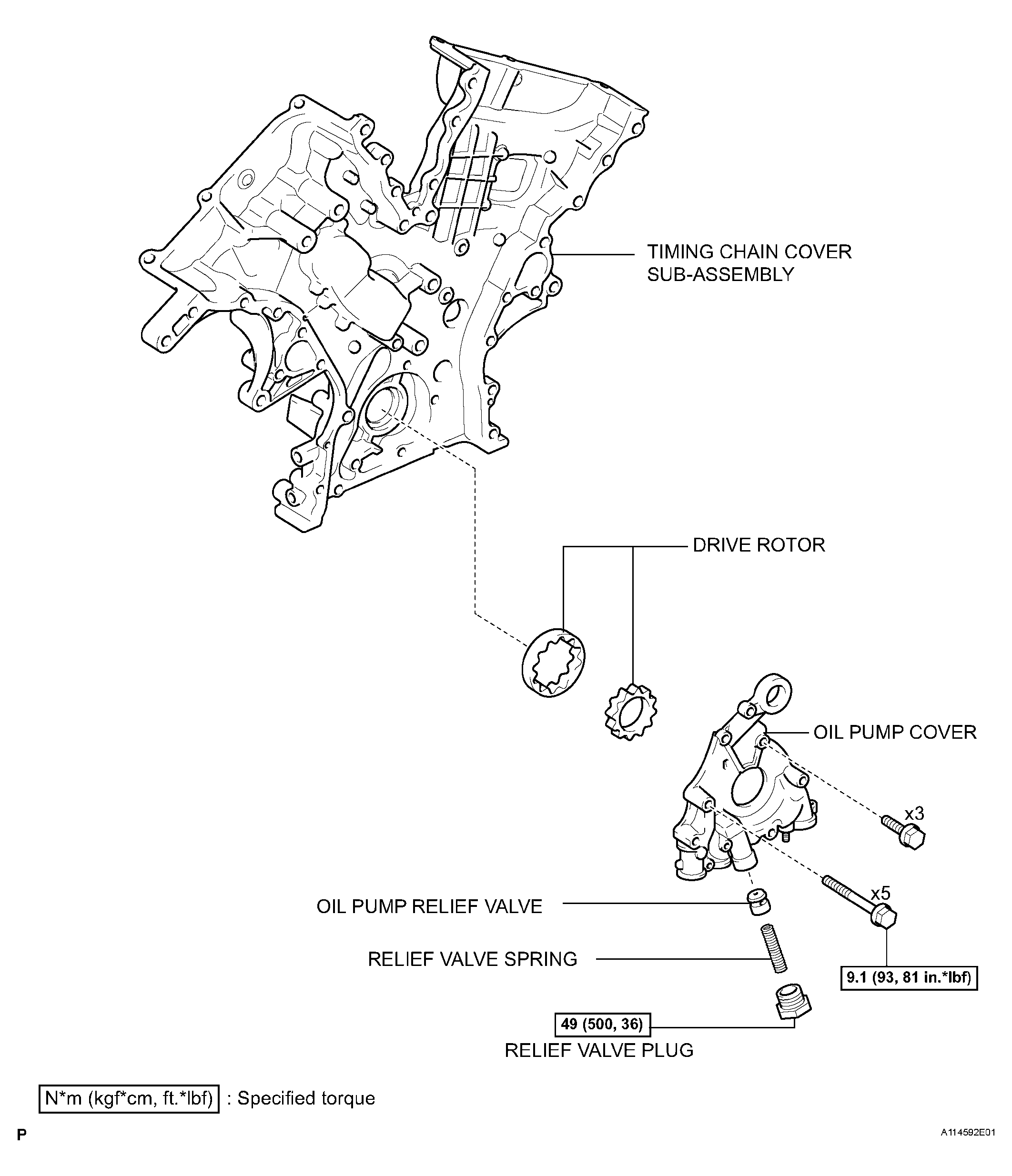

Fig 5: Oil Pump Replacement Components With Torque Specifications (5 Of 5)
