Navigation Controller: Components

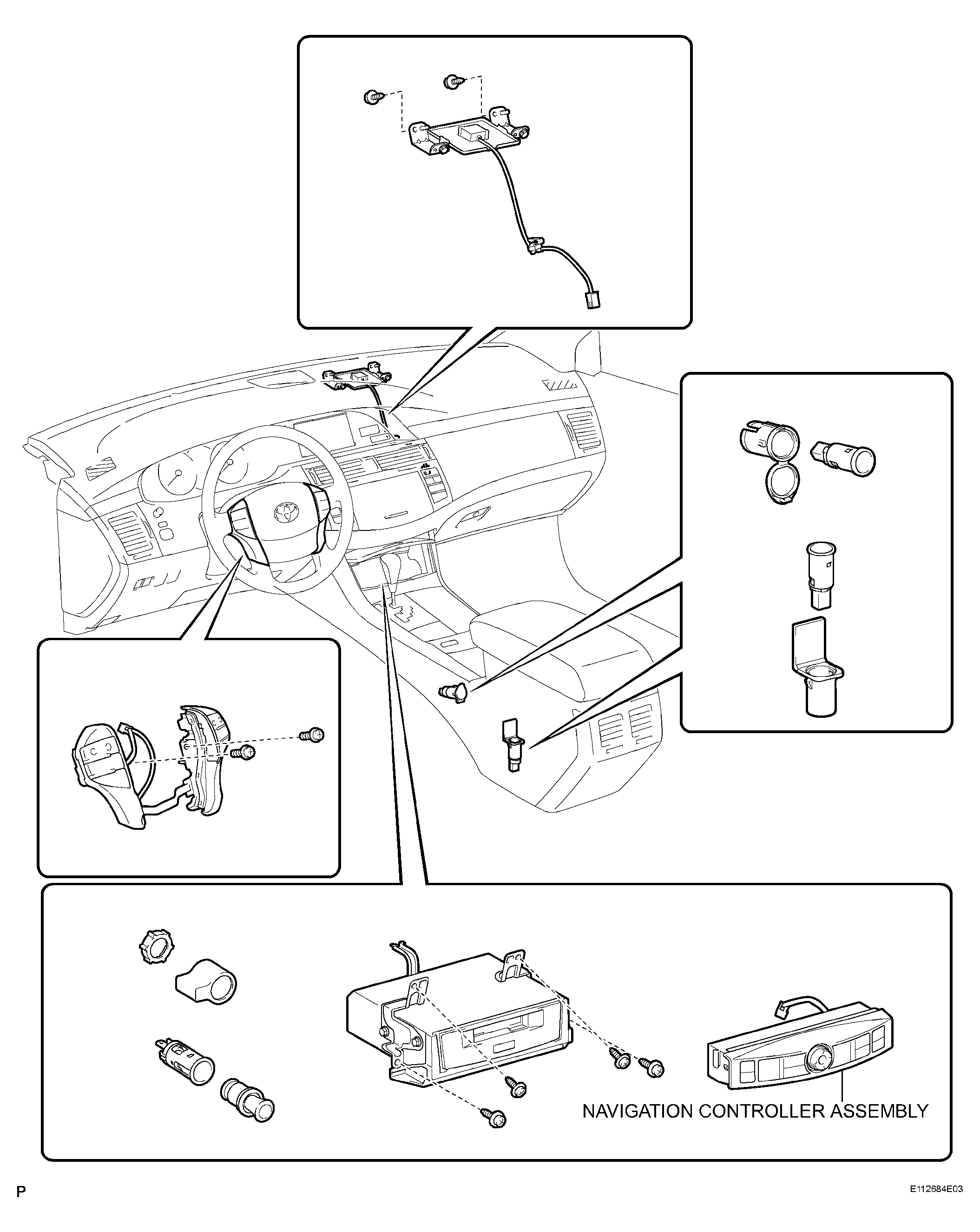

Fig 1: Identifying Navigation Controller Components
G04380323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
