Display Check Mode

HINT:

• This mode checks the color display on the multi-display.
• Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

1. Enter diagnostic mode (See  DTC CHECK / CLEAR  ).
2. Read the display check result.

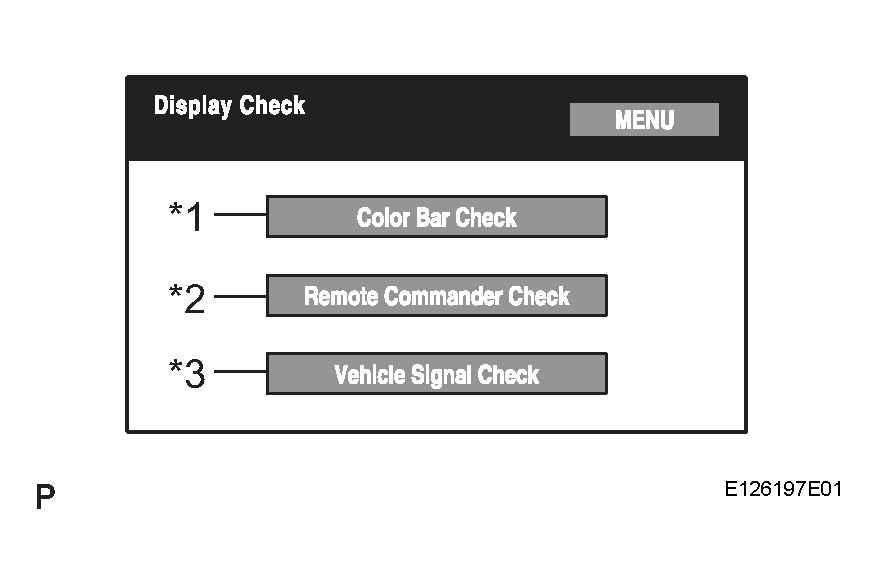

   Fig 1: Display Check Result

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Display Check Mode

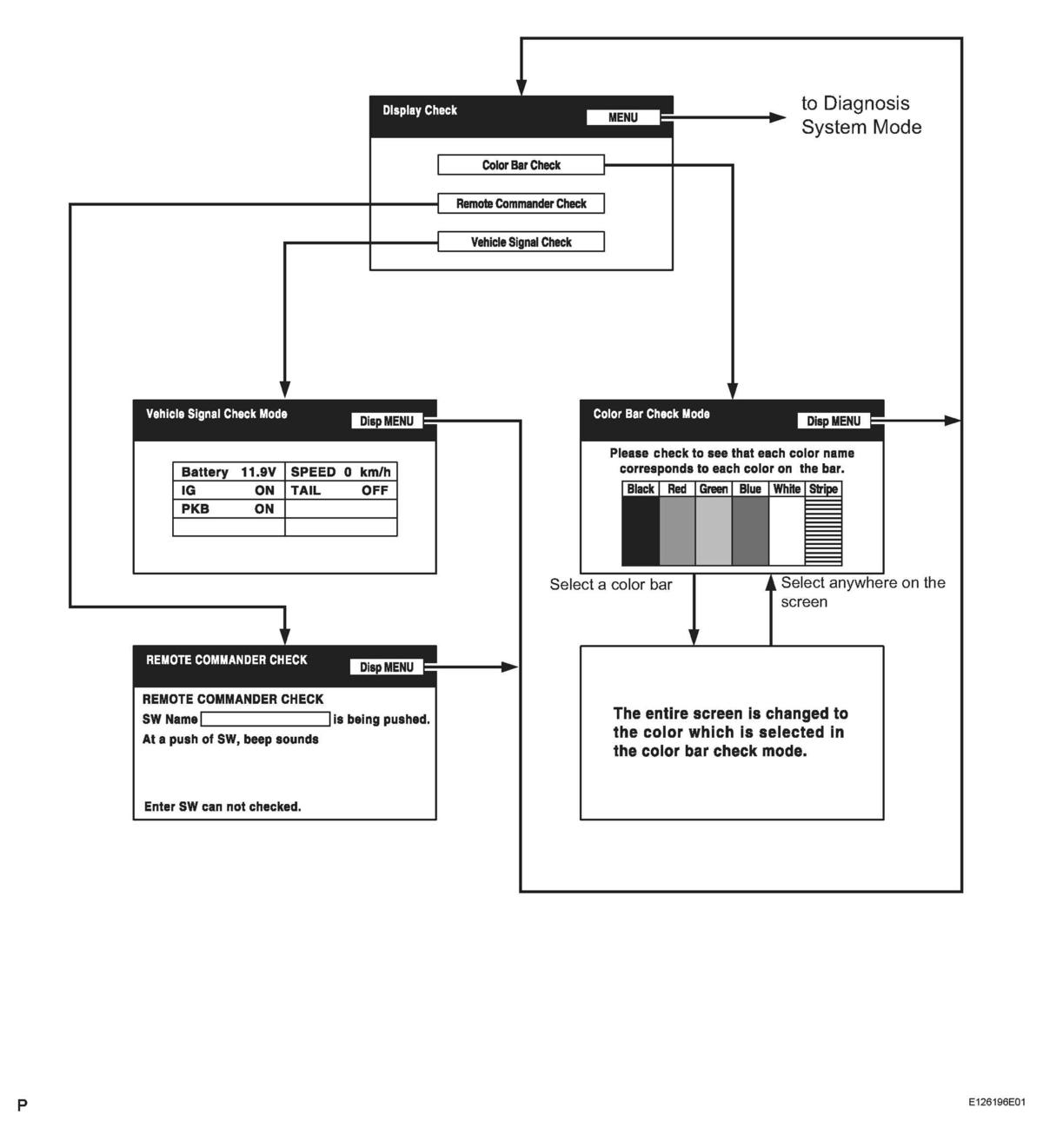

      Fig 2: Displaying Check Mode

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      DISPLAY CONTENTS



      Display	Contents
      Color Bar Check/*1	Color display is checked.
      Remote Commander Check/*2	Operating condition of switches on navigation controller is checked.
      Vehicle Signal Check/*3	Status of the vehicle signal which has been loaded into the display is checked.

      HINT:

      In Display Check Mode, above checks can be performed.

      DISPLAY MEANING



      Display Item	Meaning
      MENU	Selecting this activates the "Diagnosis MENU".

   2. Display Color Bar Check

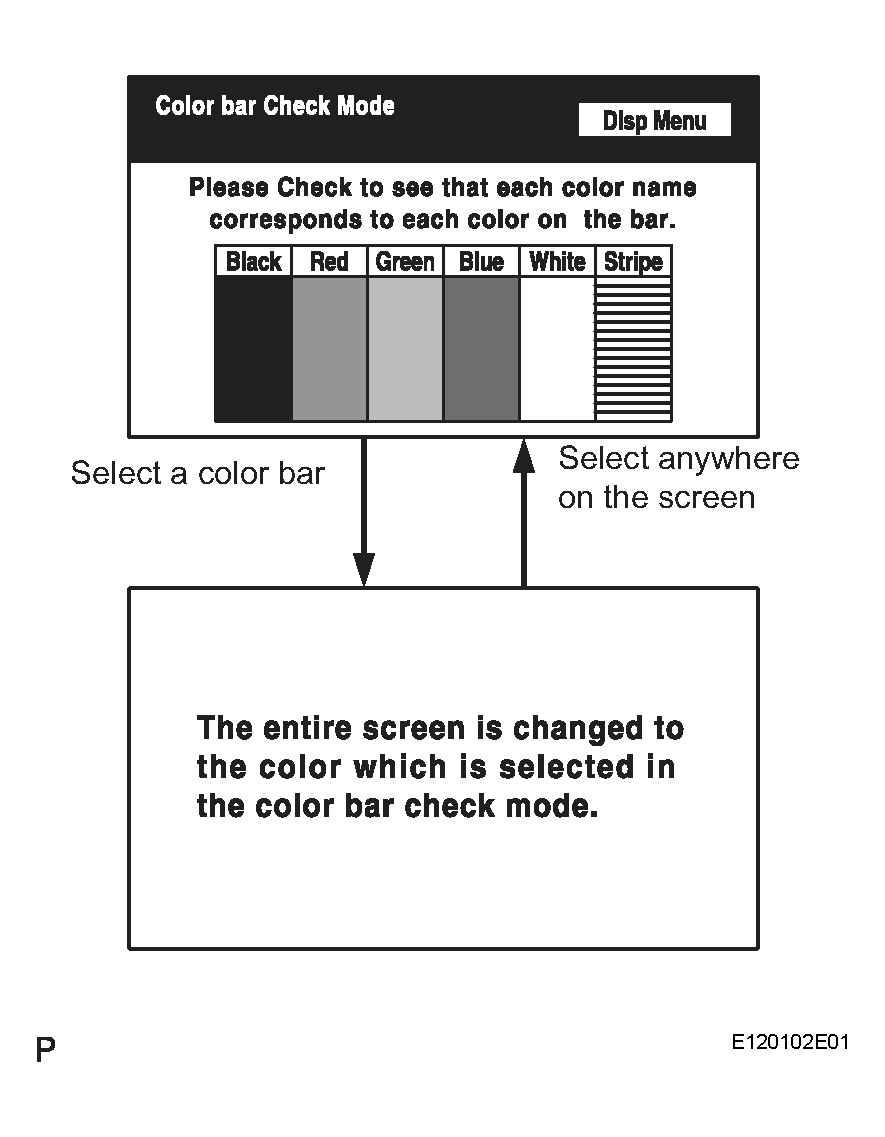

      Fig 3: Displaying Color Bar Check Mode

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Start Diagnosis System.
      2. Select "MENU".
      3. Select "Display Check".
      4. Select "Color Bar Check".
      5. Make sure that each color name is corresponding to each color on the bar.

         HINT:

         Select Black, Red, Green, Blue, White and Stripe to display selected colors and stripe on the entire screen.

      6. Compare with the Color Bar Check in the Navigation Check and make sure that no difference is found.
         DISPLAY ITEM MEANING CHART



         Display Item	Meaning
         Disp MENU	Selecting this activates the "Display Check".

   3. Remote Commander Check

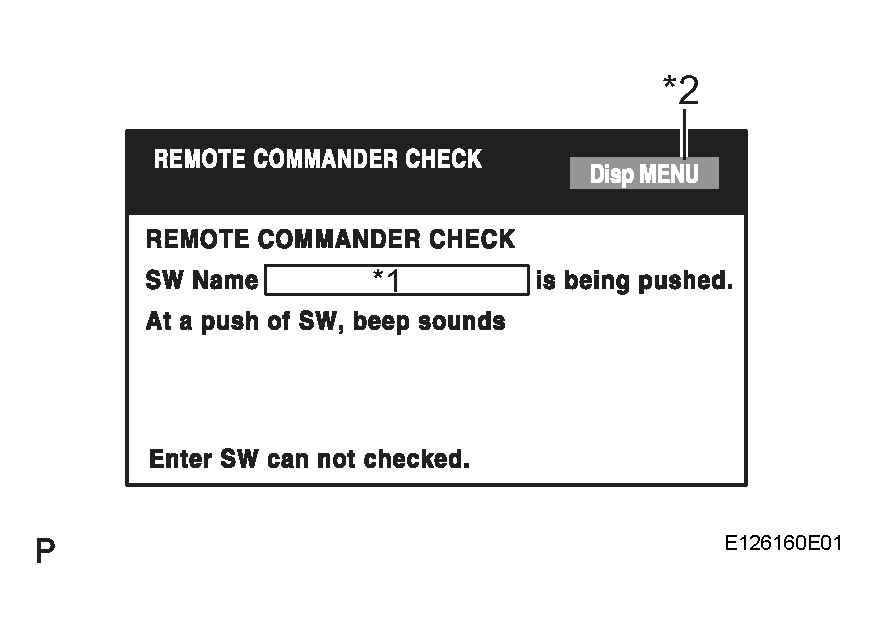

      Fig 4: Display Remote Commander Check Mode

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Start the Diagnosis System.
      2. Select "MENU".
      3. Select "Display Check".
      4. Select "Remote Commander Check".
      5. Press each switch and make sure that it corresponds to the display on the screen.
         DISPLAY DESCRIPTION



         Display Data	Description
         Names of push-button switches/*1	Names of push-button switches pressed are displayed. "MULTIPLE" is displayed when 2 or more push-button switches are pressed. After that if the number of push-button switches being pressed becomes 1, the name of the push-button switch being pressed is displayed.
         Disp MENU/*2	Pressing this switch activates Display Check Menu.

   4. Display Vehicle Signal Check

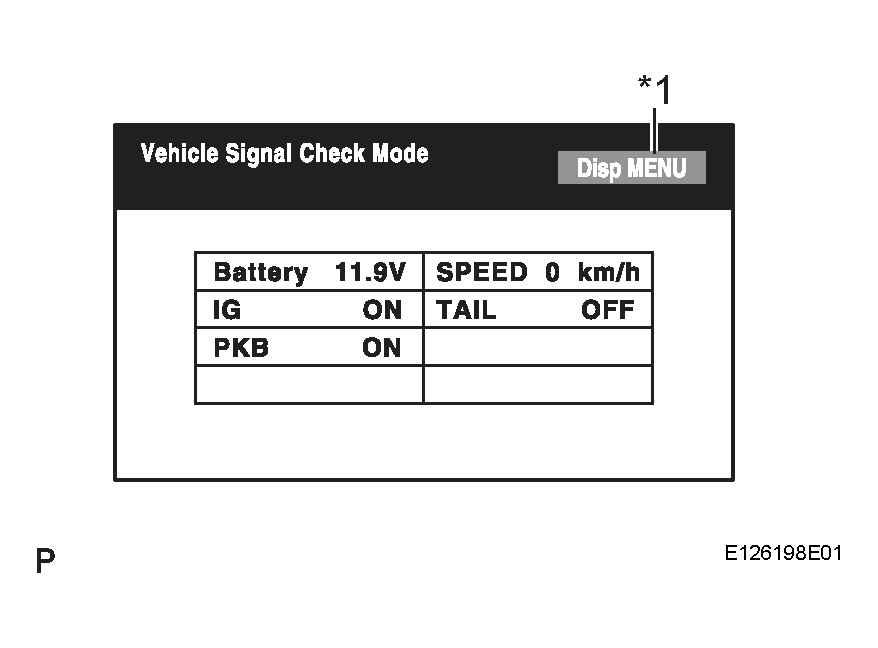

      Fig 5: Display Vehicle Signal Check Mode

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Start the Diagnosis System.
      2. Select "MENU".
      3. Select "Display Check".
      4. Select "Vehicle Signal Check".
      5. Check the status of the vehicle signal loaded into the display.

         HINT:

         Vehicle signal data is updated every second.

         DISPLAY MEANING



         Display Item	Meaning
         Battery	Battery voltage is displayed by V.
         IG	IG (Signal State) is displayed by ON/OFF.
         PKB	IG (Signal State) is displayed by ON/OFF. (Ignition switch is on (IG))
         SPEED	SPD is displayed by calculating the vehicle speed from the pulse signal.
         TAIL	TAIL (Signal State) is displayed by ON/ OFF.
         Disp MENU/*1	Selecting this activates Display Check Menu.
