Distance Control ECU Power Source Circuit: Wiring Diagram

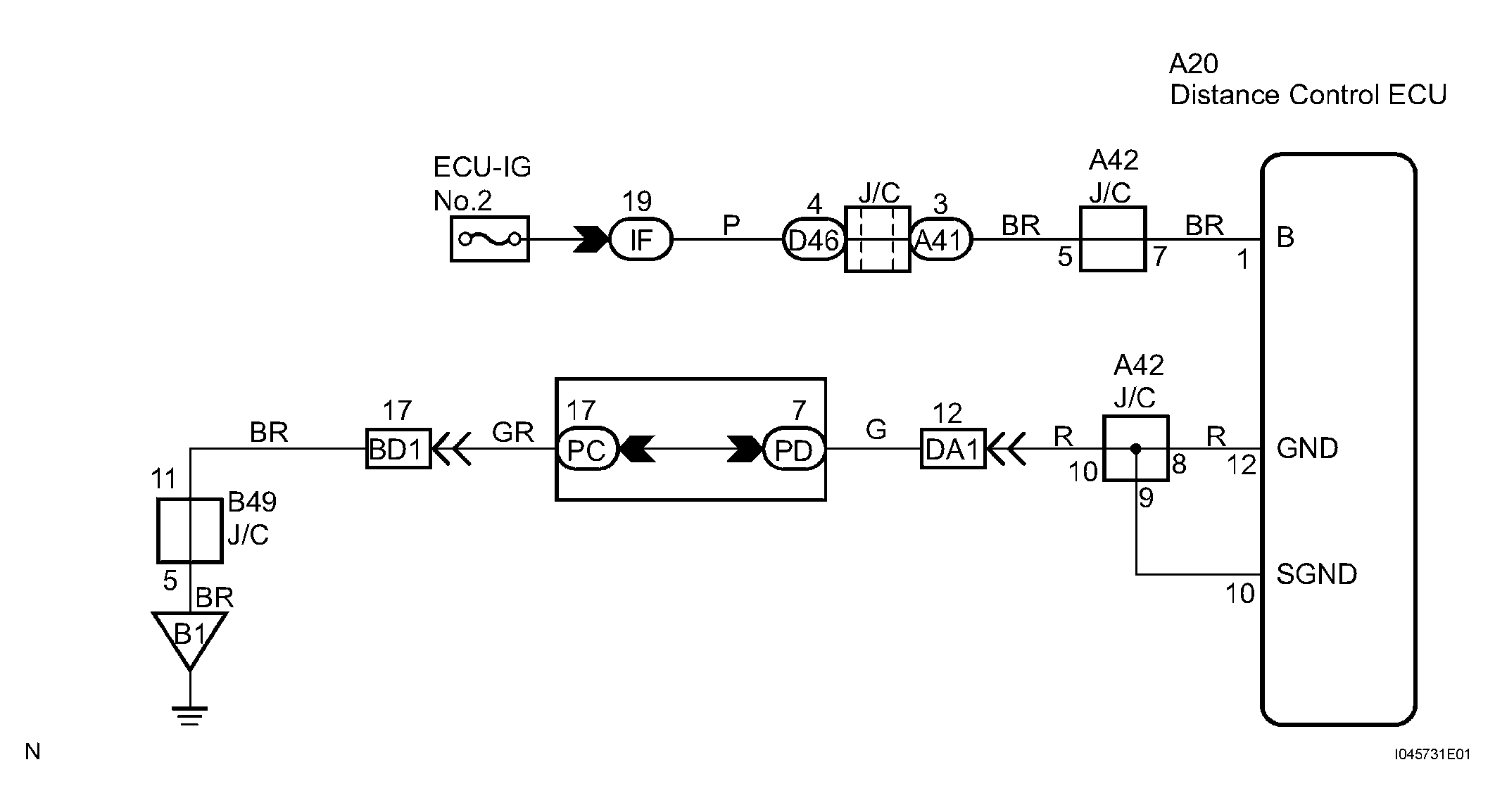

Fig 1: Wiring Diagram - Distance Control ECU Power Source Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
