Laser Sensor: Installation

INSTALL LASER SENSOR

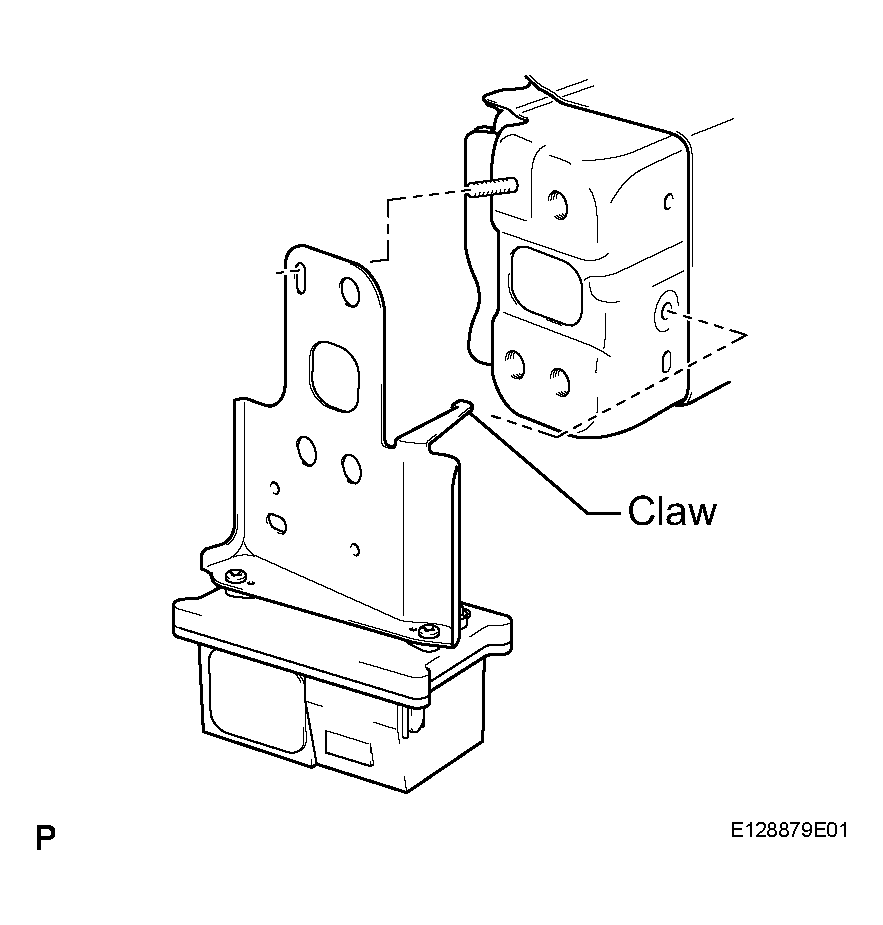

1. Install the laser sensor so that the claw contacts the flat surface around the hole on the front bumper mounting reinforcement.

  Fig 1: Installing Laser Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Do not insert the claw into the hole on the front bumper mounting reinforcement.
2. Engage the clamp.
INSTALL FRONT BUMPER REINFORCEMENT (See DISASSEMBLY )
