Back Window Glass: Components

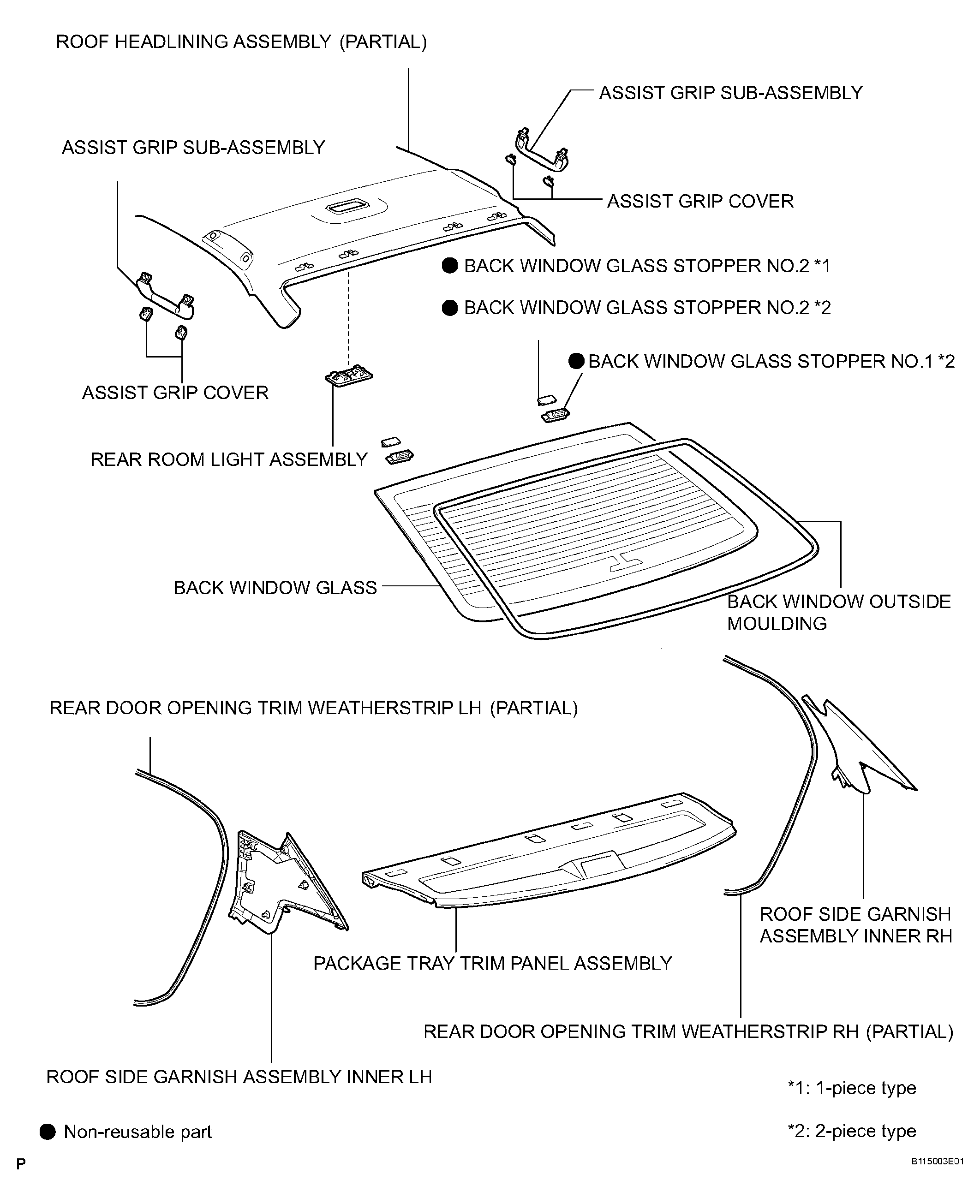

Fig 1: Identifying Back Window Glass Components And Replacements

G04379164

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
