Power Window Control System
›
Driver Side Power Window Motor Circuit
›
Wiring Diagram
Driver Side Power Window Motor Circuit: Wiring Diagram

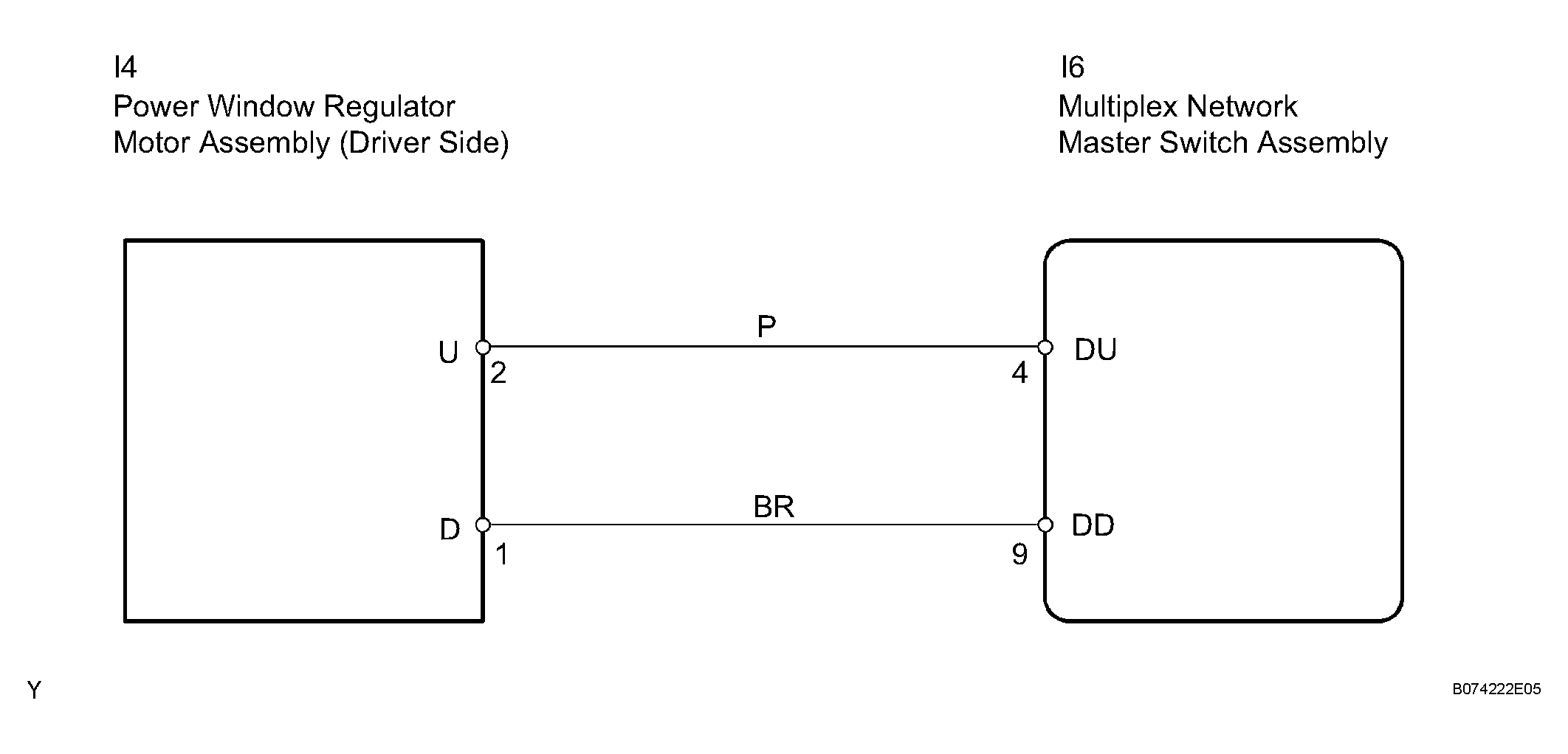

Fig 1: Driver Side Power Window Motor Circuit Wiring Diagram
