Front Passenger Side Power Window Switch Circuit: Wiring Diagram

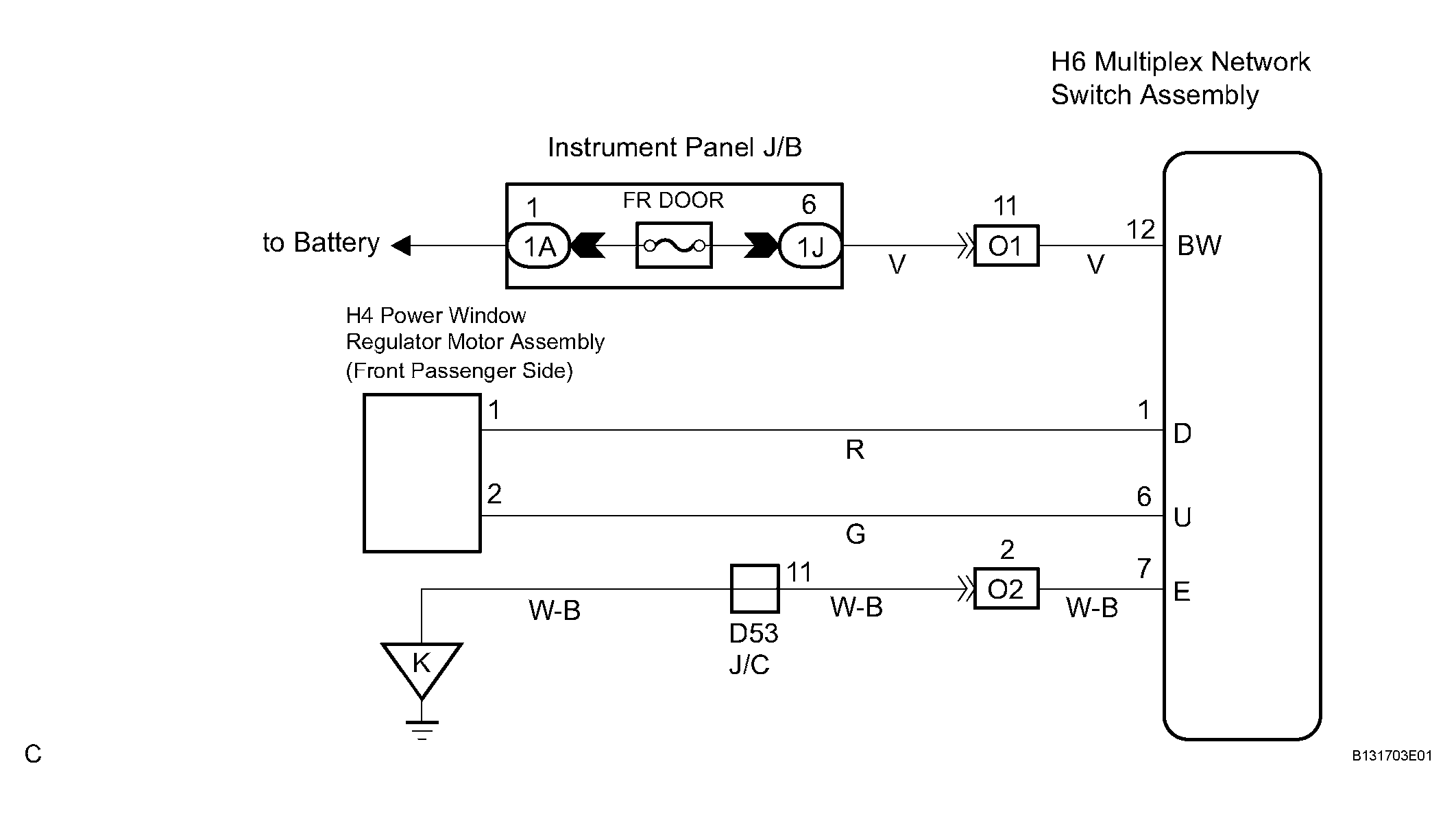

Fig 1: Front Passenger Side Power Window Switch Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
