Front Axle Hub Bolt: Components

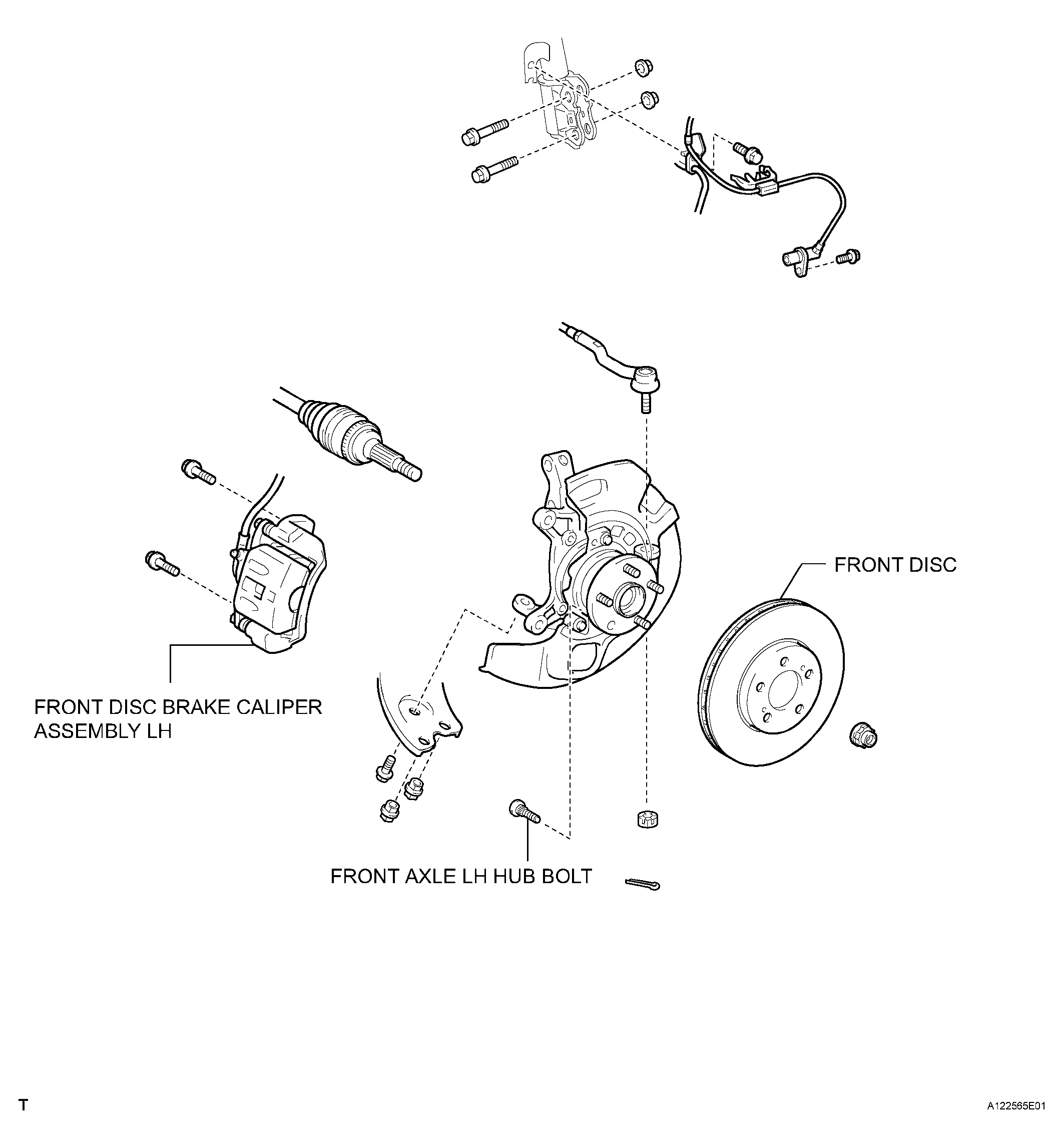

Fig 1: Identifying Front Axle Hub Bolt Components

G04375345

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
