Audio System with 12 Speaker: Notes

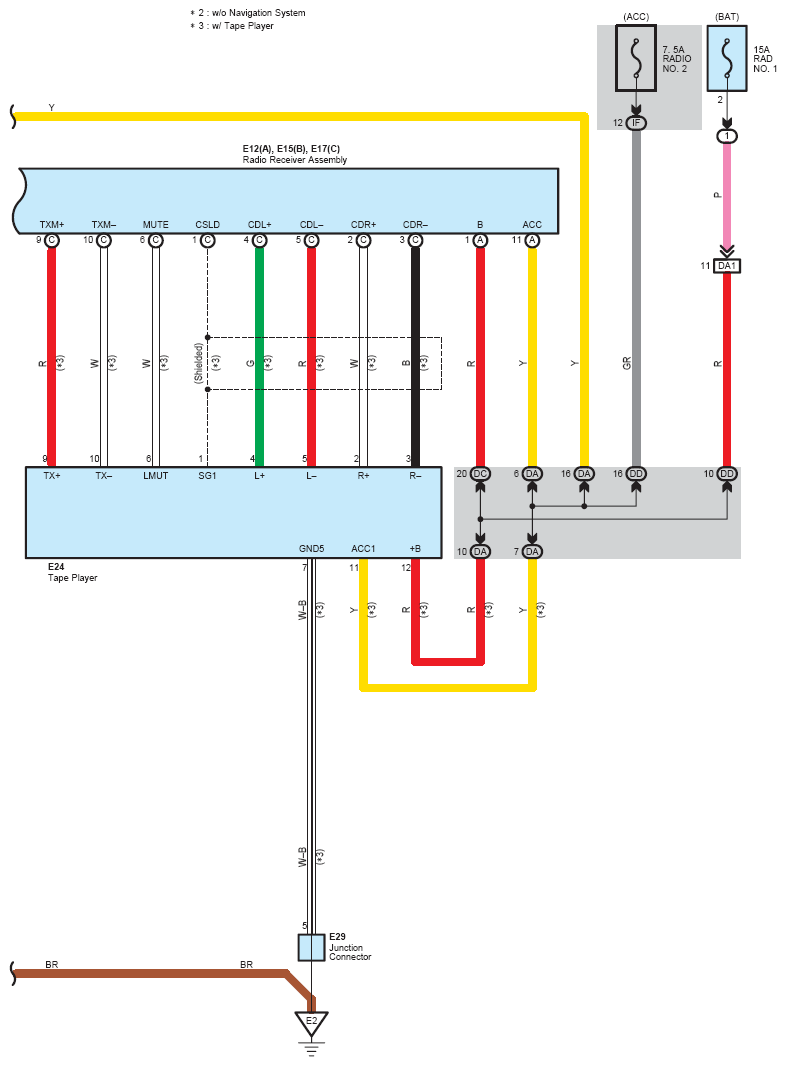

Fig 1: Audio (With 12 Speaker) System Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

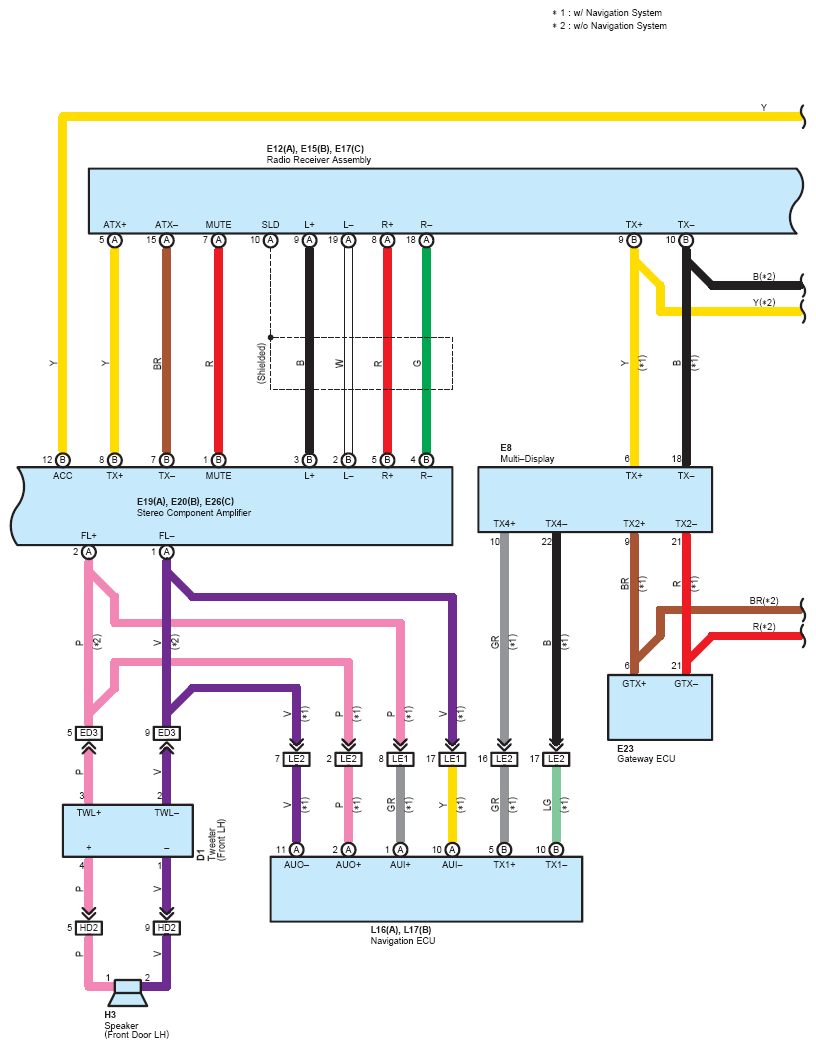

Fig 2: Audio (With 12 Speaker) System Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

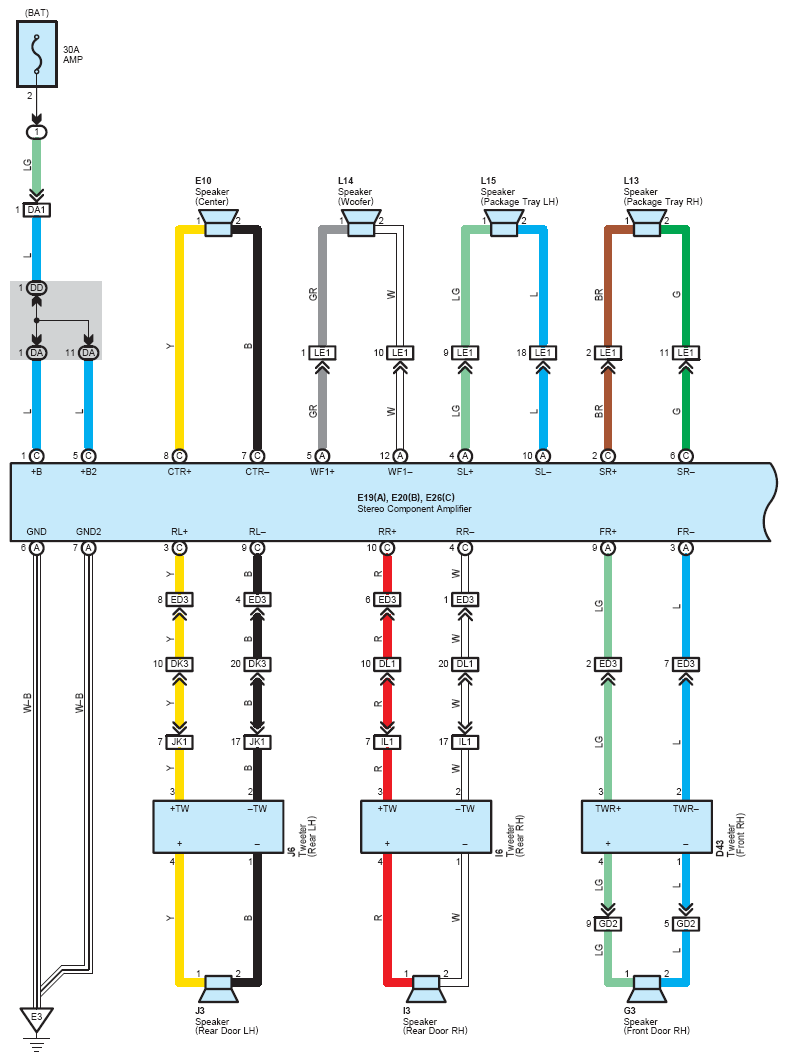

Fig 3: Audio (With 12 Speaker) System Wiring Diagram (3 Of 4)

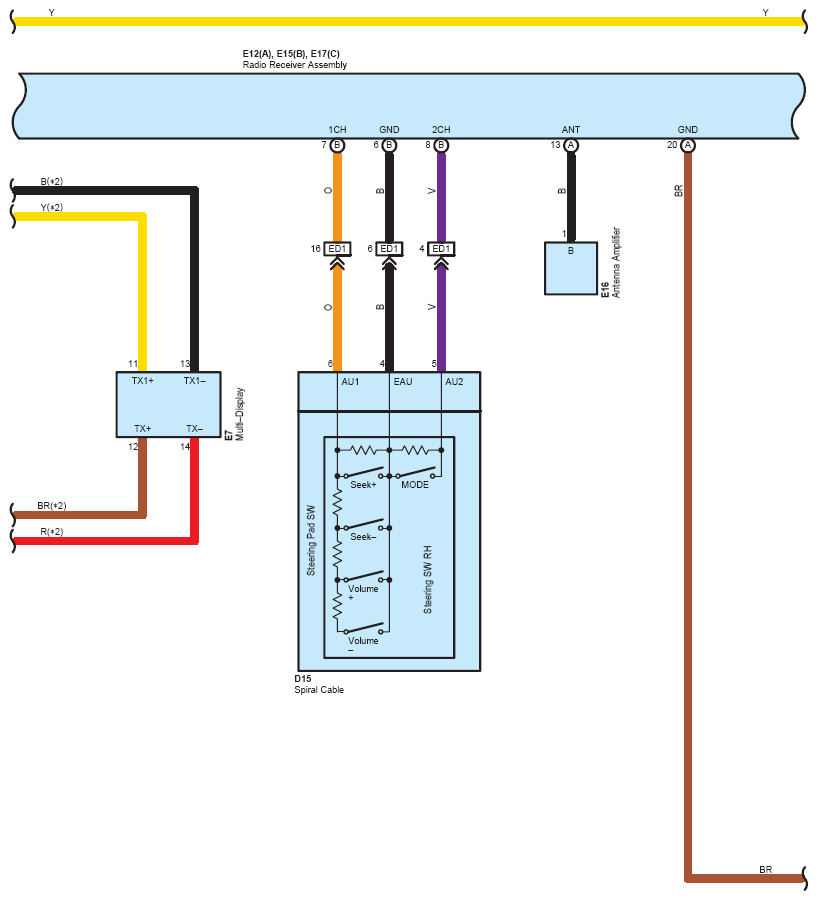

Fig 4: Audio (With 12 Speaker) System Wiring Diagram (4 Of 4)
